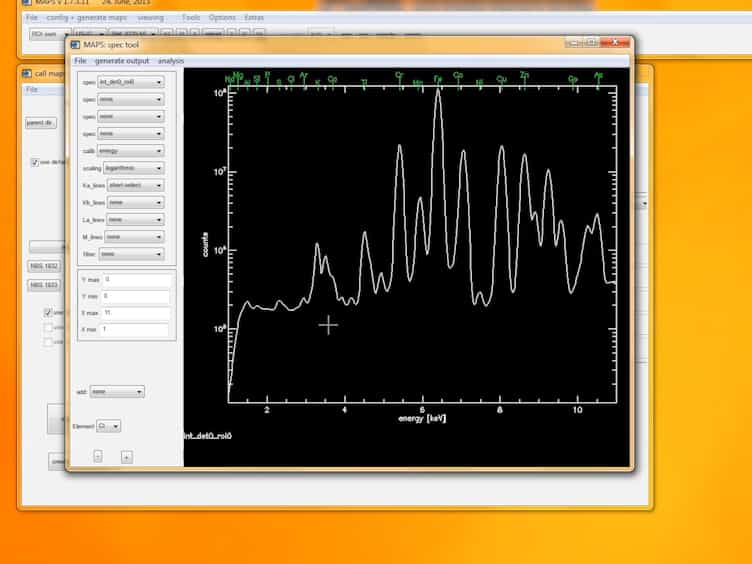

Quantifying X-Ray Fluorescence Data Using MAPS
Published on: February 17, 2018
Diffraction corrections in radiometry: comparison of two different methods of calculation.
Applied Optics
|February 16, 2010
Summary
This study presents a new diffraction correction formula for accurately measuring radiation flux. Our formula yields significantly larger corrections than previous methods, with experimental evidence supporting its validity.
Area of Science:
- Optics and Photonics
- Radiation Physics
Background:
- Diffraction effects impact radiation flux measurements.
- Previous studies by Steel, De, and Bell used Focke's approximation for diffraction corrections.
Purpose of the Study:
- To derive a new diffraction correction formula for flux measurements.
- To compare the new formula with existing methods and validate its accuracy.
Main Methods:
- Developed a novel diffraction correction formula based on a new approximation.
- Investigated the effect of diffraction on detector flux in the illuminated region.
- Analyzed complex radiation cases.
Main Results:
- The new formula predicts substantially greater diffraction corrections compared to Steel et al.'s.
- Experimental evidence supports the validity of the derived formula.
- Simplified diffraction correction calculations for complex radiation under specific conditions.
Conclusions:
- The new approximation provides more accurate diffraction corrections for flux measurements.
- Discrepancies with previous methods are explained by the different approximation used.
- The study offers a more precise tool for optical and radiation physics applications.
