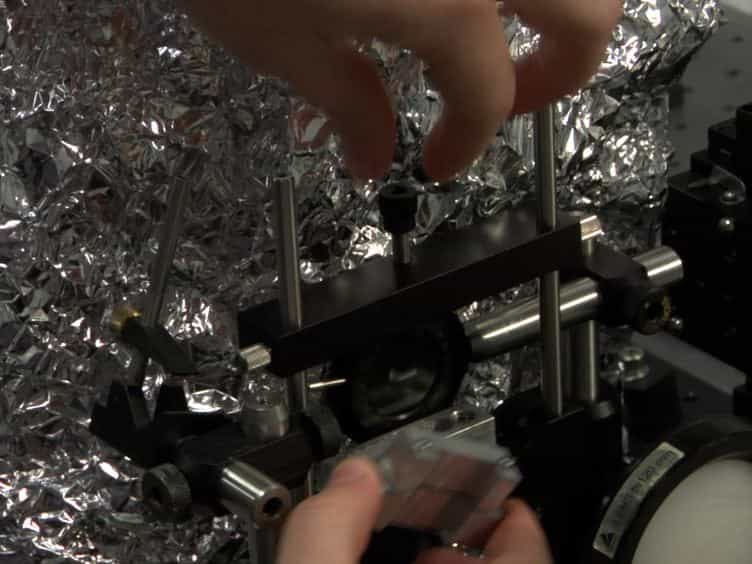

Terahertz Microfluidic Sensing Using a Parallel-plate Waveguide Sensor
Published on: August 30, 2012
Simplified method of calculating power transfer between nonparallel dielectric waveguides.
Applied Optics
|June 16, 2010
Summary
A simplified method accurately calculates power transfer in nonparallel waveguide directional couplers. Experimental results for titanium-indium-niobate (Ti:LiNbO3) devices validate the theoretical approach.
Area of Science:
- Photonics and Waveguide Technology
- Optical Engineering
- Materials Science (Titanium-Indium-Niobate)
Background:
- Directional couplers are fundamental optical components.
- Accurate modeling of power transfer is crucial for device design.
- Nonparallel waveguide regions present a challenge in existing models.
Purpose of the Study:
- To present a simplified calculation method for power transfer in nonparallel waveguide directional couplers.
- To validate the proposed method through experimental measurements.
- To enhance the design and predictability of optical directional couplers.
Main Methods:
- Development of a simplified analytical model for power transfer.
- Fabrication of several titanium-indium-niobate (Ti:LiNbO3) directional coupler devices.
- Experimental measurement of power transfer in fabricated devices.
Main Results:
- The simplified method provides accurate calculations for power transfer.
- Measured power transfer values closely match theoretical predictions.
- The method is effective for various Ti:LiNbO3 directional coupler geometries.
Conclusions:
- The presented simplified method offers an efficient way to calculate power transfer in nonparallel waveguide directional couplers.
- Experimental validation confirms the accuracy and applicability of the method.
- This work contributes to improved design and performance analysis of optical directional couplers.
