A parallel-plate capacitor with capacitance C, whose plates have area A and separation distance d, is connected to a resistor R and a battery of voltage V. The current starts to flow at t = 0. What is the displacement current between the capacitor plates at time t? From the properties of the capacitor, what is the corresponding real current?
To solve the problem, we can use the equations from the analysis of an RC circuit and Maxwell's version of Ampère's law.
For the first part of the problem,...

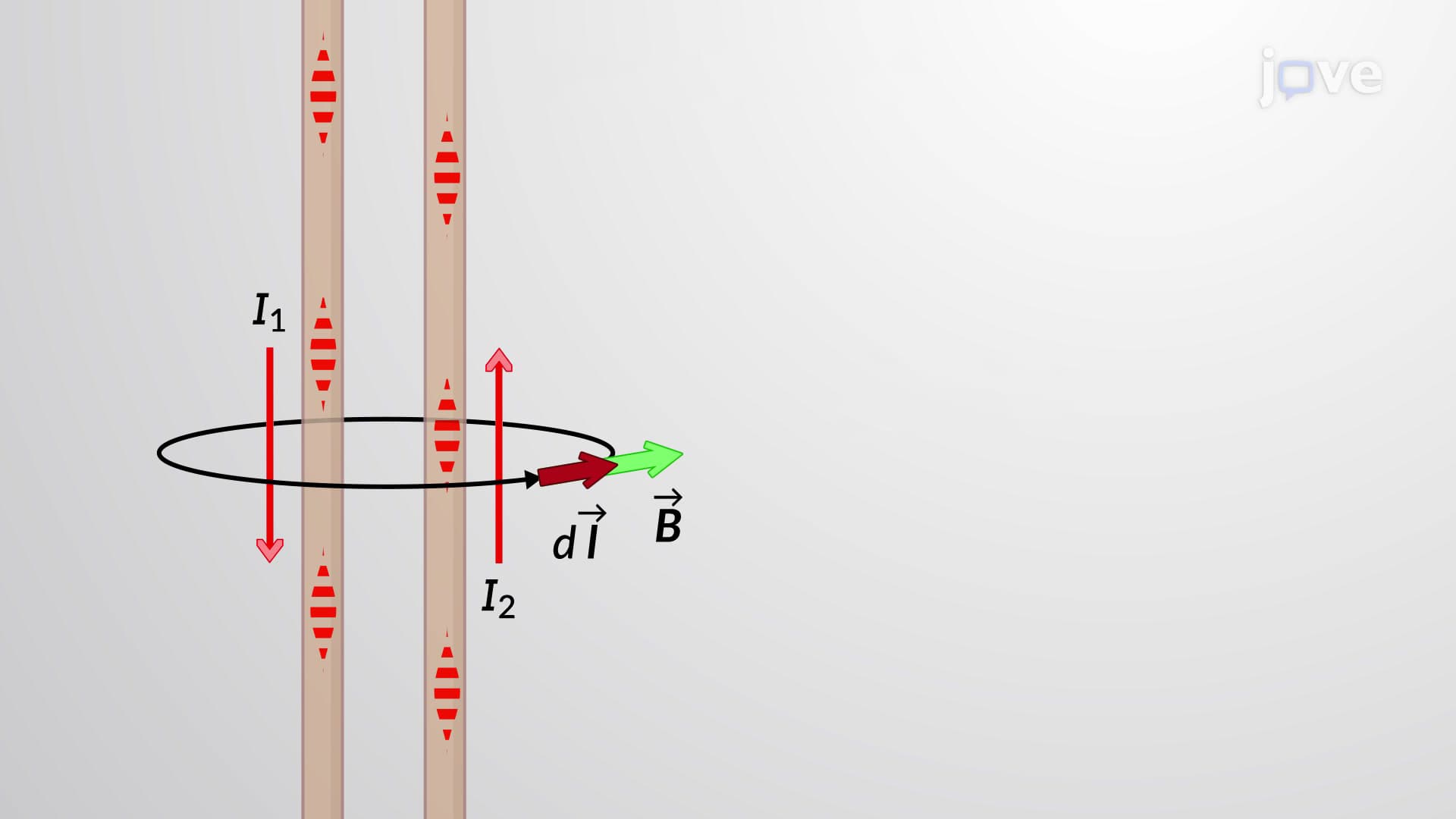

A fundamental property of a static magnetic field is that it is not conservative, unlike an electrostatic field. Instead, there is a relationship between the magnetic field and its source, electric current. Mathematically, this is expressed in terms of the line integral of the magnetic field, which is also known as Ampère’s law. It is valid only if the currents are steady and no magnetic materials or time-varying electric fields are present.
Ampère's law states that for any closed looped path,...

An ammeter is a current measuring instrument. In the circuit, it is represented by the symbol A. The ammeter is placed in series with the device or component to measure the current. A series connection is used because objects in series have the same current passing through them. If a circuit has multiple resistors and the current needs to be measured in each resistor, the number of ammeters required depends on whether the circuit is in series or parallel.
When an ammeter is used to measure the...

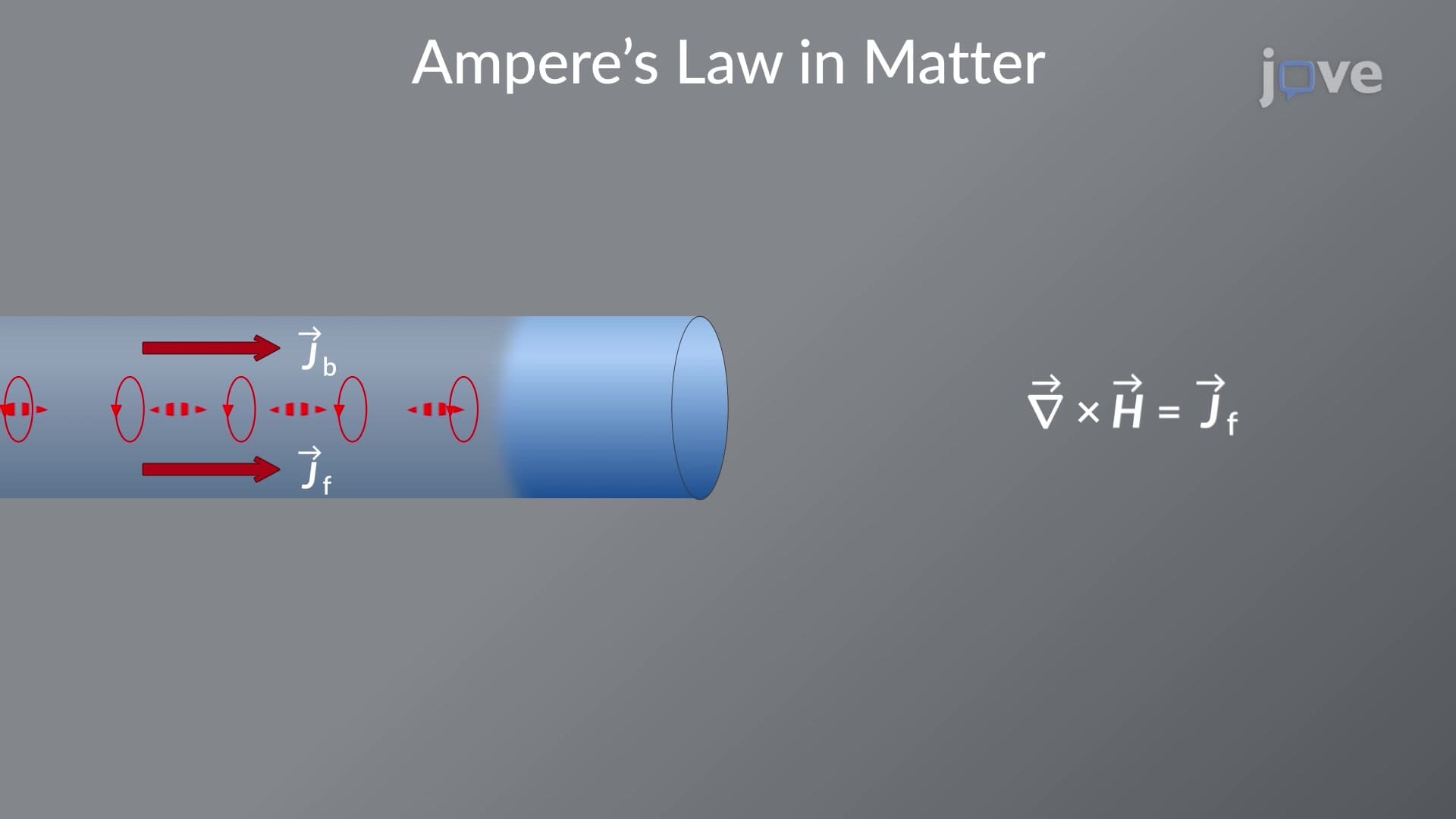

The total current density in magnetized material is the sum of the free and bound current densities. The free current arises due to the motion of free electrons within the material, while the bound current arises due to the alignment of magnetic dipole moments.
The differential form of Ampere's law in vacuum states that the curl of the magnetic field equals the permeability times the current density. In a magnetized material, the law is modified to incorporate the free and bound current...

Ampère's law, in its usual form, does not work in places where the current changes with time and is not steady. Thus, Maxwell suggested including an additional contribution, called the displacement current, Id, to the real conduction current I.

Instantaneous power is important in electrical circuits, mainly when dealing with sinusoidal input. Instantaneous power, denoted as p(t), results from the multiplication of the instantaneous voltage (v(t)) across an element and the instantaneous current (i(t)) flowing through it. This relationship adheres to the passive sign convention and represents a fundamental principle in electrical engineering.
