A second-order differential equation characterizes a source-free series RLC circuit, marking its distinct mathematical representation. The complete solution of this equation is a blend of two unique solutions, each linked to the circuit's roots expressed in terms of the damping factor and resonant frequency.

Consider an RLC series circuit consisting of a resistor, an inductor, and a capacitor connected to an AC voltage source. A current, which varies sinusoidally over time, flows through the circuit, and this can be expressed by the following equation:

The direction in which the induced emf drives the current around a wire loop can be found through the negative sign. However, it is usually easier to determine this direction with Lenz's law, named in honor of its discoverer, Heinrich Lenz (1804–1865). Lenz's law states that the direction of the induced emf drives the current around a wire loop always to oppose the change in magnetic flux that causes the emf.
If a bar magnet is moved toward a coil such that the magnetic flux through the coil...

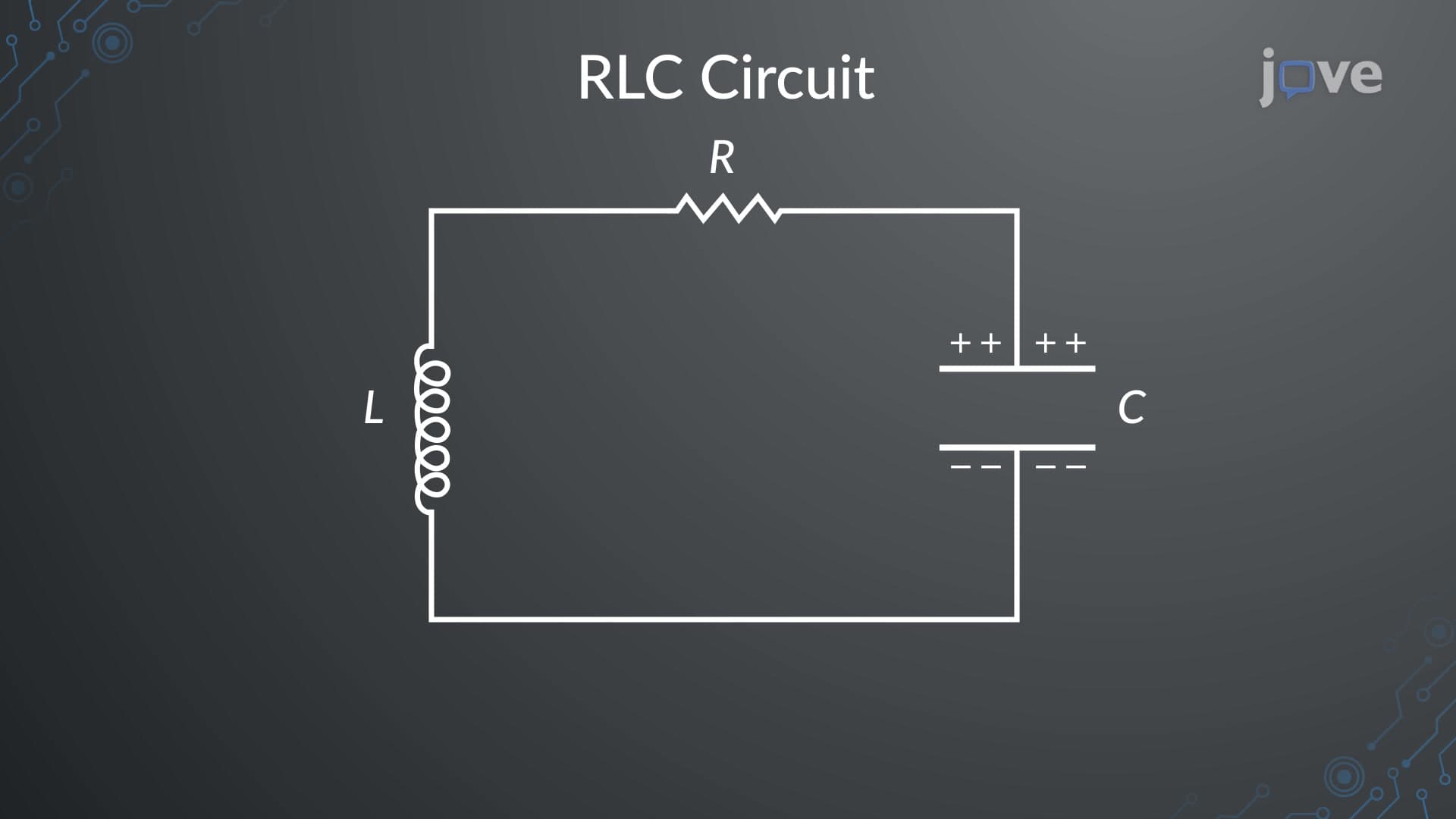

An RLC circuit combines a resistor, inductor, and capacitor, connected in a series or parallel combination.
Consider a series RLC circuit. Here, the presence of resistance in the circuit leads to energy loss due to joule heating in the resistance. Therefore, the total electromagnetic energy in the circuit is no longer constant and decreases with time. Since the magnitude of charge, current, and potential difference continuously decreases, their oscillations are said to be damped. This is...

An RLC series circuit comprises an inductor, a resistor, and a charged capacitor connected in series. When the circuit is closed, the capacitor begins to discharge through the resistor and inductor by transferring energy from the electric field to the magnetic field. Here, the resistor connected to the circuit causes energy losses; therefore, on the complete discharge of the capacitor, the magnetic field energy acquired by the inductor is less than the original electric field energy of the...

Consider an AC generator with a frequency of 50 hertz and a voltage of 120 volts. The AC generator is connected to an RLC series circuit with a 20-ohms resistor, a 0.2-henry inductor, and a 0.05-farad capacitor. Determine the impedance, current amplitude, and phase difference between the generator's current and emf.
To solve the problem, first, determine the known and unknown quantities in the problem. Recalling the reactance equation for the inductor and capacitor and substituting the values,...
