Sensitivity of protein array deposition using continuous flow printing for fluorescent microarray applications -...

Area of Science:

• Biotechnology
• Analytical Chemistry
• Biomedical Engineering

Background:

• Antibody and protein microarrays hold promise for disease diagnostics but face challenges in reliable printing.
• Current protein printing methods, like pin printing, suffer from inconsistencies.
• Developing advanced printing techniques is crucial for advancing microarray technology.

Purpose of the Study:

• To evaluate the sensitivity and performance of the continuous-flow microspotter (CFM) for printing proteins and antibodies.
• To compare CFM printing with existing methods for microarray fabrication.
• To demonstrate the CFM's capability in handling complex biological samples.

Main Methods:

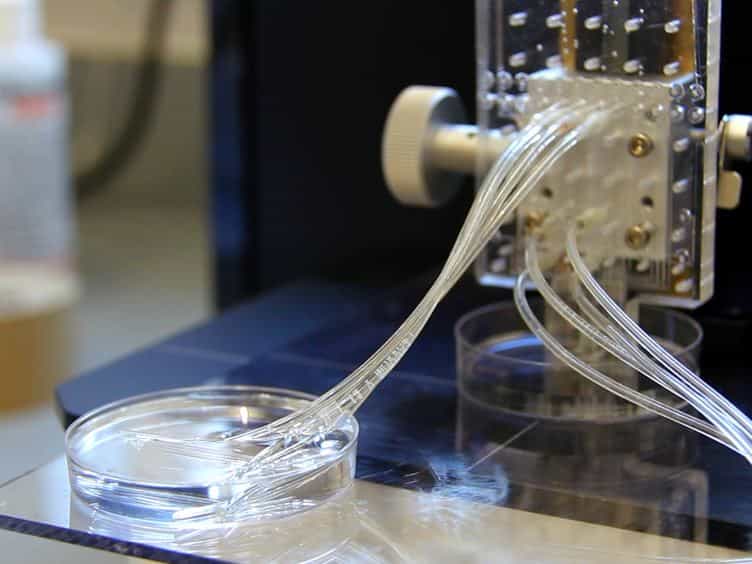

• Utilized a continuous-flow microspotter (CFM) employing microfluidic flow for protein printing.
• Assessed the printing of Cy3 and Cy5 fluorescently labeled proteins.
• Determined sensitivity by measuring protein concentrations in the tens of ng/mL range.
• Analyzed spot morphology, uniformity, and surface concentration.

Main Results:

• CFM printing demonstrated consistent spot morphology and high spot-to-spot uniformity.
• Achieved enhanced surface concentration of printed proteins and antibodies.
• Successfully captured proteins and antibodies from both dilute and complex samples (e.g., blood, tissue).
• Quantified CFM printing sensitivity at low concentrations (tens of ng/mL) with low coefficients of variation.

Conclusions:

• The CFM is an effective alternative to pin printing for antibody and protein microarrays.
• CFM technology enables precise and uniform printing of biomolecules, even from complex biological matrices.
• This advancement facilitates the development of more sensitive and reliable diagnostic microarrays.
