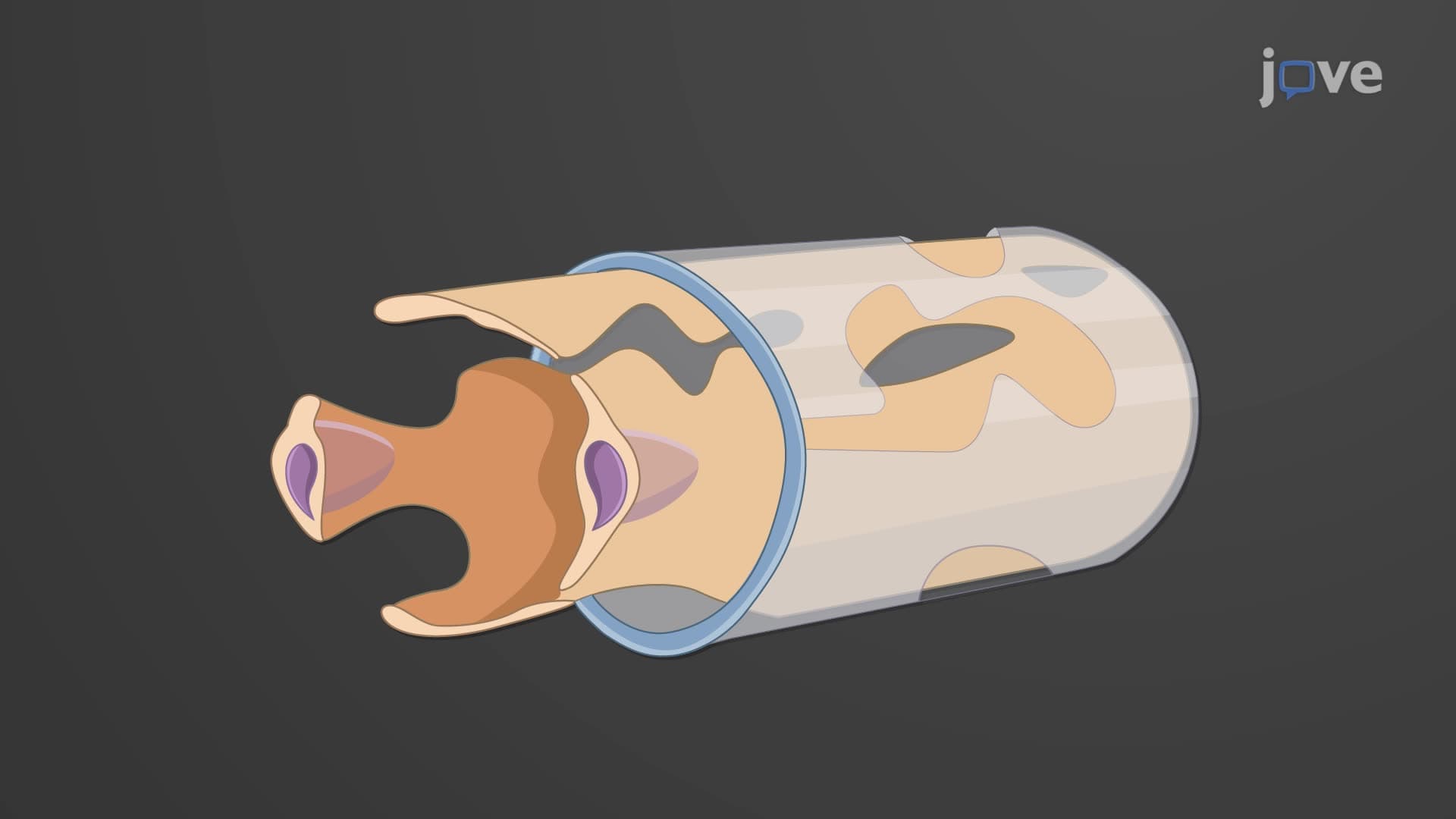

Capillaries and Their Types

7.9K
Capillaries, a crucial constituent of the circulatory system, are diminutive vessels with a diameter between 5–10 micrometers, accommodating perfusion to the tissues through the phenomenon known as microcirculation. Through their permeable walls, consisting of an endothelial layer ensconced by a basement membrane and sporadically dispersed smooth muscle fibers, the exchange of substances between the blood and the interstitial fluid becomes plausible. Variance in wall composition exists,...
7.9K
Capillary Electrophoresis: Instrumentation01:20

Capillary Electrophoresis: Instrumentation

1.2K
Capillary electrophoresis instrumentation typically consists of several key components. A high-voltage power supply generates the electric field necessary for the separation by connecting to an anode (the positively charged electrode) and a cathode (the negatively charged electrode) located in buffer reservoirs at each end of the capillary tube. The system includes a sample vial, a fused silica capillary tube coated with polyimide for mechanical strength through which the sample components...
1.2K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Comparison of a mobile imaging device for anterior segment (MIDAS) with a commercially available portable and conventional slit-lamp imaging for cataract photography.

Indian journal of ophthalmology·2026
Same author

Development and application of an instrument for microstructure matrix inclusion distribution analysis in oversized metallic materials.

iScience·2026
Same author

Codonopsis pilosula polysaccharides in intestinal flora and intestinal homeostasis: A review.

International journal of biological macromolecules·2026
Same author

A fitness-guided adaptive genetic algorithm for near-field neutron coded imaging reconstruction.

The Review of scientific instruments·2026
Same author

Study on the enhancement mechanism of detecting efficiency based on silica aerogel ultra-fast gamma-ray imaging with energy threshold.

The Review of scientific instruments·2025
Same author

NIK suppresses AKT/ACLY pathway-mediated lipogenesis in liver by stabilizing INPP5B during chronic ethanol exposure.

Life sciences·2025
Same journal

A compact low-power magnetic particle imaging scanner based on a permanent-magnet field-free-line generator with high gradient.

The Review of scientific instruments·2026
Same journal

Achieving ultrahigh resolution with high efficiency: Optical design of the two-dimensional Resonant Inelastic X-ray Scattering (2D-RIXS) spectrometer at NanoTerasu beamline 02U.

The Review of scientific instruments·2026
Same journal

Automated laboratory x-ray diffractometer and fluorescence spectrometer for high-throughput materials characterization.

The Review of scientific instruments·2026
Same journal

Nonlinear Bayesian Doppler tomography for simultaneous reconstruction of flow and temperature.

The Review of scientific instruments·2026
Same journal

A Reflectance-based multimodal wearable photoplethysmography (PPG) sensor.

The Review of scientific instruments·2026
Same journal

Temporal analysis of products-Raman (TAP-Raman): An integrated setup for operando spectroscopy and transient kinetic analysis.

The Review of scientific instruments·2026
See all related articles

Related Experiment Video

Updated: Feb 7, 2026

Visual Detection of Multiple Nucleic Acids in a Capillary Array
08:56

Visual Detection of Multiple Nucleic Acids in a Capillary Array

Published on: November 15, 2017

7.7K

High resolution, high efficiency liquid scintillator capillary array for gamma imaging.

Mei Zhang1, Huasi Hu1, Kuinian Li2

  • 1School of Energy and Power Engineering, Xi'an Jiaotong University, Xi'an 710049, China.

The Review of Scientific Instruments
|August 3, 2018
PubMed
Summary
This summary is machine-generated.

A novel liquid scintillator capillary array (LSCA) offers superior temporal and spatial resolution for gamma imaging. This 1D detector system, when paired with a streak camera, shows promise for advanced radiation detection applications.

More Related Videos

Radiolabeling and Quantification of Cellular Levels of Phosphoinositides by High Performance Liquid Chromatography-coupled Flow Scintillation
10:52

Radiolabeling and Quantification of Cellular Levels of Phosphoinositides by High Performance Liquid Chromatography-coupled Flow Scintillation

Published on: January 6, 2016

10.8K
Sub-nanometer Resolution Imaging with Amplitude-modulation Atomic Force Microscopy in Liquid
10:25

Sub-nanometer Resolution Imaging with Amplitude-modulation Atomic Force Microscopy in Liquid

Published on: December 20, 2016

17.5K

Related Experiment Videos

Last Updated: Feb 7, 2026

Visual Detection of Multiple Nucleic Acids in a Capillary Array
08:56

Visual Detection of Multiple Nucleic Acids in a Capillary Array

Published on: November 15, 2017

7.7K
Radiolabeling and Quantification of Cellular Levels of Phosphoinositides by High Performance Liquid Chromatography-coupled Flow Scintillation
10:52

Radiolabeling and Quantification of Cellular Levels of Phosphoinositides by High Performance Liquid Chromatography-coupled Flow Scintillation

Published on: January 6, 2016

10.8K
Sub-nanometer Resolution Imaging with Amplitude-modulation Atomic Force Microscopy in Liquid
10:25

Sub-nanometer Resolution Imaging with Amplitude-modulation Atomic Force Microscopy in Liquid

Published on: December 20, 2016

17.5K

Area of Science:

  • Nuclear Instrumentation
  • Radiation Detection Physics

Background:

  • Pulsed gamma radiation detection requires high temporal and spatial resolution.
  • Existing detector systems may have limitations in achieving optimal resolution.

Purpose of the Study:

  • To develop a one-dimensional detector system for high-resolution pulsed gamma radiation detection.
  • To evaluate the performance of a liquid scintillator capillary array (LSCA) coupled with a streak camera.

Main Methods:

  • Fabrication of a liquid scintillator capillary array (LSCA).
  • Performance evaluation through simulation and experimental measurements.
  • Application of a slanted edge algorithm to determine the edge spread function and modulation transfer function (MTF).

Main Results:

  • The LSCA exhibited maximum emission efficiency at 420 nm.
  • Simulations indicated better spatial resolution for 14 MeV neutrons compared to 1.25 MeV gamma radiation.
  • Experimental results demonstrated higher temporal and spatial resolution for the LSCA compared to a 6-mm LaBr3 image plate, with a spatial resolution of 1.1 lp/mm (MTF = 0.1).

Conclusions:

  • The LSCA, when coupled with an ultra-violet streak camera, provides high temporal and spatial resolution for gamma detection.
  • The developed detector system demonstrates comparable sensitivity to existing technologies like LaBr3 image plates.
  • The LSCA represents a promising advancement in one-dimensional detector systems for pulsed gamma radiation imaging.
