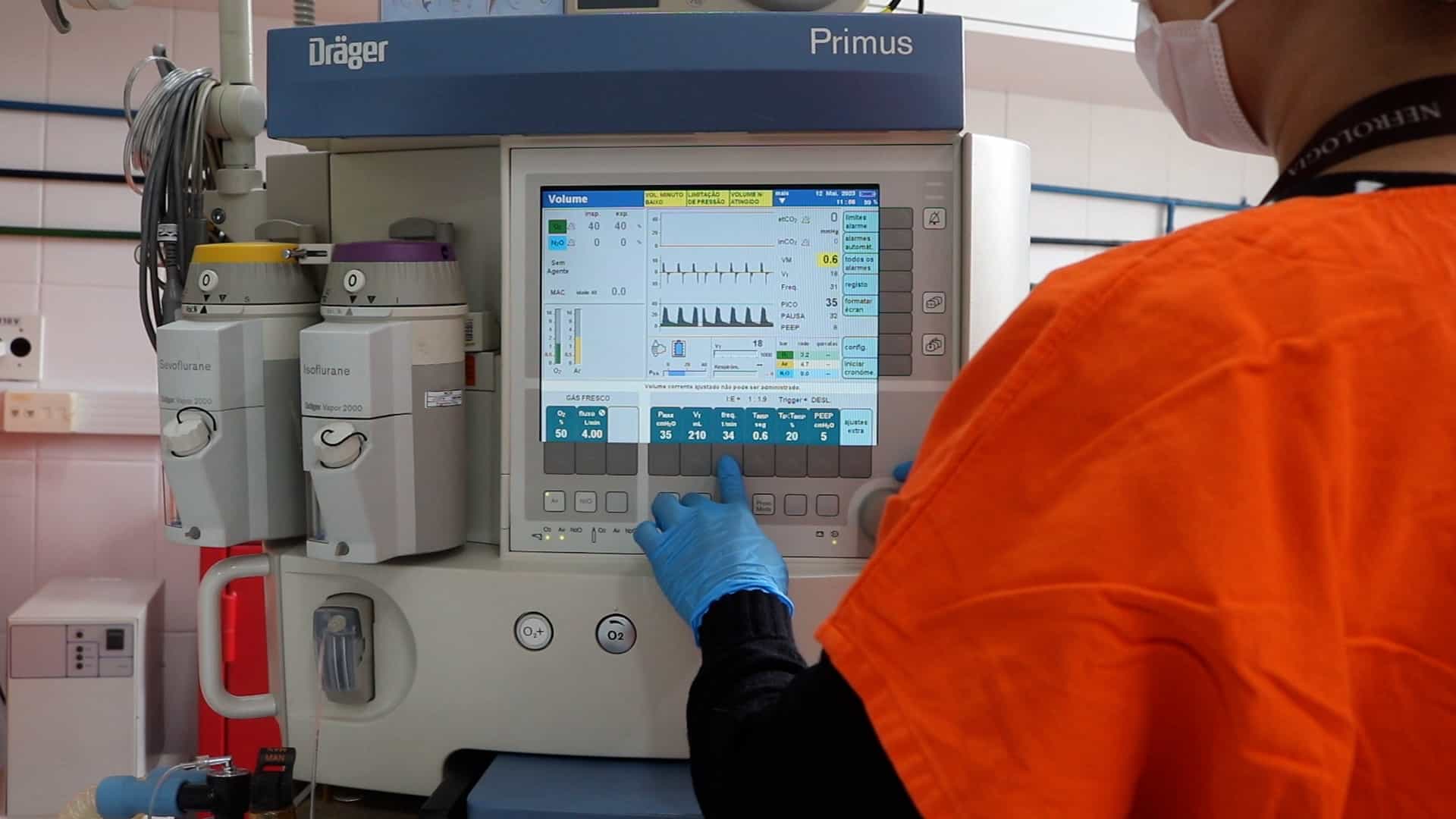

Ex Vivo Porcine Experimental Model for Studying and Teaching Lung Mechanics
Published on: April 19, 2024
Optimal PEEP during one-lung ventilation with capnothorax: An experimental study.
Henrik Reinius1, Joao Batista Borges1,2, Joakim Engström1
1Department of Surgical Sciences, Hedenstierna laboratory, Section of Anesthesiology and Intensive Care, Uppsala University, Uppsala, Sweden.
Optimal positive end-expiratory pressure (PEEP) during one-lung ventilation with capnothorax improves oxygenation and ventilation. Maintaining PEEP between 12-18 cm H2O is crucial to prevent ventilation/perfusion mismatch and blood flow redistribution.
Area of Science:
- Anesthesiology
- Respiratory Physiology
- Thoracic Surgery
Background:
- One-lung ventilation (OLV) with induced capnothorax presents significant risks for ventilation and circulation.
- Positive end-expiratory pressure (PEEP) may help mitigate these physiological challenges.
Purpose of the Study:
- To determine the optimal PEEP level during right-sided OLV with capnothorax in piglets.
- To investigate the effects of varying PEEP on ventilation, perfusion, and hemodynamics.
Main Methods:
- Right-sided OLV with capnothorax was induced in piglets.
- A recruitment maneuver followed by decremental PEEP titration from 20 cm H2O to zero end-expiratory pressure (ZEEP).
- Regional ventilation and perfusion were assessed using electrical impedance tomography and CT scans; hemodynamics and lung volumes were recorded.
Main Results:
- PaO2 peaked at PEEP 12 cm H2O, decreasing significantly at ZEEP.
- PaCO2 increased markedly at PEEP levels below 12 cm H2O.
- Ventilatory driving pressure was lowest at PEEP 14 cm H2O.
- Reducing PEEP below 12-14 cm H2O led to ventilation shifting to nondependent regions and perfusion to the nonventilated lung.
Conclusions:
- Optimal PEEP for OLV with capnothorax in this model was 12-18 cm H2O.
- Suboptimal PEEP (<12 cm H2O) resulted in ventilation/perfusion mismatch and blood flow redistribution to the nonventilated lung.
