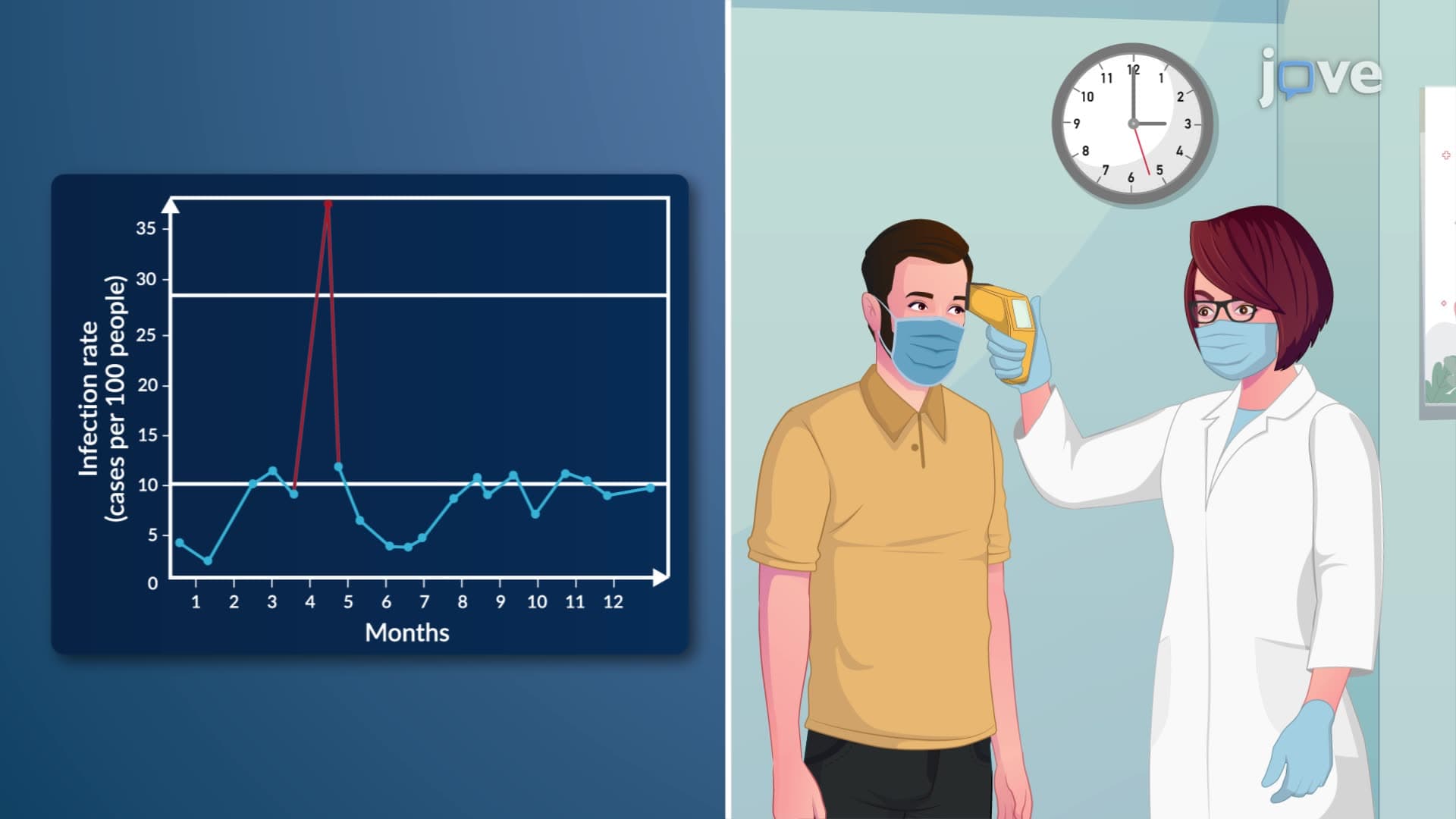

Interpreting Run Charts

Interpreting Run Charts

Run charts, essentially line graphs plotted over time, serve as fundamental yet effective tools for process analysis. They chronicle data sequentially, facilitating the identification of trends, shifts, or cyclical movements. This graphical representation is instrumental in determining whether a process is stable or exhibits signs of potential instability indicative of special cause variation. In the healthcare domain, run charts depict infection rates over time, enabling hospitals to monitor...

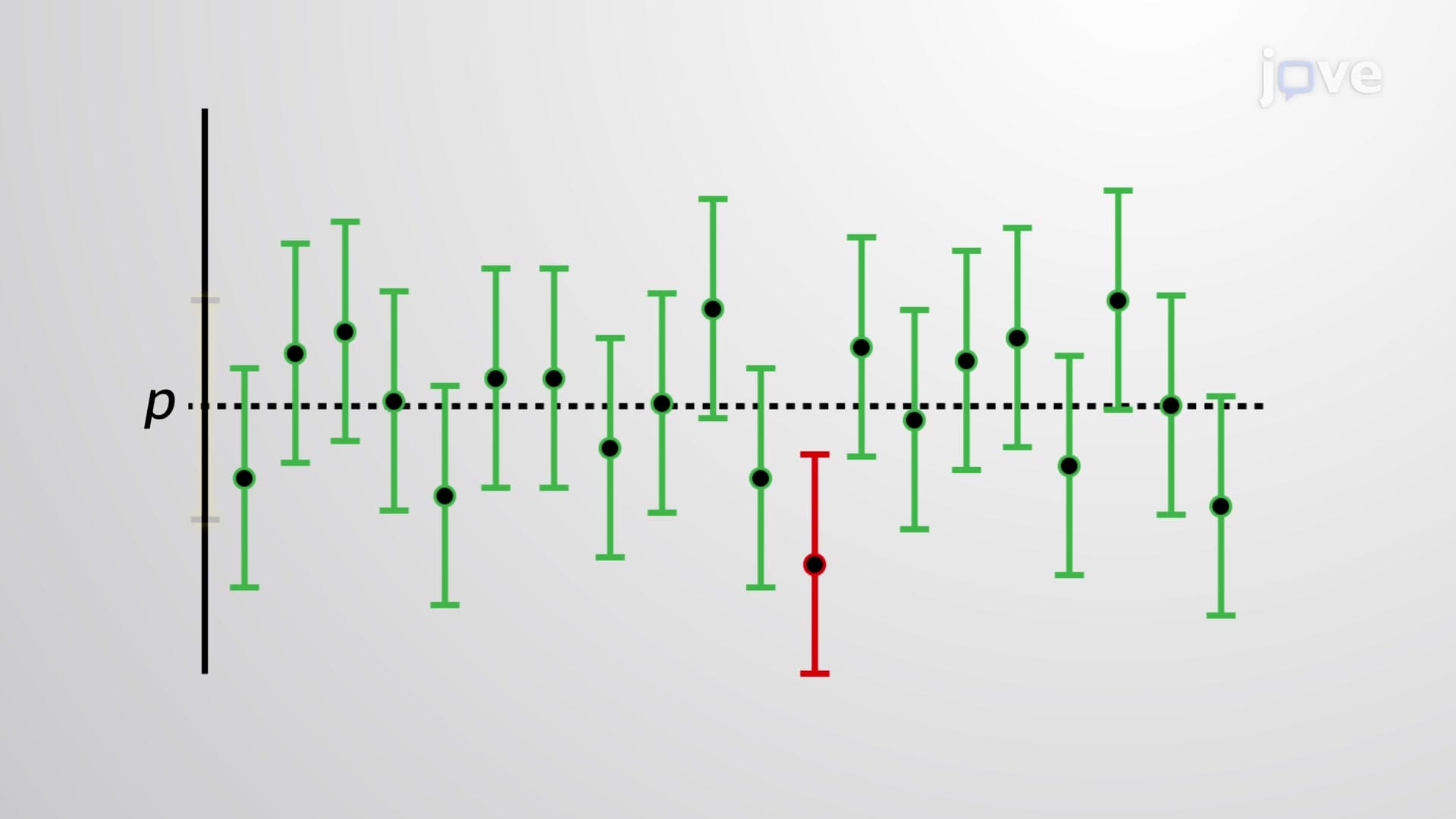

Interpretation of Confidence Intervals

Interpretation of Confidence Intervals

A confidence interval is a better estimate of the population than a point estimate, as it uses a range of values from a sample instead of a single value.
Confidence intervals have confidence coefficients that are crucial for their interpretation. The most common confidence coefficients are 0.90, 0.95, and 0.99, which can be written as percentages–90%, 95%, and 99%, respectively.
Suppose a person calculates a confidence interval with a confidence coefficient of 0.95. In that case, they can...

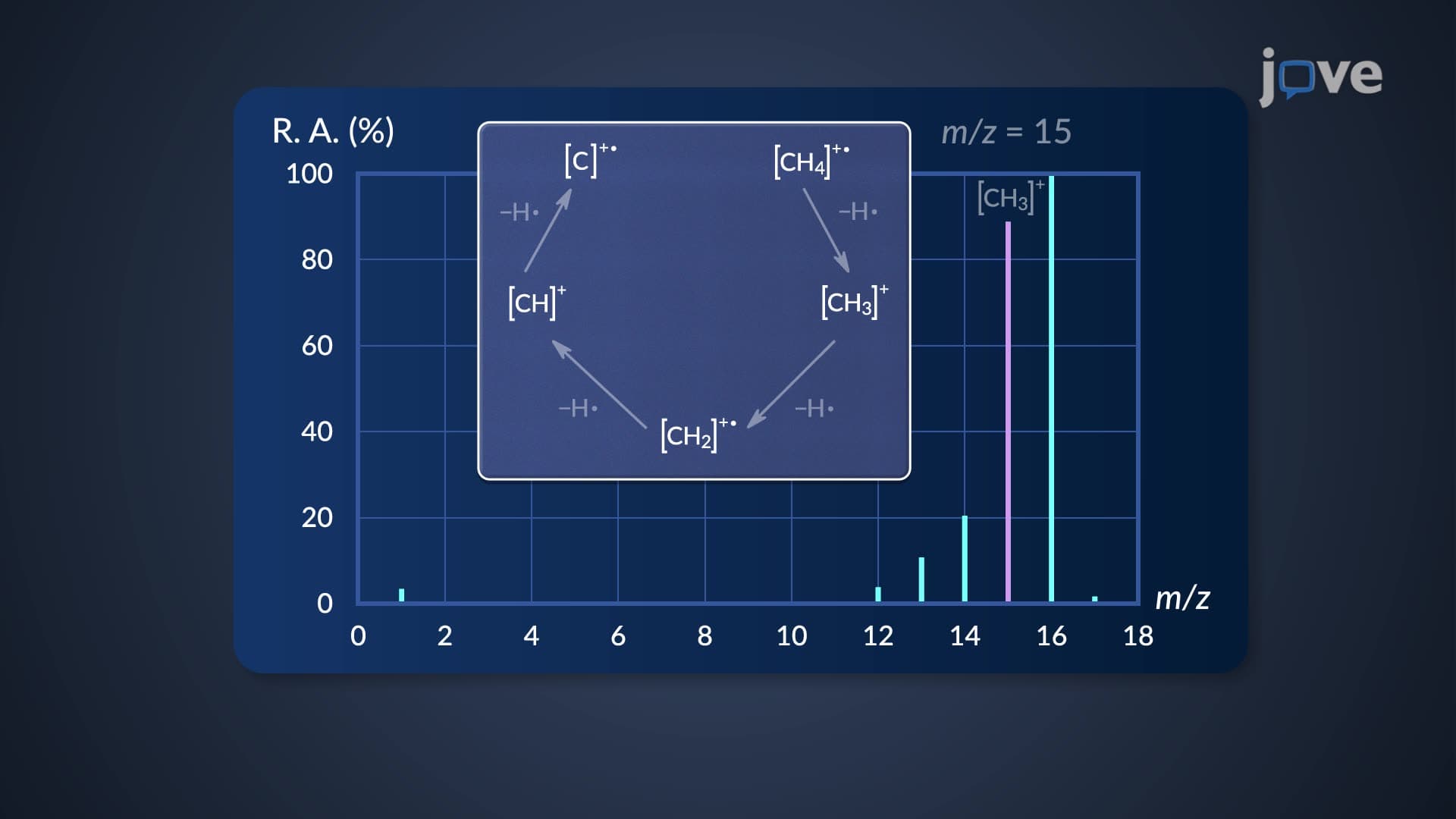

Mass Spectrum: Interpretation

Mass Spectrum: Interpretation

An unknown compound can be established by identifying the molecular ion peak in the mass spectrum. The molecular ion peak is often weak or absent due to the predominance of fragmentation in high-energy electron beams. In such cases, a soft-energy electron beam can be used to scan the spectrum to enhance the intensity of the molecular ion peak. Additionally, chemical ionization, field ionization, and desorption ionization spectra are used to obtain a relatively intense molecular ion peak.To...

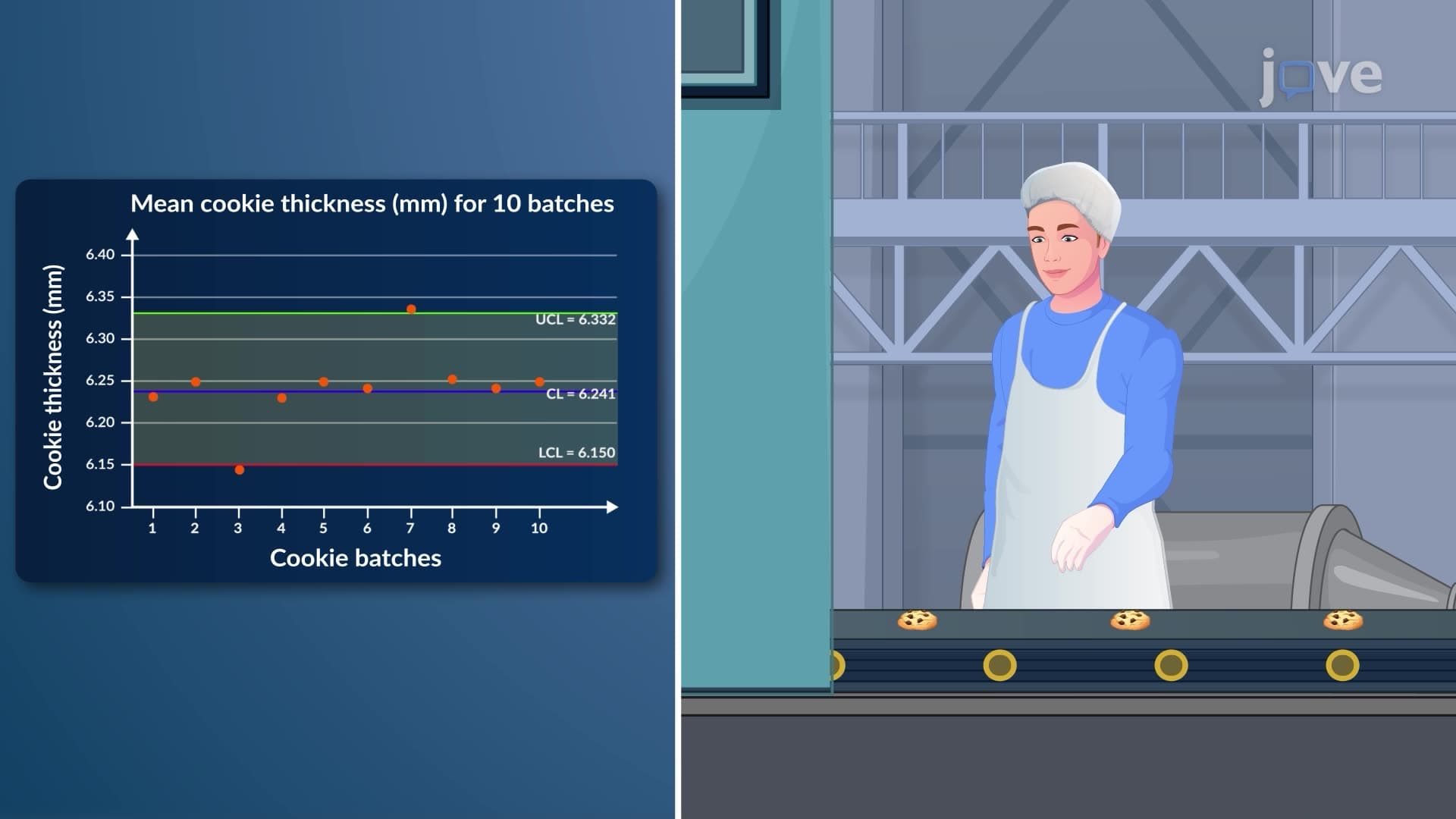

Interpreting X̄ Charts

Interpreting X̄ Charts

Interpreting x̄ charts, a type of control chart used in statistical process control helps monitor the variation in processes over time. The x̄ chart is based on the sample mean and allows for monitoring variations in the process mean over time. These charts are pivotal for quality assurance in manufacturing and other sectors.
An x̄ chart plots the values of individual measurements over time against control limits calculated from historical data. The central line...

ECG Interpretation of Rhythms

ECG Interpretation of Rhythms

An electrocardiogram (ECG)graphically represents the heart's electrical activity on ECG paper or a monitor.
Components of the Electrocardiogram
The primary components of a normal ECG waveform in Normal sinus rhythm(NSR) include the P wave, PR interval, QRS complex, ST segment, T wave, and occasionally a U wave.
ECG waveforms are divided by vertical and horizontal lines at standard intervals.
The horizontal axis measures time and rate, and the vertical axis measures amplitude or voltage....

Search research articles

Home
Research Domains
Information And Computing Sciences
Artificial Intelligence
Natural Language Processing
Fully Automated Echocardiogram Interpretation In Clinical Practice.

Home
Research Domains
Information And Computing Sciences
Artificial Intelligence
Natural Language Processing
Fully Automated Echocardiogram Interpretation In Clinical Practice.

Related Experiment Video

Automation of a Positron-emission Tomography PET Radiotracer Synthesis Protocol for Clinical Production

Automation of a Positron-emission Tomography PET Radiotracer Synthesis Protocol for Clinical Production

Published on: October 26, 2018

Fully Automated Echocardiogram Interpretation in Clinical Practice.

Jeffrey Zhang^1,2, Sravani Gajjala³, Pulkit Agrawal²

¹Cardiovascular Research Institute (J.Z., R.C.D.).

|October 26, 2018

View abstract on PubMed

Summary

This summary is machine-generated.

Automated cardiac image analysis using AI accurately interprets echocardiograms, enabling scalable patient monitoring and disease detection. This computer vision pipeline supports clinical practice by providing reliable cardiac function and structure measurements.

Keywords:

diagnosis echocardiography machine learning

More Related Videos

Automated Cell Enrichment of Cytomegalovirus-specific T cells for Clinical Applications using the Cytokine-capture System

Automated Cell Enrichment of Cytomegalovirus-specific T cells for Clinical Applications using the Cytokine-capture System

Published on: October 5, 2015

An Automated Radiosynthesis of [68Ga]Ga-FAPI-46 for Routine Clinical Use

An Automated Radiosynthesis of [⁶⁸Ga]Ga-FAPI-46 for Routine Clinical Use

Published on: May 24, 2024

Related Experiment Videos

Automation of a Positron-emission Tomography PET Radiotracer Synthesis Protocol for Clinical Production

Automation of a Positron-emission Tomography PET Radiotracer Synthesis Protocol for Clinical Production

Published on: October 26, 2018

Automated Cell Enrichment of Cytomegalovirus-specific T cells for Clinical Applications using the Cytokine-capture System

Automated Cell Enrichment of Cytomegalovirus-specific T cells for Clinical Applications using the Cytokine-capture System

Published on: October 5, 2015

An Automated Radiosynthesis of [68Ga]Ga-FAPI-46 for Routine Clinical Use

An Automated Radiosynthesis of [⁶⁸Ga]Ga-FAPI-46 for Routine Clinical Use

Published on: May 24, 2024

Area of Science:

Cardiology
Artificial Intelligence
Medical Imaging

Background:

Automated cardiac image interpretation can enhance clinical practice, particularly for serial assessments in primary care.
Advances in computer vision offer potential for a fully automated echocardiogram analysis pipeline.

Purpose of the Study:

To develop and evaluate a scalable, automated pipeline for echocardiogram interpretation using convolutional neural networks.
The pipeline aims for view identification, image segmentation, structure/function quantification, and disease detection.

Main Methods:

Trained convolutional neural network models on 14,035 echocardiograms for view identification and cardiac chamber segmentation.
Quantified cardiac structure and function (ejection fraction, longitudinal strain) using segmentation output.

Developed models to detect hypertrophic cardiomyopathy, cardiac amyloid, and pulmonary arterial hypertension.

Main Results:

Accurate automated view identification (96% for parasternal long axis) and chamber segmentation.
Cardiac structure measurements showed agreement with clinical values (e.g., 15-17% median absolute deviation for volumes).
Automated function measurements (ejection fraction, strain) agreed with commercial software and demonstrated serial monitoring utility.
Disease detection models achieved high performance (C-statistics: 0.93 for hypertrophic cardiomyopathy, 0.87 for cardiac amyloid, 0.85 for pulmonary arterial hypertension).

Conclusions:

The automated echocardiogram interpretation pipeline provides a foundation for scalable analysis of archived cardiac imaging data.
This technology supports serial patient tracking and broad clinical application of echocardiogram interpretation.
