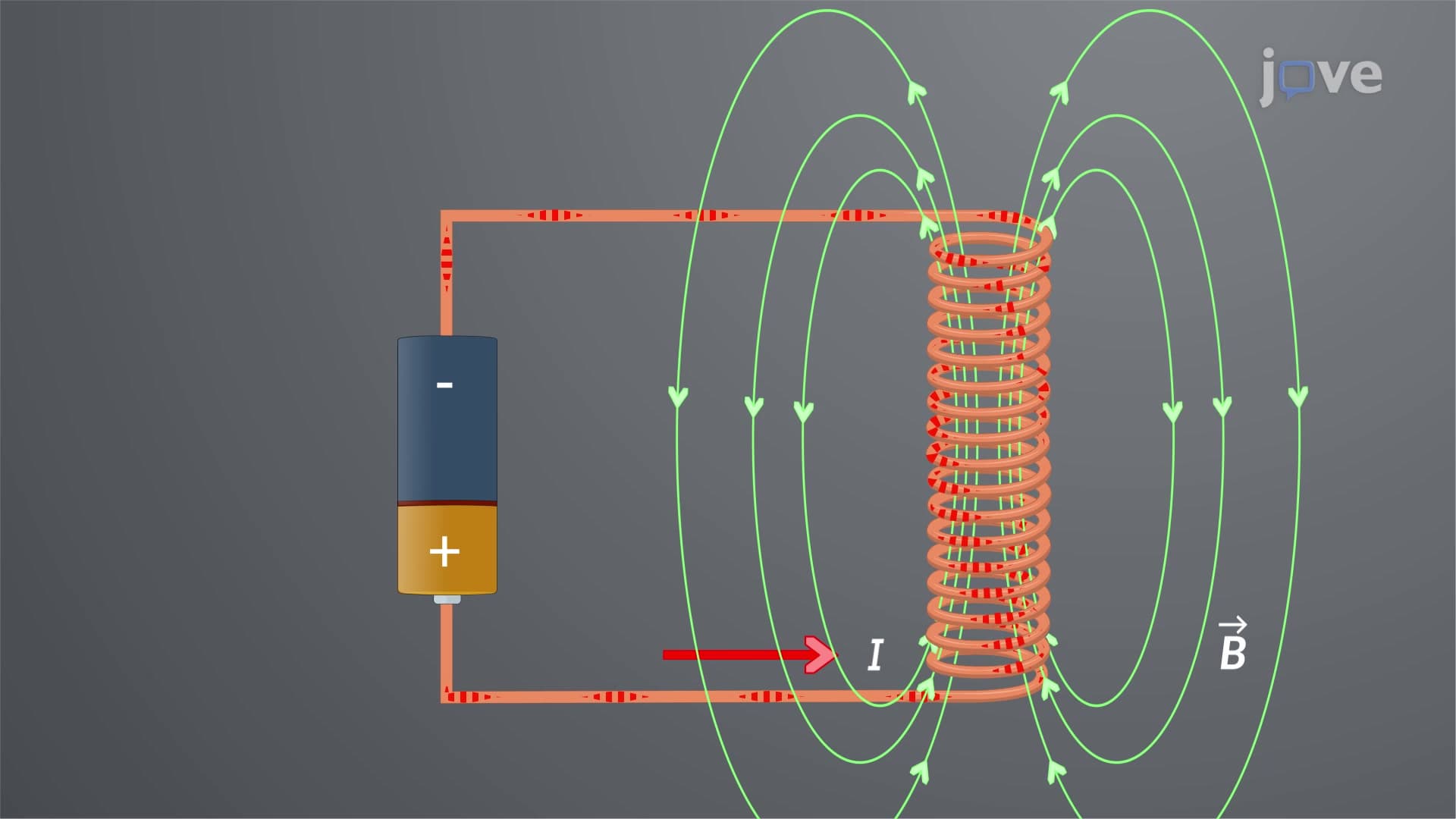

Magnetic Field of a Solenoid01:18

Magnetic Field of a Solenoid

5.8K
A solenoid is a conducting wire coated with an insulating material, wound tightly in the form of a helical coil. The magnetic field due to a solenoid is the vector sum of the magnetic fields due to its individual turns. Therefore, for an ideal solenoid, the magnetic field within the solenoid is directly proportional to the number of turns per unit length and the current. Conversely, the magnetic field outside the solenoid is zero.
Consider a solenoid with 100 turns wrapped around a cylinder of...
5.8K

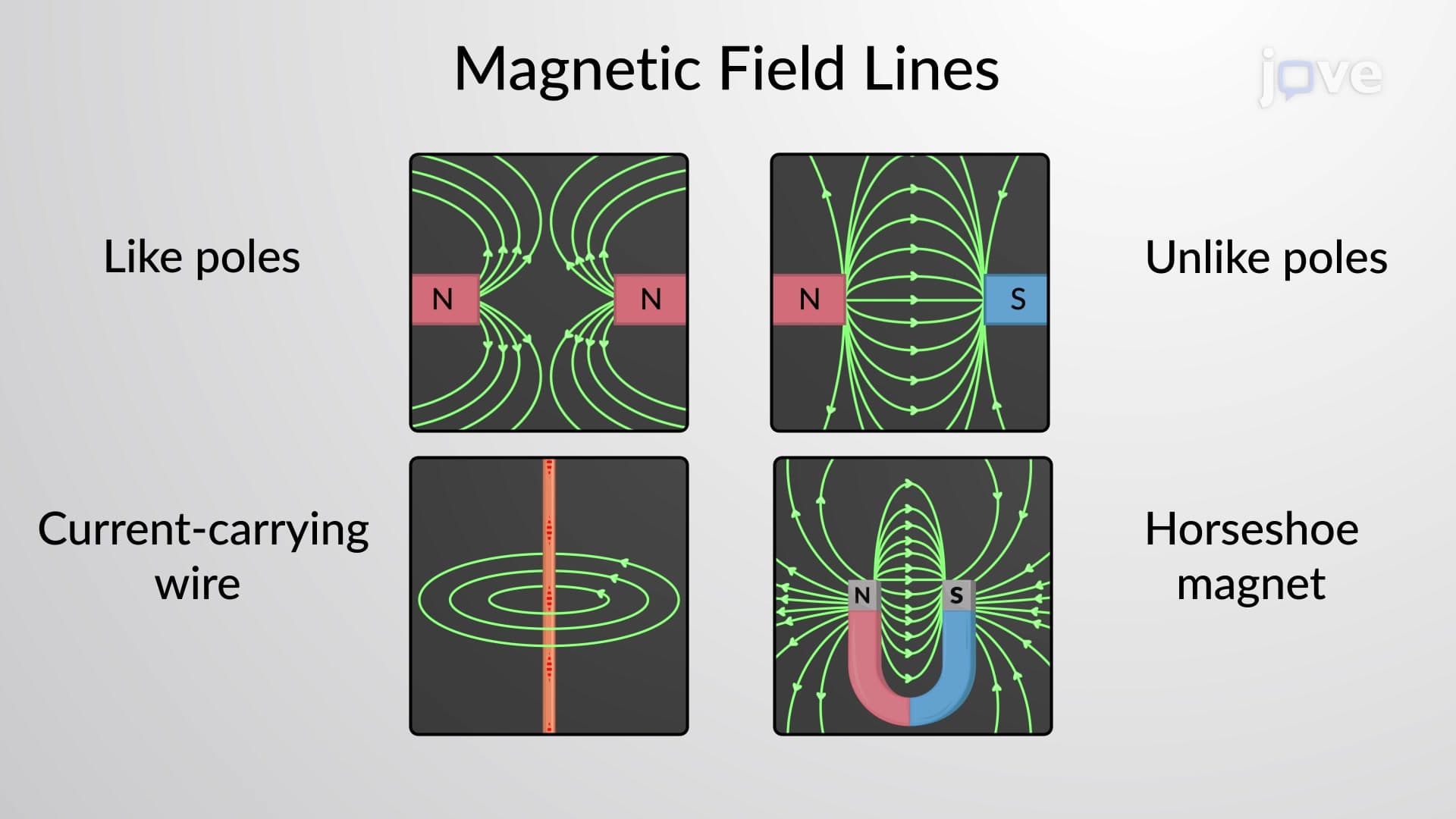

Magnetic Field Lines01:19

Magnetic Field Lines

5.5K
The representation of magnetic fields by magnetic field lines is very useful in visualizing the strength and direction of the magnetic field. Each of the magnetic field lines forms a closed loop. The field lines emerge from the north pole (N), loop around to the south pole (S), and continue through the bar magnet back to the north pole.
Magnetic field lines follow several hard-and-fast rules:
5.5K

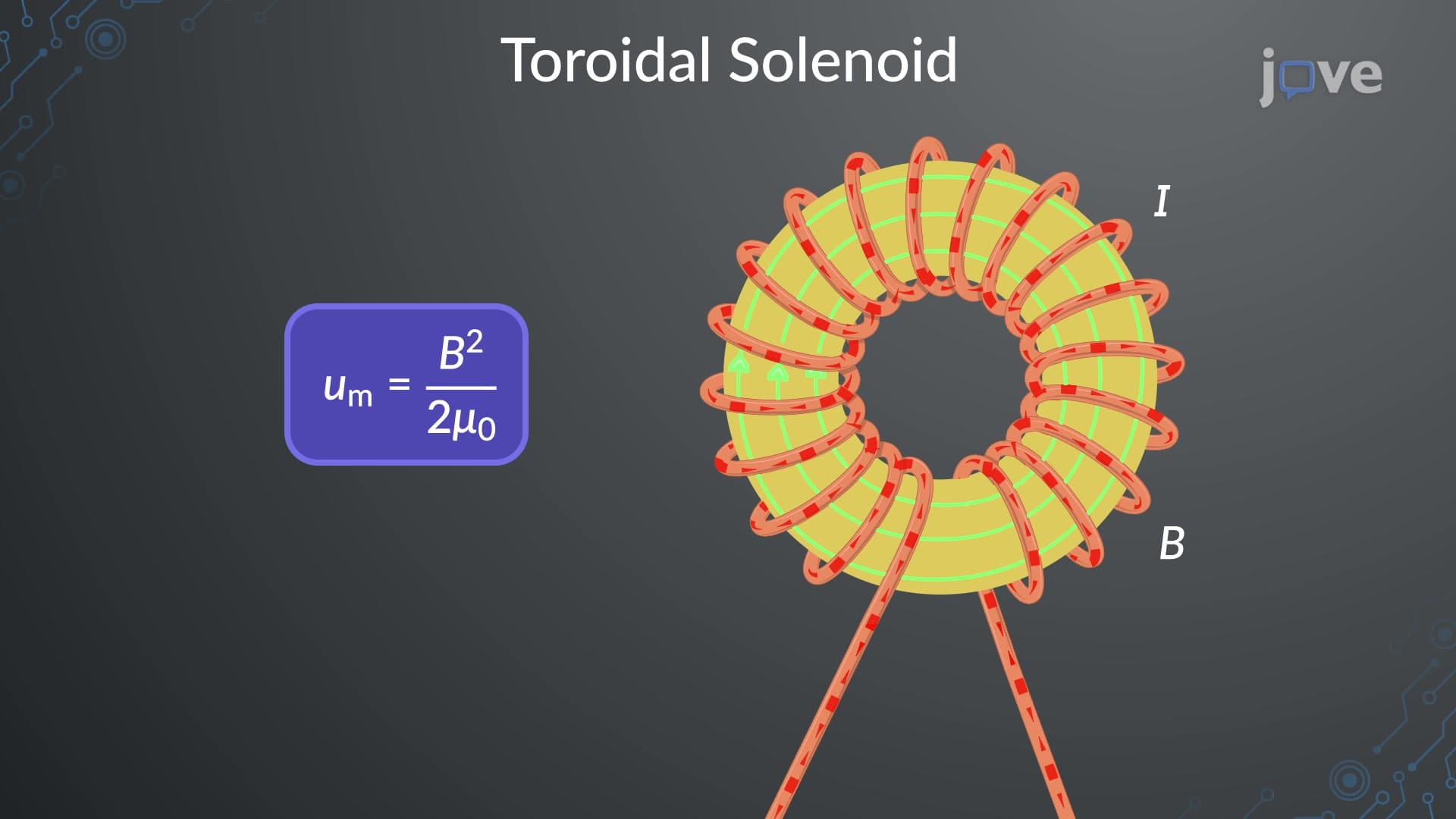

Energy In A Magnetic Field01:24

Energy In A Magnetic Field

2.7K
If a magnetic field is sustained, there must be a current in a closed circuit or loop, implying some energy has been spent in creating the field. If this energy is not dissipated via the circuit's resistance, it is stored in the field.
Take an ideal inductor with zero resistance. Although it's practically impossible, assume that the coil's resistance is so small that it is practically negligible. The loss of the field's energy to dissipate thermal energy (or heat) is thus...
2.7K
Atomic Nuclei: Magnetic Resonance01:05

Atomic Nuclei: Magnetic Resonance

1.2K
The number of nuclear spins aligned in the lower energy state is slightly greater than those in the higher energy state. In the presence of an external magnetic field, as the spins precess at the Larmor frequency, the excess population results in a net magnetization oriented along the z axis. When a pulse or a short burst of radio waves at the Larmor frequency is applied along the x axis, the coupling of frequencies causes resonance and flips the nuclear spins of the excess population from the...
1.2K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Squeezing, trisqueezing and quadsqueezing in a hybrid oscillator-spin system.

Nature physics·2026
Same author

Single-Qubit Gates with Errors at the 10^{-7} Level.

Physical review letters·2025
Same author

Correction to "Synthesis and Characterization of Dy<sub>2</sub>O<sub>3</sub>@TiO<sub>2</sub> Nanocomposites for Enhanced Photocatalytic and Electrocatalytic Applications".

ACS engineering Au·2025
Same author

Experimental Quantum Advantage in the Odd-Cycle Game.

Physical review letters·2025
Same author

Distributed quantum computing across an optical network link.

Nature·2025
Same author

Verifiable Blind Quantum Computing with Trapped Ions and Single Photons.

Physical review letters·2024
Same journal

A compact low-power magnetic particle imaging scanner based on a permanent-magnet field-free-line generator with high gradient.

The Review of scientific instruments·2026
Same journal

Achieving ultrahigh resolution with high efficiency: Optical design of the two-dimensional Resonant Inelastic X-ray Scattering (2D-RIXS) spectrometer at NanoTerasu beamline 02U.

The Review of scientific instruments·2026
Same journal

Automated laboratory x-ray diffractometer and fluorescence spectrometer for high-throughput materials characterization.

The Review of scientific instruments·2026
Same journal

Nonlinear Bayesian Doppler tomography for simultaneous reconstruction of flow and temperature.

The Review of scientific instruments·2026
Same journal

A Reflectance-based multimodal wearable photoplethysmography (PPG) sensor.

The Review of scientific instruments·2026
Same journal

Temporal analysis of products-Raman (TAP-Raman): An integrated setup for operando spectroscopy and transient kinetic analysis.

The Review of scientific instruments·2026
See all related articles

Related Experiment Video

Updated: Jan 25, 2026

External Excitation of Neurons Using Electric and Magnetic Fields in One- and Two-dimensional Cultures
08:32

External Excitation of Neurons Using Electric and Magnetic Fields in One- and Two-dimensional Cultures

Published on: May 7, 2017

13.9K

Magnetic field stabilization system for atomic physics experiments.

B Merkel1, K Thirumalai1, J E Tarlton1

  • 1Clarendon Laboratory, Department of Physics, University of Oxford, Parks Road, Oxford OX1 3PU, United Kingdom.

The Review of Scientific Instruments
|May 3, 2019
PubMed
Summary
This summary is machine-generated.

We stabilized a 14.6 millitesla (mT) magnetic field to 4.3 nanotesla (nT) noise using a feedback system. This high stability is crucial for atomic physics experiments requiring precise magnetic field control.

More Related Videos

Construction and Characterization of External Cavity Diode Lasers for Atomic Physics
09:10

Construction and Characterization of External Cavity Diode Lasers for Atomic Physics

Published on: April 24, 2014

28.5K
Assessing the Influence of Personality on Sensitivity to Magnetic Fields in Zebrafish
07:47

Assessing the Influence of Personality on Sensitivity to Magnetic Fields in Zebrafish

Published on: March 18, 2019

7.1K

Related Experiment Videos

Last Updated: Jan 25, 2026

External Excitation of Neurons Using Electric and Magnetic Fields in One- and Two-dimensional Cultures
08:32

External Excitation of Neurons Using Electric and Magnetic Fields in One- and Two-dimensional Cultures

Published on: May 7, 2017

13.9K
Construction and Characterization of External Cavity Diode Lasers for Atomic Physics
09:10

Construction and Characterization of External Cavity Diode Lasers for Atomic Physics

Published on: April 24, 2014

28.5K
Assessing the Influence of Personality on Sensitivity to Magnetic Fields in Zebrafish
07:47

Assessing the Influence of Personality on Sensitivity to Magnetic Fields in Zebrafish

Published on: March 18, 2019

7.1K

Area of Science:

  • Atomic, Molecular, and Optical (AMO) Physics
  • Quantum Information Science
  • Metrology

Background:

  • Atomic physics experiments utilize millitesla-scale magnetic fields for quantization.
  • Precise magnetic field stability is essential as atomic transition frequencies are field-dependent.
  • Commercial power supplies often lack the required stability for electromagnets used in these experiments.

Purpose of the Study:

  • To demonstrate a method for stabilizing a millitesla-scale magnetic field.
  • To achieve high-precision magnetic field stabilization for atomic physics applications.
  • To improve the performance of experiments reliant on stable magnetic fields.

Main Methods:

  • Implemented a feedback and feedforward control system to regulate current through magnetic field coils.
  • Utilized a single 43Ca+ ion in a Paul trap as a magnetometer.
  • Measured magnetic field noise using a field-dependent hyperfine transition of the 43Ca+ ion.

Main Results:

  • Stabilized a 14.6 millitesla (mT) magnetic field to 4.3 nanotesla (nT) root-mean-square (rms) noise (0.29 parts per million).
  • Reduced magnetic field noise from over 100 nT to 4.3 nT rms without stabilization.
  • Projected coherence time of many hours for a 43Ca+ atomic clock qubit transition at 14.6 mT.

Conclusions:

  • The developed system significantly enhances magnetic field stability for atomic physics.
  • The technique is adaptable to various field amplitudes and suitable for applications like neutral atom traps.
  • High magnetic field stability opens possibilities for longer coherence times and more precise measurements.
