Principled BCI Decoder Design and Parameter Selection Using a Feedback Control Model
Francis R Willett1,2,3,4, Daniel R Young5,6, Brian A Murphy5,6
1Department of Biomedical Engineering, Case Western Reserve University, Cleveland, Ohio, USA. fwillett@stanford.edu.
Scientific Reports
|June 22, 2019
Summary
Simulating brain-computer interface performance can improve decoder design. A new feedback control model accurately predicts performance, enhancing speed and efficiency for users with intracortical brain-computer interfaces (iBCIs).
Area of Science:
- Neuroscience
- Biomedical Engineering
- Rehabilitation Engineering
Background:
- Intracortical brain-computer interfaces (iBCIs) use decoders to translate neural signals into intended movements.
- Offline-optimized decoders often underperform in real-time closed-loop operation due to unmodeled user and task interactions.
- Current calibration methods do not account for emergent dynamics between the decoder, user, and task parameters like target size.
Purpose of the Study:
- To investigate the feasibility of simulating online iBCI performance for improved decoder optimization.
- To develop a user-specific feedback control model to predict performance variations.
- To guide decoder parameter selection and design for enhanced real-time functionality.
Main Methods:
- Three participants in the BrainGate2 pilot clinical trial used a linear velocity decoder to control a computer cursor.
- Decoder parameters (gain, temporal smoothing) and task parameters (target radius, distance) were systematically varied.
- A user-specific iBCI feedback control model was developed and validated on held-out data.
Main Results:
- The developed model accurately predicted changes in user performance across different decoder and task parameters.
- Optimization of a nonlinear speed scaling function using the model improved the dynamic range of decoded speeds.
- Online implementation of the optimized decoder reduced target acquisition time compared to a standard optimized decoder.
Conclusions:
- Simulating iBCI performance is a feasible approach for quantitative decoder optimization and design.
- User-specific feedback control models can effectively predict and improve real-time iBCI performance.
- This approach holds promise for enhancing the usability and effectiveness of intracortical brain-computer interfaces.
Related Concept Videos
01:26Feedback control systems
696
Feedback control systems are categorized in various ways based on their design, analysis, and signal types.
Linear feedback systems are theoretical models that simplify analysis and design. These systems operate under the principle that their output is directly proportional to their input within certain ranges. For instance, an amplifier in a control system behaves linearly as long as the input signal remains within a specific range. However, most physical systems exhibit inherent nonlinearity...
Linear feedback systems are theoretical models that simplify analysis and design. These systems operate under the principle that their output is directly proportional to their input within certain ranges. For instance, an amplifier in a control system behaves linearly as long as the input signal remains within a specific range. However, most physical systems exhibit inherent nonlinearity...
696

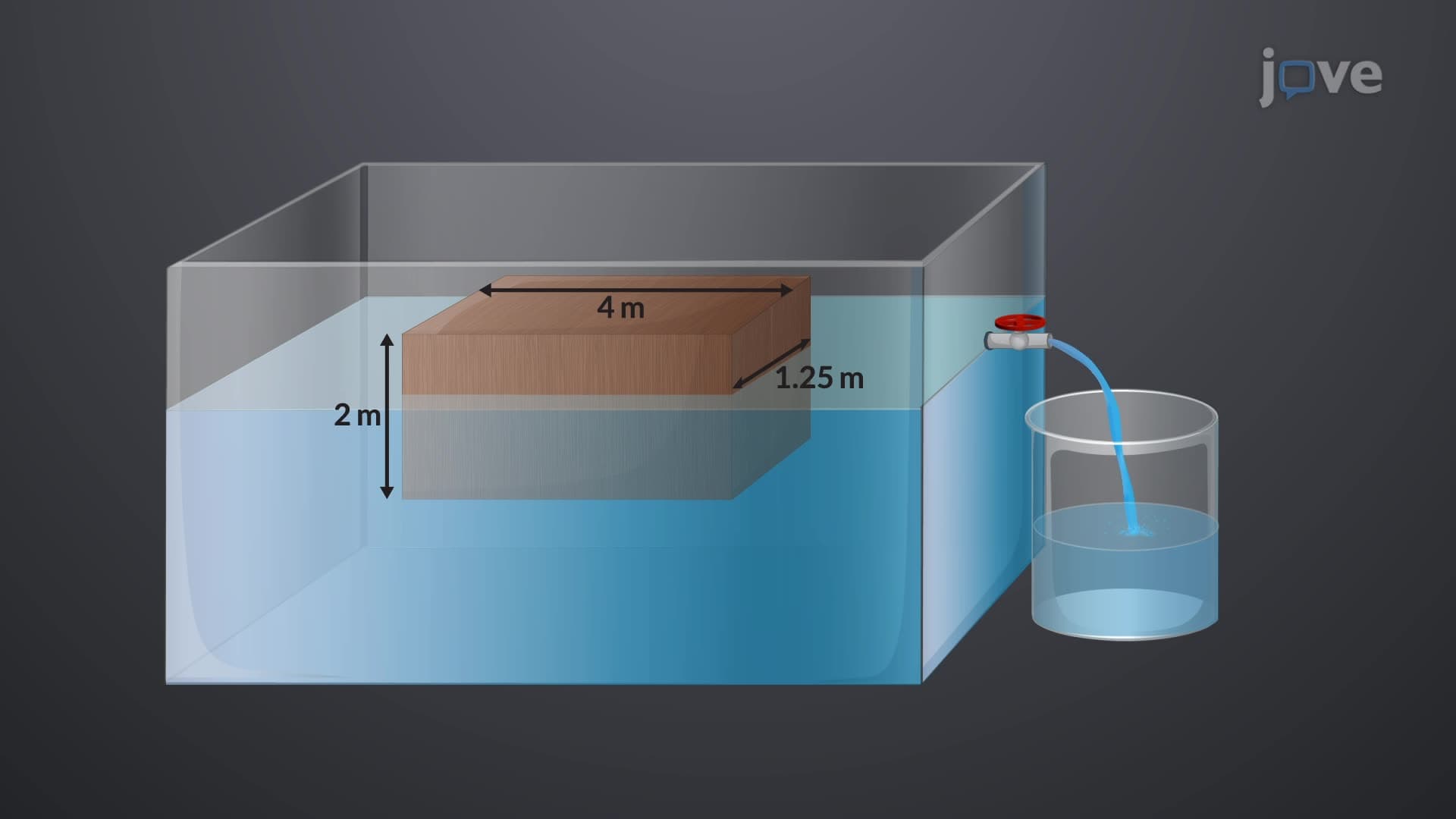

01:11Design Example: Application of Archimedes' Principle
