Automated image processing method to quantify rotating detonation wave behavior
J W Bennewitz1, B R Bigler2, S A Schumaker1
1Air Force Research Laboratory, 10 E. Saturn Blvd., Edwards AFB, California 93524, USA.
The Review of Scientific Instruments
|July 1, 2019
Summary
A new image processing technique automatically analyzes detonation waves in rotating detonation rocket engines (RDREs). This method quantifies wave speed and frequency, advancing RDRE understanding and potential performance gains.
Area of Science:
- Propulsion Engineering
- Fluid Dynamics
- Combustion Science
Background:
- Rotating detonation rocket engines (RDREs) offer potential performance advantages over traditional constant pressure engines.
- Accurate characterization of detonation wave dynamics is crucial for RDRE development and optimization.
- Existing methods for analyzing detonation waves can be complex and may not capture instantaneous properties.
Purpose of the Study:
- To develop and validate an automated image processing technique for analyzing detonation wave properties in RDREs.
- To quantify average and instantaneous detonation wave characteristics, including speed, frequency, and wave number.
- To provide insights into wave-to-wave variability, modal transitions, and mode stability within RDREs.
Main Methods:
- High-speed imaging of the RDRE annulus.
- Segmentation of the annular image into 200 azimuthal bins.
- Tracking integrated pixel intensity and analyzing temporal histories to create a detonation surface.
- Applying 2D Fourier analysis to determine average modal properties (wave speed, frequency, wave number).
- Calculating instantaneous wave speeds via numerical differentiation of wave angular position.
Main Results:
- The technique successfully visualizes detonation front propagation as a detonation surface.
- Average wave speeds (Ūwv) ranged from 900-1700 m/s (33%-71% of CJ speed).
- Operational frequencies (fdet) were 20-45 kHz (average 40 kHz) with 2-14 waves (m).
- Instantaneous wave speeds revealed wave-to-wave variability and supported analysis of modal stability.
Conclusions:
- The developed image processing technique provides an automated and effective means to characterize RDRE detonation waves.
- Detailed insights into wave dynamics, including instantaneous properties and variability, are now achievable.
- This advancement in measurement capability can significantly contribute to the understanding and performance enhancement of RDREs.
Related Concept Videos
01:15Causes of Social Behavior II: Cognitive Processes
197
Cognitive processes affect social behavior by guiding how individuals perceive, interpret, and respond to social stimuli. These mental processes enable individuals to assess others' behaviors, attribute causes to their actions, and form expectations based on past experiences.Causes of Behavior and Social JudgmentsIndividuals determine the causes of others' behaviors by distinguishing between personal traits and external circumstances. For example, if a friend frequently arrives late, an...
197
01:28Automatic Processing and Automatic Social Behavior
225
Automatic processing refers to the cognitive operations that occur without conscious intent or awareness, playing a fundamental role in shaping social cognition and behavior. These processes enable individuals to navigate complex social environments efficiently by relying on mental shortcuts and pre-existing knowledge structures known as schemas. One of the most influential mechanisms underlying automatic processing is priming, which subtly activates mental representations through exposure to...
225
02:12The Wave Nature of Light
61.0K
The nature of light has been a subject of inquiry since antiquity. In the seventeenth century, Isaac Newton performed experiments with lenses and prisms and was able to demonstrate that white light consists of the individual colors of the rainbow combined together. Newton explained his optics findings in terms of a "corpuscular" view of light, in which light was composed of streams of extremely tiny particles traveling at high speeds according to Newton's laws of motion.
61.0K
01:18The Scientific Method in Nursing Process
17.1K
The scientific method provides the foundation for any research. It is the most reliable and objective of all forms of gaining knowledge and guides in applying research-based evidence in practice and conducting future research.
When using research findings to change practice, one must understand the process used to guide a study. The scientific method is a systematic, step-by-step process that supports the data's validity, reliability, and generalizability. As a result, findings can be...
When using research findings to change practice, one must understand the process used to guide a study. The scientific method is a systematic, step-by-step process that supports the data's validity, reliability, and generalizability. As a result, findings can be...
17.1K

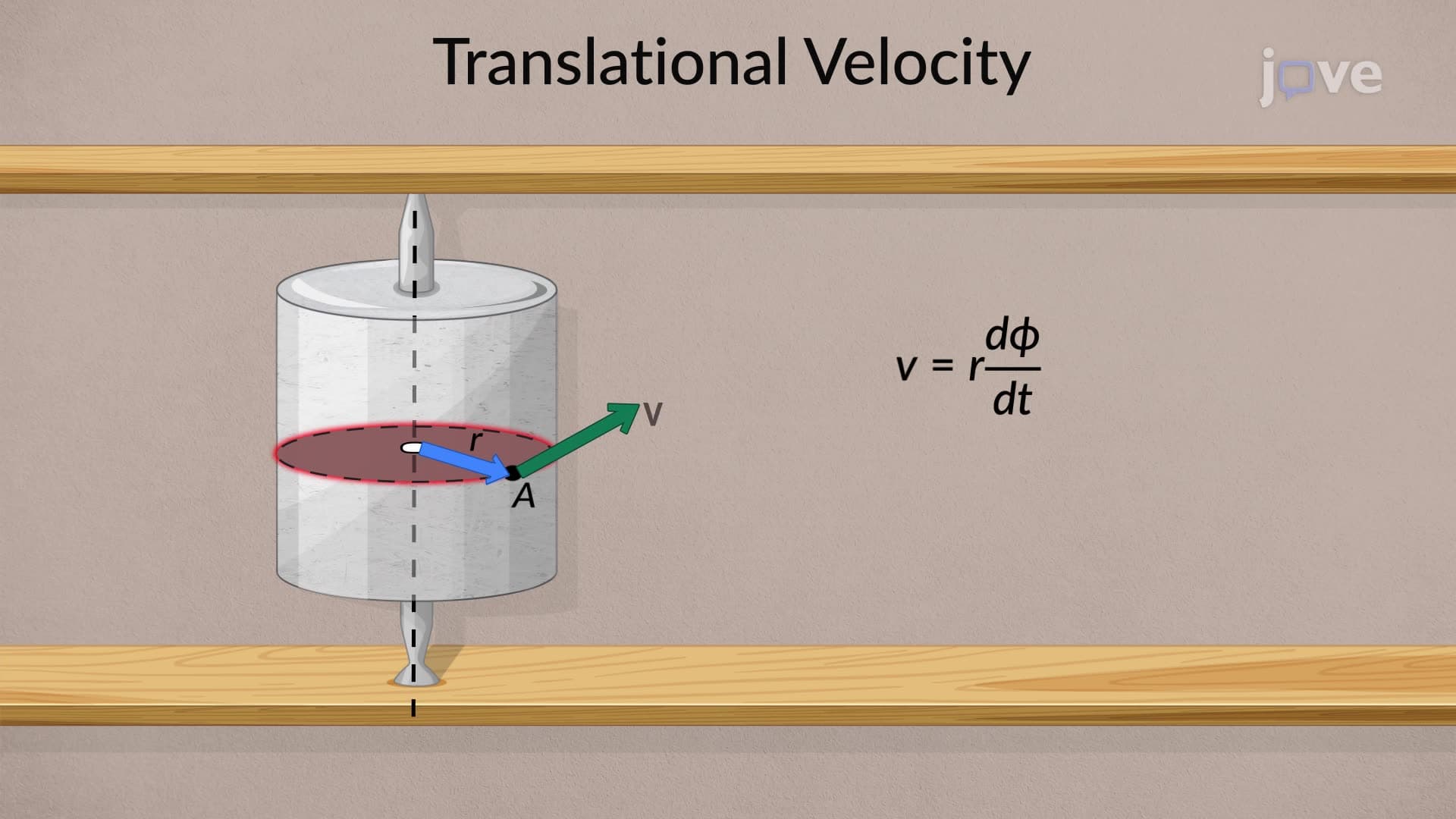

01:30Kinematic Equations for Rotation
