Multi-segment foot kinematics during running and its association with striking patterns
Kevin Deschamps1,2,3,4, Maarten Eerdekens1,2, Helen Peters1
1Department of Rehabilitation Sciences, Musculoskeletal Rehabilitation Research Group, KU Leuven, Leuven, Belgium.
Midfoot striking (MFS) in runners shows distinct foot kinematics compared to rearfoot striking (RFS). MFS involves greater plantarflexion, inversion, and adduction of the shank-calcaneus angle during the initial stance phase.
Area of Science:
- Biomechanics
- Sports Medicine
- Kinesiology
Background:
- Running striking patterns, specifically midfoot striking (MFS) versus rearfoot striking (RFS), are debated for their biomechanical advantages and potential harms.
- Understanding kinematic differences is crucial for addressing foot and lower limb running injuries.
Purpose of the Study:
- To investigate and compare the multi-segment foot kinematics between MFS and RFS running patterns.
- To identify specific joint angle differences during the stance phase of barefoot running.
Main Methods:
- Twelve students ran barefoot at 3.3 m/s (±10%) while their multi-segment foot kinematics were captured using a passive optoelectronic motion analysis system.
- Kinematic waveforms were compared between MFS and RFS conditions using one-dimensional statistical parametric mapping (1DSPM) with a paired t-test.
Main Results:
- The shank-calcaneus angle was significantly more plantar-flexed, inverted, and adducted during MFS compared to RFS.
- The calcaneus-midfoot angle showed greater plantarflexion in MFS.
- MFS exhibited more pronounced downward metatarsal angulation and medial longitudinal arch angle during late swing, with key differences occurring in the first 50% of stance.
Conclusions:
- Significant kinematic distinctions exist between MFS and RFS, particularly in the initial stance phase.
- These findings provide valuable insights for kinesiopathological and pathokinesiological analyses of running-related foot and lower limb injuries.
Related Concept Videos
08:26Comparative Analysis of Lower Limb Kinematics between the Initial and Terminal Phase of 5km Treadmill Running
Foot Exam
The foot is a complex structure composed of numerous bones and articulations. It provides flexibility, is the essential contact point needed for ambulation, and is uniquely suited to absorb shock. Because the foot must support the weight of the entire body, it is prone to injury and pain. When examining the foot, it is important to remove shoes and socks on both sides, so that the entire foot can be inspected and...
Kinematics and Projectile Motion
This experiment demonstrates the kinematics of motion in 1 and 2 dimensions. This lab will begin by studying motion in 1 dimension, under constant acceleration, by launching a projectile directly upward and measuring the maximum height reached. This lab will verify that the maximum height reached is consistent with the kinematic...

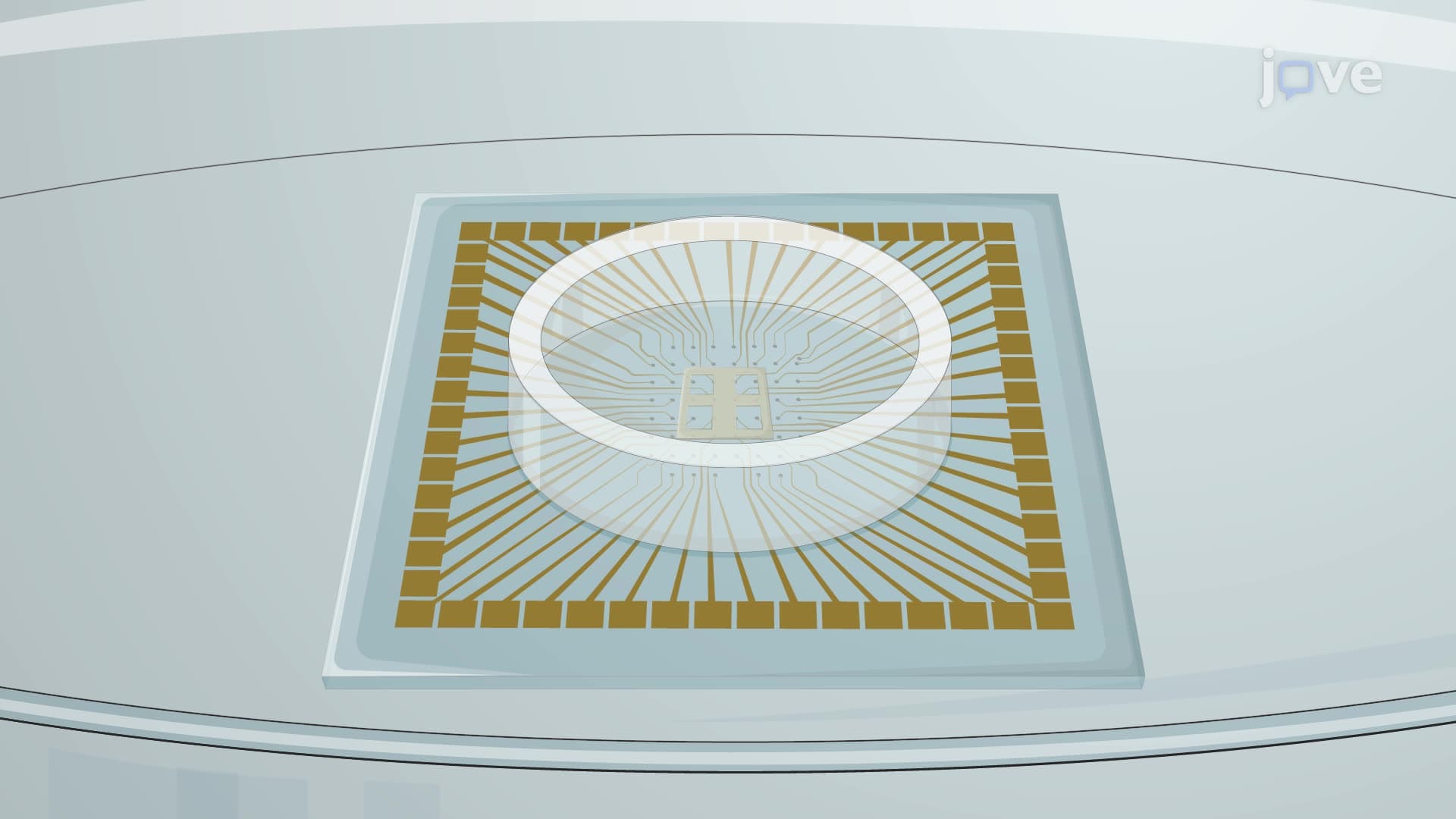

03:32Constructing Patterned Neuronal Circuits on a Multi-Electrode Array
