Development of hydraulic cross floating valve.
Shanay Rab1, Sanjay Yadav1, R K Sharma1
1CSIR-National Physical Laboratory (CSIR-NPL), New Delhi 110012, India.
The Review of Scientific Instruments
|September 2, 2019
Summary
A novel Cross Floating Valve (CFV) was designed and simulated for pressure calibration systems. This new valve significantly reduces calibration time by approximately 30%, enhancing efficiency in pressure balance (PB) testing.
Area of Science:
- Mechanical Engineering
- Metrology
- Materials Science
Background:
- Pressure balances (PBs) are crucial for calibration, but the process can be time-consuming.
- Existing calibration methods lack efficiency, necessitating innovative solutions.
- The Cross Floating Valve (CFV) is a key component in pressure calibration systems.
Purpose of the Study:
- To design, simulate, and develop an improved Cross Floating Valve (CFV).
- To enhance the ease and time efficiency of pressure calibration processes using PBs.
- To evaluate the performance and impact of the CFV on calibration duration.
Main Methods:
- Material selection and component modeling for CFV design.
- Finite element analysis (FEA) using ANSYS to simulate stress, strain, and deformation.
- Fabrication and performance testing of the CFV with different pressure balances.
Main Results:
- AISI17-4PH and SS440C were selected for piston fabrication based on safety factors and cost.
- Simulations identified SS304 and SS316 as unsuitable due to low safety factors.
- CFV implementation reduced calibration time by an average of 30%.
Conclusions:
- The developed CFV is effective in simplifying and accelerating pressure calibration.
- Material selection and simulation are critical for robust CFV design.
- The CFV offers a significant improvement in calibration efficiency for pressure balance systems.
Related Concept Videos
09:15Hydraulic Jumps
42.2K
Source: Alexander S Rattner and Mahdi Nabil; Department of Mechanical and Nuclear Engineering, The Pennsylvania State University, University Park, PA
When liquid flows along an open channel at high velocity, the flow can become unstable, and slight disturbances can cause the liquid upper surface to transition abruptly to a higher level (Fig. 1a). This sharp increase in the liquid level is called a hydraulic jump. The increase in the liquid level causes a reduction in the average flow velocity....
When liquid flows along an open channel at high velocity, the flow can become unstable, and slight disturbances can cause the liquid upper surface to transition abruptly to a higher level (Fig. 1a). This sharp increase in the liquid level is called a hydraulic jump. The increase in the liquid level causes a reduction in the average flow velocity....
42.2K
06:55Protein Isolation from the Developing Embryonic Mouse Heart Valve Region
9.9K
The analysis of protein expression in young embryonic mouse valves has been hampered by the limited tissue available. This manuscript provides a protocol for preparing protein from developing embryonic mouse valve regions for western blot...
9.9K
01:16Hydraulic Jump: Problem Solving
501
To analyze a hydraulic jump in a rectangular channel with a flow speed of 6 meters per second, follow these steps:Calculate Effective Upstream Velocity:When the downstream gate closes, a hydraulic jump forms, traveling upstream at 2 meters per second. This wave speed combines with the initial channel flow velocity, creating an effective upstream velocity.Identify Flow Velocities Before and After the Hydraulic Jump:Upstream of the hydraulic jump, the effective flow velocity includes both the...
501

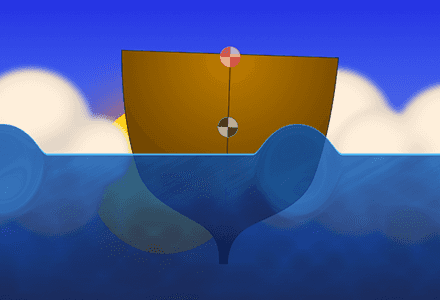

13:10Stability of Floating Vessels
