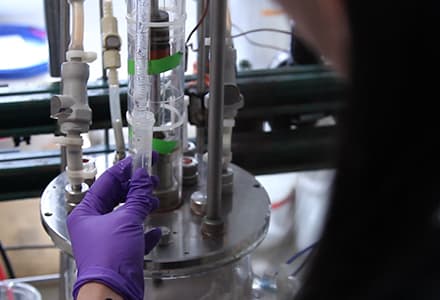

Crystallization of Salicylic Acid via Chemical Modification11:41

Crystallization of Salicylic Acid via Chemical Modification

25.0K
Source: Kerry M. Dooley and Michael G. Benton, Department of Chemical Engineering, Louisiana State University, Baton Rouge, LA
Processing of biochemicals involves unit operations such as crystallization, ultracentrifugation, membrane filtration, and preparative chromatography, all of which have in common the need to separate large from small molecules, or solid from liquid. Of these, crystallization is the most important from a tonnage standpoint. For that reason, it is commonly employed in the...
25.0K
Pre-mRNA Processing: Modification of pre-mRNA Ends01:35

Pre-mRNA Processing: Modification of pre-mRNA Ends

14.0K
In eukaryotic cells, transcripts made by RNA polymerase are modified and processed before exiting the nucleus. Unprocessed RNA is called precursor mRNA or pre-mRNA to distinguish it from mature mRNA.
Once about 20-40 ribonucleotides have been joined together by RNA polymerase, a group of enzymes adds a cap to the 5' end of the growing transcript. In this process, a 5' phosphate is replaced by modified guanosine that has a methyl group attached (7-methyl guanosine). This 5' cap helps...
14.0K

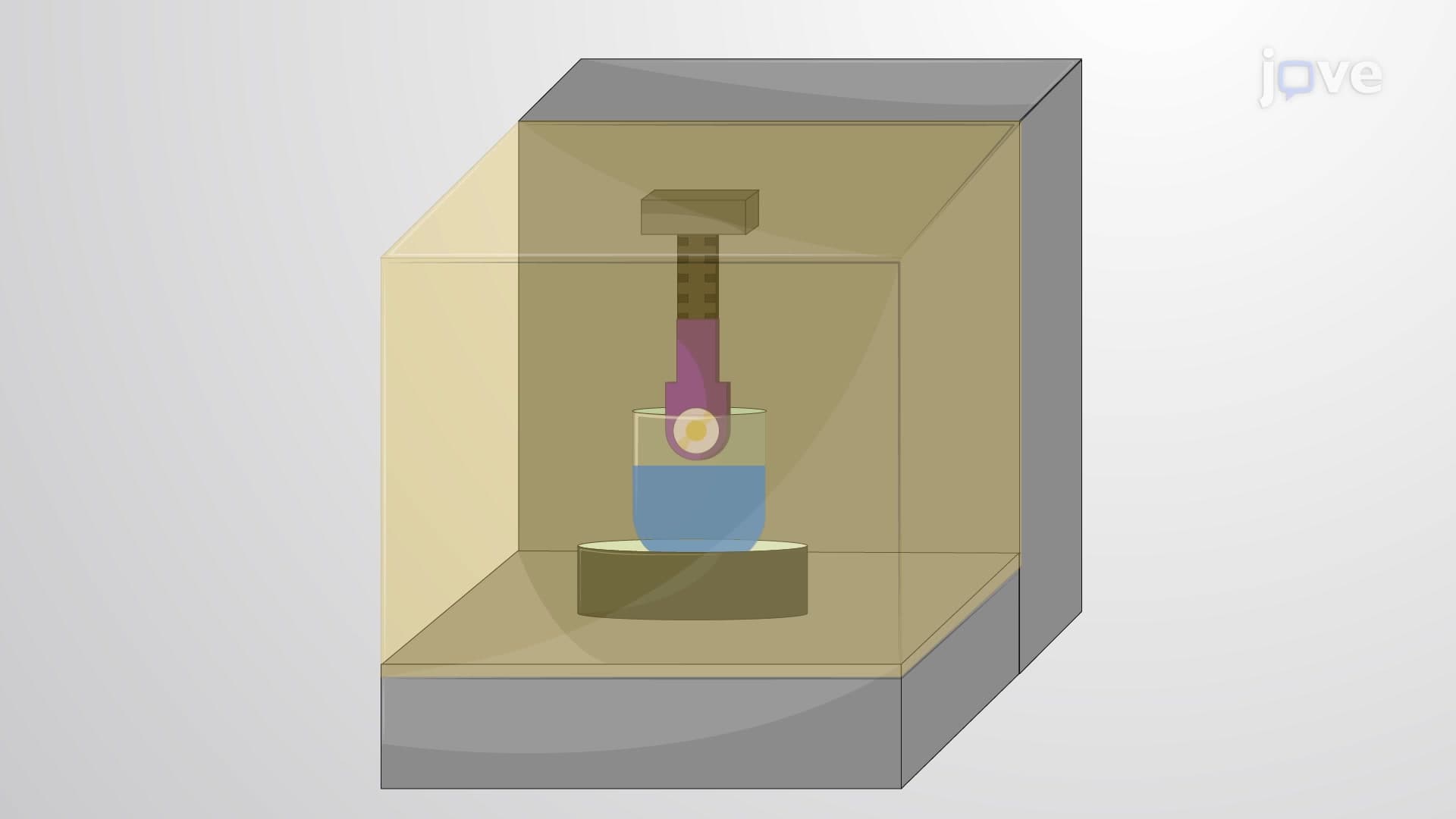

Quartz-Crystal Microbalance Biosensor-Based Biopanning to Study Protein-Drug Interactions05:13

Quartz-Crystal Microbalance Biosensor-Based Biopanning to Study Protein-Drug Interactions

781
This video demonstrates a method to study protein-drug interactions using QCM biosensor-based biopanning of the T7 phage-displayed peptide library. The biopanning of phages displaying a specific peptide on the QCM biosensor allows specific isolation of high-affinity peptides, followed by amino acid sequencing, which helps to identify specific interaction sites on the target...
781
Quadruple-Checkerboard: A Modification of the Three-Dimensional Checkerboard for Studying Drug Combinations11:15

Quadruple-Checkerboard: A Modification of the Three-Dimensional Checkerboard for Studying Drug Combinations

5.3K
This protocol describes how to study all possible combinations that can be obtained between four drugs in one single experiment. This method is based on the standard 96-well plate micro dilution assay and the calculation of fractional inhibitory concentrations (FICs) to evaluate the...
5.3K
Detection of Endotoxin in Nano-formulations Using Limulus Amoebocyte Lysate (LAL) Assays06:15

Detection of Endotoxin in Nano-formulations Using Limulus Amoebocyte Lysate (LAL) Assays

15.3K
Detection of endotoxins in engineered nanomaterials represents one of the grand challenges in the field of nanomedicine. Here, we present a case study that describes the framework composed of three different LAL formats to estimate potential endotoxin contamination in...
15.3K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Corrigendum to "Pharmaceutical optimization of chitosan tablets is associated with reduced circulating bile acids and fibrosis-related molecular signatures in non-alcoholic steatohepatitis rats" [Carbohydrate Polymers 383 (2026) 125333].

Carbohydrate polymers·2026
Same author

Pharmaceutical optimization of chitosan tablets is associated with reduced circulating bile acids and fibrosis-related molecular signatures in non-alcoholic steatohepatitis rats.

Carbohydrate polymers·2026
Same author

Preparation and evaluation of hydrophobin-pirarubicin glucosamine-containing nanoparticles as an anticancer formulation.

International journal of biological macromolecules·2026
Same author

Guanidinylated Chitosan as a Multifunctional Enhancer for Improved Flurbiprofen Delivery.

Biological & pharmaceutical bulletin·2025
Same author

Preparation and evaluation of stable amorphous flurbiprofen complexes using two different cyclodextrins.

Journal of pharmaceutical sciences·2025
Same author

Preparation of a Stable Indomethacin Supersaturated Solution Using Hydrophobically Modified Hydroxypropylmethylcellulose and α-Cyclodextrin.

Chemical & pharmaceutical bulletin·2025

Related Experiment Video

Updated: Jan 20, 2026

Transport Properties of Ibuprofen Encapsulated in Cyclodextrin Nanosponge Hydrogels: A Proton HR-MAS NMR Spectroscopy Study
10:10

Transport Properties of Ibuprofen Encapsulated in Cyclodextrin Nanosponge Hydrogels: A Proton HR-MAS NMR Spectroscopy Study

Published on: August 15, 2016

10.7K

Modification of Drug Crystallization by Cyclodextrins in Pre-formulation Study.

Daisuke Iohara1,2, Makoto Anraku1,2, Kaneto Uekama1

  • 1Faculty of Pharmaceutical Sciences, Sojo University.

Chemical & Pharmaceutical Bulletin
|September 3, 2019
PubMed
Summary

Hydrophilic cyclodextrins (CDs) control drug crystallization by altering pathways and modifying crystal habits. These additives enable the formation of stable amorphous drug/CDs complexes, advancing pre-formulation studies.

Keywords:
amorphouscrystal habitcyclodextrin (CD)polymorphsolid statesolution-mediated transition

More Related Videos

Crystallization of Salicylic Acid via Chemical Modification
11:41

Crystallization of Salicylic Acid via Chemical Modification

Published on: April 30, 2023

25.0K
Quadruple-Checkerboard: A Modification of the Three-Dimensional Checkerboard for Studying Drug Combinations
11:15

Quadruple-Checkerboard: A Modification of the Three-Dimensional Checkerboard for Studying Drug Combinations

Published on: July 24, 2021

5.3K

Related Experiment Videos

Last Updated: Jan 20, 2026

Transport Properties of Ibuprofen Encapsulated in Cyclodextrin Nanosponge Hydrogels: A Proton HR-MAS NMR Spectroscopy Study
10:10

Transport Properties of Ibuprofen Encapsulated in Cyclodextrin Nanosponge Hydrogels: A Proton HR-MAS NMR Spectroscopy Study

Published on: August 15, 2016

10.7K
Crystallization of Salicylic Acid via Chemical Modification
11:41

Crystallization of Salicylic Acid via Chemical Modification

Published on: April 30, 2023

25.0K
Quadruple-Checkerboard: A Modification of the Three-Dimensional Checkerboard for Studying Drug Combinations
11:15

Quadruple-Checkerboard: A Modification of the Three-Dimensional Checkerboard for Studying Drug Combinations

Published on: July 24, 2021

5.3K

Area of Science:

  • Pharmaceutical Science
  • Materials Science
  • Physical Chemistry

Background:

  • Controlling drug crystallization is crucial in pre-formulation studies.
  • Advanced additives are increasingly used to manage drug crystallization behavior.
  • Hydrophilic cyclodextrins (CDs) are emerging as effective additives for this purpose.

Purpose of the Study:

  • To review the application of hydrophilic cyclodextrins (CDs) in controlling drug crystallization.
  • To explore the mechanisms by which CDs influence crystallization in solution and solid states.
  • To highlight the role of CDs in crystal engineering and amorphous formulation.

Main Methods:

  • Host-guest interactions between CDs and drug molecules.
  • Selective suppression of crystallization pathways.
  • Modification of crystal morphology (habit) through controlled growth.
  • Preparation of stable amorphous drug/CDs complexes.

Main Results:

  • CDs, through host-guest interactions, can suppress solution-mediated transitions, leading to selective precipitation of metastable drug forms.
  • CDs facilitate crystal engineering by altering crystallization pathways, enabling the discovery of new polymorphs.
  • CDs can modify crystal habit by selectively inhibiting growth in specific directions.
  • Stable amorphous drug/CDs complexes were prepared using specific CDs, even under humid conditions.

Conclusions:

  • Hydrophilic cyclodextrins are versatile additives for controlling drug crystallization processes.
  • CDs offer opportunities for polymorph discovery and crystal habit modification.
  • CDs are valuable in developing stable amorphous drug formulations.
