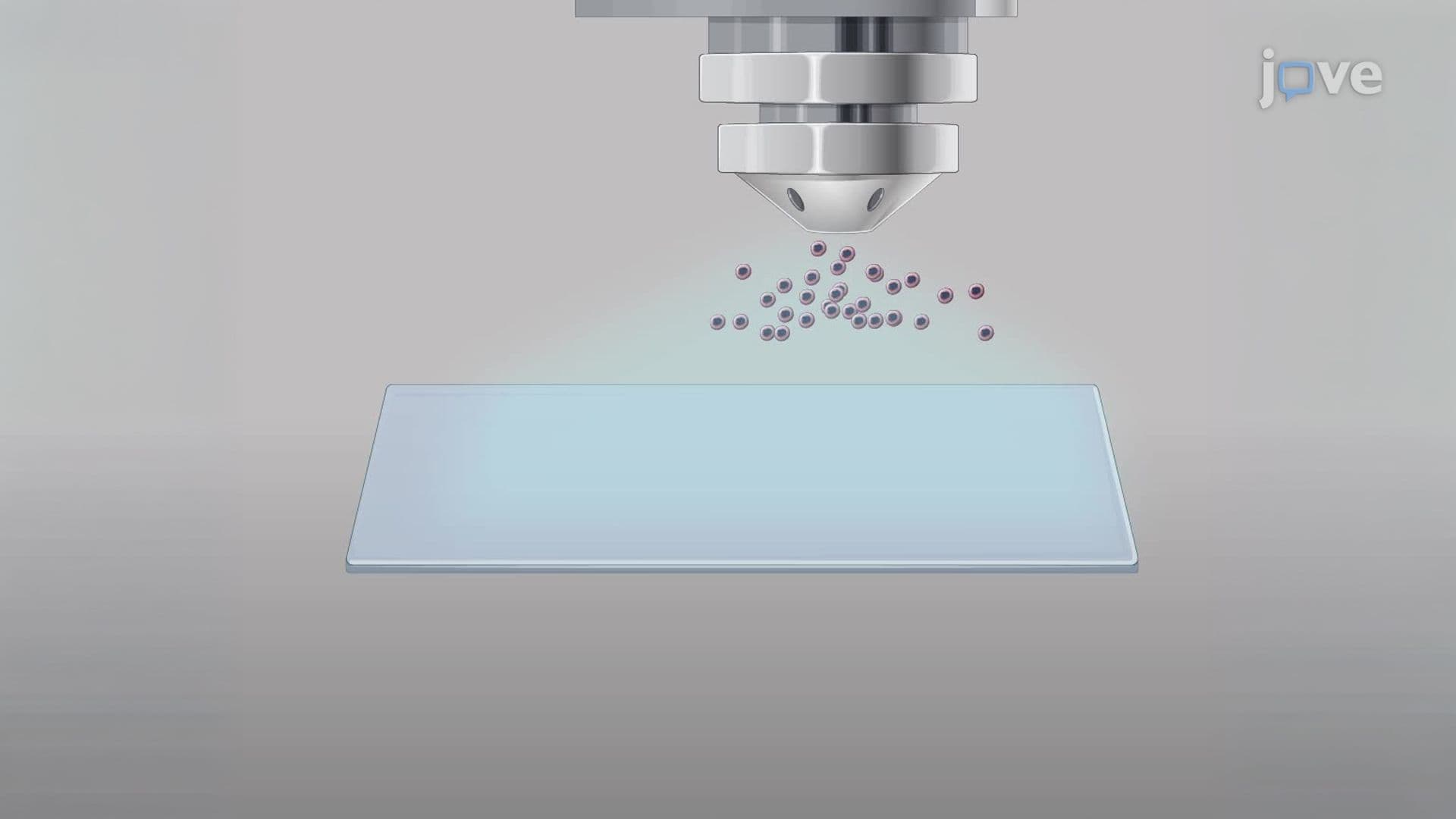

Production and Aerosol-Based Deposition of Bacillus subtilis Spores03:37

Production and Aerosol-Based Deposition of Bacillus subtilis Spores

294
Source: Fuchs, F. M., et al. Investigating the Detrimental Effects of Low Pressure Plasma Sterilization on the Survival of Bacillus subtilis Spores Using Live Cell Microscopy. J. Vis. Exp. (2017)This video demonstrates the production, purification, and aerosol-based deposition of Bacillus subtilis spores to create a uniform monolayer, enabling downstream applications such as microscopy-based analysis of spore germination, viability, or stress...
294
Visualization of Germinosomes and the Inner Membrane in Bacillus subtilis Spores08:58

Visualization of Germinosomes and the Inner Membrane in Bacillus subtilis Spores

10.5K
Germinant receptor proteins cluster in ‘germinosomes’ in the inner membrane of Bacillus subtilis spores. We describe a protocol using super resolution microscopy and fluorescent reporter proteins to visualize germinosomes. The protocol also identifies spore inner membrane domains that are preferentially stained with the membrane dye...
10.5K
Improvement of Bacillus subtilis Spore Enumeration and Label Analysis in Flow Cytometry06:39

Improvement of Bacillus subtilis Spore Enumeration and Label Analysis in Flow Cytometry

1.6K
This protocol focuses on the use of flow cytometry and counting beads to quantify bacterial spores labeled with ethidium bromide. The method is also efficient for analyzing the covalent coupling of proteins on the surface of intact spores.
1.6K
Investigating the Detrimental Effects of Low Pressure Plasma Sterilization on the Survival of Bacillus subtilis Spores Using Live Cell Microscopy10:03

Investigating the Detrimental Effects of Low Pressure Plasma Sterilization on the Survival of Bacillus subtilis Spores Using Live Cell Microscopy

10.0K
This protocol illustrates the important consecutive steps required to assess the relevance of monitoring vitality parameter and DNA repair processes in reviving Bacillus subtilis spores after treatment with low pressure plasma by tracking fluorescence-labelled DNA repair proteins via time-resolved confocal microscopy and scanning electron...
10.0K
Prevention of Heat Stress Adverse Effects in Rats by Bacillus subtilis Strain07:57

Prevention of Heat Stress Adverse Effects in Rats by Bacillus subtilis Strain

8.0K
We described a protocol for prevention of heat stress effects in rats by oral pre-treatment with beneficial bacteria. This protocol can be modified and used for various routes of administration and for analysis of different...
8.0K
Riboswitches01:56

Riboswitches

9.6K
Riboswitches are non-coding mRNA domains that regulate the transcription and translation of downstream genes without the help of proteins. Riboswitches bind directly to a metabolite and can form unique stem-loop or hairpin structures in response to the amount of the metabolite present. They have two distinct regions – a metabolite-binding aptamer and an expression platform.
The aptamer has high specificity for a particular metabolite which allows riboswitches to specifically regulate...
9.6K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Rapid Affinity Characterization of Cell-Free Expressed Nanobodies Directly in Lysate with Biolayer Interferometry via Antigen-Immobilized Biosensors.

ACS synthetic biology·2026
Same author

Single-Walled Carbon Nanotube Probes for Protease Characterization Directly in Cell-Free Expression Reactions.

Analytical chemistry·2025
Same author

Correction to "Resolving the Kinetics of Single-Walled Carbon Nanotube-Polyester Polyurethane Nanoparticle Conjugate Fluorescence Sensors toward Polymer Degrading Enzymes".

Nano letters·2025
Same author

Resolving the Kinetics of Single-Walled Carbon Nanotube-Polyester Polyurethane Nanoparticle Conjugate Fluorescence Sensors toward Polymer Degrading Enzymes.

Nano letters·2024
Same author

Amplified DNA heterogeneity assessment with Oxford Nanopore sequencing applied to cell free expression templates.

PloS one·2024
Same author

Facile Mechanochemical Functionalization of Hydrophobic Substrates for Single-Walled Carbon Nanotube Based Optical Reporters of Hydrolase Activity.

ACS applied materials & interfaces·2024

Related Experiment Video

Updated: Jan 20, 2026

Production and Aerosol-Based Deposition of Bacillus subtilis Spores
03:37

Production and Aerosol-Based Deposition of Bacillus subtilis Spores

Published on: October 30, 2025

294

Controlling Heterogeneity and Increasing Titer from Riboswitch-Regulated Bacillus subtilis Spores for Time-Delayed

Denis Tamiev1, Alyssa Lantz1, Grace Vezeau2

  • 1Department of Biochemistry Biophysics and Molecular Biology , Iowa State University , Ames , Iowa 50011 , United States.

ACS Synthetic Biology
|September 7, 2019
PubMed
Summary

Sporulated cells can be engineered for on-demand protein production, but maintaining consistent expression rates after germination is challenging. This study investigates plasmid types and bacterial mutants to improve protein expression consistency from spores.

Keywords:
delayed protein productionfield-usespacesporessynthetic biology

More Related Videos

Visualization of Germinosomes and the Inner Membrane in Bacillus subtilis Spores
08:58

Visualization of Germinosomes and the Inner Membrane in Bacillus subtilis Spores

Published on: April 15, 2019

10.5K
Improvement of Bacillus subtilis Spore Enumeration and Label Analysis in Flow Cytometry
06:39

Improvement of Bacillus subtilis Spore Enumeration and Label Analysis in Flow Cytometry

Published on: June 30, 2023

1.6K

Related Experiment Videos

Last Updated: Jan 20, 2026

Production and Aerosol-Based Deposition of Bacillus subtilis Spores
03:37

Production and Aerosol-Based Deposition of Bacillus subtilis Spores

Published on: October 30, 2025

294
Visualization of Germinosomes and the Inner Membrane in Bacillus subtilis Spores
08:58

Visualization of Germinosomes and the Inner Membrane in Bacillus subtilis Spores

Published on: April 15, 2019

10.5K
Improvement of Bacillus subtilis Spore Enumeration and Label Analysis in Flow Cytometry
06:39

Improvement of Bacillus subtilis Spore Enumeration and Label Analysis in Flow Cytometry

Published on: June 30, 2023

1.6K

Area of Science:

  • Synthetic Biology
  • Microbial Engineering
  • Protein Expression Systems

Background:

  • Sporulated bacterial cells offer potential as controllable protein expression platforms for applications like biologics and vaccines.
  • Achieving high and consistent protein expression rates from germinated spores remains a significant challenge.
  • Variability in expression post-sporulation can hinder the reliability of these engineered microbial systems.

Purpose of the Study:

  • To investigate the impact of integrating versus theta-replicating plasmids on protein expression from *Bacillus subtilis* spores.
  • To evaluate the role of PolY mutants in mitigating expression variance after sporulation.
  • To quantify the effects of different genetic constructs and mutations on protein expression kinetics and variability.

Main Methods:

  • Engineered *Bacillus subtilis* strains (wild-type and PolY mutants) to express a theophylline-inducible fluorescent reporter protein (RFP).
  • Utilized integrating and theta-replicating plasmids to assess differences in expression cassette copy number.
  • Analyzed fluorescence and cell-growth curves using a custom kinetic model to determine peak kinetic rates (LKPmax) and variances.

Main Results:

  • Plasmid-based expression resulted in 8.7-fold higher expression rates compared to integrated constructs due to increased copy numbers.
  • The variance of expression rates (LKPmax) increased 2.1-fold after sporulation in the wild-type strain.
  • PolY knockouts partially mitigated the increase in expression variance in both suspended cells and biofilms.

Conclusions:

  • Theta-replicating plasmids enhance protein expression rates from *Bacillus subtilis* spores but can increase expression variance post-sporulation.
  • The increased variance post-sporulation is comparable to UV exposure effects and can be partially overcome using PolY mutants.
  • Optimizing plasmid choice and bacterial strain genetics is crucial for reliable, high-yield protein production from sporulated cells.
