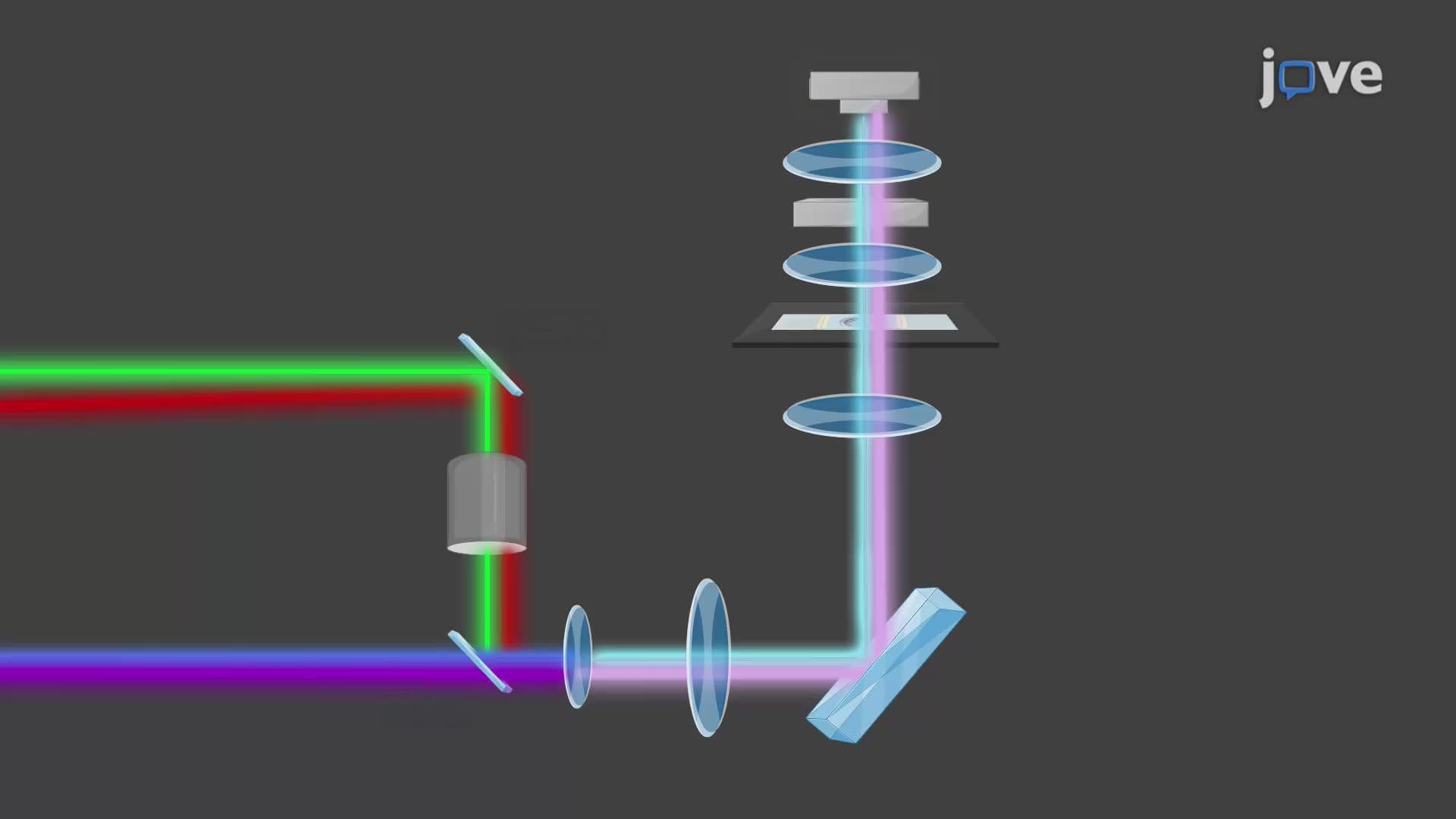

Source: Espinoza, R., et al. Real-Time, Two-Color Stimulated Raman Scattering Imaging of Mouse Brain for Tissue Diagnosis. J. Vis. Exp. (2022). The video demonstrates two-color stimulated Raman scattering (SRS) imaging of mouse brain tissue sections. Two synchronized laser beams are directed onto the tissue section to excite molecular vibrations, resulting in a relative intensity change in the beams. Lipids and proteins in the tissue are detected using distinct frequency...
436
Label-Free Imaging of Lipid Storage Dynamics in Caenorhabditis elegans using Stimulated Raman Scattering Microscopy10:59

Label-Free Imaging of Lipid Storage Dynamics in Caenorhabditis elegans using Stimulated Raman Scattering Microscopy

4.7K
Stimulated Raman scattering (SRS) microscopy allows selective, label-free imaging of specific chemical moieties and it has been effectively employed to image lipid molecules in vivo. Here, we provide a brief introduction to the principle of SRS microscopy and describe methods for its use in imaging lipid storage in Caenorhabditis...
4.7K
Implementation of a Nonlinear Microscope Based on Stimulated Raman Scattering09:13

Implementation of a Nonlinear Microscope Based on Stimulated Raman Scattering

8.0K
In this manuscript, the implementation of a stimulated Raman scattering (SRS) microscope, obtained by the integration of an SRS experimental set-up with a laser scanning microscope, is described. The SRS microscope is based on two femtosecond (fs) laser sources, a Ti-Sapphire (Ti:Sa) and synchronized optical parametric oscillator...
8.0K
In vivo Imaging of Biological Tissues with Combined Two-Photon Fluorescence and Stimulated Raman Scattering Microscopy09:06

In vivo Imaging of Biological Tissues with Combined Two-Photon Fluorescence and Stimulated Raman Scattering Microscopy

3.8K
Stimulated Raman scattering (SRS) microscopy allows label-free imaging of biomolecules based on their intrinsic vibration of specific chemical bonds. In this protocol, the instrumental setup of an integrated SRS and two-photon fluorescence microscope is described to visualize cellular structures in the spinal cord of live...
3.8K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same journal

Denoising algorithm of Φ-OTDR systems based on adaptive fractional wavelet transform denoising.

Optics express·2026
Same journal

Millisecond photon-to-photon latency and high-speed volumetric projection system for optogenetics.

Optics express·2026
Same journal

Polarization-encoded coaxial structured light for high-precision 3D surface profilometry.

Optics express·2026
Same journal

Discrete freeform optical design based on collaborative optimization of point cloud and local normals.

Optics express·2026
Same journal

Ultrafast ghost imaging with 25 GHz speckle switching and wavelength-division multiplexing.

Optics express·2026
Same journal

Atomic vapor cells fabricated by femtosecond laser welding of standard-optical-quality glass.

Optics express·2026

Related Experiment Video

Updated: Jan 19, 2026

Multiplex Chemical Imaging Based on Broadband Stimulated Raman Scattering Microscopy
09:57

Multiplex Chemical Imaging Based on Broadband Stimulated Raman Scattering Microscopy

Published on: July 25, 2022

4.5K

Orthogonal beam ballistic backscatter stimulated Raman microscopy.

Robert D Frankel

    Optics Express
    |September 13, 2019
    PubMed
    Summary

    Significant dipole-like ballistic backscatter occurs in stimulated Raman microscopes when the axial gain length is less than 40% of the emission wavelength. This enables rapid, sub-wavelength 3D imaging of label-free Raman contrast for pathology and metabolites.

    Area of Science:

    • Optics and Photonics
    • Microscopy
    • Biomedical Imaging

    Background:

    • Stimulated Raman scattering (SRS) microscopy offers label-free imaging capabilities.
    • Achieving sub-wavelength resolution and high-speed 3D imaging in SRS microscopy remains a challenge.
    • Understanding backscatter phenomena is crucial for optimizing SRS microscope design.

    Purpose of the Study:

    • To analyze a scanning SRS microscope configuration designed to induce significant dipole-like ballistic backscatter.
    • To investigate the impact of pump beam characteristics (focus and polarization) on backscattered signals.
    • To evaluate the potential for sub-wavelength resolution 3D imaging of biological samples and metabolites.

    Main Methods:

    • Utilized a scanning SRS microscope with orthogonal water-dipping objectives satisfying the criterion for ballistic backscatter.
