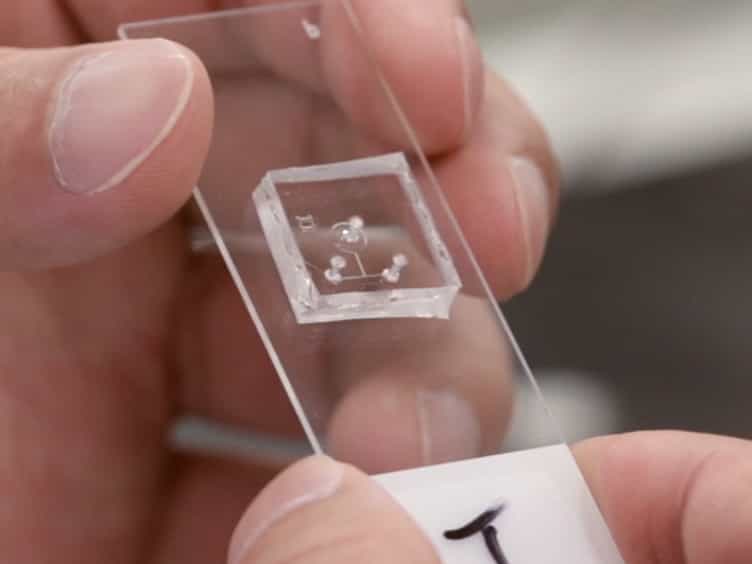

Analyzing Mixing Inhomogeneity in a Microfluidic Device by Microscale Schlieren Technique
Published on: June 12, 2015
Large-Scale Flow in Micro Electrokinetic Turbulent Mixer.
Keyi Nan1, Zhongyan Hu1, Wei Zhao1
1State Key Laboratory of Photoelectric Technology and Functional Materials, International Scientific and Technological Cooperation Base of Photoelectric Technology and Functional Materials and Application, Institute of Photonics and Photon-technology, Northwest University, Xi'an 710069, China.
Micro electrokinetic (μEK) turbulence in micromixers enhances mixing via velocity fluctuations and a large-scale 3D flow. This solenoid-type flow, driven by unbalanced electroosmotic flows (EOFs), efficiently distributes mixed fluids throughout the device.
Area of Science:
- Fluid dynamics
- Microfluidics
- Electrokinetics
Background:
- Micro-mixers are crucial for efficient fluid manipulation in lab-on-a-chip systems.
- Electrokinetic (EK) mechanisms offer a powerful way to induce turbulence and enhance mixing in microfluidic devices.
- Understanding the 3D flow field is essential for optimizing micromixer performance.
Purpose of the Study:
- To investigate the three-dimensional (3D) mean flow field in a micro electrokinetic (μEK) turbulence-based micromixer.
- To elucidate the mechanisms responsible for the rapid mixing observed in μEK micromixers.
- To characterize the role of electroosmotic flows (EOFs) in generating the observed 3D flow patterns.
Main Methods:
- Micro Particle Image Velocimetry (μPIV) with a stereoscopic method was employed to capture the 3D mean flow field.
- Experimental analysis of fluid behavior under μEK conditions.
- Investigation of fluid mixing dynamics at different conductivity levels.
Main Results:
- A large-scale, solenoid-type 3D mean flow field was observed within the μEK micromixer.
- Fast mixing is achieved through initial high mixing near the entrance due to velocity fluctuations, followed by convection via the 3D mean flow.
- The 3D mean flow is attributed to unbalanced electroosmotic flows (EOFs) arising from conductivity differences between the top and bottom surfaces.
Conclusions:
- The study reveals a dominant solenoid-type 3D mean flow in μEK turbulent micromixers.
- This 3D flow, coupled with initial mixing from velocity fluctuations, is key to the efficient mixing performance.
- Unbalanced EOFs driven by conductivity gradients are identified as the underlying mechanism for the observed 3D flow structure.
