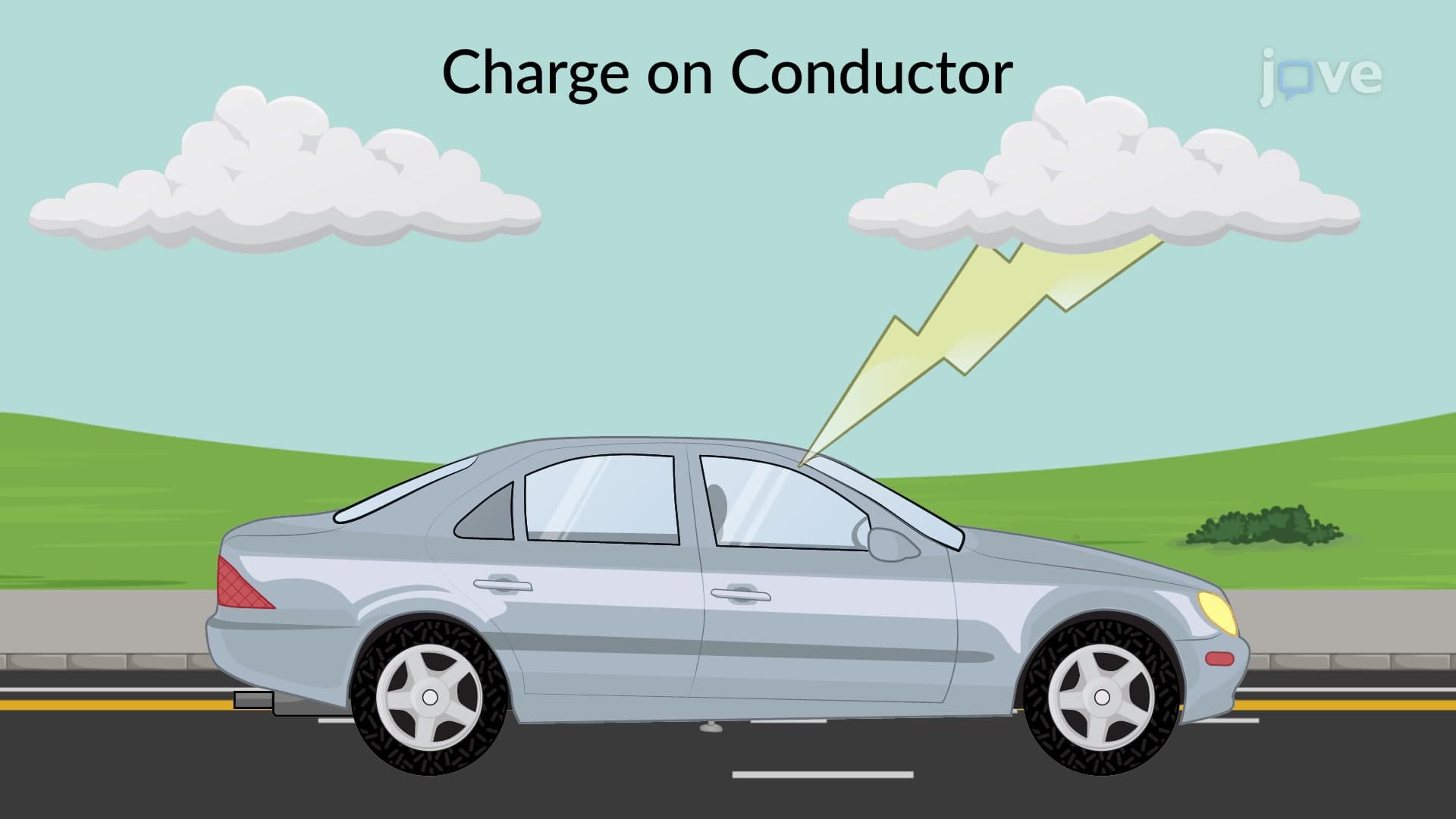

Charge on a Conductor01:26

Charge on a Conductor

5.1K
An interesting property of a conductor in static equilibrium is that extra charges on the conductor end up on its outer surface, regardless of where they originate. Consider a hollow metallic conductor with a uniform surface charge density. Since the conductor itself is in electrostatic equilibrium, there should not be any electric field inside the conductor. Now, assume a Gaussian surface enclosing the hollow portion. Applying Gauss's law, the inner surface of the hollow conductor will not...
5.1K

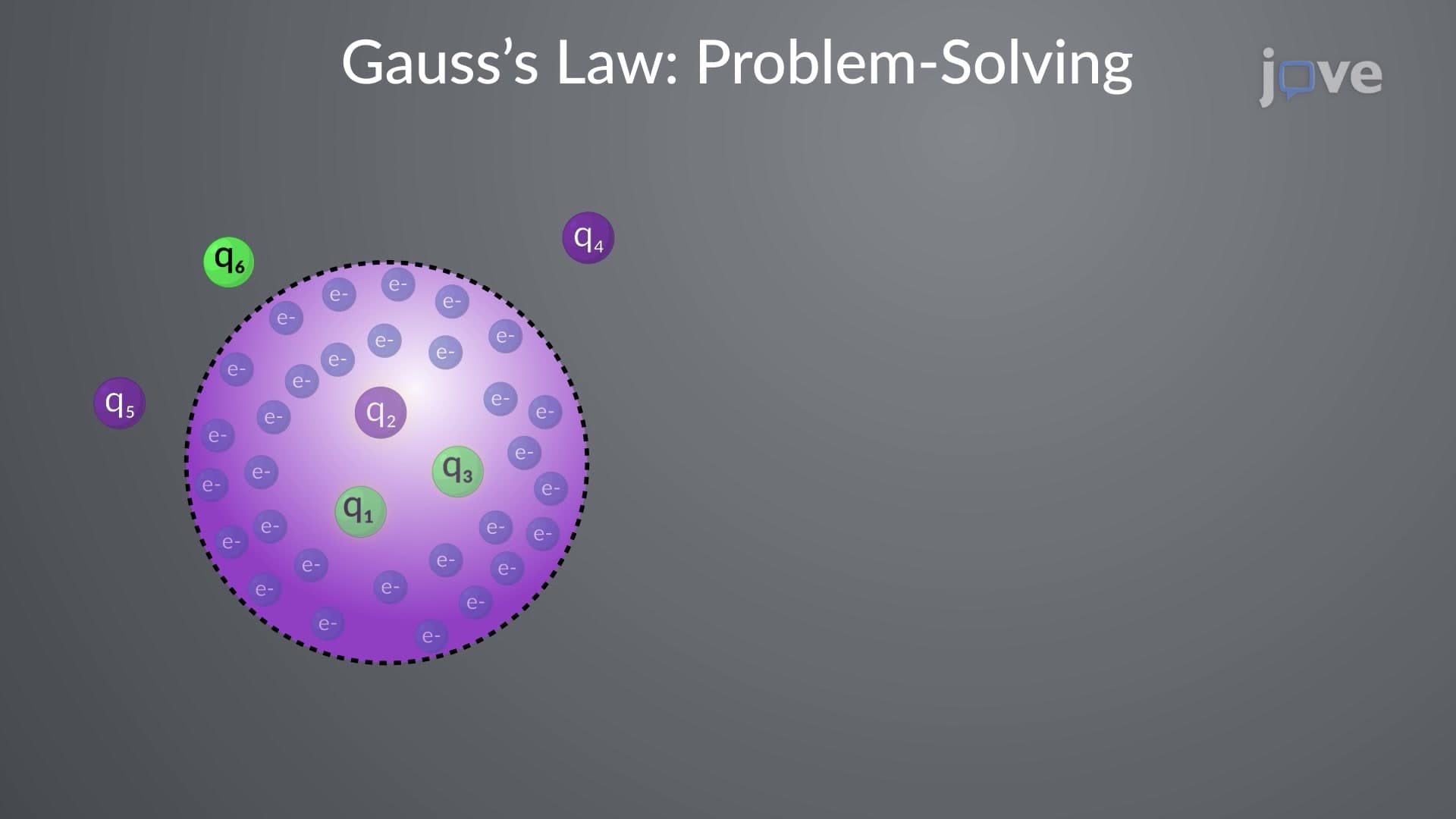

Gauss's Law: Problem-Solving01:10

Gauss's Law: Problem-Solving

2.4K
Gauss's law helps determine electric fields even though the law is not directly about electric fields but electric flux. In situations with certain symmetries (spherical, cylindrical, or planar) in the charge distribution, the electric field can be deduced based on the knowledge of the electric flux. In these systems, we can find a Gaussian surface S over which the electric field has a constant magnitude. Furthermore, suppose the electric field is parallel (or antiparallel) to the area vector...
2.4K

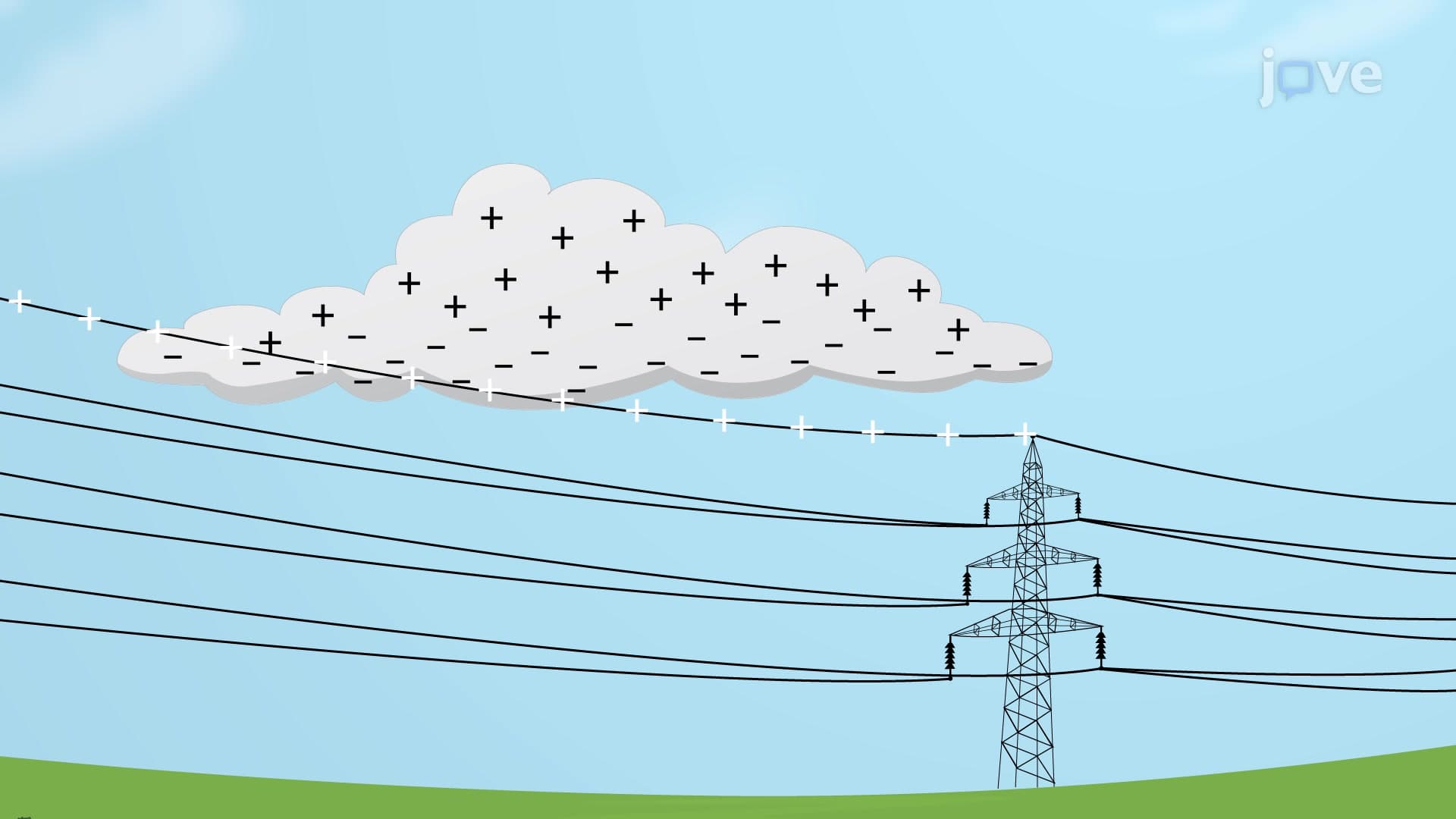

Electric Field at the Surface of a Conductor01:26

Electric Field at the Surface of a Conductor

5.1K
Consider a conductor in electrostatic equilibrium. The net electric field inside a conductor vanishes, and extra charges on the conductor reside on its outer surface, regardless of where they originate.
In the 19th century, Michael Faraday conducted the famous ice pail experiment to prove that the charges always reside on the surface of a conductor. The experimental set-up consists of a conducting uncharged container mounted on an insulating stand. The outer surface of the container is...
5.1K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Quadrupole-mediated dielectric response and the charge-asymmetric solvation of ions in water.

The Journal of chemical physics·2021
Same author

Finite electric displacement simulations of polar ionic solid-electrolyte interfaces: Application to NaCl(111)/aqueous NaCl solution.

The Journal of chemical physics·2019
Same author

Interfacial ion solvation: Obtaining the thermodynamic limit from molecular simulations.

The Journal of chemical physics·2018
Same author

Charge compensation at the interface between the polar NaCl(111) surface and a NaCl aqueous solution.

The Journal of chemical physics·2017
Same journal

The influence of chirality on the macroscopic behavior of multiferroic smectic phases.

The Journal of chemical physics·2026
Same journal

Polaron transformed canonically consistent quantum master equation.

The Journal of chemical physics·2026
Same journal

The x-ray absorption spectrum of the propargyl radical C3H3●.

The Journal of chemical physics·2026
Same journal

Transient hydroperoxyalkyl intermediates (•QOOH) in isopentane oxidation. I. Conformer- and isomer-resolved infrared spectra.

The Journal of chemical physics·2026
Same journal

Transient hydroperoxyalkyl intermediates (•QOOH) in isopentane oxidation. II. Isomer-resolved unimolecular dynamics.

The Journal of chemical physics·2026
Same journal

Quantum state-to-state dynamics studies of the C(3P) + OH(X2Π) → CO(a3Π) + H(2S) reaction based on a new HCO(12A″) potential energy surface.

The Journal of chemical physics·2026
See all related articles

Related Experiment Video

Updated: Dec 2, 2025

Experimental Methods of Dust Charging and Mobilization on Surfaces with Exposure to Ultraviolet Radiation or Plasmas
07:54

Experimental Methods of Dust Charging and Mobilization on Surfaces with Exposure to Ultraviolet Radiation or Plasmas

Published on: April 3, 2018

8.5K

Macroscopic surface charges from microscopic simulations.

Thomas Sayer1, Stephen J Cox1

  • 1Department of Chemistry, University of Cambridge, Lensfield Road, Cambridge CB2 1EW, United Kingdom.

The Journal of Chemical Physics
|November 3, 2020
PubMed
Summary
This summary is machine-generated.

Molecular simulations of charged surfaces require accurate ion density profiles. Imposing an electric displacement field (D) in slab simulations determines surface charge density, overcoming slab thickness limitations.

More Related Videos

Quantitative and Qualitative Examination of Particle-particle Interactions Using Colloidal Probe Nanoscopy
13:15

Quantitative and Qualitative Examination of Particle-particle Interactions Using Colloidal Probe Nanoscopy

Published on: July 18, 2014

11.3K
Surface Potential Measurement of Bacteria Using Kelvin Probe Force Microscopy
10:49

Surface Potential Measurement of Bacteria Using Kelvin Probe Force Microscopy

Published on: November 28, 2014

22.2K

Related Experiment Videos

Last Updated: Dec 2, 2025

Experimental Methods of Dust Charging and Mobilization on Surfaces with Exposure to Ultraviolet Radiation or Plasmas
07:54

Experimental Methods of Dust Charging and Mobilization on Surfaces with Exposure to Ultraviolet Radiation or Plasmas

Published on: April 3, 2018

8.5K
Quantitative and Qualitative Examination of Particle-particle Interactions Using Colloidal Probe Nanoscopy
13:15

Quantitative and Qualitative Examination of Particle-particle Interactions Using Colloidal Probe Nanoscopy

Published on: July 18, 2014

11.3K
Surface Potential Measurement of Bacteria Using Kelvin Probe Force Microscopy
10:49

Surface Potential Measurement of Bacteria Using Kelvin Probe Force Microscopy

Published on: November 28, 2014

22.2K

Area of Science:

  • Computational chemistry
  • Surface science
  • Electrochemistry

Background:

  • Accurate molecular simulation is crucial for understanding system behavior.
  • Ion density profiles near charged surfaces are key for electrolyte solutions.
  • Standard simulation methods may introduce artifacts in surface charge calculations.

Purpose of the Study:

  • To develop a robust method for determining macroscopic surface charge densities in molecular simulations.
  • To address limitations of existing methods like the Yeh-Berkowitz approach and mirrored slab geometry.
  • To validate the proposed method on both simple and complex charged interfaces.

Main Methods:

  • Molecular dynamics simulations in slab geometry.
  • Application of an electric displacement field (D) to charged interfaces.
  • Analysis of ion density profiles normal to the surface.

Main Results:

  • Imposing an electric displacement field (D) accurately determines integrated surface charge density.
  • This method yields macroscopic surface charge densities independent of slab thickness.
  • The Yeh-Berkowitz method and mirrored slab geometry were shown to yield vanishing integrated surface charge densities.

Conclusions:

  • The electric displacement field method provides a reliable way to calculate surface charge density in simulations.
  • This approach overcomes artifacts associated with slab thickness and common simulation geometries.
  • The findings are applicable to various charged interfaces, including mineral-water systems.
