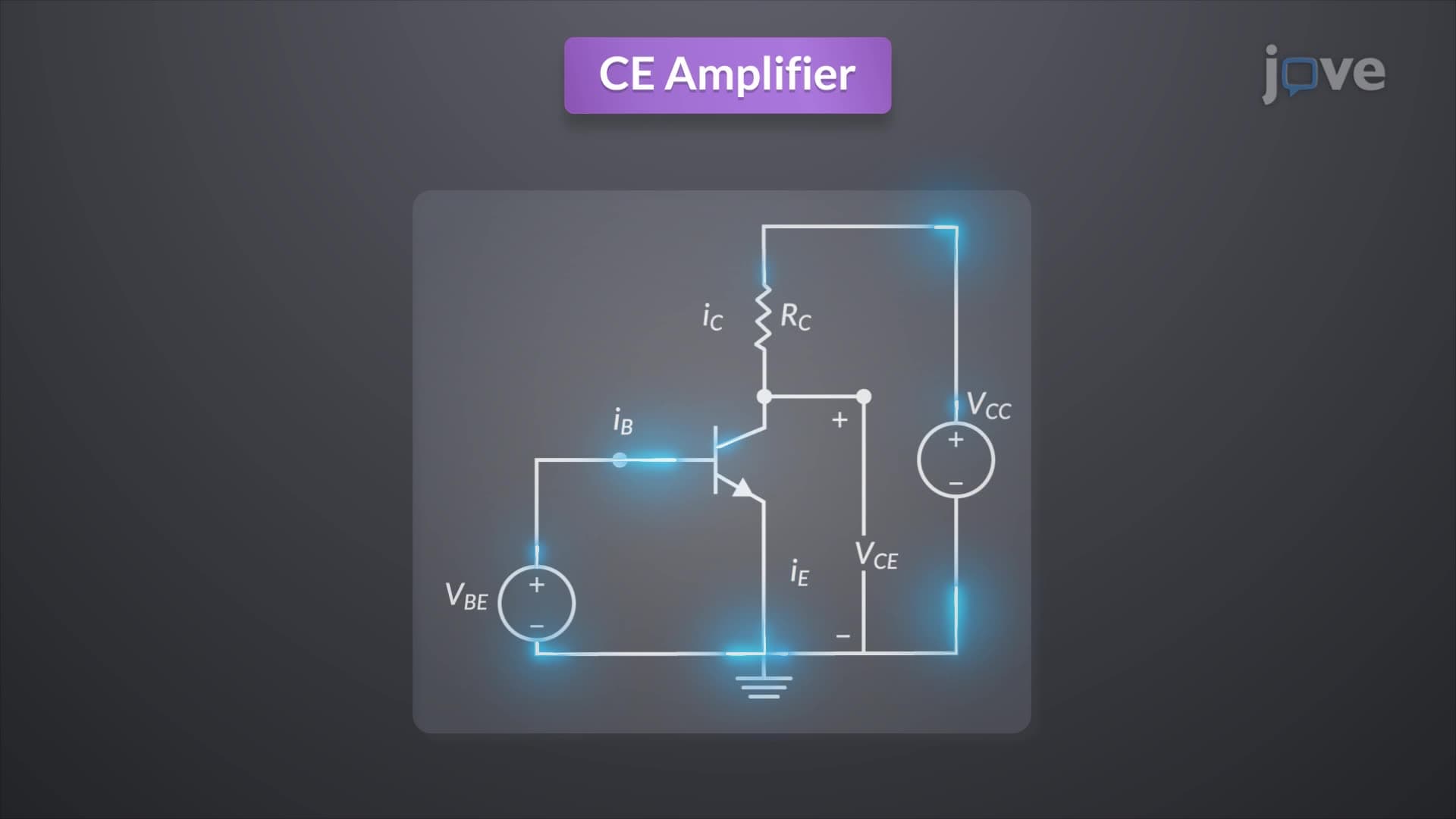

Bipolar Junction Transistors (BJTs) are pivotal components in amplifier circuits, functioning as voltage-controlled current sources in their active region. This characteristic allows them to efficiently control the collector current through variations in the base-emitter voltage. Essentially, BJTs amplify power due to their ability to take a weak input signal and output a much stronger signal.
In BJT amplifier configurations, particularly in common-emitter setups, the transistor's role...
713
Cascaded Op Amps01:16

Cascaded Op Amps

857
Operational amplifiers (op-amps) are versatile electronic components that can be interconnected in a cascade - one after another in a linear sequence. This cascading is possible due to their infinite input resistance and zero output resistance, allowing them to maintain their input-output relationships even when connected in series.
In a cascaded system, each op-amp is referred to as a stage. The output of one stage drives the input of the subsequent stage. As the input signal passes through...
857
Small-Signal Analysis of MOSFET Amplifiers01:23

Small-Signal Analysis of MOSFET Amplifiers

849

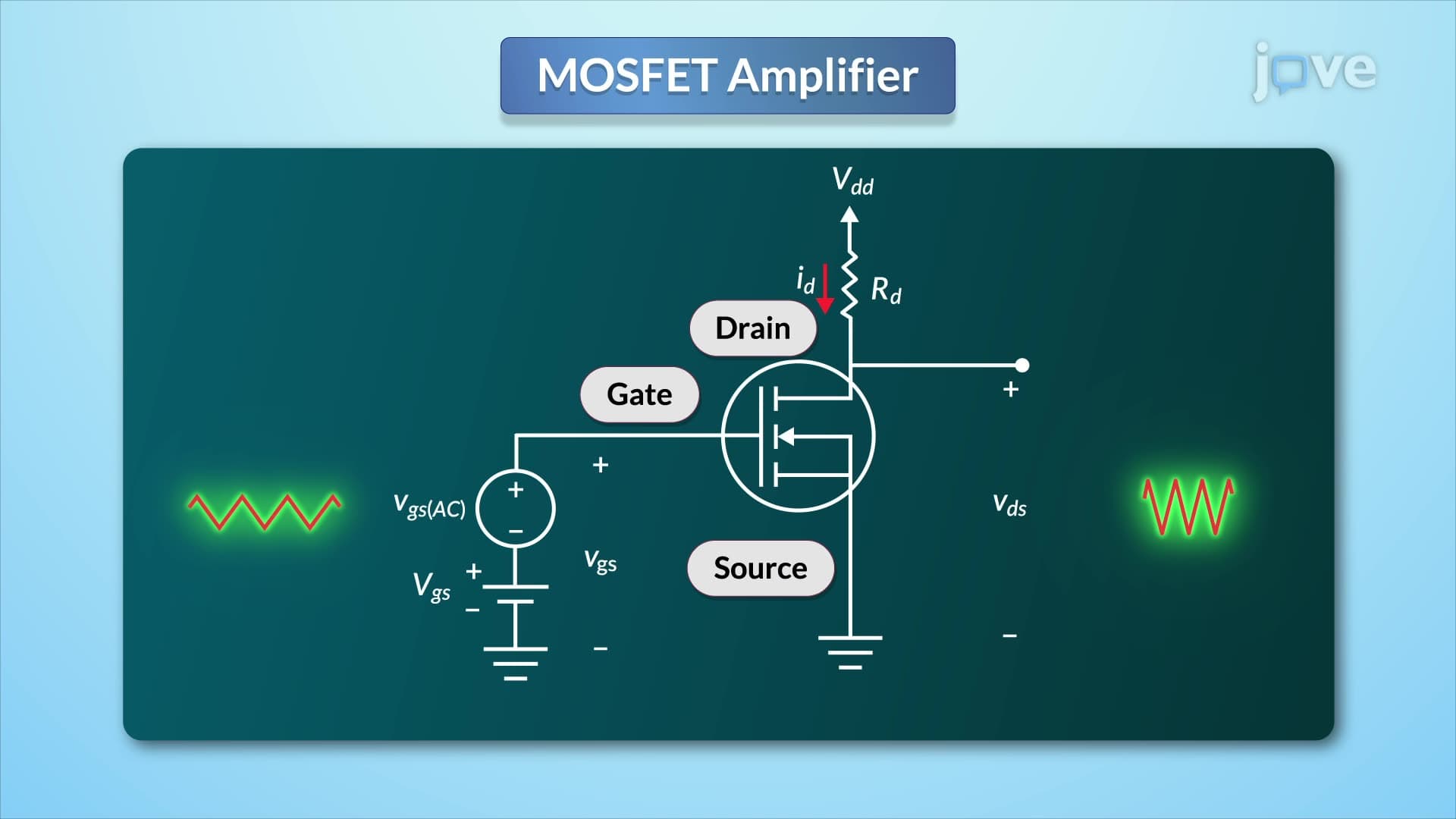

In small-signal analysis, a MOSFET transistor amplifier acts as a linear amplifier when operating in its saturation region. The gate-to-source voltage (VGS) of the MOSFET is the sum of the DC biasing voltage and the small time-varying input signal. This combination sets up the operating point and modulates the drain current (ID) that flows from the drain to the source. When a small AC signal is superimposed on the DC bias voltage at the gate, the instantaneous drain current comprises three...
849
Small-Signal Analysis of BJT Amplifiers01:21

Small-Signal Analysis of BJT Amplifiers

1.4K

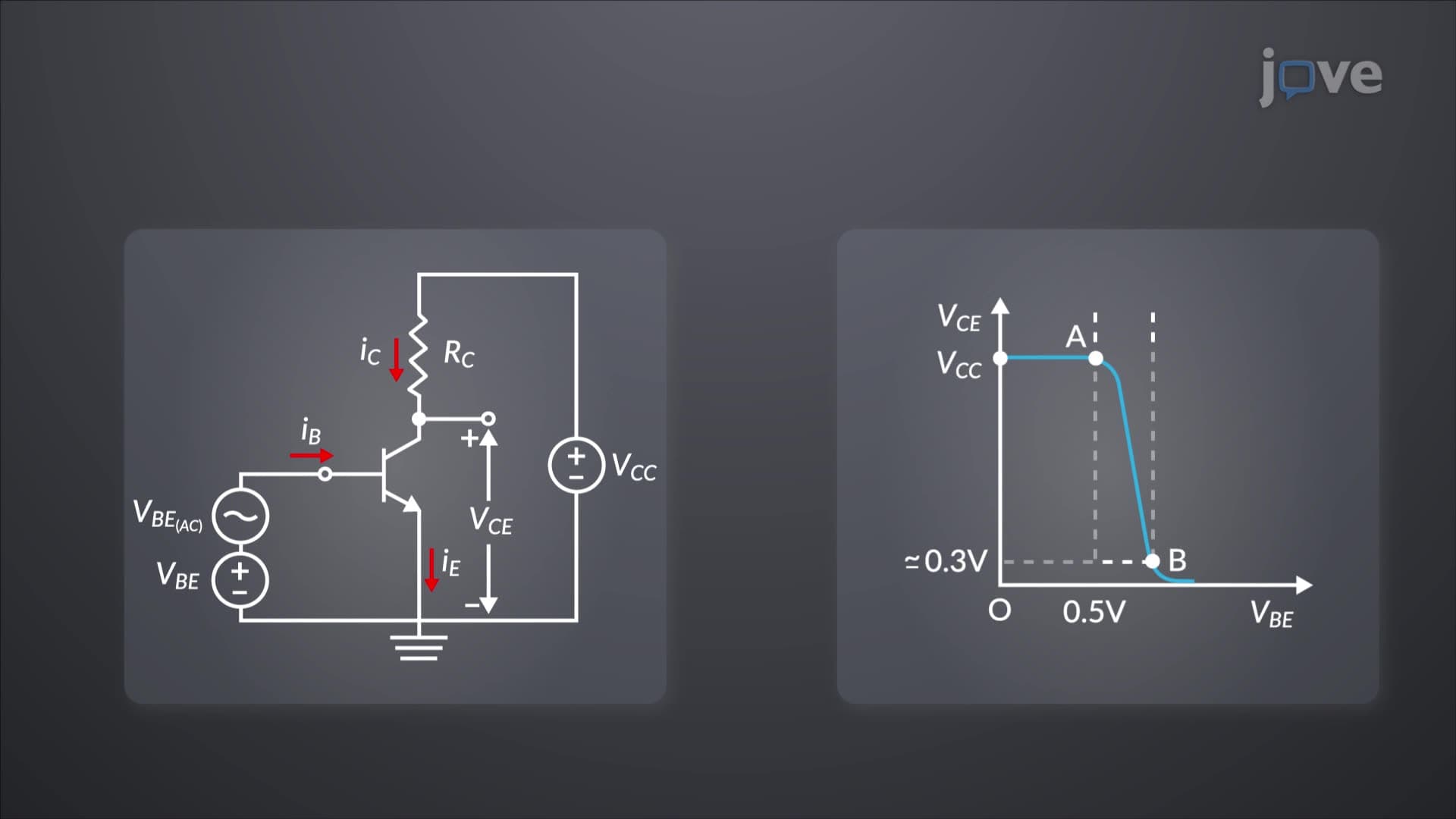

Small signal analysis is a fundamental approach used in electronics to understand how a Bipolar Junction Transistor (BJT) amplifier processes signals. In the active region, the BJT is designed for linear amplification. The transistor's behavior under these conditions is governed by its instantaneous base-emitter voltage VBE, a sum of the DC bias VBE, and a small AC signal VBE, resulting in the collector current iC. Here, the collector current has a DC component and an AC component.
1.4K
Operational Amplifiers01:17

Operational Amplifiers

1.6K
The operational amplifier, often referred to as an op-amp, is a multifaceted building block of a circuit. This electronic component functions like a voltage-controlled voltage source and can also be used to create a voltage- or current-controlled current source. The design of an operational amplifier enables it to execute mathematical operations when external components like resistors and capacitors are linked to its terminals. An op-amp has the capacity to sum signals, amplify a signal,...
1.6K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Methods to achieve near-millisecond energy relaxation and dephasing times for a superconducting transmon qubit.

Nature communications·2025
Same author

Nanobolometer with ultralow noise equivalent power.

Communications physics·2025
Same author

Broadband Lamb shift in an engineered quantum system.

Nature physics·2025
Same author

Innovative approach of nomography application into an engineering educational context.

PloS one·2025
Same author

PyNomo software dataset for sciences and engineering nomogram construction.

Data in brief·2022
Same author

Unimon qubit.

Nature communications·2022
Same journal

A compact low-power magnetic particle imaging scanner based on a permanent-magnet field-free-line generator with high gradient.

The Review of scientific instruments·2026
Same journal

Achieving ultrahigh resolution with high efficiency: Optical design of the two-dimensional Resonant Inelastic X-ray Scattering (2D-RIXS) spectrometer at NanoTerasu beamline 02U.

The Review of scientific instruments·2026
Same journal

Automated laboratory x-ray diffractometer and fluorescence spectrometer for high-throughput materials characterization.

The Review of scientific instruments·2026
Same journal

Nonlinear Bayesian Doppler tomography for simultaneous reconstruction of flow and temperature.

The Review of scientific instruments·2026
Same journal

A Reflectance-based multimodal wearable photoplethysmography (PPG) sensor.

The Review of scientific instruments·2026
Same journal

Temporal analysis of products-Raman (TAP-Raman): An integrated setup for operando spectroscopy and transient kinetic analysis.

The Review of scientific instruments·2026
See all related articles

Related Experiment Video

Updated: Nov 10, 2025

Fabrication and Characterization of Superconducting Resonators
10:26

Fabrication and Characterization of Superconducting Resonators

Published on: May 21, 2016

11.6K

Characterizing cryogenic amplifiers with a matched temperature-variable noise source.

Slawomir Simbierowicz1, Visa Vesterinen2, Joshua Milem1

  • 1Bluefors Oy, Arinatie 10, 00370 Helsinki, Finland.

The Review of Scientific Instruments
|April 6, 2021
PubMed
Summary
This summary is machine-generated.

We developed a new cryogenic microwave noise source for precise amplifier testing. This device achieves ultra-low system noise temperatures, crucial for quantum computing applications.

More Related Videos

Cryogenic Liquid Jets for High Repetition Rate Discovery Science
08:34

Cryogenic Liquid Jets for High Repetition Rate Discovery Science

Published on: May 9, 2020

3.2K
Rapid Repetition Rate Fluctuation Measurement of Soliton Crystals in a Microresonator
07:42

Rapid Repetition Rate Fluctuation Measurement of Soliton Crystals in a Microresonator

Published on: December 15, 2021

3.3K

Related Experiment Videos

Last Updated: Nov 10, 2025

Fabrication and Characterization of Superconducting Resonators
10:26

Fabrication and Characterization of Superconducting Resonators

Published on: May 21, 2016

11.6K
Cryogenic Liquid Jets for High Repetition Rate Discovery Science
08:34

Cryogenic Liquid Jets for High Repetition Rate Discovery Science

Published on: May 9, 2020

3.2K
Rapid Repetition Rate Fluctuation Measurement of Soliton Crystals in a Microresonator
07:42

Rapid Repetition Rate Fluctuation Measurement of Soliton Crystals in a Microresonator

Published on: December 15, 2021

3.3K

Area of Science:

  • Cryogenic Engineering
  • Microwave Engineering
  • Quantum Computing

Background:

  • Accurate characterization of sensitive amplifiers is critical for quantum technologies.
  • Existing cryogenic noise sources may introduce unwanted heating or lack tunability.
  • Solid-state qubit readout lines require precise noise measurements.

Purpose of the Study:

  • To present a novel cryogenic microwave noise source.
  • To demonstrate its capability for ultra-low noise measurements.
  • To validate its application in characterizing amplifier cascades for qubit readout.

Main Methods:

  • Designed and implemented a 50 Ω cryogenic microwave noise source.
  • Integrated the source into a coaxial line within a cryostat.
  • Utilized Y-factor measurements to assess amplifier cascade performance.
  • Varied bath temperature from 0.1 K to 5 K.

Main Results:

  • Achieved continuously variable bath temperatures (0.1 K - 5 K) without sample space heating.
  • Observed system noise temperatures as low as 680-200 +20 mK at 5.7 GHz.
  • Demonstrated noise performance equivalent to 1.5-0.7 +0.1 excess photons.

Conclusions:

  • The developed cryogenic noise source enables precise amplifier characterization at ultra-low temperatures.
  • It is suitable for validating readout lines in quantum computing systems.
  • Offers a tunable and low-back-action solution for cryogenic noise injection.
