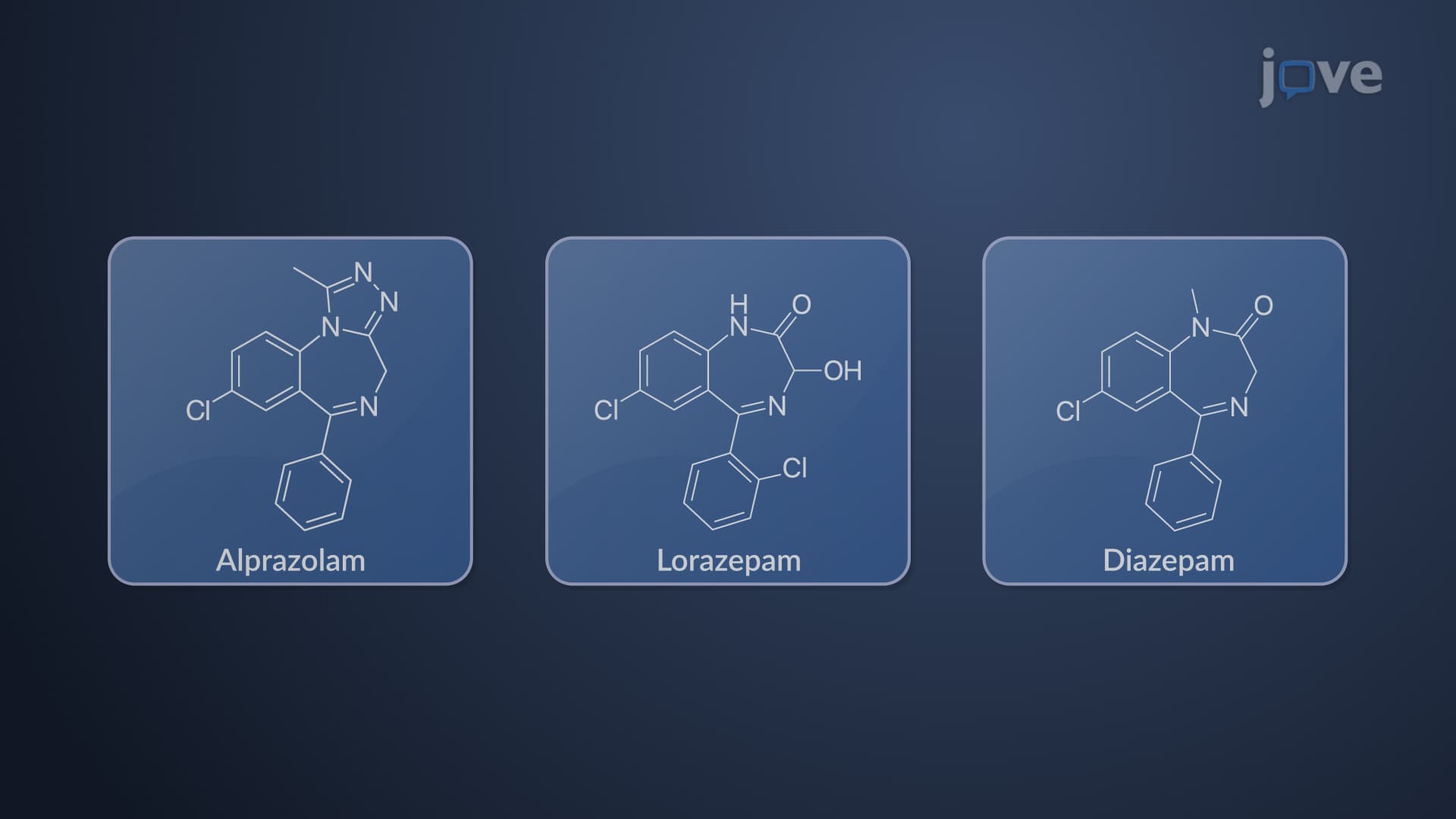

Anxiolytic Drugs: Benzodiazepines and Buspirone01:29

Anxiolytic Drugs: Benzodiazepines and Buspirone

1.5K
Benzodiazepines are a class of anxiolytic drugs known for their rapid efficacy and high therapeutic-to-lethal dose ratio, but with a potential risk of drug dependence. These drugs are lipophilic, allowing for rapid absorption after oral administration, eventually reaching the central nervous system (CNS). Once in the CNS, benzodiazepines bind to the allosteric site of the GABAA receptor. This binding enhances the inhibitory effects of the neurotransmitter GABA. By doing so, they prevent...
1.5K
Nomenclature of Aromatic Compounds with a Single Substituent01:23

Nomenclature of Aromatic Compounds with a Single Substituent

8.9K
Benzene is the simplest aromatic hydrocarbon or arene. The IUPAC names for simple monosubstituted benzene derivatives are derived by adding the substituent's name as a prefix to the parent benzene. For example, halobenzene, where the halogen could be fluoro (F), chloro (Cl), bromo (Br), and iodo (I).
8.9K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same journal

The influence of chirality on the macroscopic behavior of multiferroic smectic phases.

The Journal of chemical physics·2026
Same journal

Polaron transformed canonically consistent quantum master equation.

The Journal of chemical physics·2026
Same journal

The x-ray absorption spectrum of the propargyl radical C3H3●.

The Journal of chemical physics·2026
Same journal

Transient hydroperoxyalkyl intermediates (•QOOH) in isopentane oxidation. I. Conformer- and isomer-resolved infrared spectra.

The Journal of chemical physics·2026
Same journal

Transient hydroperoxyalkyl intermediates (•QOOH) in isopentane oxidation. II. Isomer-resolved unimolecular dynamics.

The Journal of chemical physics·2026
Same journal

Quantum state-to-state dynamics studies of the C(3P) + OH(X2Π) → CO(a3Π) + H(2S) reaction based on a new HCO(12A″) potential energy surface.

The Journal of chemical physics·2026
See all related articles
JoVE
x logofacebook logolinkedin logoyoutube logo
ABOUT JoVE
OverviewLeadershipBlogJoVE Help Center
AUTHORS
Publishing ProcessEditorial BoardScope & PoliciesPeer ReviewFAQSubmit
LIBRARIANS
TestimonialsSubscriptionsAccessResourcesLibrary Advisory BoardFAQ
RESEARCH
JoVE JournalMethods CollectionsJoVE Encyclopedia of ExperimentsArchive
EDUCATION
JoVE CoreJoVE BusinessJoVE Science EducationJoVE Lab ManualFaculty Resource CenterFaculty Site
Terms & Conditions of Use
Privacy Policy
Policies

Related Experiment Video

Updated: Oct 6, 2025

Palladium N-Heterocyclic Carbene Complexes: Synthesis from Benzimidazolium Salts and Catalytic Activity in Carbon-carbon Bond-forming Reactions
19:58

Palladium N-Heterocyclic Carbene Complexes: Synthesis from Benzimidazolium Salts and Catalytic Activity in Carbon-carbon Bond-forming Reactions

Published on: July 30, 2017

9.8K

Benzvalyne: Real or imaginary?

Kimberley N Poland1, Brent R Westbrook1, David H Magers2

  • 1Department of Chemistry and Biochemistry, University of Mississippi, University, Mississippi 38655, USA.

The Journal of Chemical Physics
|January 16, 2022
PubMed
Summary
This summary is machine-generated.

Benzvalyne, a strained bicyclic isomer of o-benzyne, is confirmed as a true minimum on the potential energy surface by advanced computational methods. Its high strain energy and predicted dipole moment suggest potential detectability in interstellar space.

More Related Videos

Preparation of N-2-alkoxyvinylsulfonamides from N-tosyl-1,2,3-triazoles and Subsequent Conversion to Substituted Phthalans and Phenethylamines
10:42

Preparation of N-2-alkoxyvinylsulfonamides from N-tosyl-1,2,3-triazoles and Subsequent Conversion to Substituted Phthalans and Phenethylamines

Published on: January 3, 2018

9.9K
Efficient Synthesis of Polyfunctionalized Benzenes in Water via Persulfate-promoted Benzannulation of α,β-Unsaturated Compounds and Alkynes
05:34

Efficient Synthesis of Polyfunctionalized Benzenes in Water via Persulfate-promoted Benzannulation of α,β-Unsaturated Compounds and Alkynes

Published on: December 16, 2019

8.0K

Related Experiment Videos

Last Updated: Oct 6, 2025

Palladium N-Heterocyclic Carbene Complexes: Synthesis from Benzimidazolium Salts and Catalytic Activity in Carbon-carbon Bond-forming Reactions
19:58

Palladium N-Heterocyclic Carbene Complexes: Synthesis from Benzimidazolium Salts and Catalytic Activity in Carbon-carbon Bond-forming Reactions

Published on: July 30, 2017

9.8K
Preparation of N-2-alkoxyvinylsulfonamides from N-tosyl-1,2,3-triazoles and Subsequent Conversion to Substituted Phthalans and Phenethylamines
10:42

Preparation of N-2-alkoxyvinylsulfonamides from N-tosyl-1,2,3-triazoles and Subsequent Conversion to Substituted Phthalans and Phenethylamines

Published on: January 3, 2018

9.9K
Efficient Synthesis of Polyfunctionalized Benzenes in Water via Persulfate-promoted Benzannulation of α,β-Unsaturated Compounds and Alkynes
05:34

Efficient Synthesis of Polyfunctionalized Benzenes in Water via Persulfate-promoted Benzannulation of α,β-Unsaturated Compounds and Alkynes

Published on: December 16, 2019

8.0K

Area of Science:

  • Computational Chemistry
  • Astrochemistry
  • Organic Chemistry

Background:

  • Benzvalyne is a bicyclic structural isomer of o-benzyne.
  • Its existence as a minimum on the potential energy surface (PES) is debated across different theoretical levels.
  • Related o-benzyne has been recently observed in TMC-1 via radio astronomy.

Purpose of the Study:

  • To computationally determine the stability of benzvalyne as a minimum on the potential energy surface.
  • To investigate the structural and energetic properties of benzvalyne.
  • To assess the potential detectability of benzvalyne in interstellar environments.

Main Methods:

  • Utilized various levels of theory including MCSCF, MP2, coupled-cluster (CCSDT-1b, CCSDT-2), and density functional theory (B3LYP-D3, B2PLYP-D3, M06-D3).
  • Analyzed harmonic frequencies to identify normal modes and assess molecular stability.
  • Calculated the strain energy and dipole moment of the benzvalyne molecule.

Main Results:

  • Multiple computational methods confirm benzvalyne as a C2v minimum on the PES, despite some methods yielding an imaginary frequency.
  • Benzvalyne exhibits a highly strained structure with a C-C≡C bond angle of 108° and a total strain energy of 159 kcal/mol.
  • The molecule possesses a significant predicted dipole moment (2.6 D) and vibrational modes suggesting potential C≡C bond dissociation.

Conclusions:

  • Advanced computational methods, particularly those with higher electron correlation (CCSDT-1b, CCSDT-2), support benzvalyne as a true, albeit strained, minimum.
  • The high strain energy and unique structural features, including the strained triple bond, are key characteristics of benzvalyne.
  • The predicted dipole moment suggests benzvalyne could be detectable in interstellar clouds like TMC-1, similar to o-benzyne.
