Temperature-Dependent Phase Evolution in FePt-Based Nanocomposite Multiple-Phased Magnetic Alloys.

Ovidiu Crisan1, Alina Daniela Crisan1, Nirina Randrianantoandro2

  • 1National Institute for Materials Physics, P.O. Box MG-7, 077125 Magurele, Romania.

Nanomaterials (Basel, Switzerland)
|December 11, 2022
PubMed
Summary
This summary is machine-generated.

A novel Fe-Pt-Nb-B alloy was developed, revealing multiple magnetic phases with unique temperature-dependent properties. Optimal annealing at 700 °C yields promising magnetic features for diverse applications.

Keywords:
57Fe Mössbauer spectroscopymagnetic multiphase materialsmelt spun ribbons

More Related Videos

Sputter Growth and Characterization of Metamagnetic B2-ordered FeRh Epilayers
12:20

Sputter Growth and Characterization of Metamagnetic B2-ordered FeRh Epilayers

Published on: October 5, 2013

14.8K
Phase Diagram Characterization Using Magnetic Beads as Liquid Carriers
12:37

Phase Diagram Characterization Using Magnetic Beads as Liquid Carriers

Published on: September 4, 2015

12.5K

Related Experiment Videos

Last Updated: Aug 17, 2025

Methods of Ex Situ and In Situ Investigations of Structural Transformations: The Case of Crystallization of Metallic Glasses
08:55

Methods of Ex Situ and In Situ Investigations of Structural Transformations: The Case of Crystallization of Metallic Glasses

Published on: June 7, 2018

8.6K

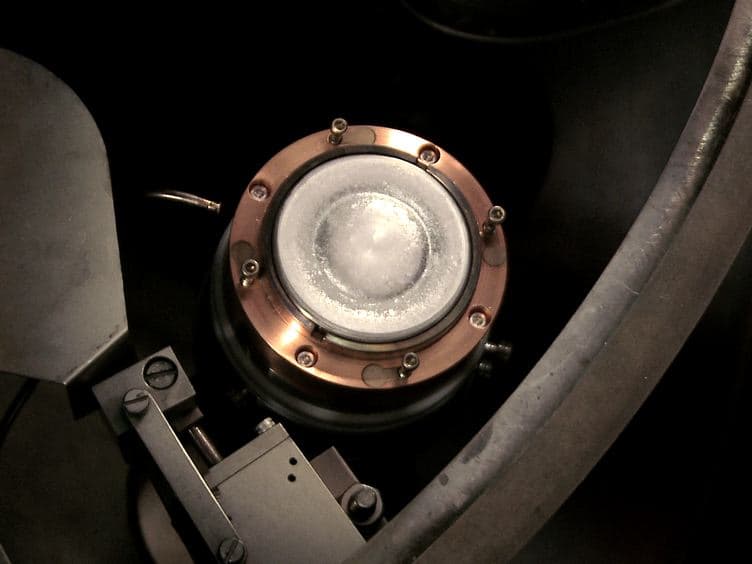

Sputter Growth and Characterization of Metamagnetic B2-ordered FeRh Epilayers
12:20

Sputter Growth and Characterization of Metamagnetic B2-ordered FeRh Epilayers

Published on: October 5, 2013

14.8K

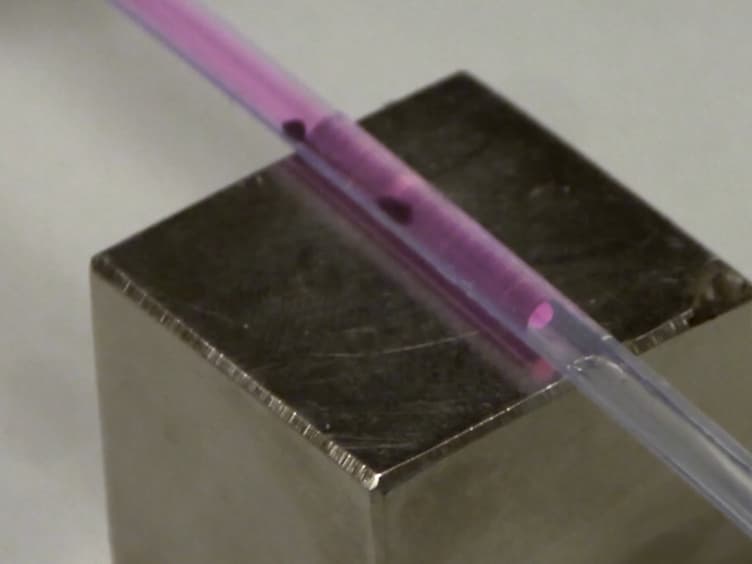

Phase Diagram Characterization Using Magnetic Beads as Liquid Carriers
12:37

Phase Diagram Characterization Using Magnetic Beads as Liquid Carriers

Published on: September 4, 2015

12.5K

Area of Science:

  • Materials Science
  • Condensed Matter Physics
  • Magnetism

Background:

  • Fabrication of advanced magnetic materials is crucial for technological innovation.
  • Understanding phase interactions in multi-component alloys is key to tailoring magnetic properties.

Purpose of the Study:

  • To create a quaternary Fe-Pt-Nb-B alloy with coherent magnetic phases from a metastable precursor.
  • To investigate phase interactions and their impact on magnetic performance.
  • To explore the influence of annealing on phase formation and magnetic behavior.

Main Methods:

  • Melt spinning for alloy fabrication.
  • X-ray diffraction and transmission electron microscopy for structural analysis.
  • 57Fe Mössbauer spectroscopy for hyperfine parameter determination.
  • SQUID magnetometry for magnetic property evaluation.

Main Results:

  • Metastable phases formed during primary crystallization, followed by fcc Fe3Pt and fct Fe2B formation at higher annealing temperatures (700 °C, 800 °C).
  • 57Fe Mössbauer spectroscopy provided detailed hyperfine parameters for each phase.
  • The fcc A1 FePt phase exhibited a gradual ferromagnetic transition between 300 K and 77 K.
  • Optimal magnetic properties were achieved upon annealing at 700 °C, with nanocrystalline samples showing behavior consistent with the random anisotropy model.

Conclusions:

  • The Fe-Pt-Nb-B alloy system allows for the formation of multiple magnetic phases with tunable properties.
  • Annealing temperature significantly influences phase evolution and magnetic characteristics.
  • The alloy demonstrates potential for applications requiring distinct magnetic states at various operating temperatures.
