Iterative-Based Impact Force Identification on a Bridge Concrete Deck
Maria Rashidi1, Shabnam Tashakori2, Hamed Kalhori3,4
1Centre for Infrastructure Engineering, Western Sydney University, Kingswood, NSW 2747, Australia.
Sensors (Basel, Switzerland)
|November 25, 2023
Summary
This study introduces an improved method for identifying impact forces on steel-reinforced concrete structures, crucial for structural health monitoring. The Landweber method with a low-pass filter accurately reconstructs impact events and their locations.
Area of Science:
- Civil Engineering
- Structural Health Monitoring
- Computational Mechanics
Background:
- Steel-reinforced concrete decks are vital in bridges and railways but vulnerable to impact damage.
- Accurate impact identification is essential for structural health monitoring but challenging due to sensor placement limitations.
- Inverse identification methods are promising but often suffer from ill-posedness.
Purpose of the Study:
- To develop and validate an effective inverse identification method for impact force on steel-reinforced concrete decks.
- To enhance impact localization and time-history reconstruction accuracy.
- To address the ill-posed nature of inverse problems in structural impact analysis.
Main Methods:
- Application of the Landweber iterative regularization method for impact force identification.
- Integration of a low-pass filter into the Landweber procedure to improve reconstruction.
- Development of a standardized reconstruction error metric for accuracy assessment.
- Utilizing a Gaussian profile for automated impact force localization.
Main Results:
- The proposed Landweber-based method successfully identifies impact forces, including localization and time-history reconstruction.
- The incorporation of a low-pass filter demonstrably augmented the reconstruction accuracy.
- The standardized error metric provided a robust means for evaluating identification performance.
- Experimental validation on a bridge deck confirmed the efficacy of the developed techniques.
Conclusions:
- The Landweber method, enhanced with a low-pass filter, offers a reliable and computationally efficient solution for impact force identification in civil structures.
- The proposed techniques provide a significant advancement in structural health monitoring, enabling better assessment of impact events.
- Optimal sensor placement and regularization iterations are critical factors for successful impact identification, as discussed in the study.
Related Concept Videos
01:13Impact Loading on a Cantilever Beam
401
The analysis of a cantilever beam with a circular cross-section subjected to impact loading at its free end illustrates the conversion of potential energy from a dropped object into kinetic energy, which is then absorbed by the beam as strain energy. This process is crucial for understanding how materials behave under dynamic loads, which is important in fields such as construction and aerospace.
When an object is dropped onto the free end of a cantilever, its potential energy due to gravity is...
When an object is dropped onto the free end of a cantilever, its potential energy due to gravity is...
401

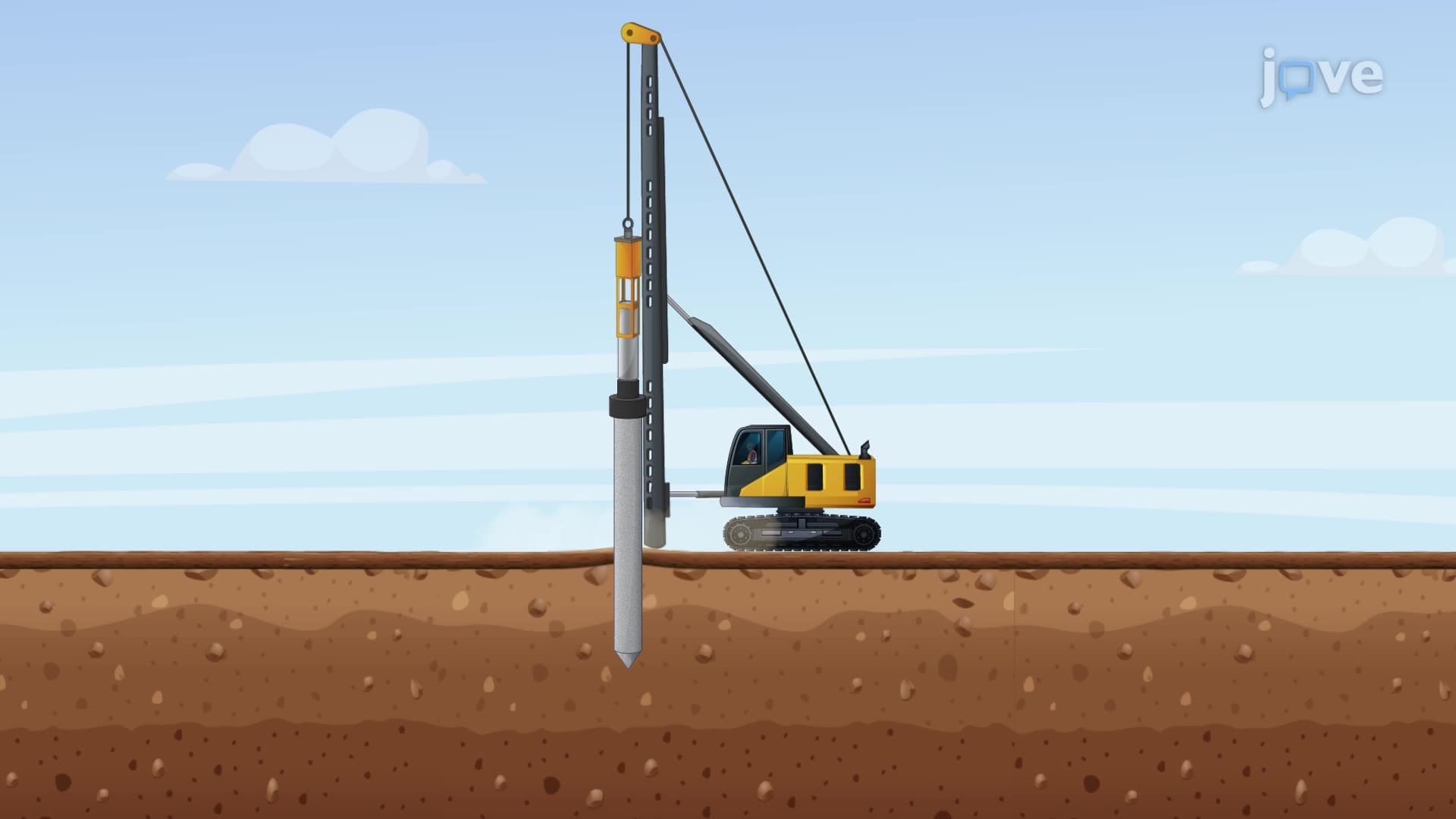

01:21Impact Strength of Concrete
212
Impact strength in concrete is a critical measure that reflects the material's capability to endure the forces applied during pile driving and when supporting machinery foundations that experience impulsive loads. It is also essential when handling precast concrete components to prevent accidental damage. The impact strength is assessed by observing the concrete's resistance to repeated impacts and energy absorption capacity. A key indicator of significant damage to concrete is when it...
212

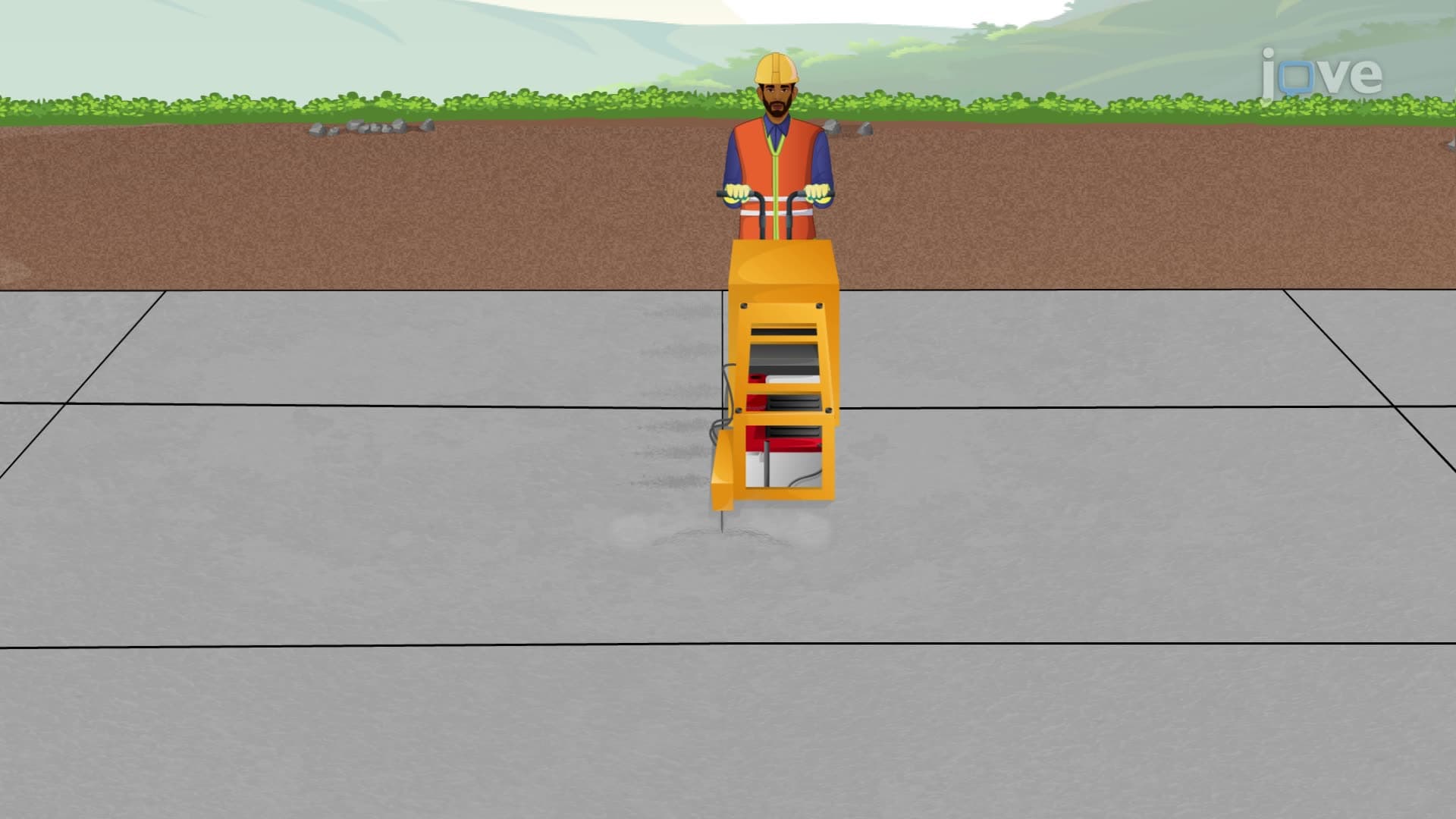

01:28Design Example: Joints in Concrete Pavements
