Simulating room transfer functions between transducers mounted on audio devices using a modified image source method
Zeyu Xu1, Adrian Herzog1, Alexander Lodermeyer2
1International Audio Laboratories, Am Wolfsmantel 33, 91058, Erlangen, Germany.
The Journal of the Acoustical Society of America
|January 18, 2024
Summary
This study enhances the image source method (ISM) for room acoustics simulations by incorporating acoustic diffraction effects. The improved method offers more accurate room transfer function simulations for smart speaker applications.
Area of Science:
- Acoustics
- Signal Processing
- Computational Physics
Background:
- The standard image source method (ISM) is computationally efficient for room acoustics but limited to point sources and omnidirectional receivers.
- Real-world acoustic simulations are challenged by diffraction effects from finite-sized audio devices like smart speakers.
- Accurate modeling of sound propagation is crucial for developing advanced audio signal processing algorithms.
Purpose of the Study:
- To extend the image source method (ISM) to include acoustic diffraction effects for improved room acoustics simulations.
- To develop a more accurate simulation method for room transfer functions considering transducer directivity.
- To provide a tool for evaluating speech and acoustic signal processing algorithms in realistic acoustic environments.
Main Methods:
- The image source method (ISM) was extended using spherical harmonic directivity coefficients to model acoustic diffraction.
- Finite element simulations were used to verify the proposed method with various loudspeaker and microphone configurations.
- A simplified, computationally less intensive version of the proposed method was also developed.
Main Results:
- The extended ISM accurately simulates room transfer functions, including diffraction effects from finite-sized audio devices.
- Simulation accuracy is influenced by the size, shape, number, and placement of devices within the room.
- A simplified version significantly reduces computational effort while maintaining reasonable accuracy.
Conclusions:
- The proposed extended ISM and its simplified version offer more accurate room acoustics simulations than traditional methods.
- These enhanced simulation capabilities can significantly aid the development and evaluation of speech enhancement and acoustic scene analysis algorithms.
- The method provides a valuable tool for designing and testing audio signal processing technologies in complex acoustic environments.
Related Concept Videos
01:10Reconstruction of Signal using Interpolation
203
Signal processing techniques are essential for accurately converting continuous signals to digital formats and vice versa. When a continuous signal is sampled with a period T, the resulting sampled signal exhibits replicas of the original spectrum in the frequency domain, spaced at intervals equal to the sampling frequency. To handle this sampled signal, a zero-order hold method can be applied, which creates a piecewise constant signal by retaining each sample's value until the next...
203
01:21Properties of Fourier Transform I
176
The application of Fourier Transform properties in radio broadcasting is multifaceted, enabling significant advancements in the way signals are transmitted and received. Key areas where these properties are utilized include simultaneous multi-channel transmission, audio clip speed adjustments, live broadcast delays for different time zones, audio frequency adjustments, and signal demodulation.
In radio broadcasting, multiple audio signals often need to be transmitted simultaneously. The Fourier...
In radio broadcasting, multiple audio signals often need to be transmitted simultaneously. The Fourier...
176

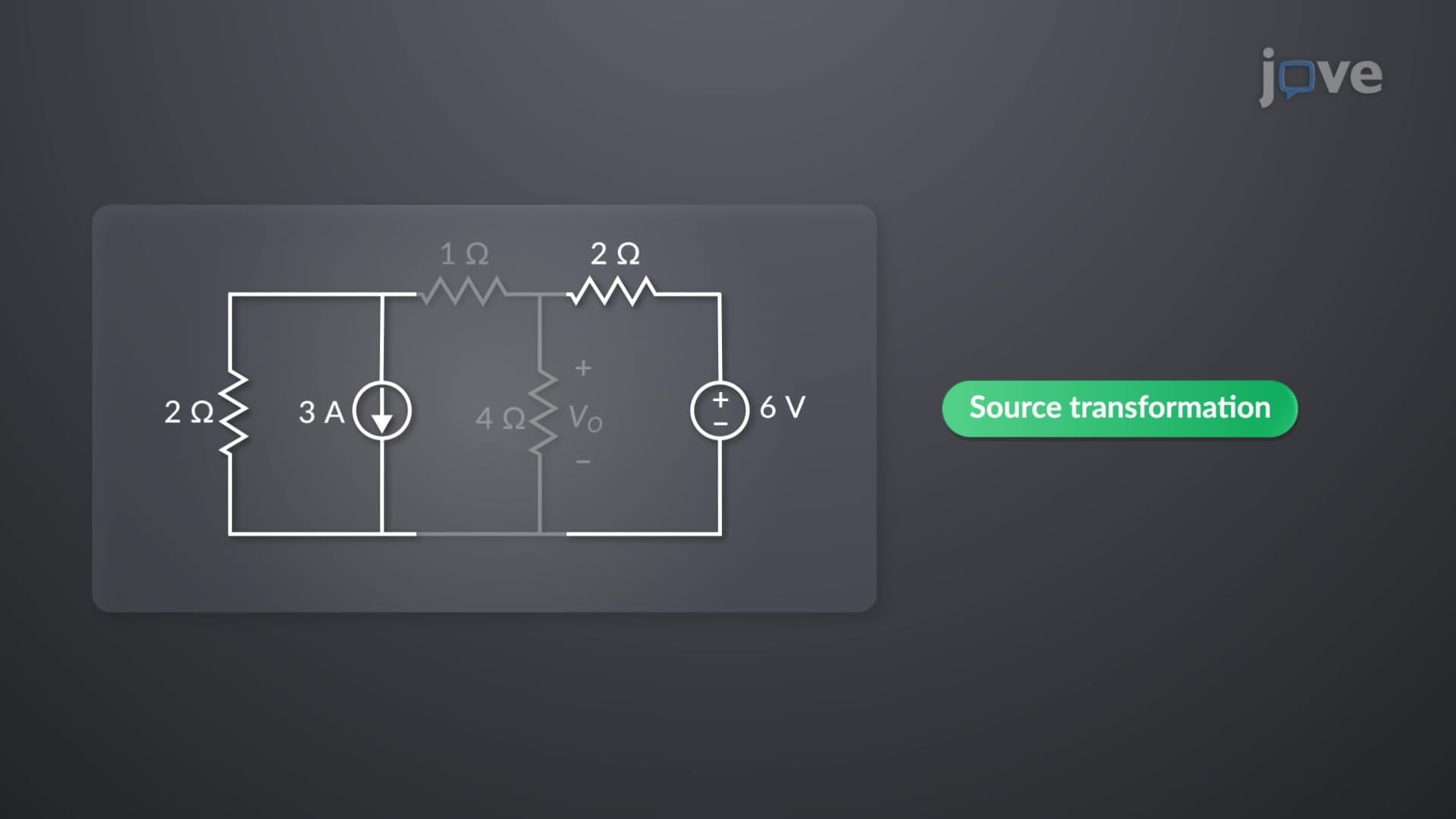

01:15Source Transformation
6.5K
Source transformation is a fundamental technique employed in circuit analysis, offering a valuable tool for simplifying complex electrical circuits. This technique involves the replacement of either a voltage source in series with a resistor by a current source in parallel with a resistor, or vice versa. The key concept here is that when the original sources are deactivated (turned off), the equivalent resistance at the circuit's end terminals remains the same.
It is essential to note that when...
It is essential to note that when...
6.5K
01:25Network Function of a Circuit
290
Frequency response analysis in electrical circuits provides vital insights into a circuit's behavior as the frequency of the input signal changes. The transfer function, a mathematical tool, is instrumental in understanding this behavior. It defines the relationship between phasor output and input and comes in four types: voltage gain, current gain, transfer impedance, and transfer admittance. The critical components of the transfer function are the poles and zeros.
290
01:21State Space to Transfer Function
208
The conversion of state-space representation to a transfer function is a fundamental process in system analysis. It provides a method for transitioning from a time-domain description to a frequency-domain representation, which is crucial for simplifying the analysis and design of control systems.
The transformation process begins with the state-space representation, characterized by the state equation and the output equation. These equations are typically represented as:
The transformation process begins with the state-space representation, characterized by the state equation and the output equation. These equations are typically represented as:
208

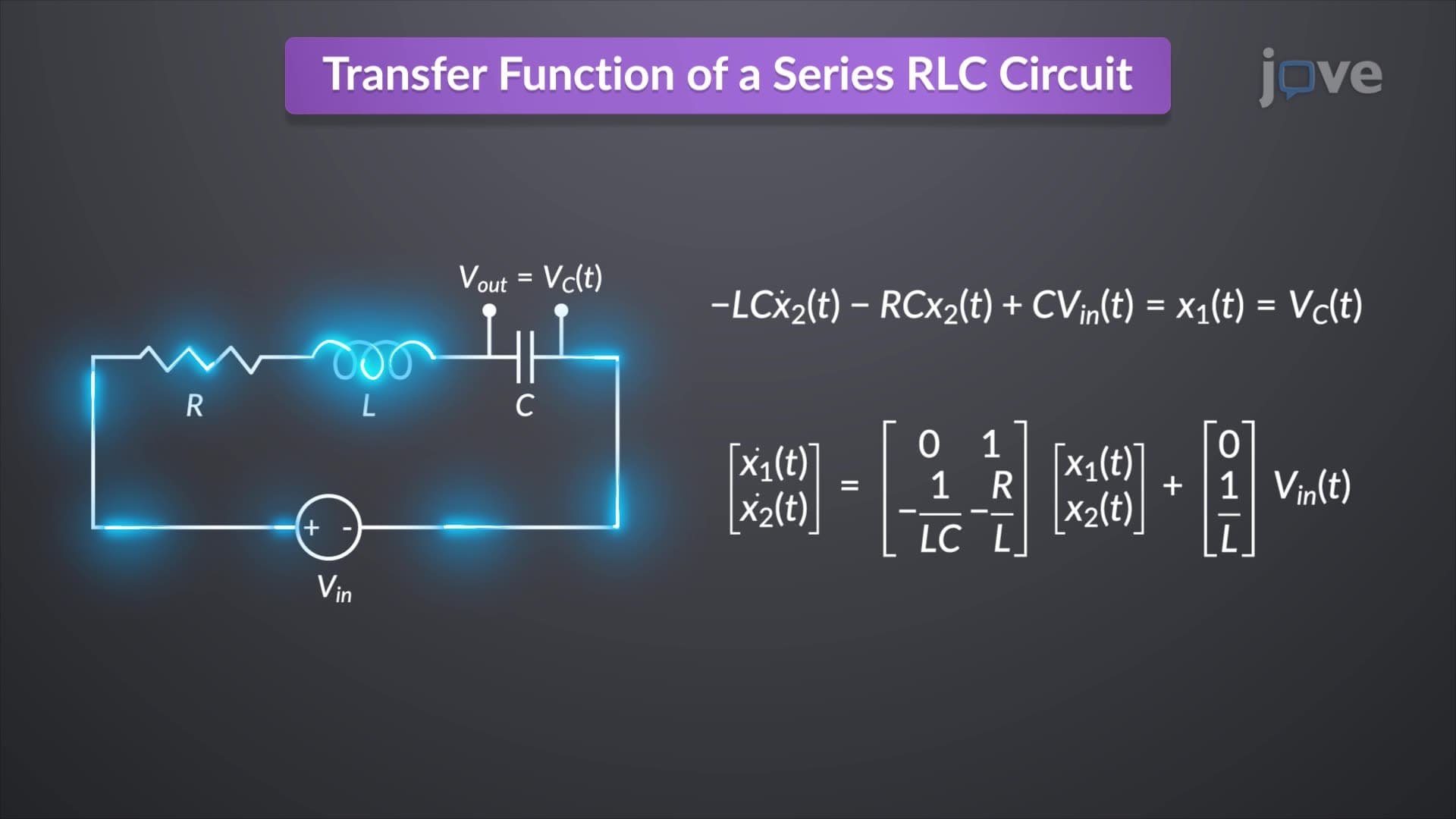

01:23Transfer Function to State Space
