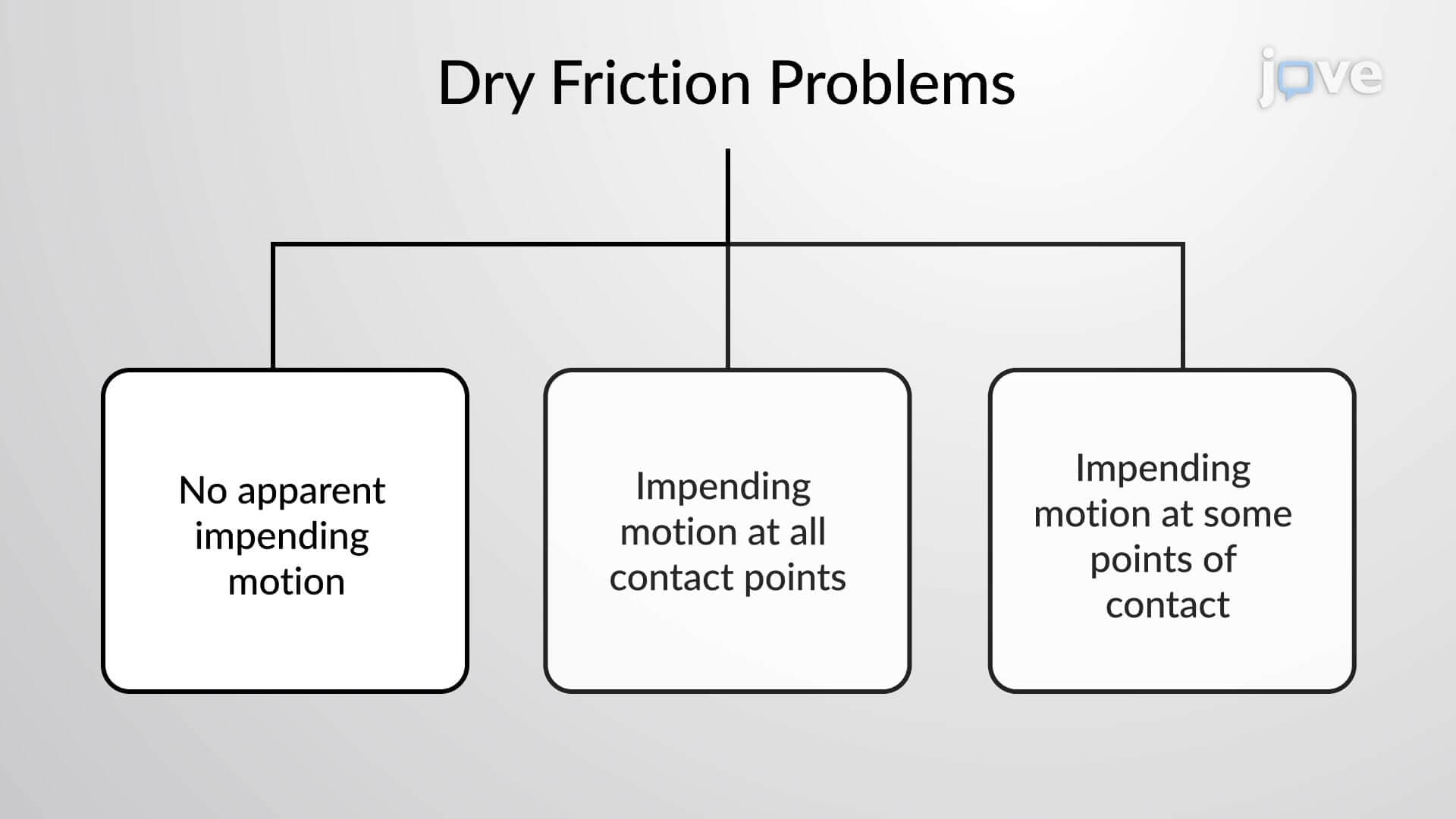

Types of Friction Problems

534
Friction is an essential concept in physics, engineering, and everyday life. It is the force that opposes the relative motion or tendency of such motion between two surfaces in contact. One of the most common types of friction encountered in various applications is dry friction. Dry friction problems can be broadly categorized into three types, each with unique characteristics and challenges.
The first type of dry friction problem involves situations where there is no apparent impending motion....
534
Pivot Bearings01:23

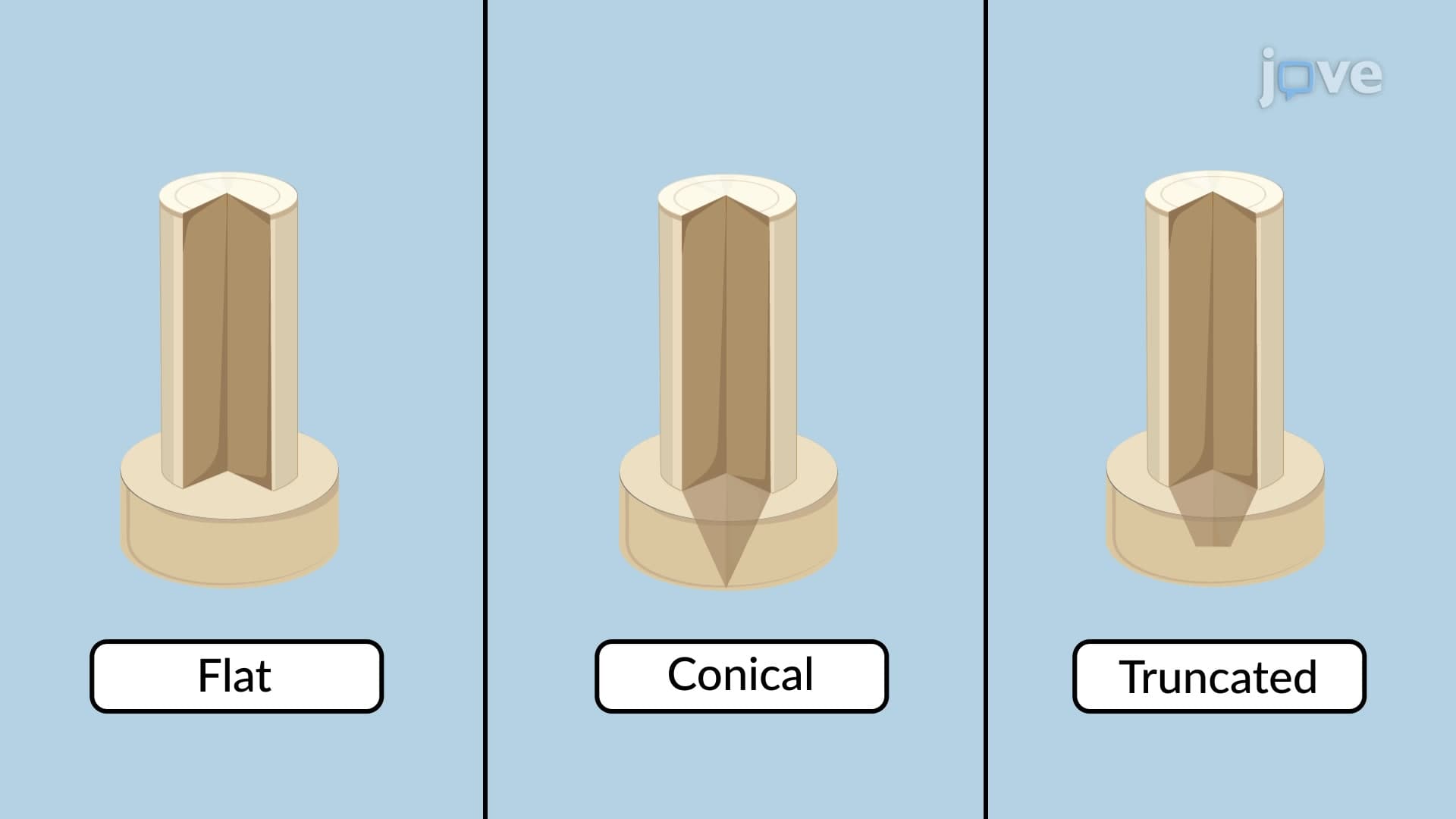

Pivot Bearings

1.3K
In mechanical systems, bearings are crucial in facilitating relative motion between two components while minimizing friction and wear. They help distribute various loads (radial, axial or a combination of both loads) across machinery parts, ensuring smooth and efficient operation.
A pivot bearing is a specialized type of bearing designed to support axial loads on a rotating shaft. The bearing surface, or the pivot, is positioned at the end of a shaft to support the axial thrust. The pivot may...
1.3K
Bearings: Problem Solving01:24

Bearings: Problem Solving

283
Understanding the calculations and concepts related to double-collar bearings is essential for engineers and designers to optimize the performance of these components in various applications. By analyzing the bearing under different conditions, one can ensure that it can withstand the forces and moments experienced during operation. This knowledge enables better decision-making when designing and selecting bearings for specific purposes and configurations. Consider a double-collar bearing with...
283
  1. Home
  3. Research Domains
  5. Engineering
  7. Materials Engineering
  9. Wearable Materials
  11. Tribological Properties Of A Sliding Joint With An A-c:h:w Coating Under Lubrication Conditions With Pao8 Oil And The Addition Of 2% Mos2 Nanoparticles

Tribological Properties of a Sliding Joint with an a-C:H:W Coating under Lubrication Conditions with PAO8 Oil and the Addition of 2% MoS2 Nanoparticles

Krystian Hadło1, Janusz Lubas1, Wojciech Szczypinski-Sala2

  • 1Faculty of Mechanical Engineering and Aeronautics, Rzeszow University of Technology, Powstańców Warszawy 8 Av., 35-959 Rzeszow, Poland.

Materials (Basel, Switzerland)
|February 24, 2024

Related Experiment Videos

Biotribological Testing and Analysis of Articular Cartilage Sliding against Metal for Implants
09:08

Biotribological Testing and Analysis of Articular Cartilage Sliding against Metal for Implants

Published on: May 14, 2020

3.9K
Preparation and High-temperature Anti-adhesion Behavior of a Slippery Surface on Stainless Steel
10:52

Preparation and High-temperature Anti-adhesion Behavior of a Slippery Surface on Stainless Steel

Published on: March 29, 2018

7.6K
Knowledge Based Cloud FE Simulation of Sheet Metal Forming Processes
11:05

Knowledge Based Cloud FE Simulation of Sheet Metal Forming Processes

Published on: December 13, 2016

12.2K

View abstract on PubMed

Summary
This summary is machine-generated.

Adding amorphous hydrogenated tungsten-doped diamond-like carbon (a-C:H:W) coatings to engine components improves durability. Lubrication with PAO8 oil and MoS2 nanoparticles enhanced friction resistance in some contacts but increased wear in others, offering seizure protection.

Area of Science:

  • Materials Science
  • Tribology
  • Mechanical Engineering

Background:

  • Friction joints in combustion engines require enhanced durability and reliability.
  • Amorphous hydrogenated diamond-like carbon (a-C:H:W) coatings are promising for improving wear resistance.
  • Understanding lubricant effects on coated surfaces is crucial for performance optimization.

Purpose of the Study:

  • To investigate the tribological properties of a sliding joint with an a-C:H:W coating.
  • To evaluate the influence of PAO8 oil with MoS2 nanoparticles as a lubricant.
  • To assess the impact of this lubrication on friction, wear, and seizure resistance.

Main Methods:

  • Production of a-C:H:W coatings using Physical Vapor Deposition (PVD).
  • Testing tribological joints made of AISI 4337 steel with SAE-48 bearing alloy (conformal) and valve shims (non-conformal).
Keywords:
DLCMoS2coatingengine oil

Related Experiment Videos

Biotribological Testing and Analysis of Articular Cartilage Sliding against Metal for Implants
09:08

Biotribological Testing and Analysis of Articular Cartilage Sliding against Metal for Implants

Published on: May 14, 2020

3.9K
Preparation and High-temperature Anti-adhesion Behavior of a Slippery Surface on Stainless Steel
10:52

Preparation and High-temperature Anti-adhesion Behavior of a Slippery Surface on Stainless Steel

Published on: March 29, 2018

7.6K
Knowledge Based Cloud FE Simulation of Sheet Metal Forming Processes
11:05

Knowledge Based Cloud FE Simulation of Sheet Metal Forming Processes

Published on: December 13, 2016

12.2K
  • Lubrication with SAE 5W40 engine oil and a mixture of PAO8 oil with 2 wt.% MoS2 nanoparticles.

    • Main Results:

    • In conformal contact, PAO8 + MoS2 increased friction resistance compared to SAE 5W40 on quenched and tempered surfaces.
    • In non-conformal contact, PAO8 + MoS2 decreased friction resistance and temperature.
    • a-C:H:W coatings led to higher SAE-48 alloy wear but significantly lower valve shim wear.
    • PAO8 + MoS2 lubrication protected non-conformal joints from seizing.

    Conclusions:

    • The a-C:H:W coating's tribological performance is highly dependent on contact type and lubricant.
    • PAO8 oil with MoS2 nanoparticles offers benefits in non-conformal contacts, reducing friction, temperature, and preventing seizure.
    • While increasing wear in some components (SAE-48 alloy), the coating significantly reduces wear in others (valve shims).
