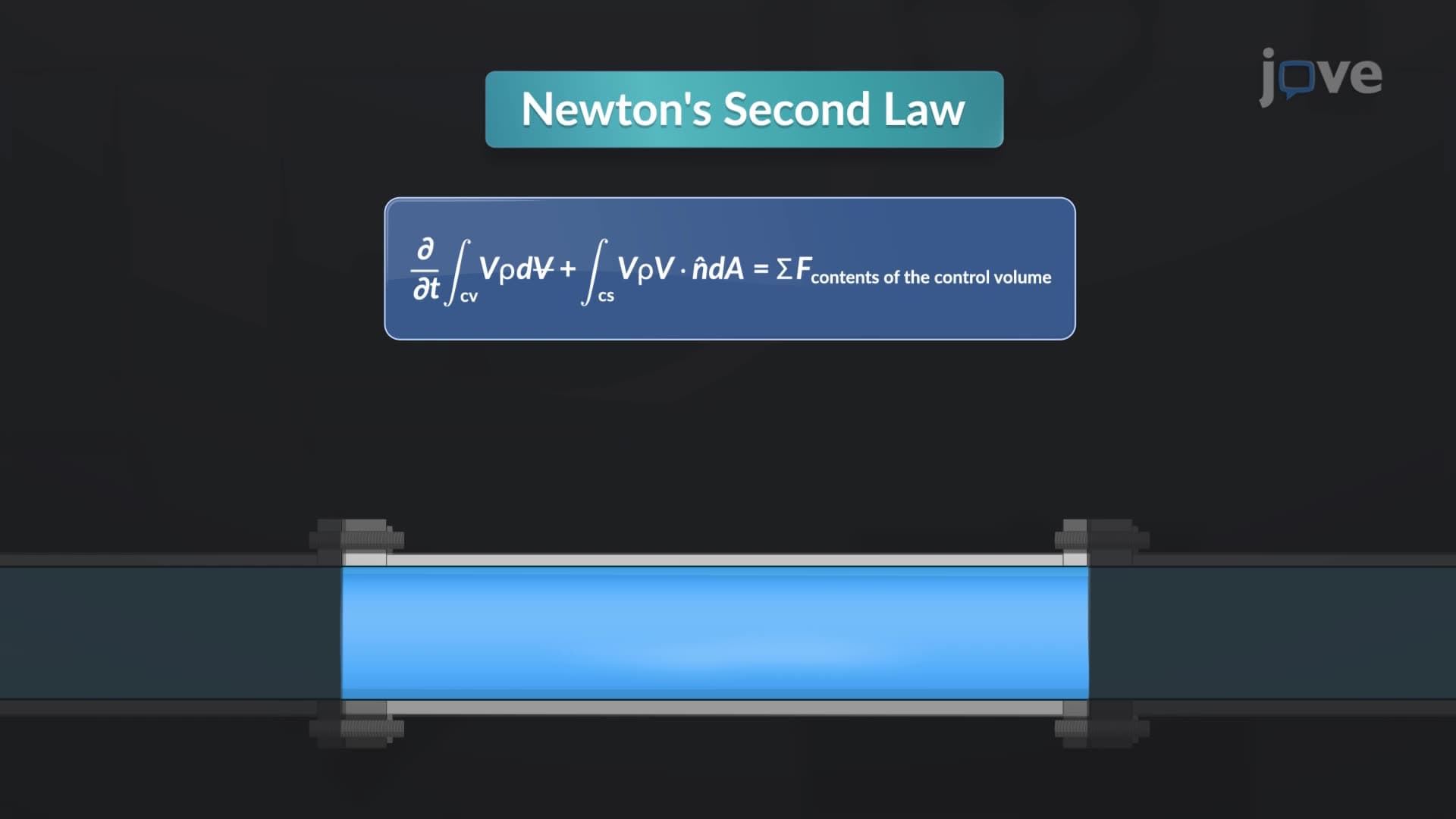

Linear Momentum in Control Volume01:13

Linear Momentum in Control Volume

987
Newton's second law is applied to obtain the linear momentum in a control volume in a fluid system. According to this law, the rate of change of linear momentum is equal to the sum of external forces acting on the system. When a control volume matches the fluid system at a specific moment, the forces acting on both are identical. Reynolds transport theorem helps explain this by breaking down the system's linear momentum into two components: the rate of change of linear momentum within...
987
Magnetic Damping01:17

Magnetic Damping

435
Eddy currents can produce significant drag on motion, called magnetic damping. For instance, when a metallic pendulum bob swings between the poles of a strong magnet, significant drag acts on the bob as it enters and leaves the field, quickly damping the motion.
If, however, the bob is a slotted metal plate, the magnet produces a much smaller effect. When a slotted metal plate enters the field, an emf is induced by the change in flux; however, it is less effective because the slots limit the...
435
Multi-input and Multi-variable systems01:22

Multi-input and Multi-variable systems

103
Cruise control systems in cars are designed as multi-input systems to maintain a driver's desired speed while compensating for external disturbances such as changes in terrain. The block diagram for a cruise control system typically includes two main inputs: the desired speed set by the driver and any external disturbances, such as the incline of the road. By adjusting the engine throttle, the system maintains the vehicle's speed as close to the desired value as possible.
In the absence...
103
  1. Home
  3. Research Domains
  5. Engineering
  7. Communications Engineering
  9. Signal Processing
  11. Dynamic Impact Analysis Of The Time-delay Levitation Control System On Maglev Vehicle System After Adding Smith Predictor.
  1. Home
  3. Research Domains
  5. Engineering
  7. Communications Engineering
  9. Signal Processing
  11. Dynamic Impact Analysis Of The Time-delay Levitation Control System On Maglev Vehicle System After Adding Smith Predictor.

Related Experiment Video

Design and Application of a Fault Detection Method Based on Adaptive Filters and Rotational Speed Estimation for an Electro-Hydrostatic Actuator
06:45

Design and Application of a Fault Detection Method Based on Adaptive Filters and Rotational Speed Estimation for an Electro-Hydrostatic Actuator

Published on: October 28, 2022

1.6K

Dynamic impact analysis of the time-delay levitation control system on maglev vehicle system after adding smith predictor.

Yang Feng1, Chunfa Zhao1, Laisheng Tong2

  • 1State Key Laboratory of Rail Transit Vehicle System, Southwest Jiaotong University, Chengdu 610031, China.

ISA Transactions
|September 14, 2024

View abstract on PubMed

Summary
This summary is machine-generated.

Time delay in electromagnetic suspension maglev vehicles causes instability. Integrating a Smith Predictor (SP) stabilizes the system by compensating for time delay, with a minimum effective value crucial for performance.

Keywords:
EMS maglev vehicleLevitation control system time-delayPID controllerSystem stability analysis

More Related Videos

Gain-compensation Methodology for a Sinusoidal Scan of a Galvanometer Mirror in Proportional-Integral-Differential Control Using Pre-emphasis Techniques
09:01

Gain-compensation Methodology for a Sinusoidal Scan of a Galvanometer Mirror in Proportional-Integral-Differential Control Using Pre-emphasis Techniques

Published on: April 4, 2017

8.6K
A Modeling and Simulation Method for Preliminary Design of an Electro-Variable Displacement Pump
09:04

A Modeling and Simulation Method for Preliminary Design of an Electro-Variable Displacement Pump

Published on: June 1, 2022

3.0K

Related Experiment Videos

Design and Application of a Fault Detection Method Based on Adaptive Filters and Rotational Speed Estimation for an Electro-Hydrostatic Actuator
06:45

Design and Application of a Fault Detection Method Based on Adaptive Filters and Rotational Speed Estimation for an Electro-Hydrostatic Actuator

Published on: October 28, 2022

1.6K
Gain-compensation Methodology for a Sinusoidal Scan of a Galvanometer Mirror in Proportional-Integral-Differential Control Using Pre-emphasis Techniques
09:01

Gain-compensation Methodology for a Sinusoidal Scan of a Galvanometer Mirror in Proportional-Integral-Differential Control Using Pre-emphasis Techniques

Published on: April 4, 2017

8.6K
A Modeling and Simulation Method for Preliminary Design of an Electro-Variable Displacement Pump
09:04

A Modeling and Simulation Method for Preliminary Design of an Electro-Variable Displacement Pump

Published on: June 1, 2022

3.0K

Area of Science:

  • Control Systems Engineering
  • Transportation Engineering
  • Mechatronics

Background:

  • Time delay (TD) in electromagnetic suspension (EMS) maglev vehicle levitation control systems critically impacts dynamic performance and stability.
  • Excessive TD can lead to levitation instability, necessitating effective mitigation strategies.

Purpose of the Study:

  • To investigate the integration of a Smith Predictor (SP) into a Proportional-Integral-Derivative (PID) levitation control system to mitigate time delay issues.
  • To analyze the stability of the time-delay levitation control system with the incorporated SP.

Main Methods:

  • Theoretical analysis and numerical simulations were employed to assess system stability.
  • The study examined the effect of SP integration on the root trajectory of the system characteristic equation.
Vehicle system dynamics
  • A minimum effective value (MEV) for time delay compensation was identified and correlated with the system's stability region.

    • Main Results:

    • Theoretical analysis confirmed that exceeding a critical TD threshold renders the levitation system unstable.
    • The Smith Predictor effectively altered the root trajectory, restoring stability to the levitation system.
    • A larger MEV for TD compensation is required for more complex systems and higher vehicle speeds, with a specific MEV of 12 ms identified for the given simulation parameters (15 ms TD, 160 km/h).

    Conclusions:

    • The Smith Predictor is an effective method for stabilizing EMS maglev levitation control systems affected by time delay.
    • The minimum effective value for time delay compensation in the Smith Predictor is a critical parameter directly influencing system stability and performance.
    • System complexity and operating speed significantly influence the required time delay compensation, highlighting the need for adaptive control strategies.
