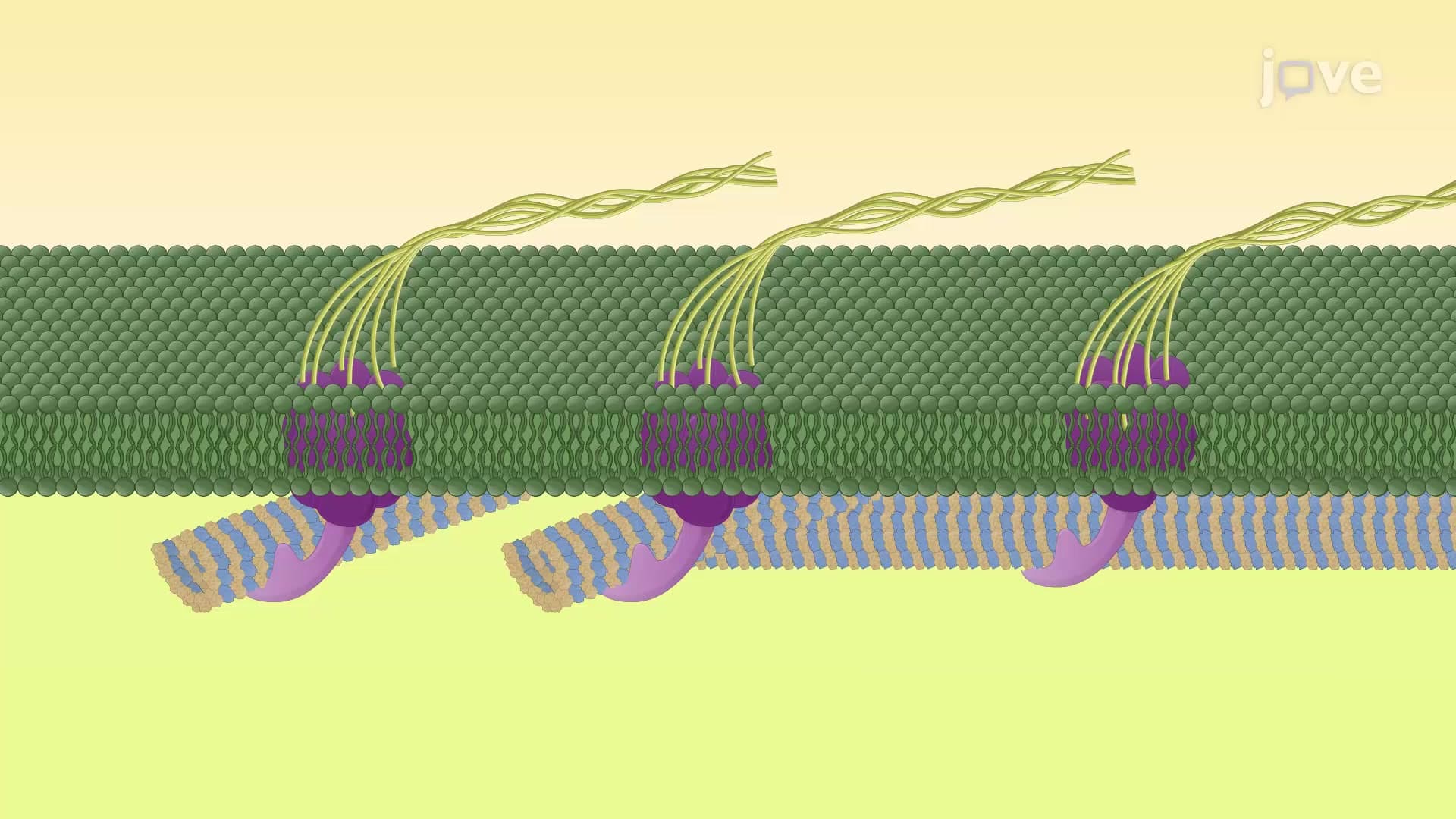

Role of Microtubules in Cell Wall Deposition

2.3K
Microtubules are small hollow tubes in eukaryotic cells. The cell wall microtubules are polymerized dimers of two globular proteins, α-tubulin and β-tubulin, two globular proteins. With a diameter of about 25 nm, microtubules are the widest components of the cytoskeleton. They help the cell resist compression and provide a track along which vesicles move through the cell or pull replicated chromosomes to opposite ends of a dividing cell. Microtubules go through quick cycles of...
2.3K
  1. Home
  3. Research Domains
  5. Chemical Sciences
  7. Macromolecular And Materials Chemistry
  9. Nanochemistry
  11. Multiscale Study Of The Chiral Self-assembly Of Cellulose Nanocrystals During The Frontal Ultrafiltration Process.
  1. Home
  3. Research Domains
  5. Chemical Sciences
  7. Macromolecular And Materials Chemistry
  9. Nanochemistry
  11. Multiscale Study Of The Chiral Self-assembly Of Cellulose Nanocrystals During The Frontal Ultrafiltration Process.

Related Experiment Video

Methods for the Self-integration of Megamolecular Biopolymers on the Drying Air-LC Interface
07:06

Methods for the Self-integration of Megamolecular Biopolymers on the Drying Air-LC Interface

Published on: April 7, 2017

6.0K

Multiscale study of the chiral self-assembly of cellulose nanocrystals during the frontal ultrafiltration process.

Samuel Mandin1, Lorenzo Metilli2, Mohamed Karrouch1

  • 1Univ. Grenoble Alpes, CNRS, Grenoble INP (Institute of Engineering Univ. Grenoble Alpes), LRP, F-38000 Grenoble, France. frederic.pignon@univ-grenoble-alpes.fr.

Nanoscale
|September 25, 2024

View abstract on PubMed

Summary
This summary is machine-generated.

Cellulose nanocrystals form ordered chiral nematic structures at membrane surfaces during ultrafiltration. This self-organization is preserved even after drying, showing potential for scalable applications.

More Related Videos

Towards Biomimicking Wood: Fabricated Free-standing Films of Nanocellulose, Lignin, and a Synthetic Polycation
11:26

Towards Biomimicking Wood: Fabricated Free-standing Films of Nanocellulose, Lignin, and a Synthetic Polycation

Published on: June 17, 2014

16.5K
Green and Low-cost Production of Thermally Stable and Carboxylated Cellulose Nanocrystals and Nanofibrils Using Highly Recyclable Dicarboxylic Acids
07:25

Green and Low-cost Production of Thermally Stable and Carboxylated Cellulose Nanocrystals and Nanofibrils Using Highly Recyclable Dicarboxylic Acids

Published on: January 9, 2017

11.8K

Related Experiment Videos

Methods for the Self-integration of Megamolecular Biopolymers on the Drying Air-LC Interface
07:06

Methods for the Self-integration of Megamolecular Biopolymers on the Drying Air-LC Interface

Published on: April 7, 2017

6.0K
Towards Biomimicking Wood: Fabricated Free-standing Films of Nanocellulose, Lignin, and a Synthetic Polycation
11:26

Towards Biomimicking Wood: Fabricated Free-standing Films of Nanocellulose, Lignin, and a Synthetic Polycation

Published on: June 17, 2014

16.5K
Green and Low-cost Production of Thermally Stable and Carboxylated Cellulose Nanocrystals and Nanofibrils Using Highly Recyclable Dicarboxylic Acids
07:25

Green and Low-cost Production of Thermally Stable and Carboxylated Cellulose Nanocrystals and Nanofibrils Using Highly Recyclable Dicarboxylic Acids

Published on: January 9, 2017

11.8K

Area of Science:

  • Materials Science
  • Chemical Engineering
  • Biomaterials Science

Background:

  • Cellulose nanocrystals (CNCs) are advanced nanomaterials with unique properties.
  • Understanding CNC behavior during separation processes is crucial for their application.
  • Frontal ultrafiltration is a common method for separating and concentrating particles.

Purpose of the Study:

  • To characterize the nano- and microscale structural organization of CNCs at membrane surfaces during ultrafiltration.
  • To investigate the self-assembly and structural evolution of CNCs within the concentration polarization layer (CPL).
  • To assess the stability and potential for scale-up of the observed CNC structures.

Main Methods:

  • In situ small-angle X-ray scattering (SAXS) and light scattering (SALS) were employed to analyze CNC structures during filtration.
  • Scanning electron microscopy (SEM) and wide-angle X-ray diffraction (WAXD) were used for post-filtration analysis.

    • Main Results:

    • CNCs self-assembled at the membrane surface, forming a concentration polarization layer (CPL) with a chiral nematic (cholesteric) helicoidal structure.
    • The long axes of CNCs aligned parallel to the membrane, while the helical axis oriented perpendicular to it.
    • A pitch gradient was observed within the CPL, and the cholesteric structure remained stable after pressure release and even after 14 days of air-drying.

    Conclusions:

    • Ultrafiltration induces self-organization of CNCs into stable, oriented cholesteric structures.
    • The observed structural integrity suggests the feasibility of scaling up CNC processing using this method.
    • This study provides fundamental insights into the structural behavior of CNCs during membrane filtration.
