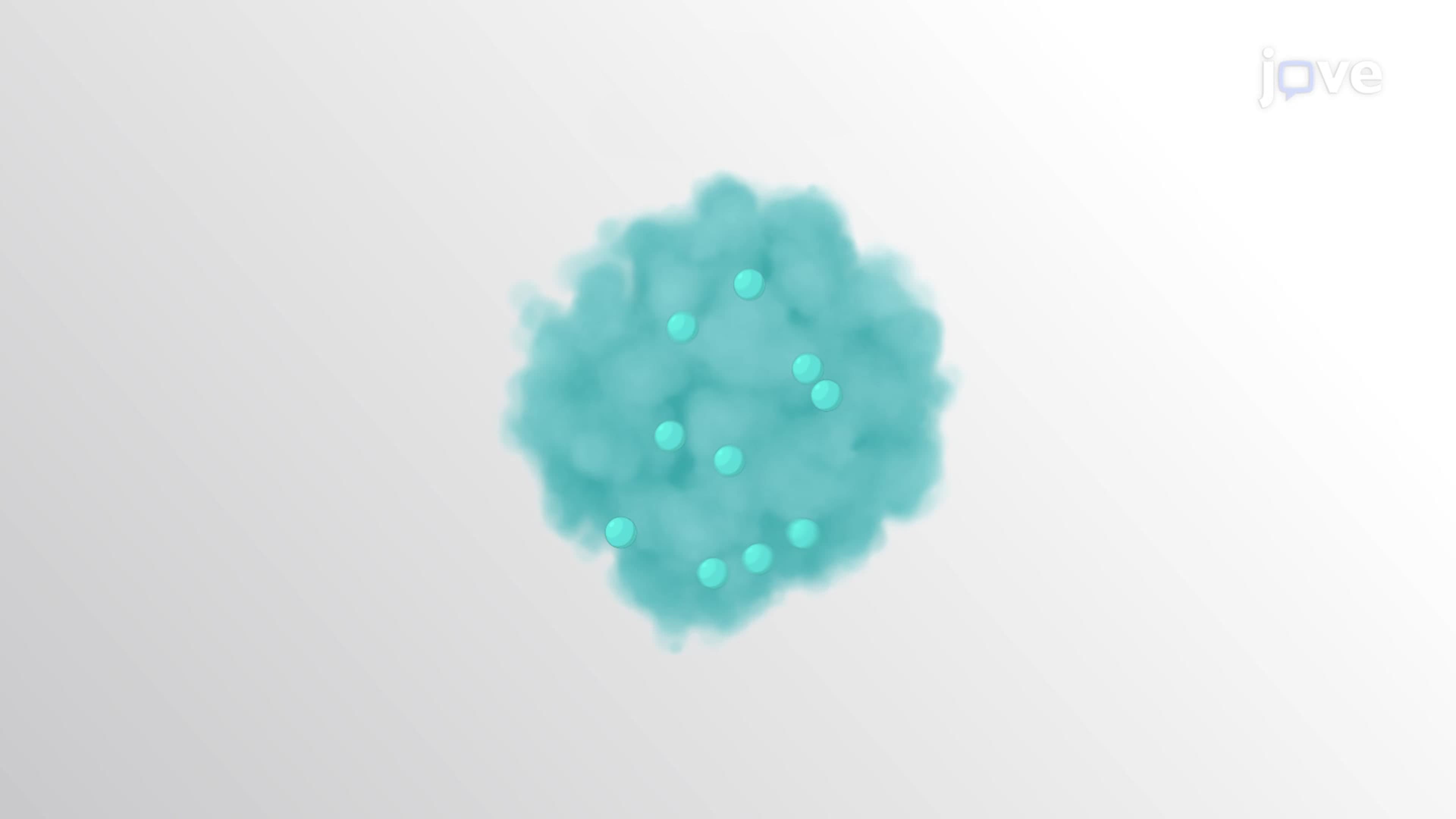

Real Gases: Effects of Intermolecular Forces and Molecular Volume Deriving Van der Waals Equation04:01

Real Gases: Effects of Intermolecular Forces and Molecular Volume Deriving Van der Waals Equation

34.5K
Thus far, the ideal gas law, PV = nRT, has been applied to a variety of different types of problems, ranging from reaction stoichiometry and empirical and molecular formula problems to determining the density and molar mass of a gas. However, the behavior of a gas is often non-ideal, meaning that the observed relationships between its pressure, volume, and temperature are not accurately described by the gas laws.
34.5K

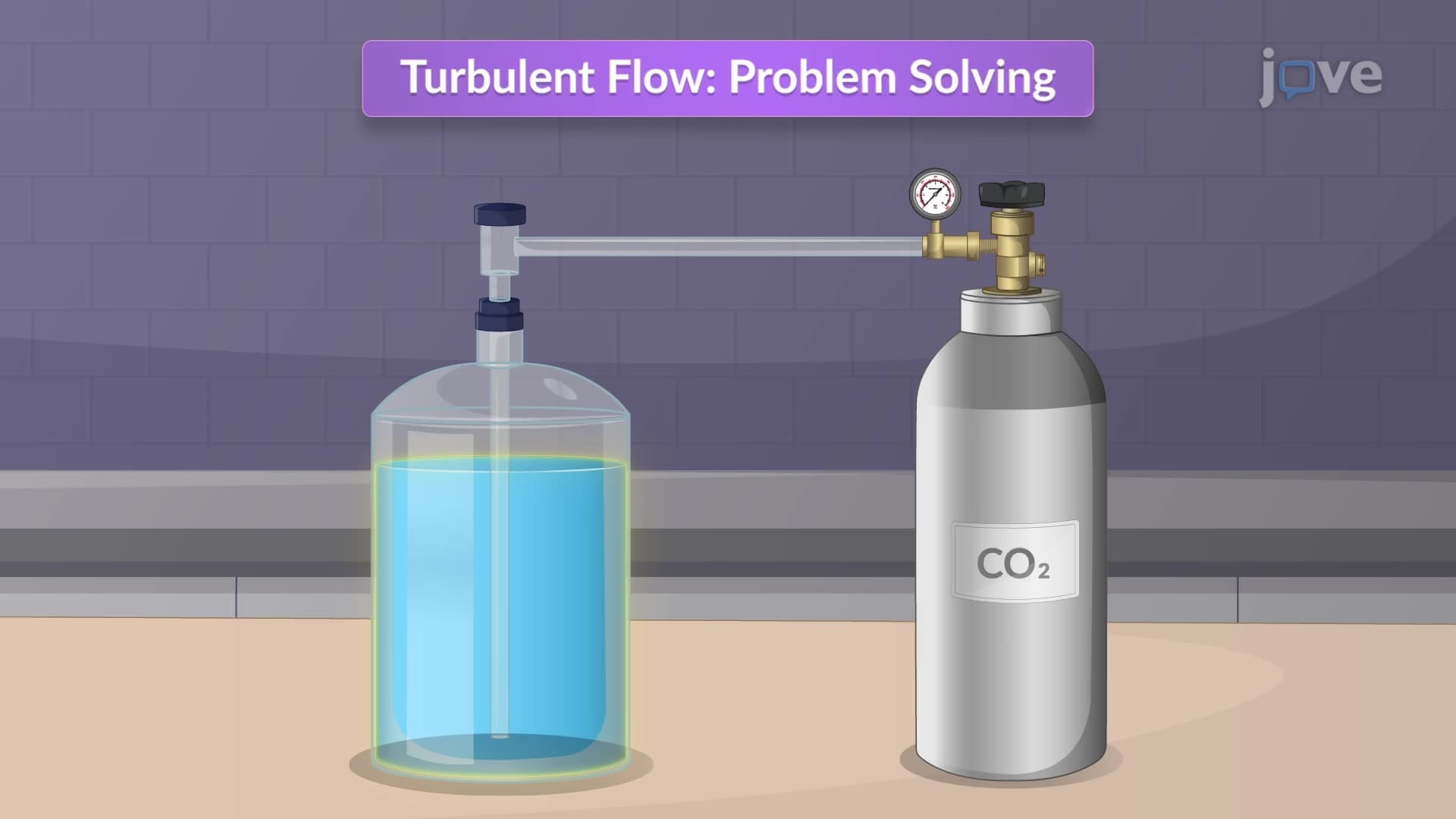

Turbulent Flow: Problem Solving01:09

Turbulent Flow: Problem Solving

98
Carbonation is a process used to dissolve carbon dioxide gas in a liquid, commonly used in the production of carbonated beverages. Achieving efficient carbonation requires careful control of temperature, pressure, and flow conditions. By adjusting these parameters, carbonation efficiency can be maximized, producing a higher concentration of CO2 in the liquid.
Temperature is a key factor in CO2 solubility. In this case, the CO2 gas and the liquid are cooled to 20°C. Lower temperatures...
98
  1. Home
  3. Research Domains
  5. Physical Sciences
  7. Condensed Matter Physics
  9. Surface Properties Of Condensed Matter
  11. Molecular Dynamics Study On The Storage Of Carbon Dioxide In Single-walled Carbon Nanotubes At Low Pressures.
  1. Home
  3. Research Domains
  5. Physical Sciences
  7. Condensed Matter Physics
  9. Surface Properties Of Condensed Matter
  11. Molecular Dynamics Study On The Storage Of Carbon Dioxide In Single-walled Carbon Nanotubes At Low Pressures.

Related Experiment Video

A Uniaxial Compression Experiment with CO2-Bearing Coal Using a Visualized and Constant-Volume Gas-Solid Coupling Test System
10:27

A Uniaxial Compression Experiment with CO2-Bearing Coal Using a Visualized and Constant-Volume Gas-Solid Coupling Test System

Published on: June 12, 2019

8.6K

Molecular Dynamics Study on the Storage of Carbon Dioxide in Single-Walled Carbon Nanotubes at Low Pressures.

Sheng Mi1,2,3, Yu Zhang2, Wei Ge2,3

  • 1School of Chemical Engineering and Technology, Tianjin University, Tianjin 300072, China.

Langmuir : the ACS Journal of Surfaces and Colloids
|September 30, 2024

View abstract on PubMed

Summary
This summary is machine-generated.

Researchers explored carbon dioxide (CO2) storage in carbon nanotubes using molecular dynamics. They found multilayer adsorption and nanobubble formation, offering insights for CO2 capture materials.

More Related Videos

Precision Milling of Carbon Nanotube Forests Using Low Pressure Scanning Electron Microscopy
08:10

Precision Milling of Carbon Nanotube Forests Using Low Pressure Scanning Electron Microscopy

Published on: February 5, 2017

7.4K
Achieving Moderate Pressures in Sealed Vessels Using Dry Ice As a Solid CO2 Source
06:26

Achieving Moderate Pressures in Sealed Vessels Using Dry Ice As a Solid CO2 Source

Published on: August 17, 2018

9.9K

Related Experiment Videos

A Uniaxial Compression Experiment with CO2-Bearing Coal Using a Visualized and Constant-Volume Gas-Solid Coupling Test System
10:27

A Uniaxial Compression Experiment with CO2-Bearing Coal Using a Visualized and Constant-Volume Gas-Solid Coupling Test System

Published on: June 12, 2019

8.6K
Precision Milling of Carbon Nanotube Forests Using Low Pressure Scanning Electron Microscopy
08:10

Precision Milling of Carbon Nanotube Forests Using Low Pressure Scanning Electron Microscopy

Published on: February 5, 2017

7.4K
Achieving Moderate Pressures in Sealed Vessels Using Dry Ice As a Solid CO2 Source
06:26

Achieving Moderate Pressures in Sealed Vessels Using Dry Ice As a Solid CO2 Source

Published on: August 17, 2018

9.9K

Area of Science:

  • Materials Science
  • Chemical Engineering
  • Computational Chemistry

Background:

  • Carbon dioxide (CO2) capture and storage are critical for mitigating climate change.
  • Carbon nanotubes (CNTs) show potential as advanced materials for gas storage due to their unique structure.

Purpose of the Study:

  • To investigate the storage of CO2 within single-walled carbon nanotubes (SWCNTs).
  • To analyze the effects of temperature, density, and nanotube dimensions on CO2 behavior.
  • To understand the formation and stability of nanobubbles within CNTs during CO2 storage.

Main Methods:

  • Molecular dynamics simulations were employed to model CO2 storage in SWCNTs.
  • System parameters such as temperature, average density, and nanotube size were systematically varied.
  • Analysis focused on CO2 pressure, density distribution, and intermolecular forces.

    • Main Results:

    • Multilayer adsorption of CO2 was observed at lower pressures with increasing average density.
    • Nanobubble formation was identified within nanotubes, stabilized by pressure balances.
    • Adsorption effects and Laplace pressure influenced local density and intermolecular forces.
    • Optimal conditions for higher CO2 density at critical nanobubble size involve lower temperatures and larger nanotube radii/lengths.

    Conclusions:

    • Carbon nanotubes facilitate CO2 capture through multilayer adsorption at low pressures.
    • Nanobubble dynamics are crucial for understanding CO2 storage capacity in CNTs.
    • Simulation results provide valuable data for designing CNT-based CO2 capture systems.
