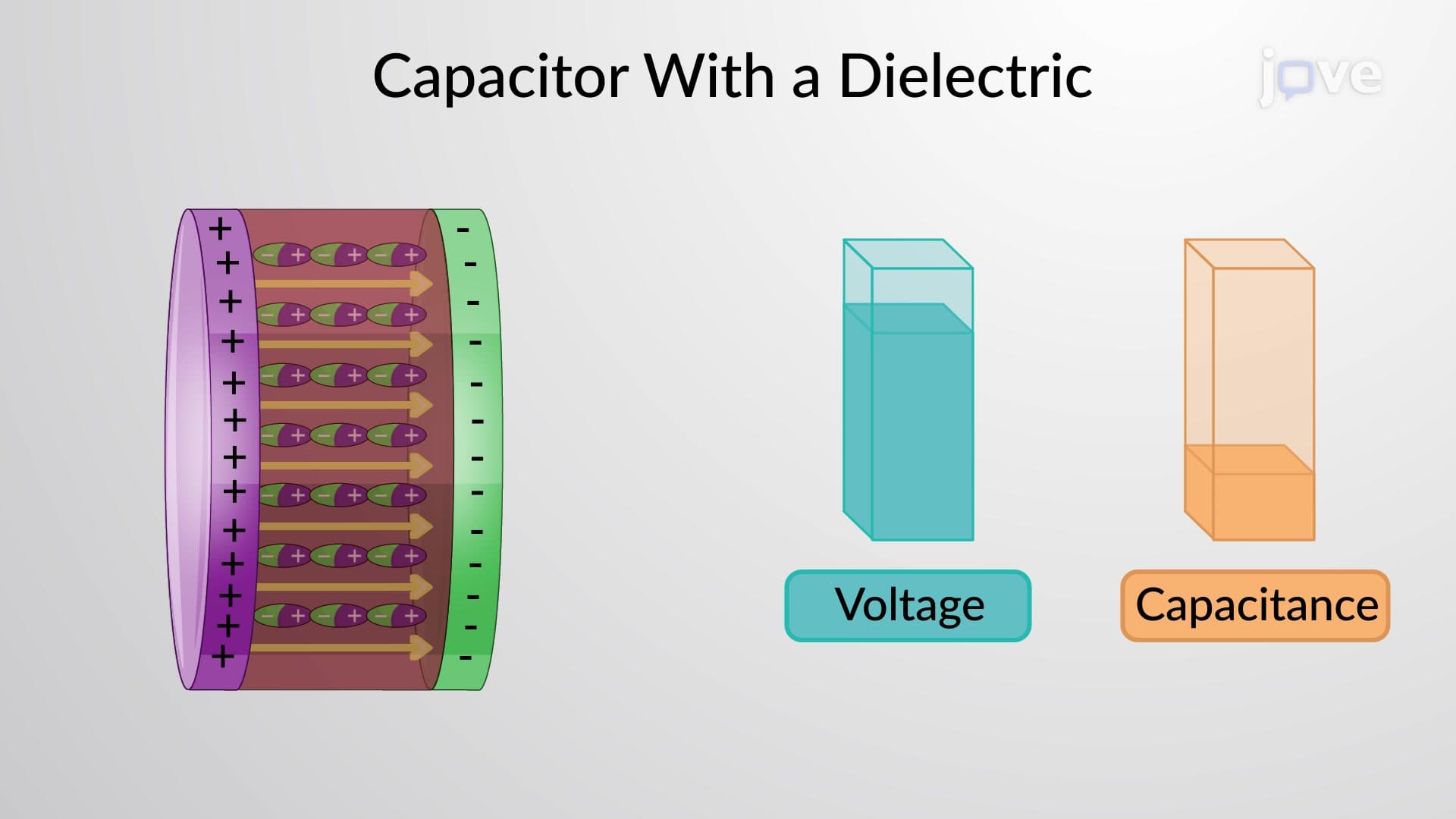

Capacitor With A Dielectric01:18

Capacitor With A Dielectric

3.9K
Parallel plate capacitors consist of two conducting plates separated by a certain distance. However, it is mechanically difficult to hold the large plates parallel to each other without actual contact. Hence, a dielectric layer is commonly placed between the plates, which provides an easy solution for holding the plates together with a small gap and increases the capacitance of the capacitor.
Dielectrics are non-conducting materials with no free or loosely bound electrons. When a dielectric is...
3.9K

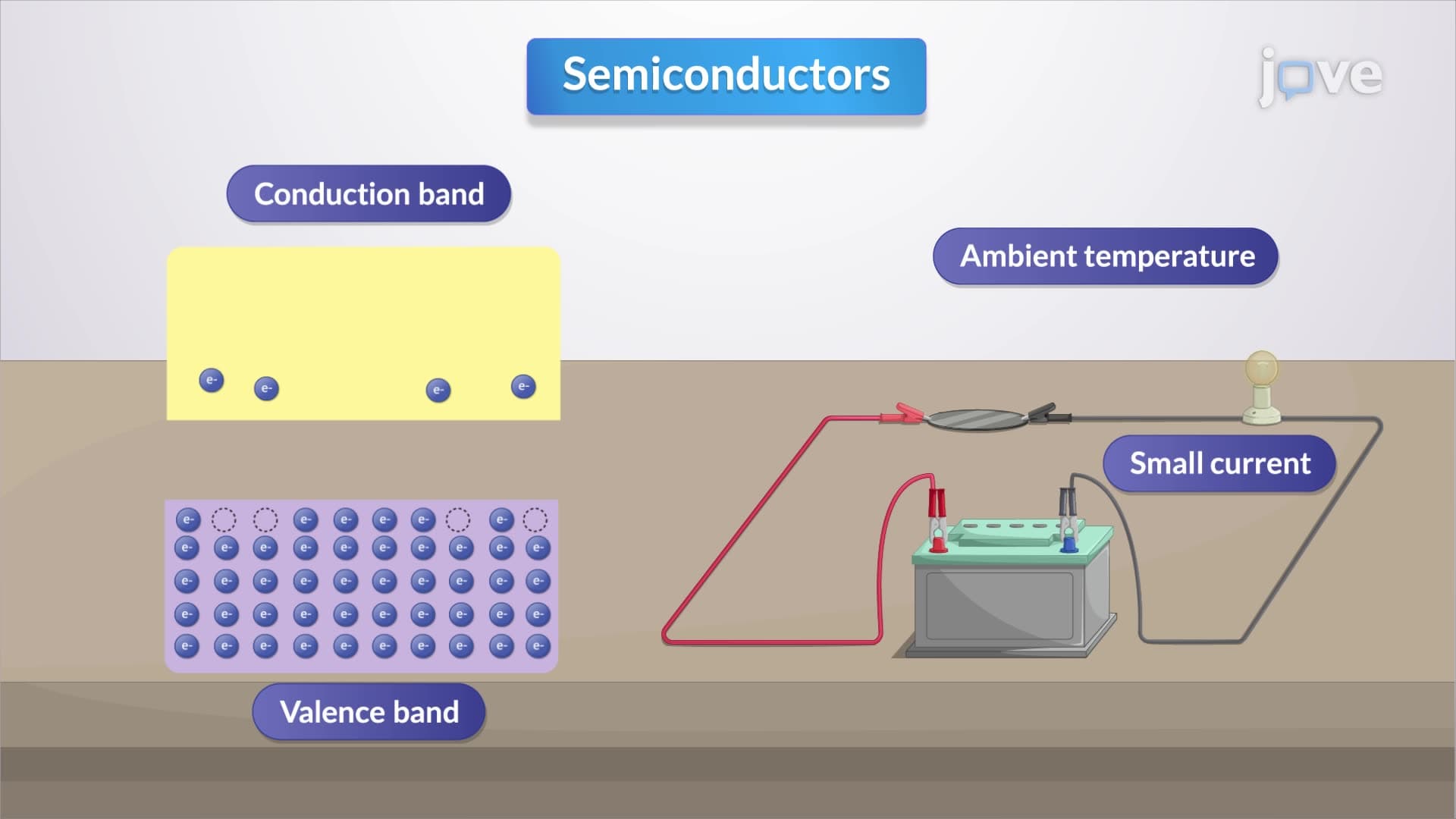

Semiconductors01:22

Semiconductors

651
There is variation in the electrical conductivity of materials - metals, semiconductors, and insulators that are showcased with the help of the energy band diagrams.
Metals such as copper (Cu), zinc (Zn), or lead (Pb) have low resistivity and feature conduction bands that are either not fully occupied or overlap with the valence band, making a bandgap non-existent. This allows electrons in the highest energy levels of the valence band to easily transition to the conduction band upon gaining...
651
Mechanisms of Heat Transfer01:14

Mechanisms of Heat Transfer

274
Heat transfer between the human body and its environment occurs through four main mechanisms: conduction, convection, radiation, and evaporation.
Conduction, accounting for approximately 3% of body heat loss at rest, is the process of exchanging heat between molecules of two materials in direct contact. This can result in both heat loss and gain. For instance, when the body is submerged in water, which conducts heat 20 times more effectively than air, it can either lose or gain significant...
274
  1. Home
  3. Research Domains
  5. Engineering
  7. Materials Engineering
  9. Wearable Materials
  11. Core-shell Engineered Fillers Overcome The Electrical-thermal Conductance Trade-off.
  1. Home
  3. Research Domains
  5. Engineering
  7. Materials Engineering
  9. Wearable Materials
  11. Core-shell Engineered Fillers Overcome The Electrical-thermal Conductance Trade-off.

Related Experiment Video

Application of a Coupling Agent to Improve the Dielectric Properties of Polymer-Based Nanocomposites
06:34

Application of a Coupling Agent to Improve the Dielectric Properties of Polymer-Based Nanocomposites

Published on: September 19, 2020

5.8K

Core-Shell Engineered Fillers Overcome the Electrical-Thermal Conductance Trade-Off.

PeiChi Liao1, Haichang Guo1, Hongyu Niu1

  • 1School of Materials Science and Engineering, Peking University, Beijing 100871, China.

ACS Nano
|October 24, 2024

View abstract on PubMed

Summary
This summary is machine-generated.

Researchers developed new core-shell fillers to manage heat in electronics. These materials offer high thermal conductivity and electrical insulation, outperforming commercial options for advanced electronic packaging.

Keywords:
core−shellelectrical resistivitypechini methodthermal conductivity

More Related Videos

Author Spotlight: Advancing Energy Solutions Using Nanocomposites as Processed Thermoelectric Materials
09:23

Author Spotlight: Advancing Energy Solutions Using Nanocomposites as Processed Thermoelectric Materials

Published on: May 17, 2024

1.5K
Encapsulation and Permeability Characteristics of Plasma Polymerized Hollow Particles
09:27

Encapsulation and Permeability Characteristics of Plasma Polymerized Hollow Particles

Published on: August 16, 2012

10.7K

Related Experiment Videos

Application of a Coupling Agent to Improve the Dielectric Properties of Polymer-Based Nanocomposites
06:34

Application of a Coupling Agent to Improve the Dielectric Properties of Polymer-Based Nanocomposites

Published on: September 19, 2020

5.8K
Author Spotlight: Advancing Energy Solutions Using Nanocomposites as Processed Thermoelectric Materials
09:23

Author Spotlight: Advancing Energy Solutions Using Nanocomposites as Processed Thermoelectric Materials

Published on: May 17, 2024

1.5K
Encapsulation and Permeability Characteristics of Plasma Polymerized Hollow Particles
09:27

Encapsulation and Permeability Characteristics of Plasma Polymerized Hollow Particles

Published on: August 16, 2012

10.7K

Area of Science:

  • Materials Science
  • Nanotechnology
  • Electrical Engineering

Background:

  • Modern electronics require thermal management materials with tunable electrical properties (conductive, dielectric, insulating).
  • A key challenge is the trade-off between high thermal conductivity and high electrical conductivity in existing materials.
  • Electrically insulating, yet highly thermally conductive materials are scarce, limiting diverse electronic applications.

Purpose of the Study:

  • To overcome the electrical-thermal conductance trade-off in thermal management materials.
  • To develop a versatile and robust method for preparing engineered core-shell fillers.
  • To create advanced composite materials for thermal management in electronic packaging.

Main Methods:

  • A facile Pechini-based method was employed to synthesize multiple core (metal)/shell (metal oxide) engineered fillers.
thermal management
  • Examples include aluminum-oxide-coated and beryllium-oxide-coated silver (Ag) microspheres.
  • The method was combined with ultrafast joule heating treatment for versatility with varied filler sizes, including large ones.

    • Main Results:

    • The synthesized core-shell fillers, when compounded into epoxy composites, exhibited high isotropic thermal conductivity (approximately 3.8 W m⁻¹ K⁻¹).
    • These composites maintained high electrical resistivity (approximately 10¹² Ω cm) and good flowability.
    • The resulting composites demonstrated superior heat dissipation compared to commercial thermally conductive packaging materials.

    Conclusions:

    • The developed core-shell fillers enable the creation of thermally conductive composites with controlled electrical properties.
    • This approach offers a robust solution for emerging electronic packaging applications requiring efficient thermal management.
    • Demonstrated applications include circuit board and battery thermal management, highlighting practical utility.
