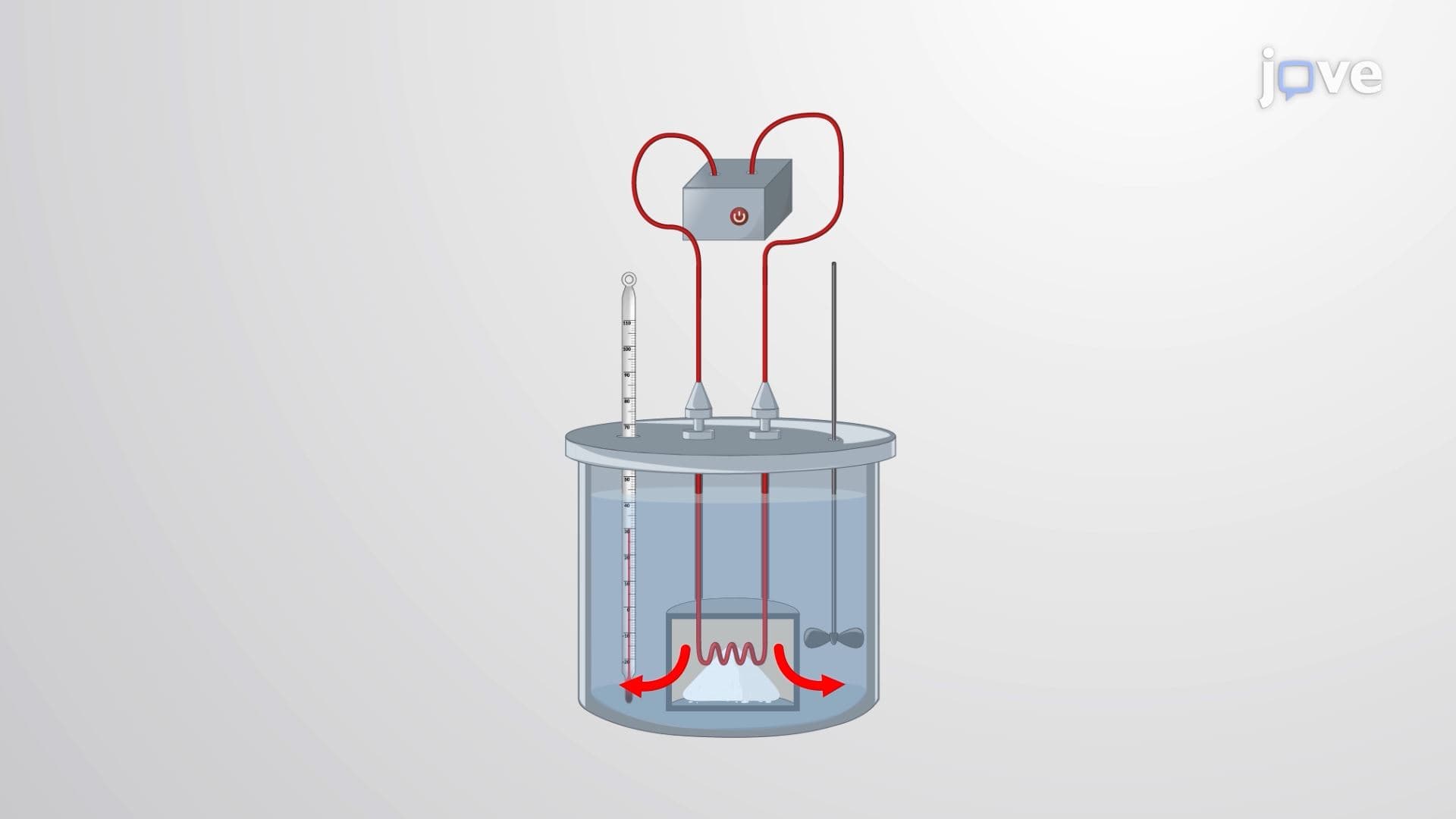

Constant Volume Calorimetry

26.9K
Calorimeters are useful to determine the heat released or absorbed by a chemical reaction. Coffee cup calorimeters are designed to operate at constant (atmospheric) pressure and are convenient to measure heat flow (or enthalpy change) accompanying processes that occur in solution at constant pressure. A different type of calorimeter that operates at constant volume, colloquially known as a bomb calorimeter, is used to measure the energy produced by reactions that yield large amounts of heat and...
26.9K
Survey Safety01:28

Survey Safety

25
Surveying near highways, rough terrain, or power lines involves significant risks. Working along highways is particularly dangerous and requires the use of warning signs and flagmen. It is safest to avoid working directly on roads and use offsets whenever possible. When highway work is unavoidable, it must follow all safety guidelines. Surveyors should wear bright clothing, such as orange reflective vests, to ensure visibility to motorists, coworkers, and hunters. In construction zones, wearing...
25
Flame Photometry: Overview01:02

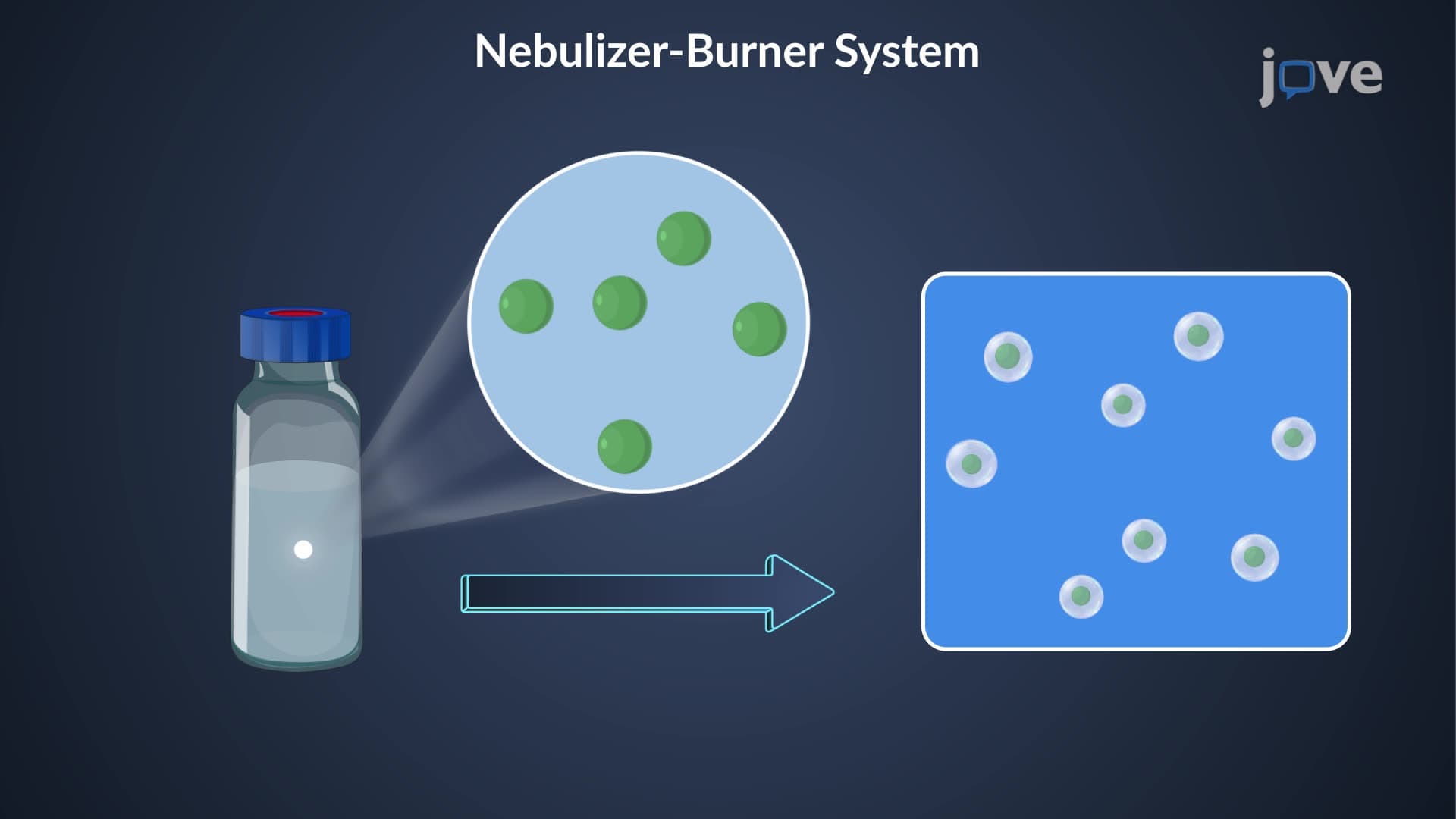

Flame Photometry: Overview

491
Flame photometry, also known as flame emission spectrometry, is a technique used for the qualitative and quantitative analysis of elements present in a sample using a flame as the source of excitation energy. The concept of flame photometry was realized in the early 1860s by Kirchhoff and Bunsen, who discovered that specific elements emit characteristic radiation when excited in flames. The first instrument developed for this purpose was used to measure sodium (Na) in plant ash using a Bunsen...
491
  1. Home
  3. Research Domains
  5. Engineering
  7. Environmental Engineering
  9. Air Pollution Modelling And Control
  11. Study On Gas Explosion Propagation Law In Excavation Roadway With Tbm

Study on gas explosion propagation law in excavation roadway with TBM

Ao Liu1,2, Ke Gao3,4, Runzhi Li5

  • 1College of Safety Science and Engineering, Liaoning Technical University, No. 188, Longwan South Street, Huludao, 125105, Liaoning, China.

Scientific Reports
|October 27, 2024

Related Experiment Videos

Mechanical Expansion of Steel Tubing as a Solution to Leaky Wellbores
09:32

Mechanical Expansion of Steel Tubing as a Solution to Leaky Wellbores

Published on: November 20, 2014

12.2K
Author Spotlight: Deciphering the Long-Term Effects of Low-Level Blast Exposures in Mice
06:00

Author Spotlight: Deciphering the Long-Term Effects of Low-Level Blast Exposures in Mice

Published on: May 24, 2024

859
Blast Quantification Using Hopkinson Pressure Bars
09:41

Blast Quantification Using Hopkinson Pressure Bars

Published on: July 5, 2016

9.0K

View abstract on PubMed

Summary
This summary is machine-generated.

Tunnel Boring Machines (TBMs) significantly increase gas explosion hazards in mines by doubling overpressure and flame speed. Methane concentration and accumulation length further intensify these risks, especially near TBM baffles.

Area of Science:

  • Mining Engineering
  • Explosion Safety
  • Computational Fluid Dynamics

Background:

  • Gas explosions are a major mining hazard, with excavation faces being common sites.
  • Understanding explosion dynamics in roadways is crucial for mine safety.

Purpose of the Study:

  • To investigate the impact of Tunnel Boring Machines (TBMs) on gas explosion propagation in mine roadways.
  • To analyze the influence of methane concentration and gas accumulation length on explosion parameters.

Main Methods:

  • Simulation analysis of explosion overpressure, pressure rise rate, and flame propagation speed.
  • Modeling the presence and effects of a TBM within the roadway.

Main Results:

  • TBM presence approximately doubles explosion overpressure and significantly increases flame propagation speed.
Keywords:
Explosion overpressureFlame propagation speedFlame temperatureGas explosion

Related Experiment Videos

Mechanical Expansion of Steel Tubing as a Solution to Leaky Wellbores
09:32

Mechanical Expansion of Steel Tubing as a Solution to Leaky Wellbores

Published on: November 20, 2014

12.2K
Author Spotlight: Deciphering the Long-Term Effects of Low-Level Blast Exposures in Mice
06:00

Author Spotlight: Deciphering the Long-Term Effects of Low-Level Blast Exposures in Mice

Published on: May 24, 2024

859
Blast Quantification Using Hopkinson Pressure Bars
09:41

Blast Quantification Using Hopkinson Pressure Bars

Published on: July 5, 2016

9.0K
  • Peak flame propagation speed increase (approx. 6x) occurs at 9.5% methane concentration when passing TBM baffles.
  • Increased gas accumulation length leads to higher explosion overpressure and flame propagation speed.

    • Conclusions:

    • TBMs are a critical, often overlooked factor in mine roadway gas explosion dynamics.
    • Methane concentration and accumulation length are key variables influencing explosion severity.
    • TBMs affect both flame propagation and methane dissipation within mine excavations.
    Methane concentration
    Tunnel Boring Machine
