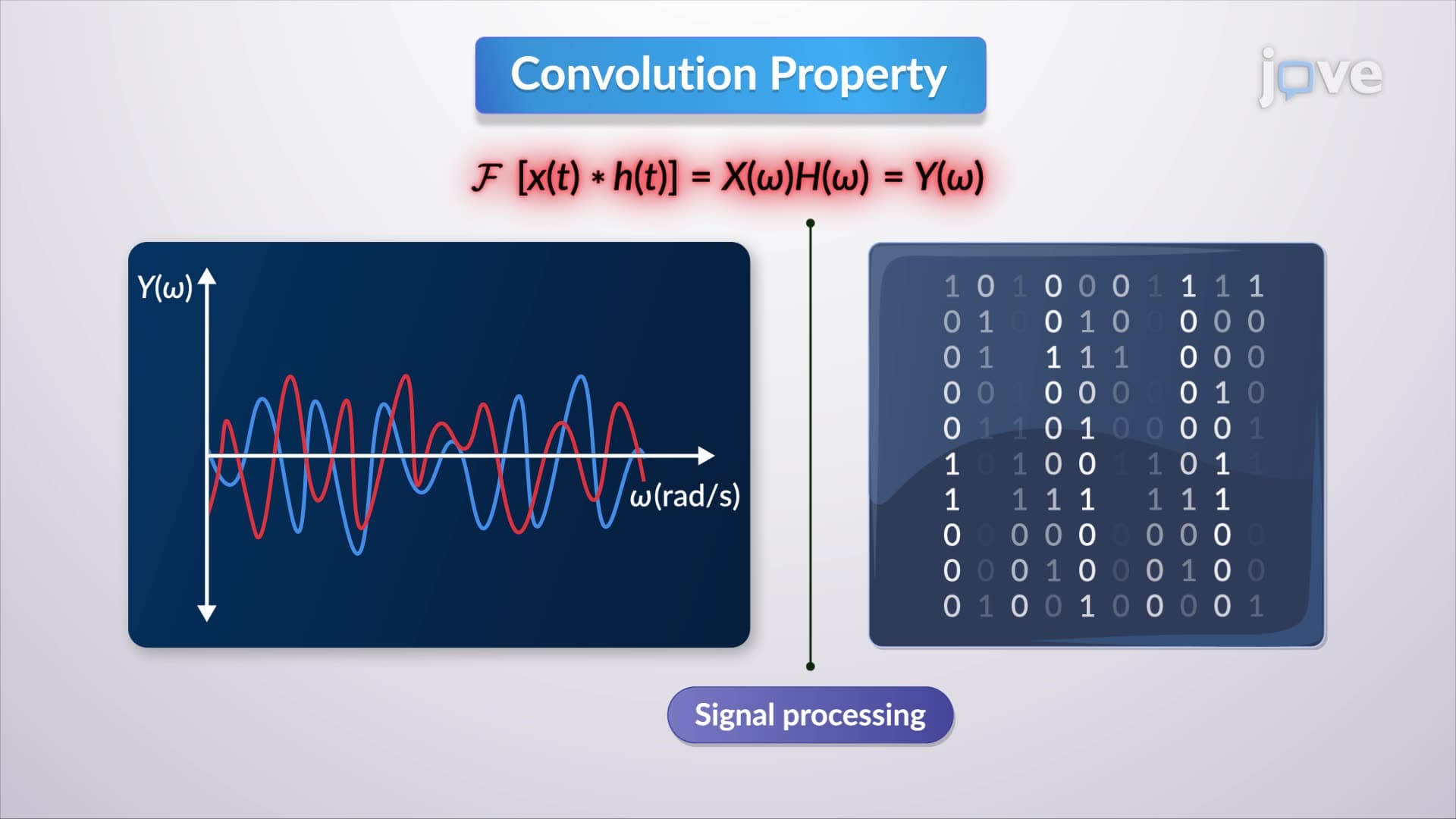

Properties of Fourier Transform II01:24

Properties of Fourier Transform II

172
The Fourier Transform (FT) is an essential mathematical tool in signal processing, transforming a time-domain signal into its frequency-domain representation. This transformation elucidates the relationship between time and frequency domains through several properties, each revealing unique aspects of signal behavior.
The Frequency Shifting property of Fourier Transforms highlights that a shift in the frequency domain corresponds to a phase shift in the time domain. Mathematically, if x(t) has...
172
Receiver Operating Characteristic Plot01:15

Receiver Operating Characteristic Plot

83
A ROC (Receiver Operating Characteristic) plot is a graphical tool used to assess the performance of a binary classification model by illustrating the trade-off between sensitivity (true positive rate) and specificity (false positive rate). By plotting sensitivity against 1 - specificity across various threshold settings, the ROC curve shows how well the model distinguishes between classes, with a curve closer to the top-left corner indicating a more accurate model. The area under the ROC curve...
83
  1. Home
  3. Research Domains
  5. Engineering
  7. Communications Engineering
  9. Signal Processing
  11. Enhanced 4d-ofdm Optical Communication Systems With Color-coded Constellations And Probability Constellation Shaping

Enhanced 4D-OFDM optical communication systems with color-coded constellations and probability constellation shaping

Dongdong Xu, Bo Liu, Jianxin Ren

    Optics Express
    |November 14, 2024

    Related Experiment Videos

    Transmission of Multiple Signals through an Optical Fiber Using Wavefront Shaping
    09:43

    Transmission of Multiple Signals through an Optical Fiber Using Wavefront Shaping

    Published on: March 20, 2017

    9.8K
    A Photonic System for Generating Unconditional Polarization-Entangled Photons Based on Multiple Quantum Interference
    00:07

    A Photonic System for Generating Unconditional Polarization-Entangled Photons Based on Multiple Quantum Interference

    Published on: September 5, 2019

    8.4K
    Generation and Coherent Control of Pulsed Quantum Frequency Combs
    06:42

    Generation and Coherent Control of Pulsed Quantum Frequency Combs

    Published on: June 8, 2018

    8.9K

    View abstract on PubMed

    Summary
    This summary is machine-generated.

    This study presents a novel four-dimensional constellation for optical Orthogonal Frequency Division Multiplexing (OFDM) transmission, achieving 51.49 Gb/s over 2 km. The new design enhances receiver sensitivity and error performance for short-distance communication.

    Area of Science:

    • Optical communications
    • Signal processing
    • Information theory

    Background:

    • Orthogonal Frequency Division Multiplexing (OFDM) is crucial for high-speed optical transmission.
    • Enhancing constellation mapping is key to improving data rates and receiver sensitivity.
    • Current methods face limitations in spectral efficiency and error performance.

    Purpose of the Study:

    • To introduce a novel four-dimensional probability constellation mapping for OFDM optical transmission.
    • To amalgamate geometric and probability shaping with color coding for enhanced Constellation Figure of Merit (CFM).
    • To evaluate the performance gains in receiver sensitivity and error rate.

    Main Methods:

    • Development of a four-dimensional constellation structure using color coding.

    Related Experiment Videos

    Transmission of Multiple Signals through an Optical Fiber Using Wavefront Shaping
    09:43

    Transmission of Multiple Signals through an Optical Fiber Using Wavefront Shaping

    Published on: March 20, 2017

    9.8K
    A Photonic System for Generating Unconditional Polarization-Entangled Photons Based on Multiple Quantum Interference
    00:07

    A Photonic System for Generating Unconditional Polarization-Entangled Photons Based on Multiple Quantum Interference

    Published on: September 5, 2019

    8.4K
    Generation and Coherent Control of Pulsed Quantum Frequency Combs
    06:42

    Generation and Coherent Control of Pulsed Quantum Frequency Combs

    Published on: June 8, 2018

    8.9K
  • Implementation of a two-dimensional inverse fast Fourier transform (2D-IFFT) based OFDM system.
  • Experimental transmission of signals over a 2 km seven-core optical fiber.

    • Main Results:

    • Successful transmission of OFDM signals at 51.49 Gb/s over a 2 km seven-core fiber.
    • Achieved receiver sensitivity gains of 0.85 dB, 1.33 dB, and 1.83 dB compared to traditional 4D, 3D-OFDM, and 2D-OFDM.
    • Demonstrated a 1.36 dB receiver sensitivity gain over uniform distribution constellations at 4.4 bits/symbol entropy.

    Conclusions:

    • The proposed color-coded four-dimensional constellation significantly enhances receiver sensitivity and error performance.
    • The system shows promising prospects for future short-distance optical communication applications.
    • The combined geometric and probability shaping approach effectively improves CFM.
