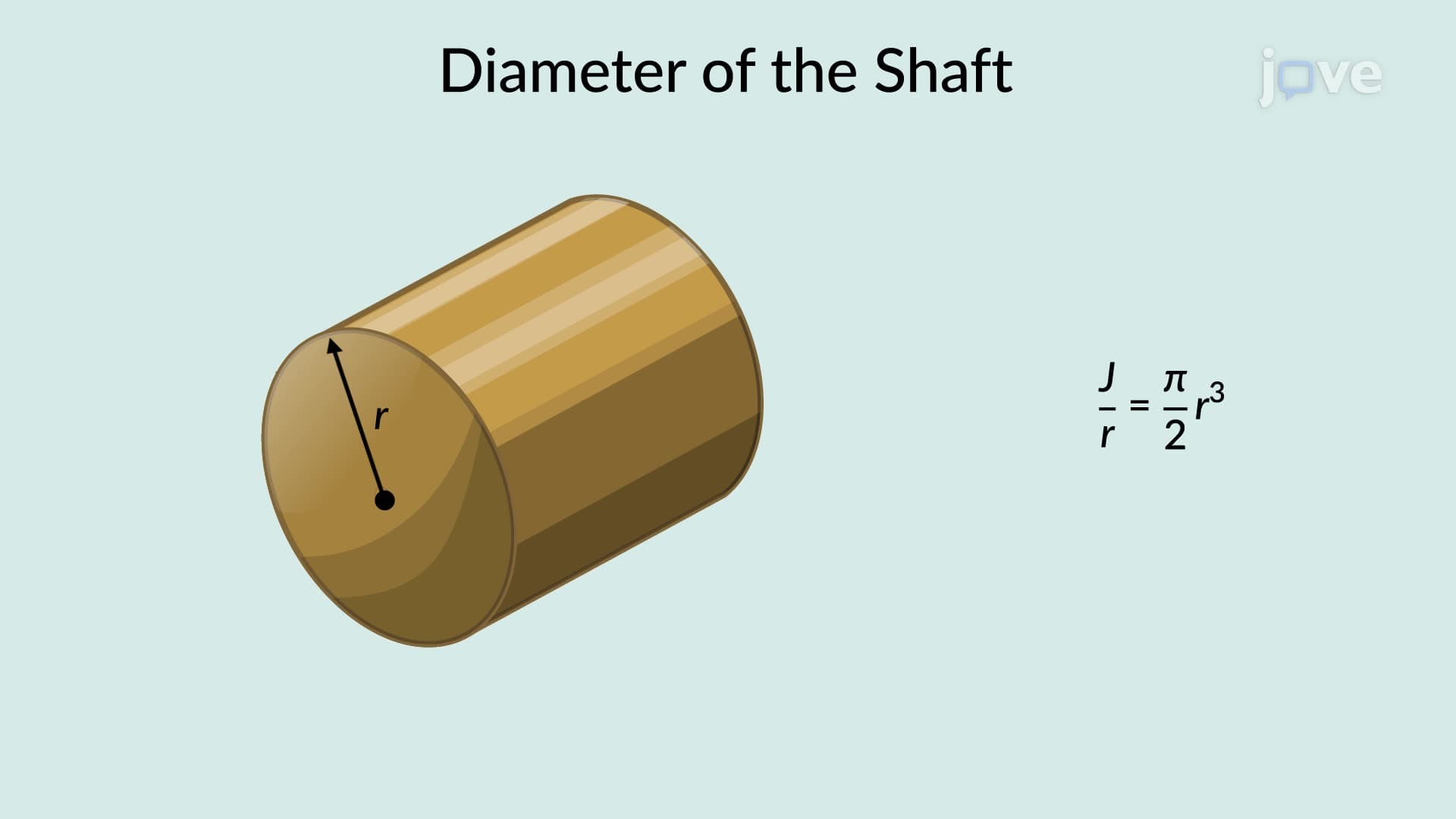

Transmission Shafts: Problem Solving01:09

Transmission Shafts: Problem Solving

207
Designing a solid shaft that transmits power from a motor to a machine tool involves a series of calculations to ensure the shaft can withstand the stresses applied by bending moments and torques. First, calculate the torque exerted on the gear, considering the power transmitted by the shaft and its rotational speed. Following this, compute the tangential forces acting on the gears, which directly relate to the torque and the gear radius.
Next, use bending moment diagrams for the shaft to...
207

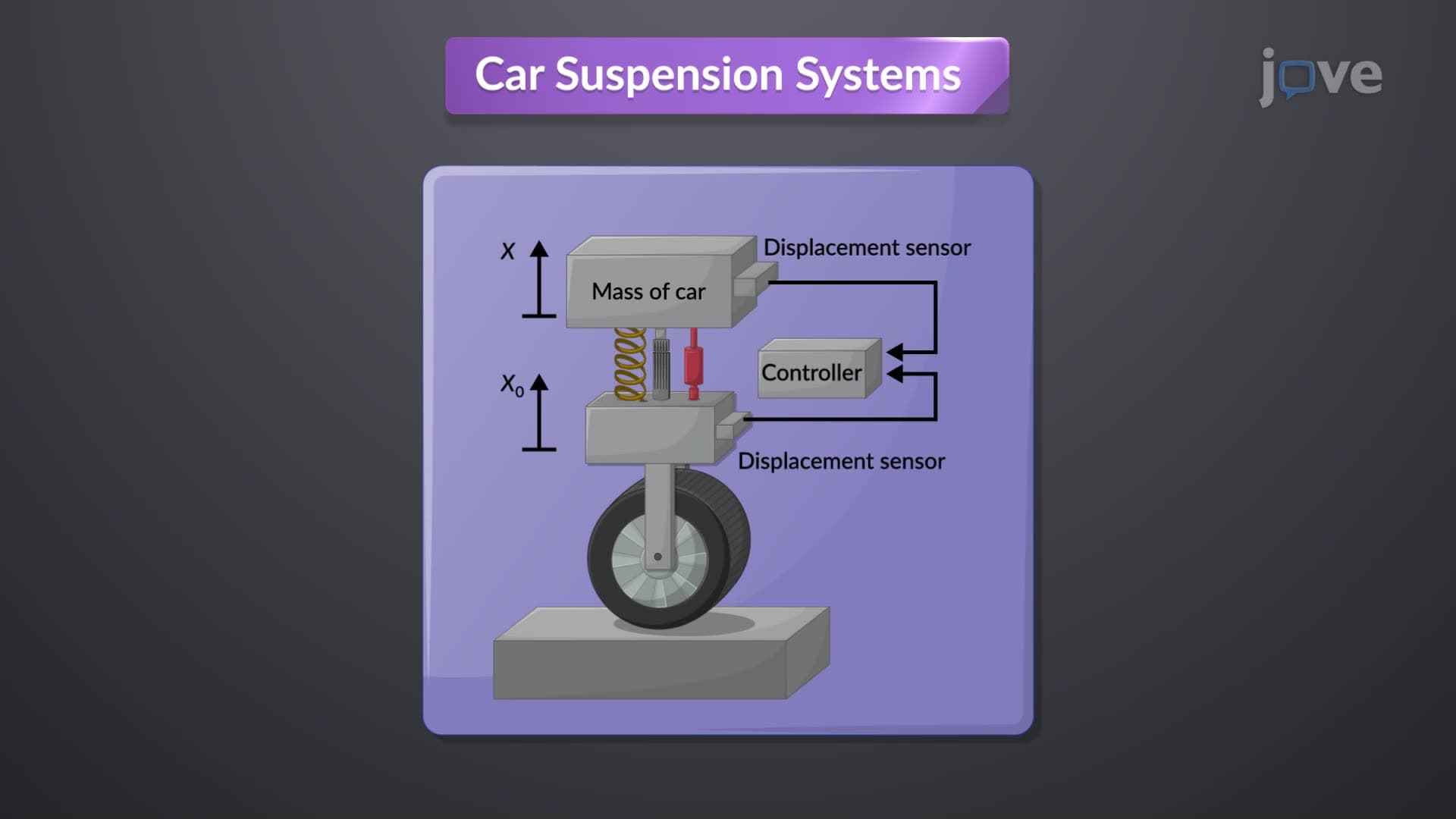

PD Controller: Design01:26

PD Controller: Design

171
In automotive engineering, car suspension systems often employ Proportional Derivative (PD) controllers to enhance performance. PD controllers are utilized to adjust the damping force in response to road conditions. A controller, acting as an amplifier with a constant gain, demonstrates proportional control, with output directly mirroring input.
Designing a continuous-data controller requires selecting and linking components like adders and integrators, which are fundamental in Proportional,...
171
Rolling Resistance: Problem Solving01:17

Rolling Resistance: Problem Solving

280
Rolling resistance, also known as rolling friction, is the force that resists the motion of a rolling object, such as a wheel, tire, or ball, when it moves over a surface. It is caused by the deformation of the object and the surface in contact with each other, as well as other factors like internal friction, hysteresis, and energy losses within the materials. Rolling resistance opposes the object's motion, requiring additional energy to overcome it and maintain movement. In practical...
280
Normal and Tangetial Components: Problem Solving01:24

Normal and Tangetial Components: Problem Solving

169
Consider a man with a mass of 70 kg seated in a chair connected to a pin support through a member BC. If the man maintains an upright position, the task is to determine the horizontal and vertical reactions of the chair on the man when the member makes a 45° angle with the horizontal. At this moment, the man has a speed of 5 m/s, increasing at a rate of 1 m/s².
169
  1. Home
  3. Research Domains
  5. Agricultural, Veterinary And Food Sciences
  7. Agriculture, Land And Farm Management
  9. Agricultural Production Systems Simulation
  11. The Impact Of Tractor Drawbar Height On Performance And Optimization Using Response Surface Methodology.
  1. Home
  3. Research Domains
  5. Agricultural, Veterinary And Food Sciences
  7. Agriculture, Land And Farm Management
  9. Agricultural Production Systems Simulation
  11. The Impact Of Tractor Drawbar Height On Performance And Optimization Using Response Surface Methodology.

Related Experiment Video

Measurement of the Hand Transmitted Vibration of the Human Hand Arm System During Operation of a Hand Tractor
09:35

Measurement of the Hand Transmitted Vibration of the Human Hand Arm System During Operation of a Hand Tractor

Published on: June 16, 2021

4.3K

The impact of tractor drawbar height on performance and optimization using response surface methodology.

Ali Yavuz Şeflek1, Nuri Orhan2, Mete Özkan3

  • 1Faculty of Agriculture, Department of Agricultural Machinery and Technologies Engineering, Selçuk University, Konya, Turkey.

Scientific Reports
|February 13, 2025

View abstract on PubMed

Summary
This summary is machine-generated.

Optimizing tractor drawbar height to 520 mm significantly boosts pulling force and power while reducing fuel consumption. Adjusting drawbar height and speed enhances agricultural operational efficiency and sustainability.

Keywords:
Drawbar heightFuel efficiencyResponse surface methodology (RSM)Tractor performance optimization

More Related Videos

Author Spotlight: Optimization of Processing Technology for Tiebangchui with Zanba Based on CRITIC Combined with Box-Behnken Response Surface Method
09:16

Author Spotlight: Optimization of Processing Technology for Tiebangchui with Zanba Based on CRITIC Combined with Box-Behnken Response Surface Method

Published on: May 12, 2023

1.0K
An Instrumented Pull Test to Characterize Postural Responses
12:18

An Instrumented Pull Test to Characterize Postural Responses

Published on: April 6, 2019

10.7K

Related Experiment Videos

Measurement of the Hand Transmitted Vibration of the Human Hand Arm System During Operation of a Hand Tractor
09:35

Measurement of the Hand Transmitted Vibration of the Human Hand Arm System During Operation of a Hand Tractor

Published on: June 16, 2021

4.3K
Author Spotlight: Optimization of Processing Technology for Tiebangchui with Zanba Based on CRITIC Combined with Box-Behnken Response Surface Method
09:16

Author Spotlight: Optimization of Processing Technology for Tiebangchui with Zanba Based on CRITIC Combined with Box-Behnken Response Surface Method

Published on: May 12, 2023

1.0K
An Instrumented Pull Test to Characterize Postural Responses
12:18

An Instrumented Pull Test to Characterize Postural Responses

Published on: April 6, 2019

10.7K

Area of Science:

  • Agricultural Engineering
  • Tractor Performance Optimization
  • Sustainable Agriculture

Background:

  • Tractor performance is crucial for agricultural efficiency.
  • Drawbar height significantly influences tractor dynamics and energy transfer.
  • Optimizing operational parameters is key to reducing fuel consumption and environmental impact.

Purpose of the Study:

  • To investigate the impact of tractor drawbar height on pulling force, fuel consumption, pulling power, and tractor efficiency.
  • To model and optimize tractor performance parameters using Response Surface Methodology (RSM).
  • To determine optimal drawbar height and speed settings for enhanced agricultural operations.

Main Methods:

  • Experiments conducted on a specialized pulling power test track under controlled conditions.
  • Data collection on key performance indicators at various tractor forward speeds.
  • Application of Response Surface Methodology (RSM) for multi-factor optimization and modeling.

    • Main Results:

    • A drawbar height of 520 mm resulted in the highest pulling force (47.4 kN) at 5.48 km/h.
    • Maximum pulling power (78.75 kW) and lowest specific fuel consumption (267.03 g/kWh) were achieved at 520 mm drawbar height and 8.33 km/h.
    • Both drawbar height and tractor speed significantly affected pulling force and fuel consumption (P < 0.05), while only speed impacted overall efficiency.

    Conclusions:

    • Optimizing tractor drawbar height and speed is critical for improving pulling performance and fuel efficiency.
    • Adjusting drawbar height minimizes energy losses and maximizes operational efficiency in field operations.
    • Findings provide a practical framework for sustainable agricultural practices through enhanced tractor performance.
