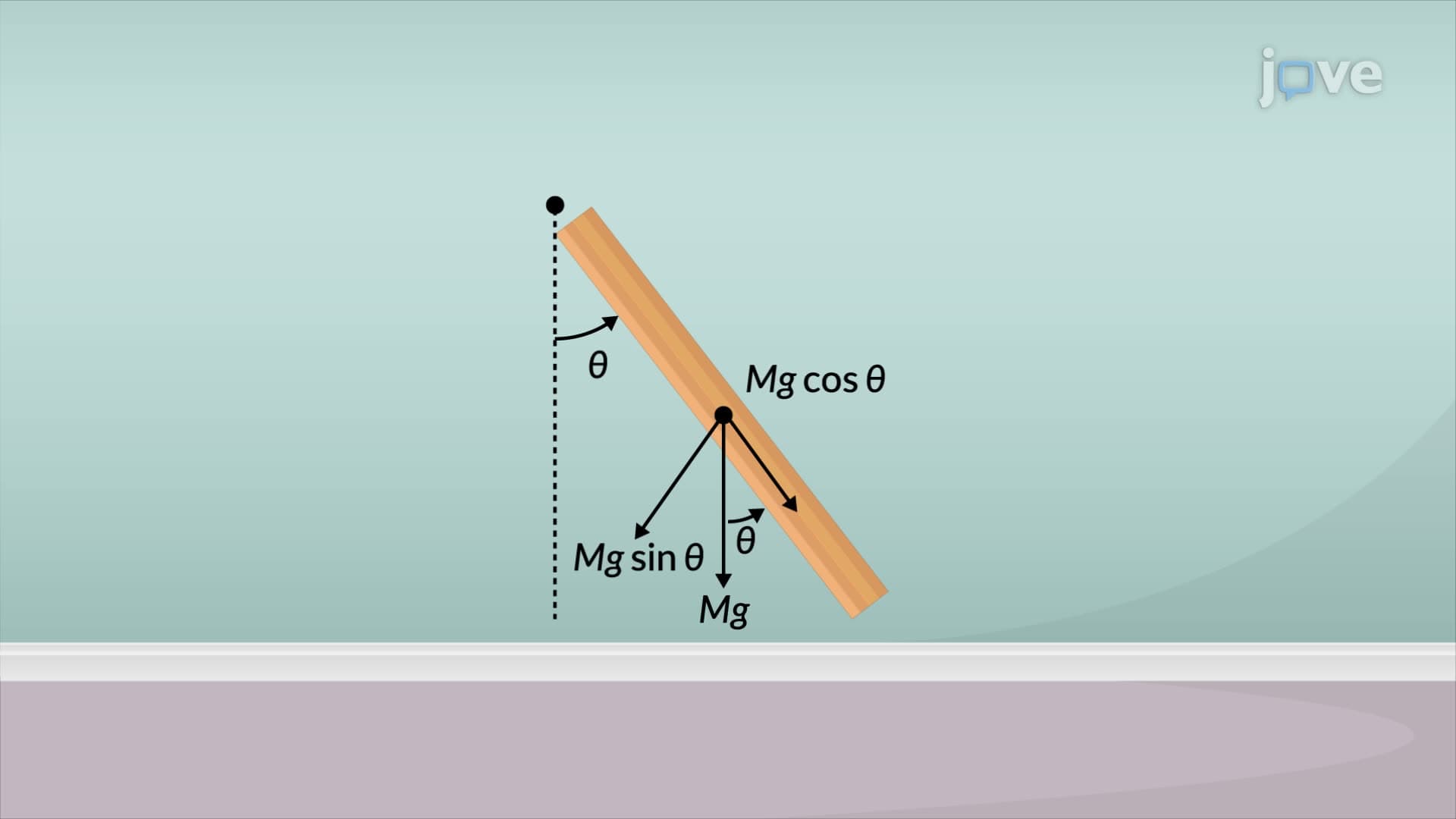

For a simple pendulum with a mass evenly distributed along its length and the center of mass located at half the pendulum's length,...
59
Design Example: Creating a Hydraulic Model of a Dam Spillway01:21

Design Example: Creating a Hydraulic Model of a Dam Spillway

117
Scaled hydraulic models of dam spillways provide a practical way to replicate and study the intricate flow dynamics of these structures. Often built to a 1:15 ratio, these models allow for observing critical water behavior, such as velocity distribution, flow patterns, and energy dissipation.
117
Typical Model Studies01:30

Typical Model Studies

299
Fluid mechanics model studies often utilize scaled-down systems to predict fluid behavior in full-scale environments, such as river flows, dam spillways, and structures interacting with open surfaces. Maintaining Froude number similarity in river models is crucial, as it replicates surface flow features like wave patterns and velocities.
299
Wheatstone Bridge01:29

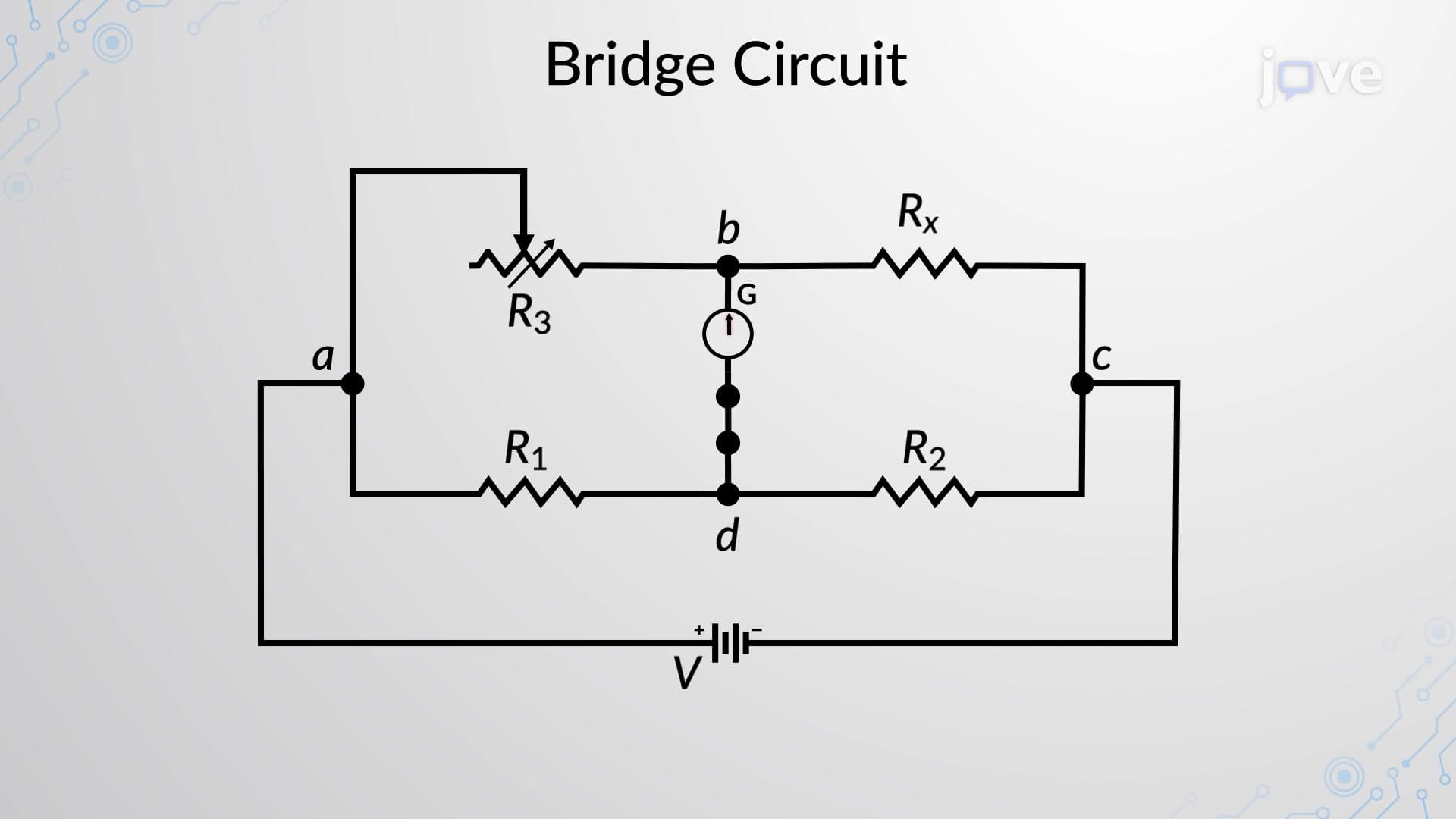

Wheatstone Bridge

424
An ohmmeter is a resistance-measuring device. It works by applying a voltage to a resistor of unknown resistance and measuring the current across the resistor. The resistance value is deduced using Ohm's law. Usually, the standard configuration of an ohmmeter comprises a voltmeter or an ammeter. However, such configurations are limited in accuracy because the meters alter the voltage applied to the resistor and the current that flows through it.
Thus, for accurate resistance measurements, a...
424
Linear Approximation in Frequency Domain01:26

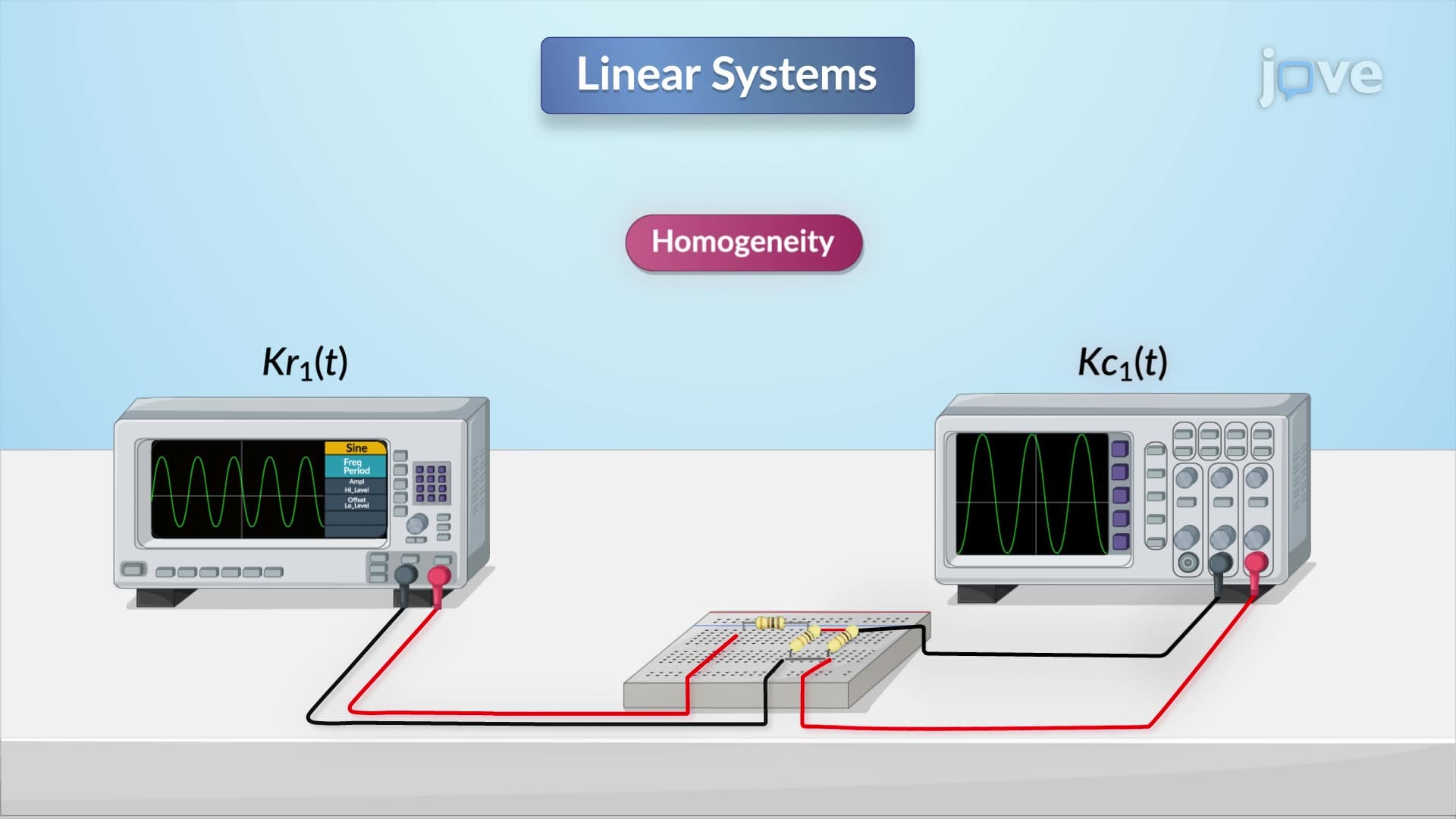

Linear Approximation in Frequency Domain

85
Linear systems are characterized by two main properties: superposition and homogeneity. Superposition allows the response to multiple inputs to be the sum of the responses to each individual input. Homogeneity ensures that scaling an input by a scalar results in the response being scaled by the same scalar.
In contrast, nonlinear systems do not inherently possess these properties. However, for small deviations around an operating point, a nonlinear system can often be approximated as linear....
85
Mechanical Systems01:22

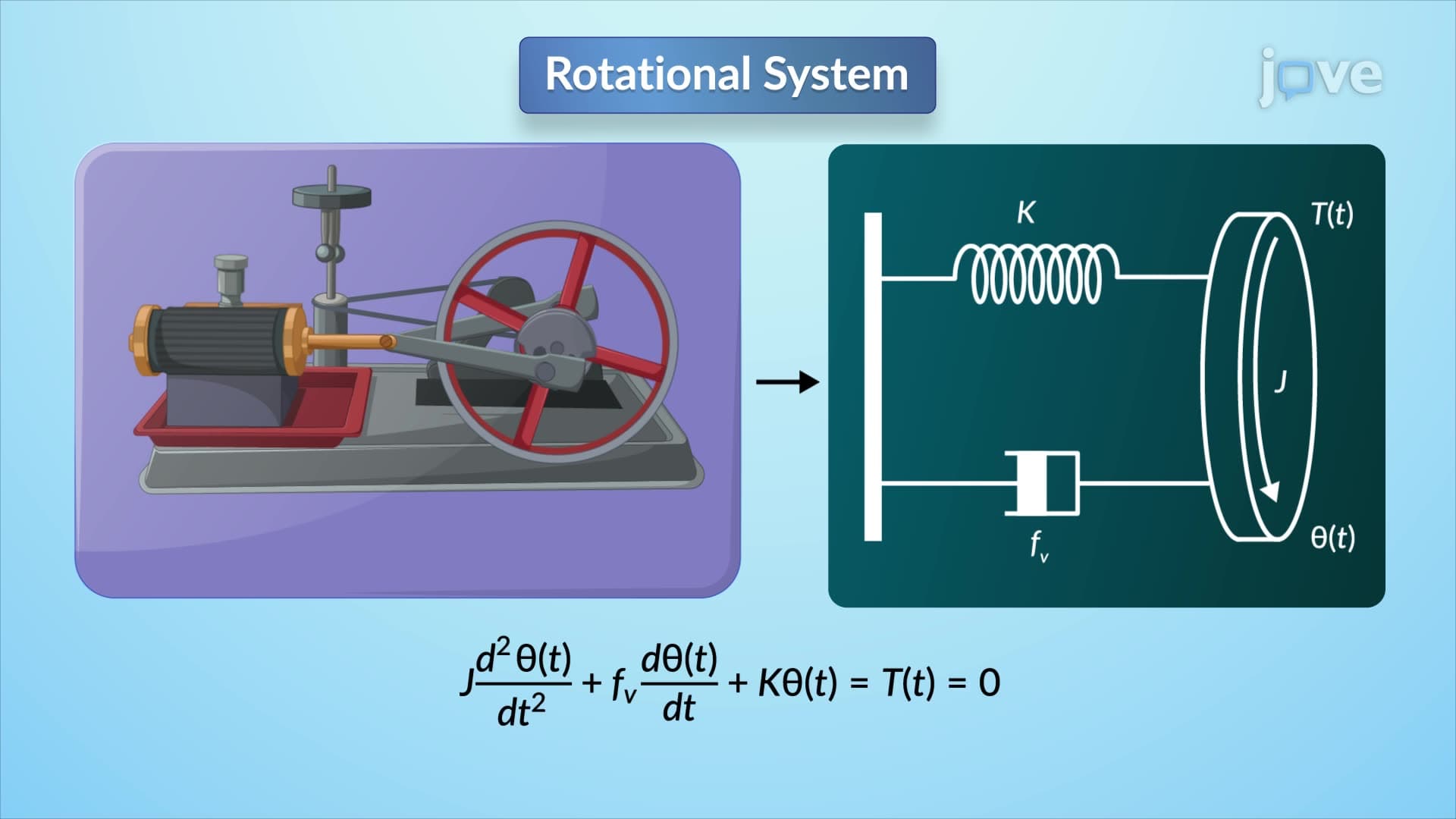

Mechanical Systems

166
Mechanical systems are analogous to to electrical networks where springs and masses play similar roles to inductors and capacitors, respectively. A viscous damper in mechanical systems functions similarly to a resistor in electrical networks, dissipating energy. The forces acting on a mass in such systems include an applied force in the direction of motion, counteracted by forces from the spring, a viscous damper, and the mass's acceleration. This interplay of forces is mathematically...
166
  1. Home
  3. Research Domains
  5. Mathematical Sciences
  7. Applied Mathematics
  9. Mathematical Methods And Special Functions
  11. Mathematical Representation And Nonlinear Modelling Of The Wheatley Mitral Valve.
  1. Home
  3. Research Domains
  5. Mathematical Sciences
  7. Applied Mathematics
  9. Mathematical Methods And Special Functions
  11. Mathematical Representation And Nonlinear Modelling Of The Wheatley Mitral Valve.

Related Experiment Video

Lumped-Parameter and Finite Element Modeling of Heart Failure with Preserved Ejection Fraction
09:20

Lumped-Parameter and Finite Element Modeling of Heart Failure with Preserved Ejection Fraction

Published on: February 13, 2021

6.3K

Mathematical representation and nonlinear modelling of the Wheatley mitral valve.

H L Oliveira1, G C Buscaglia2, J A Cuminato2

  • 1FECFAU - Departamento de Estruturas, Universidade Estadual de Campinas, Cidade Universitária, Av. Albert Einstein, 901, 13083-852, SP, Brazil; Instituto de Ciências Matemáticas e de Computação - ICMC, Universidade de São Paulo, Campus de São Carlos, Caixa Postal 668, 13560-970, SP, Brazil.

Medical Engineering & Physics
|February 20, 2025

View abstract on PubMed

Summary
This summary is machine-generated.

This study models the Wheatley mitral valve design, focusing on S-shaped leaflets. The findings reveal how leaflet geometry impacts internal forces and support frame stability under pressure.

Keywords:
Finite element methodLeaflets analytical descriptionNonlinear analysisStatic structural model

More Related Videos

In Silico Clinical Trials for Cardiovascular Disease
09:09

In Silico Clinical Trials for Cardiovascular Disease

Published on: May 27, 2022

1.6K
Four-Dimensional Computed Tomography-Guided Valve Sizing for Transcatheter Pulmonary Valve Replacement
09:57

Four-Dimensional Computed Tomography-Guided Valve Sizing for Transcatheter Pulmonary Valve Replacement

Published on: January 20, 2022

2.5K

Related Experiment Videos

Lumped-Parameter and Finite Element Modeling of Heart Failure with Preserved Ejection Fraction
09:20

Lumped-Parameter and Finite Element Modeling of Heart Failure with Preserved Ejection Fraction

Published on: February 13, 2021

6.3K
In Silico Clinical Trials for Cardiovascular Disease
09:09

In Silico Clinical Trials for Cardiovascular Disease

Published on: May 27, 2022

1.6K
Four-Dimensional Computed Tomography-Guided Valve Sizing for Transcatheter Pulmonary Valve Replacement
09:57

Four-Dimensional Computed Tomography-Guided Valve Sizing for Transcatheter Pulmonary Valve Replacement

Published on: January 20, 2022

2.5K

Area of Science:

  • Biomedical Engineering
  • Mechanical Engineering
  • Computational Mechanics

Background:

  • The Wheatley design is a prosthetic mitral valve replacement.
  • Understanding leaflet mechanics is crucial for valve performance and longevity.
  • Existing models may not fully capture the complex geometry and nonlinear behavior of S-shaped leaflets.

Purpose of the Study:

  • To develop a mathematical and mechanical model for the S-shaped leaflets of the Wheatley mitral valve.
  • To analyze the internal forces and structural behavior induced by the leaflet geometry under pressure gradients.
  • To investigate the stability of the support frame under the influence of leaflet-induced forces.

Main Methods:

  • Mathematical description of S-shaped leaflets using elementary functions and level sets with symmetric circles/ellipses.
  • Development of a geometric nonlinear mechanical model considering uniform pressure gradients (ignoring inertial forces).
  • Solution of the resulting nonlinear equations using iterative incremental techniques.

    • Main Results:

    • S-shaped geometries generate combined bending and torsion internal forces under normal pressure loads.
    • These forces cause periodic bending actions on the support frame, deforming it inwards.
    • The stability of the support frame is critical for maintaining equilibrium.
    • For circular base geometries, force transmission remains stable if the height/diameter ratio is below 2.

    Conclusions:

    • The S-shaped geometry of Wheatley mitral valve leaflets significantly influences internal forces and structural stability.
    • The model highlights the importance of support frame resistance to counteract inward deformation caused by leaflet mechanics.
    • Geometric parameters, such as the height/diameter ratio in circular designs, play a role in maintaining stable force transmission.
