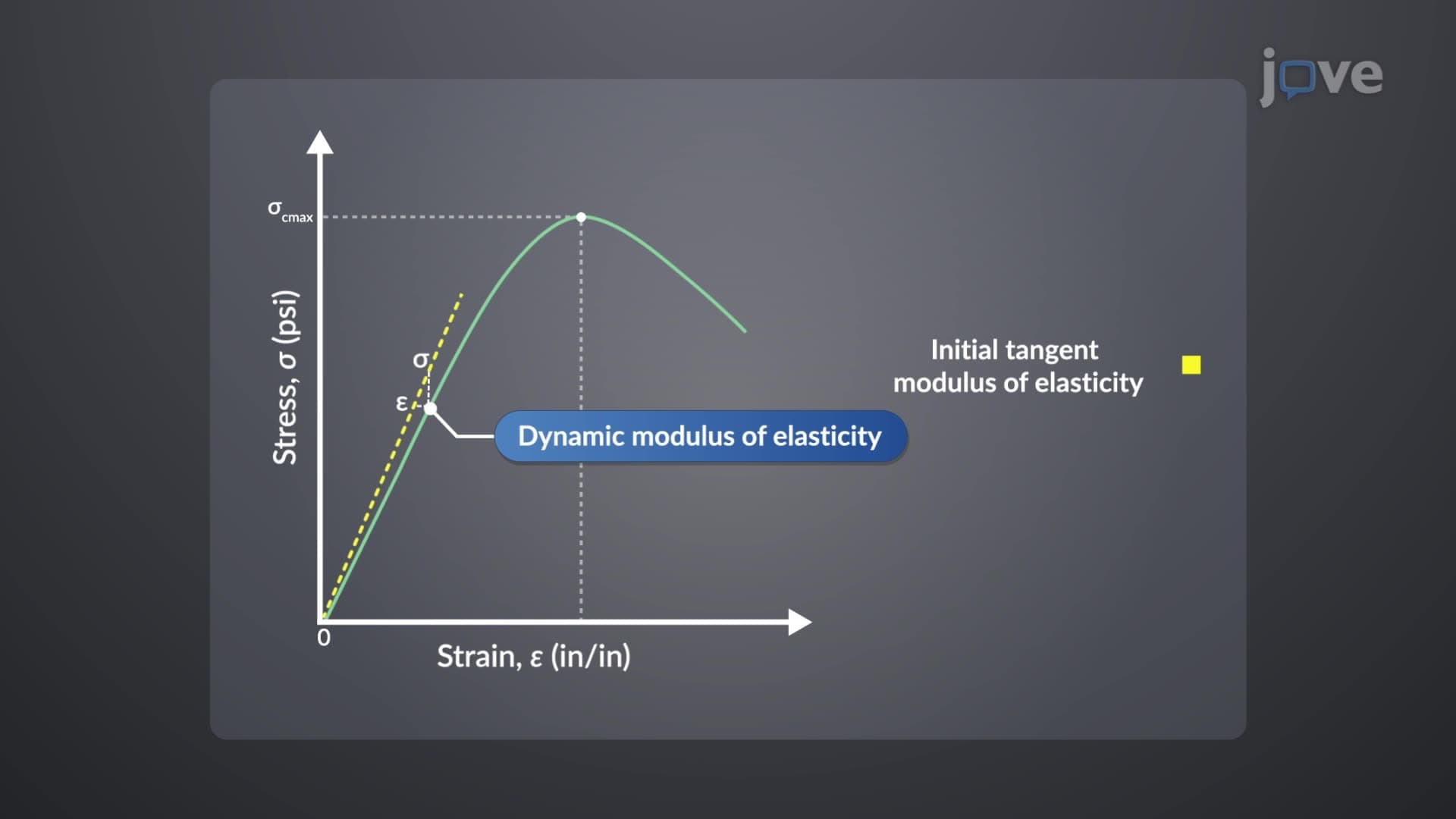

Dynamic Modulus of Elasticity of Concrete

Dynamic Modulus of Elasticity of Concrete

The dynamic modulus of elasticity assesses how a concrete structure deforms under impact or dynamic loads. It is typically higher than the static modulus of elasticity, measured under slow, steady loading conditions.
The sonic test is a common method to determine the dynamic modulus. In this test, a concrete beam, sized either 6 x 6 x 30 inches or 4 x 4 x 20 inches, is clamped at its center. Vibrations are initiated at one end of the beam by an electromagnetic exciter unit powered by...

Plastic Behavior

Plastic Behavior

A material's elastic behavior is characterized by the disappearance of stress once the load is removed, allowing the material to return to its original state. However, when stress surpasses the yield point, yielding commences, marking the onset of plastic deformation or permanent set. This change from elastic to plastic behavior is influenced by the peak stress value and the duration before the load is removed. An intriguing observation occurs when a specimen is loaded, unloaded, and...

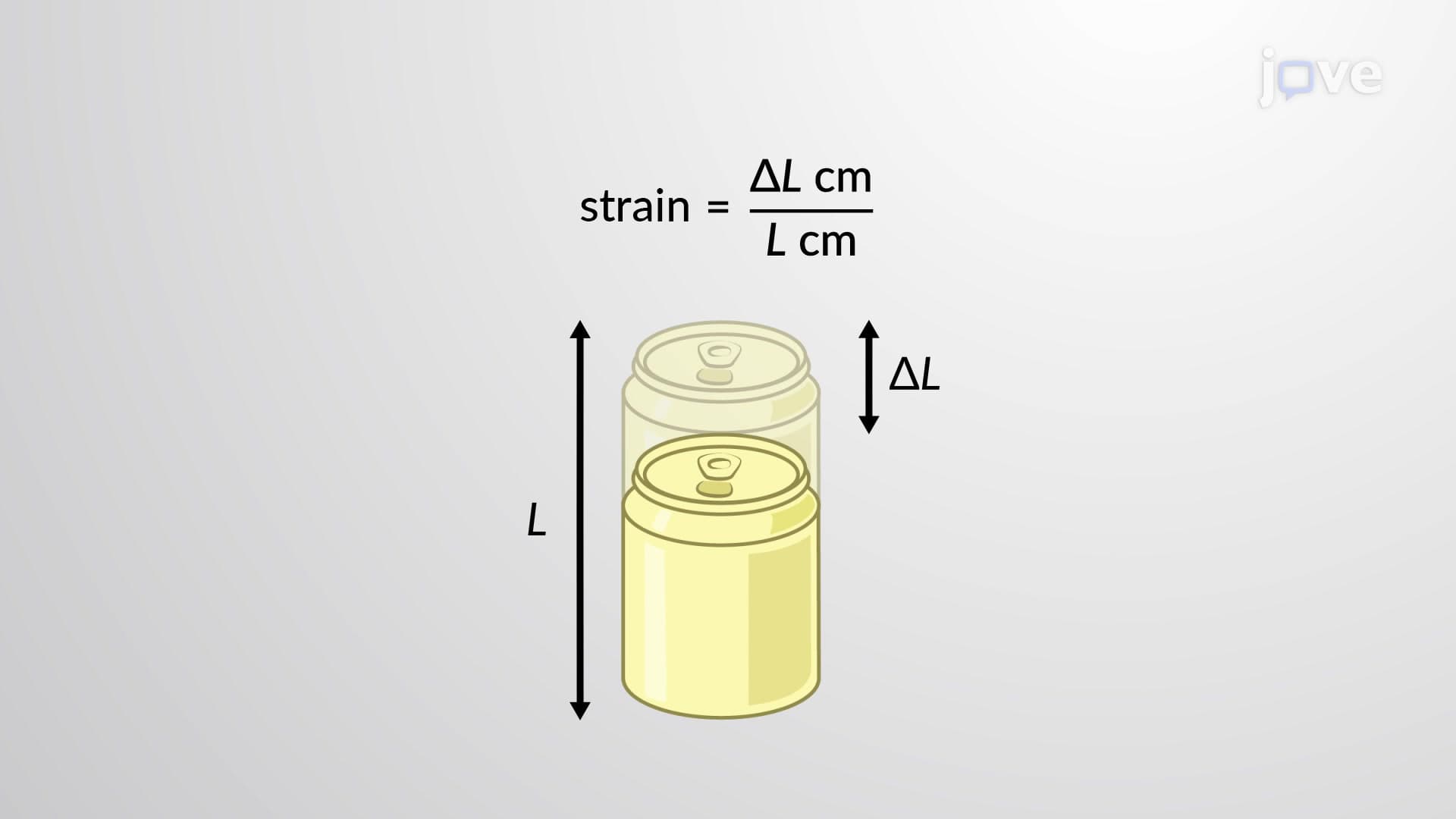

Strain and Elastic Modulus

Strain and Elastic Modulus

The quantity that describes the deformation of a body under stress is known as strain. Strain is given as a fractional change in either length, volume, or geometry under tensile, volume (also known as bulk), or shear stress, respectively, and is a dimensionless quantity. The strain experienced by a body under tensile or compressive stress is called tensile or compressive strain, respectively. In contrast, the strain experienced under bulk stress and shear stress is known as volume and shear...

Microcracking in Concrete

Microcracking in Concrete

Microcracking in concrete refers to the tiny cracks that can form within the material even before any external load is applied. These microcracks typically occur at the interface between the coarse aggregate and the hydrated cement paste, often as a result of differential volume changes prompted by variations in stress-strain behavior, as well as thermal and moisture movement. Initially, these microcracks remain stable and do not grow substantially until the concrete is stressed to about 30...

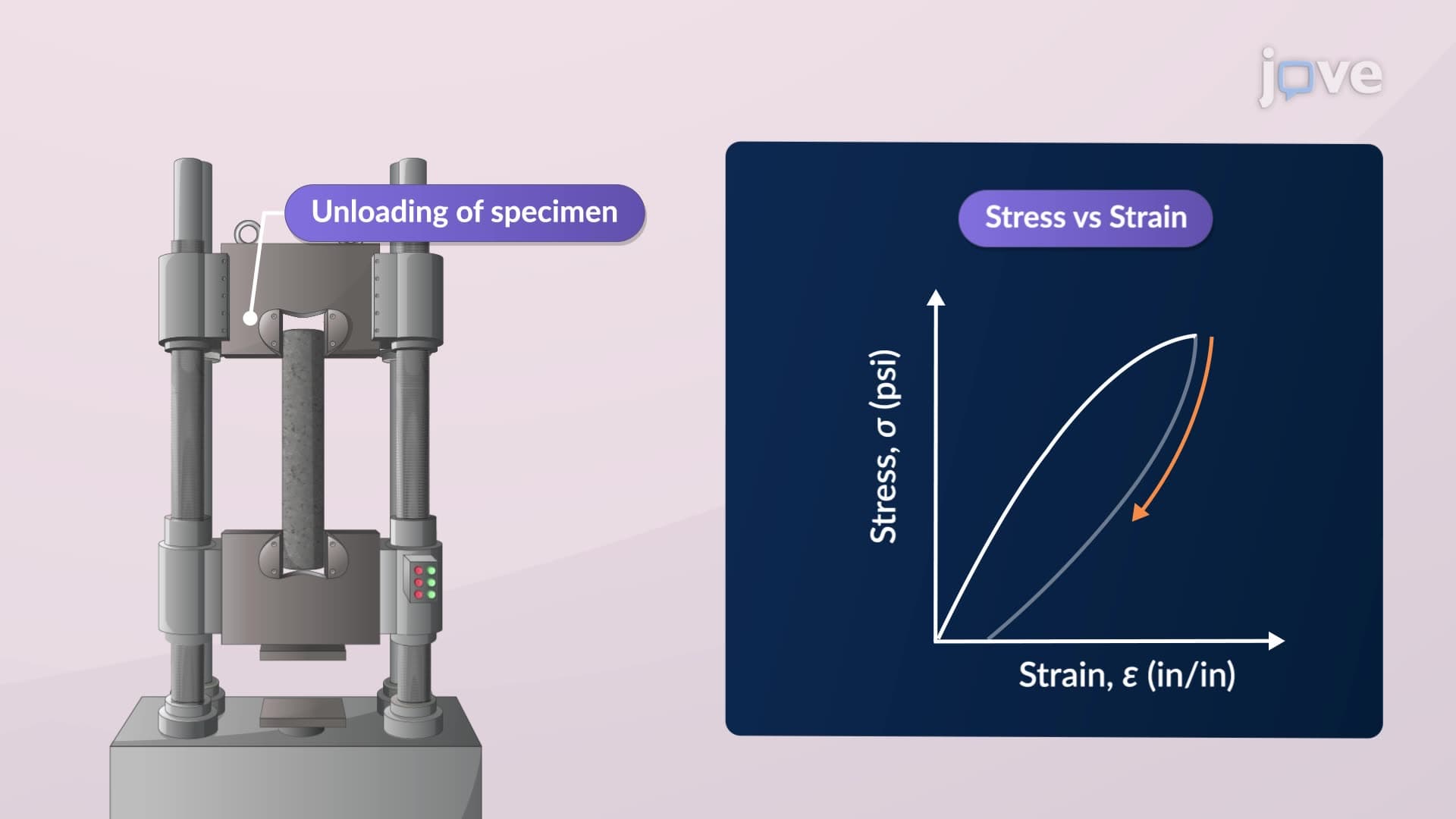

Elasticity in Concrete

Elasticity in Concrete

Upon subjecting concrete to moderate or high uniaxial compressive or tensile stresses, the strain response is non-linear relative to the stress applied. As the stress is removed, the resulting stress-strain curve deviates from the original path traced during loading, creating a hysteresis loop, indicative of the concrete's non-linear and non-elastic properties. Typically, a material's modulus of elasticity, which is a measure of the material's stiffness, is inferred from the linear...

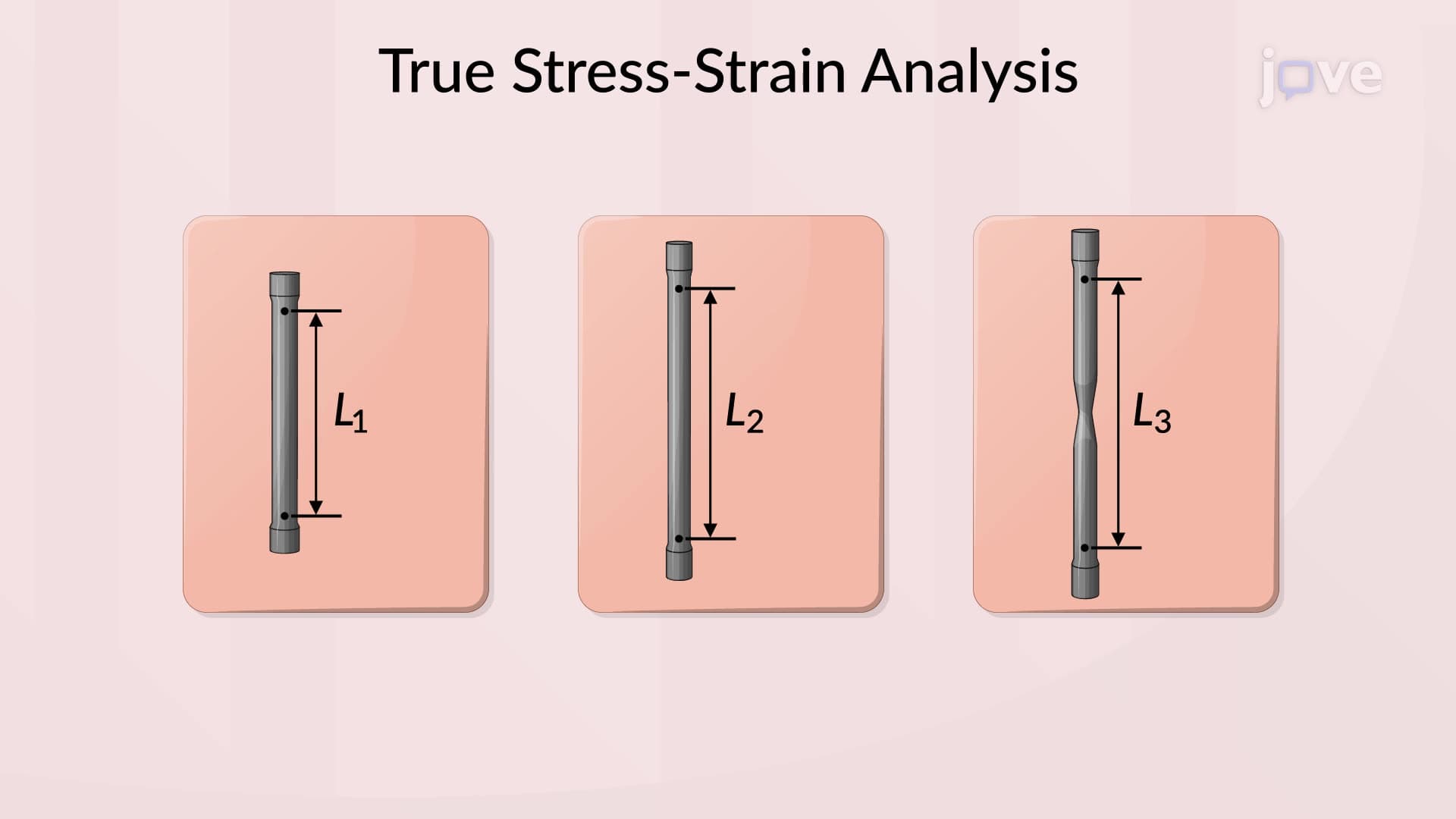

True Stress and True Strain

True Stress and True Strain

Engineering stress is calculated as the load divided by the original, undeformed cross-sectional area. It approximates a material under load. This approximation is especially relevant post-yield in ductile materials. Though engineering stress-strain diagrams are often used for their convenience and accessibility, they can sometimes fall short in accuracy, particularly when dealing with large strain values.
In contrast, true stress offers a more precise portrayal. It is computed by dividing the...

Search research articles

Home
Research Domains
Environmental Sciences
Soil Sciences
Soil Physics
Testing Small-strain Dynamic Characteristics Of Expanded Polystyrene Lightweight Soil: Reforming The Teaching Of Engineering Detection Experiments.

Home
Research Domains
Environmental Sciences
Soil Sciences
Soil Physics
Testing Small-strain Dynamic Characteristics Of Expanded Polystyrene Lightweight Soil: Reforming The Teaching Of Engineering Detection Experiments.

Related Experiment Video

A Bending Test for Determining the Atterberg Plastic Limit in Soils

A Bending Test for Determining the Atterberg Plastic Limit in Soils

Published on: June 28, 2016

Testing Small-Strain Dynamic Characteristics of Expanded Polystyrene Lightweight Soil: Reforming the Teaching of Engineering Detection Experiments.

Ping Jiang¹, Xinghan Wu¹, Lejie Chen¹

¹Shaoxing Key Laboratory of Interaction Between Soft Soil Foundation and Building Structure, School of Civil Engineering, Shaoxing University, Shaoxing 312000, China.

|April 28, 2025

View abstract on PubMed

Summary

This summary is machine-generated.

Expanded polystyrene (EPS) lightweight soil (ELS) shows high dynamic shear modulus at small strains. Its properties are influenced by EPS content, confining pressure, and curing age, with a new damage model developed for better prediction.

Keywords:

EPS lightweight soil damage model dynamic shear modulus engineering detection experiment

More Related Videos

Mechanical Expansion of Steel Tubing as a Solution to Leaky Wellbores

Mechanical Expansion of Steel Tubing as a Solution to Leaky Wellbores

Published on: November 20, 2014

A Testing Platform for Durability Studies of Polymers and Fiber-reinforced Polymer Composites under Concurrent Hygrothermo-mechanical Stimuli

A Testing Platform for Durability Studies of Polymers and Fiber-reinforced Polymer Composites under Concurrent Hygrothermo-mechanical Stimuli

Published on: December 11, 2014

Related Experiment Videos

A Bending Test for Determining the Atterberg Plastic Limit in Soils

A Bending Test for Determining the Atterberg Plastic Limit in Soils

Published on: June 28, 2016

Mechanical Expansion of Steel Tubing as a Solution to Leaky Wellbores

Mechanical Expansion of Steel Tubing as a Solution to Leaky Wellbores

Published on: November 20, 2014

A Testing Platform for Durability Studies of Polymers and Fiber-reinforced Polymer Composites under Concurrent Hygrothermo-mechanical Stimuli

A Testing Platform for Durability Studies of Polymers and Fiber-reinforced Polymer Composites under Concurrent Hygrothermo-mechanical Stimuli

Published on: December 11, 2014

Area of Science:

Geotechnical Engineering
Materials Science
Soil Mechanics

Background:

Expanded polystyrene (EPS) lightweight soil (ELS) is a geosynthetic material for slope stabilization and soft soil settlement reduction.
Understanding the small-strain dynamic properties of ELS is crucial for its effective application in civil engineering.
Existing models may not fully capture the complex behavior of ELS under varying conditions.

Purpose of the Study:

To investigate the small-strain dynamic properties of ELS.
To evaluate the influence of EPS granule content, confining pressure, and curing age on the dynamic shear modulus (G) of ELS.
To develop an accurate damage model for ELS behavior under small strains.

Main Methods:

Resonant column tests were performed on ELS samples.

resonant column test

teaching reform

Parameters varied included EPS granule content (20-60%), confining pressures (50-200 kPa), and curing ages (3, 7, 28 days).

Small strain range (10^-6 to 10^-4) was used to measure the dynamic shear modulus (G).

Main Results:

ELS exhibits a high dynamic shear modulus under small strains.
Dynamic shear modulus (G) increases with confining pressure and curing age, but decreases with higher EPS content and dynamic shear strain.
Maximum shear modulus (Gmax) ranged from 64 MPa to 280 MPa, with a 60% reduction due to EPS content and increases of 11% and 55% due to pressure and age, respectively.
A novel damage model incorporating EPS content and confining pressure was developed, outperforming the Hardin-Drnevich model.

Conclusions:

EPS content, confining pressure, and curing age significantly affect the small-strain dynamic properties of ELS.
The developed damage model accurately describes ELS attenuation behavior, aiding in engineering design.
The study integrates materials science, soil mechanics, and environmental protection, offering educational and practical implications for construction and experimental education.
