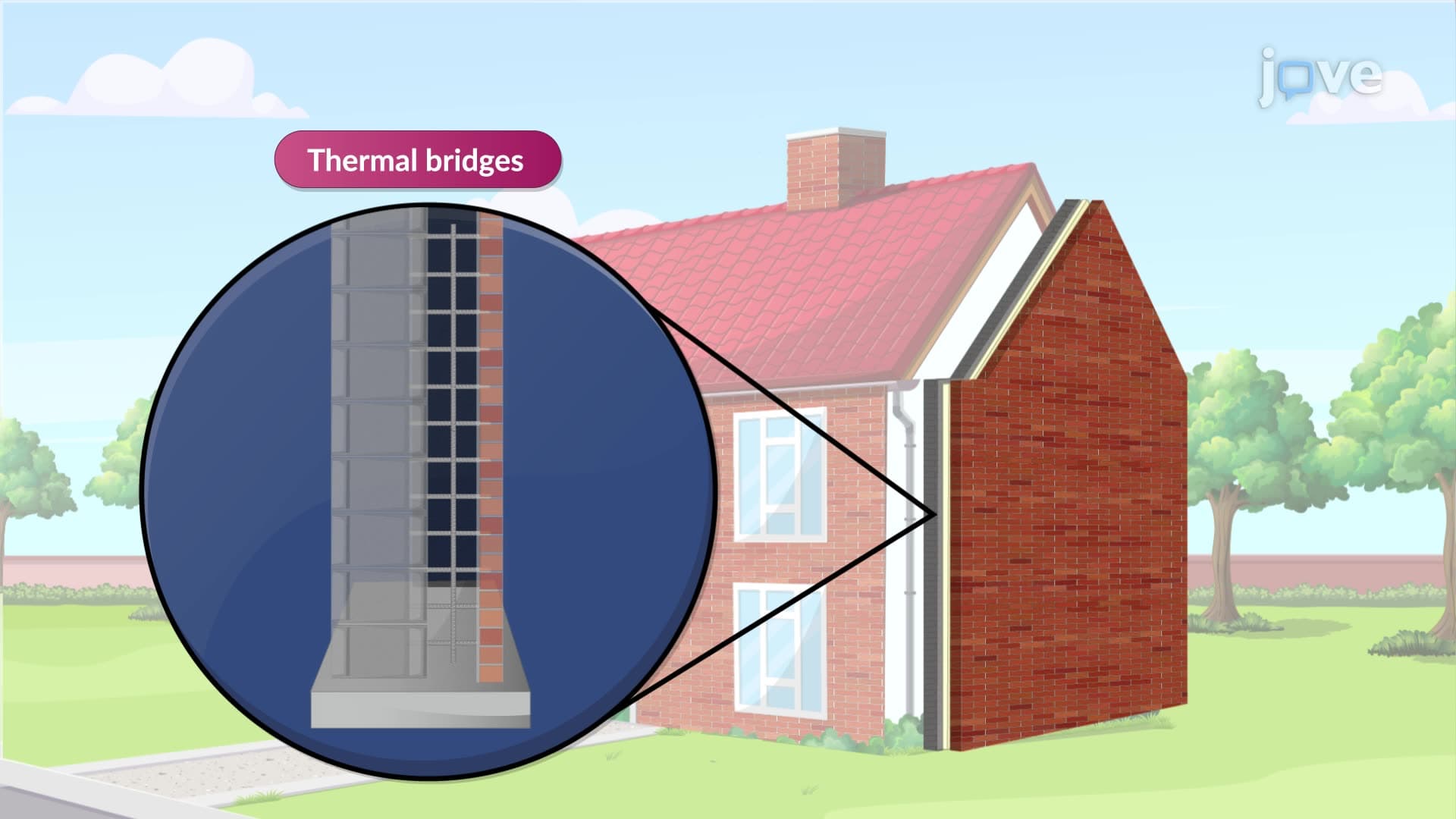

Thermal Insulation in Masonry Walls

692
In hot, dry climates, the thermal mass of masonry walls can be beneficial, absorbing heat during the day and releasing it at night, thereby stabilizing indoor temperatures. However, in most other climates, additional insulation is necessary to enhance thermal resistance.
External insulation can be applied using an Exterior Insulation and Finish System (EIFS), which involves affixing panels of plastic foam to the wall and covering them with a polymeric stucco reinforced with glass fiber mesh....
692
Unsoundness of Aggregate due to Volume Change01:26

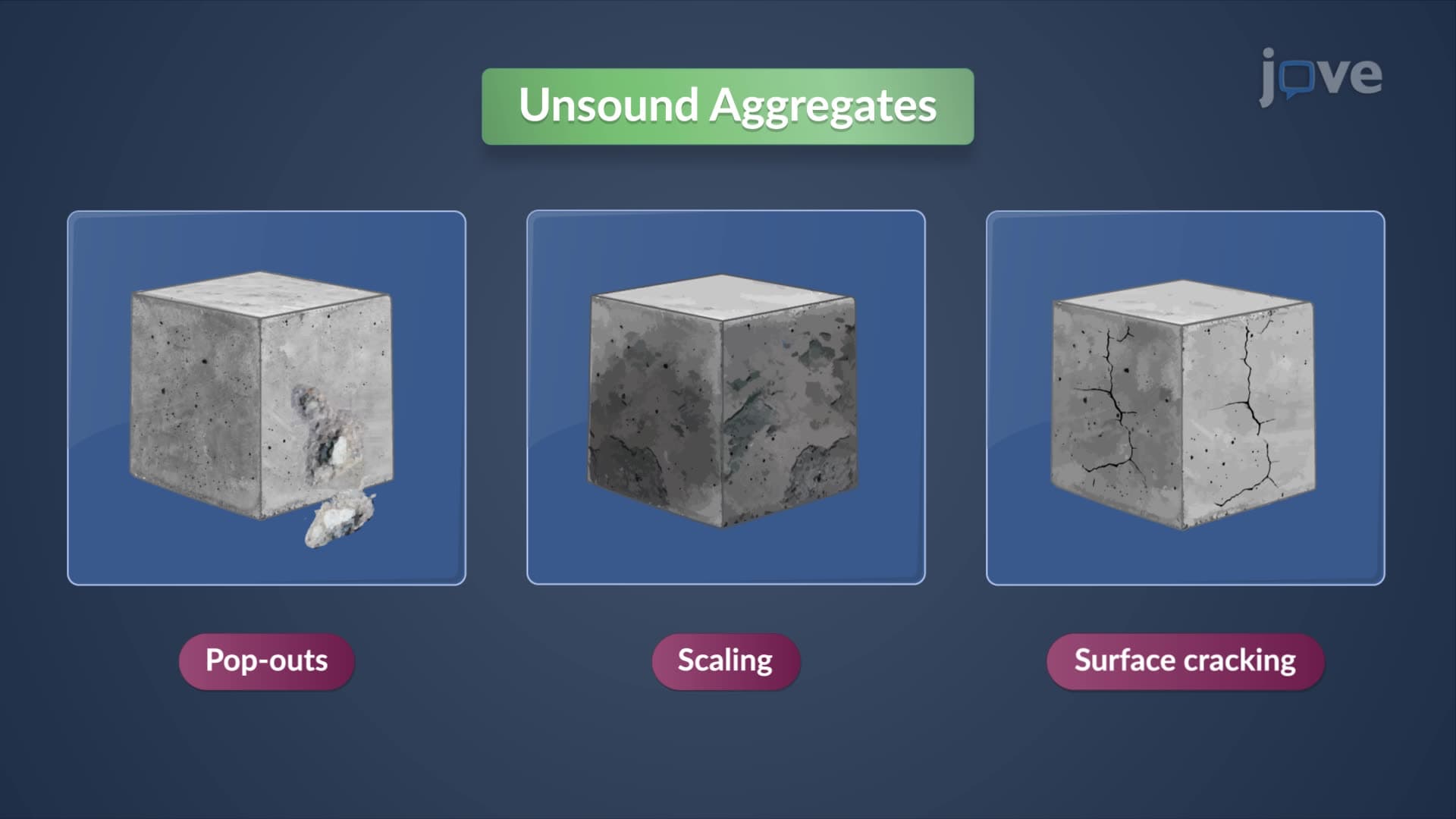

Unsoundness of Aggregate due to Volume Change

485
Unsoundness in aggregates due to volume changes is primarily caused by the physical alterations aggregates undergo, such as freezing and thawing, thermal changes, and wetting and drying. Unsound aggregates, when subjected to these changes, result in volume change upon disintegration. This, in turn, contributes to the deterioration of concrete, including scaling, pop-outs, and cracking. Particular types of aggregates, such as porous flints, cherts, and those containing clay minerals, are...
485
Cold Weather Concreting01:27

Cold Weather Concreting

433
When freshly poured concrete is exposed to freezing temperatures before it has set, the water within the concrete can freeze. This expansion disrupts the setting process, delays chemical reactions necessary for hardening, and increases the volume of pores within the hardened concrete, which weakens its overall structure. If the concrete manages to reach an appreciable strength before it freezes, the damage can be somewhat mitigated.
To counteract the negative impacts of cold weather, ensuring...
433
Frost Action on Concrete01:27

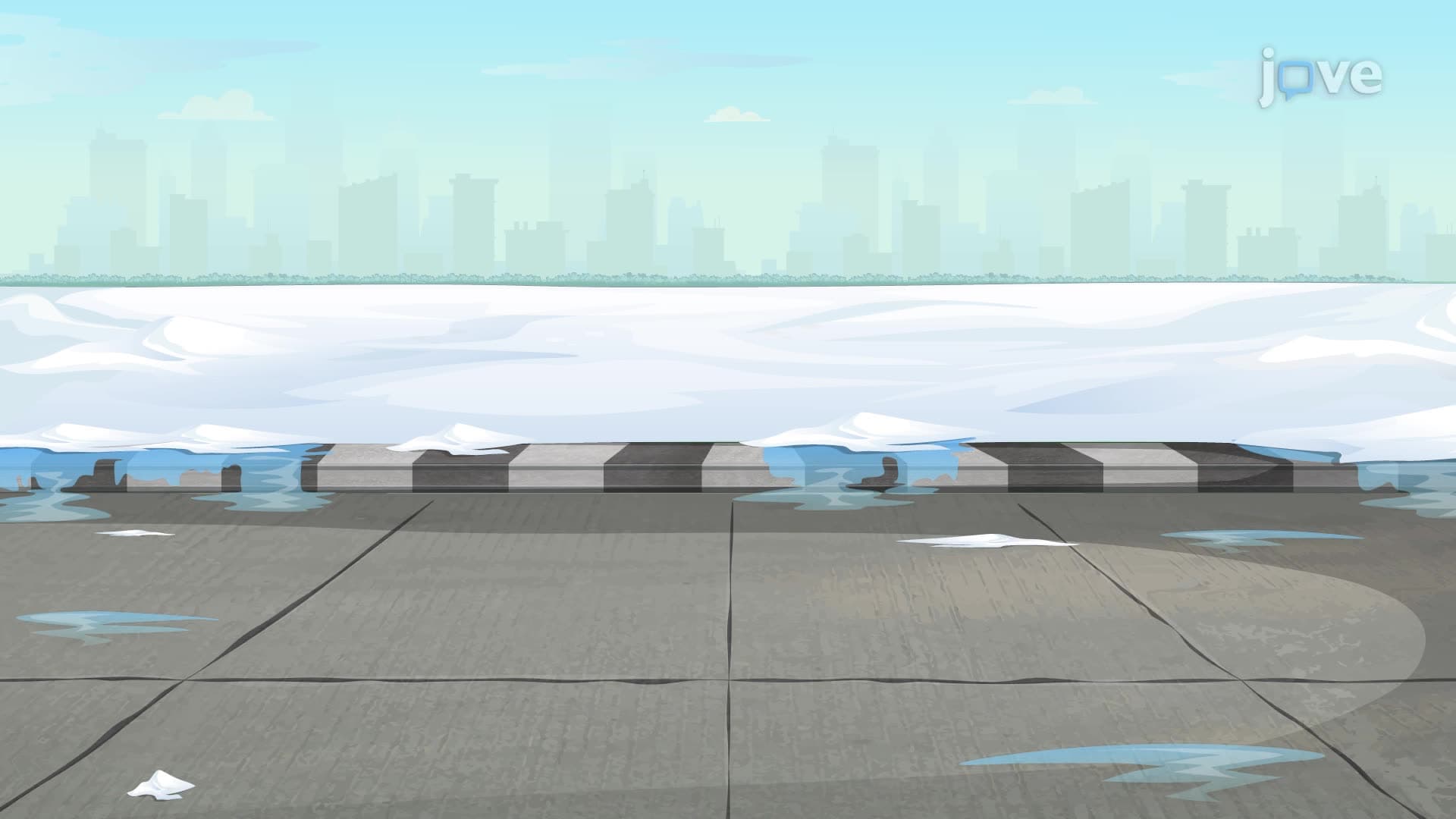

Frost Action on Concrete

542
Concrete structures in cold climates, such as those along roadsides, can retain moisture. This moisture makes them susceptible to frost-related damage when temperatures fall below freezing. Adding moisture worsens the damage during temperature fluctuations, leading to repeated freezing and thawing. De-icing salts, spread over these structures to melt ice, add to the freeze-thaw cycle, and draw even more moisture into the concrete.
This freeze-thaw cycle primarily causes surface scaling, where...
542
Frost Resistant Concrete01:29

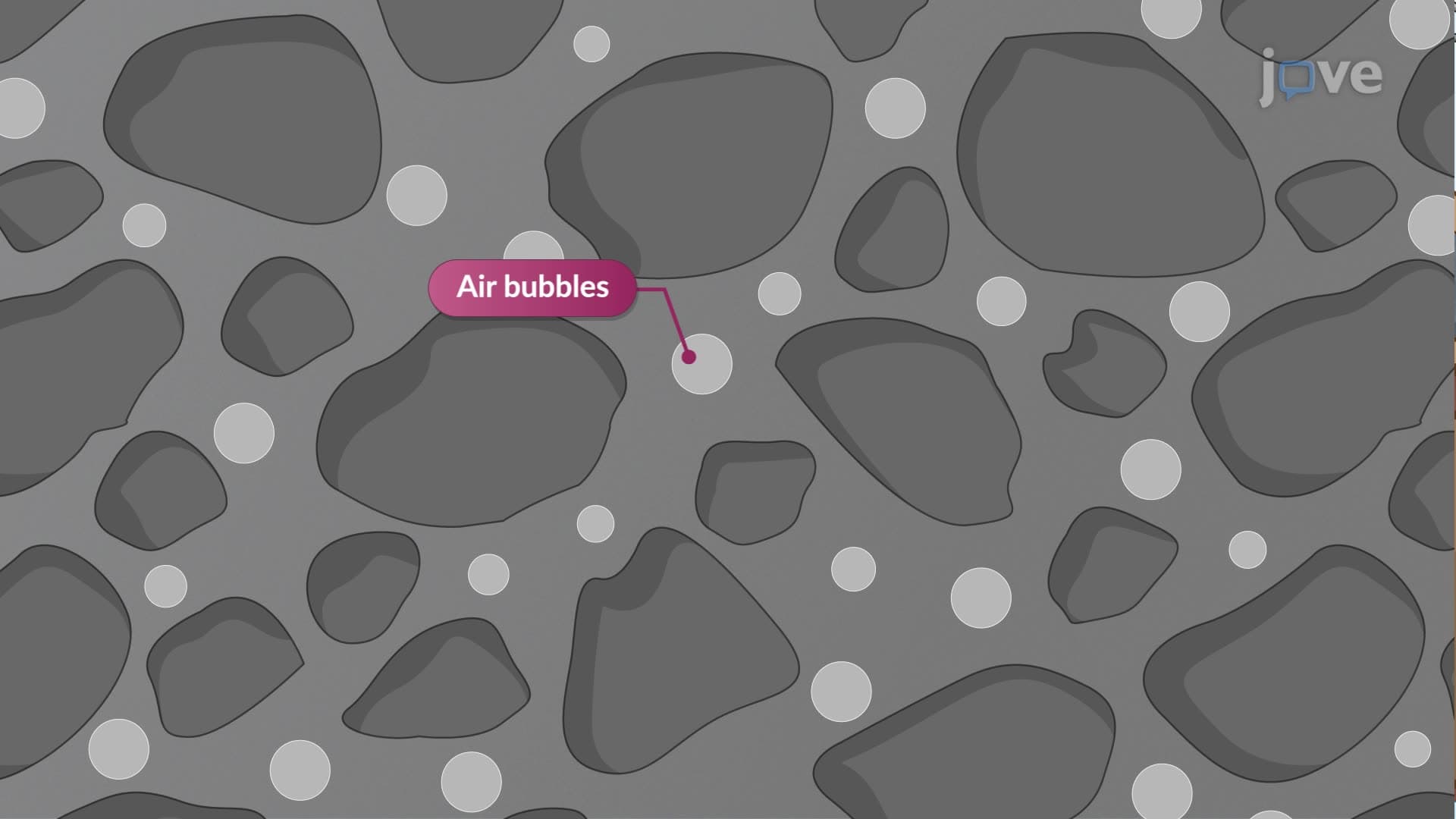

Frost Resistant Concrete

490
Concrete's susceptibility to frost damage during freeze-thaw cycles demands strategic measures to enhance its frost resistance. Employing techniques like air entrainment, adjusting the water-cement ratio, proper curing, and selecting appropriate aggregates are essential.
Introducing microscopic air bubbles into the concrete mix through air entrainment creates small voids that accommodate ice expansion, thereby reducing internal pressures and preventing cracking. The optimal amount of...
490
Effects of Air-entrainment in Concrete01:28

Effects of Air-entrainment in Concrete

503
Air entrainment in concrete significantly enhances the material's durability, especially in environments subjected to freeze-thaw cycles. Introducing small air bubbles into the concrete mix acts as internal voids that accommodate the expansion of water when it freezes, thereby alleviating internal stress and preventing structural cracks. This function is crucial in climates with significant freezing and thawing, as it protects the concrete from repeated stresses that could lead to premature...
503
  1. Home
  3. Research Domains
  5. Engineering
  7. Fluid Mechanics And Thermal Engineering
  9. Aerodynamics (excl. Hypersonic Aerodynamics)
  11. Study On Freeze-thaw Cycle Performance And Regional Service Life Prediction Of Hydrophobic Aerogel-modified Aceps Boards

Study on Freeze-Thaw Cycle Performance and Regional Service Life Prediction of Hydrophobic Aerogel-Modified ACEPS Boards

Lu Lu1,2, Rongyu Chen3, Mingming Wang4

  • 1Jiangsu Provincial Engineering Laboratory for Advanced Materials of Salt Chemical Industry, Huaiyin Institute of Technology, Huai'an 223003, China.

Materials (Basel, Switzerland)
|June 13, 2025

Related Experiment Videos

A Testing Platform for Durability Studies of Polymers and Fiber-reinforced Polymer Composites under Concurrent Hygrothermo-mechanical Stimuli
07:15

A Testing Platform for Durability Studies of Polymers and Fiber-reinforced Polymer Composites under Concurrent Hygrothermo-mechanical Stimuli

Published on: December 11, 2014

13.8K
Fabrication of Superhydrophobic Metal Surfaces for Anti-Icing Applications
11:20

Fabrication of Superhydrophobic Metal Surfaces for Anti-Icing Applications

Published on: August 15, 2018

8.5K
A Freeze-Thawing Method to Prepare Chitosan-Polyvinyl alcohol Hydrogels Without Crosslinking Agents and Diflunisal Release Studies
08:59

A Freeze-Thawing Method to Prepare Chitosan-Polyvinyl alcohol Hydrogels Without Crosslinking Agents and Diflunisal Release Studies

Published on: January 14, 2020

17.4K

View abstract on PubMed

Summary
This summary is machine-generated.

Hydrophobic aerogel enhances cement-based expanded polystyrene (EPS) insulation boards (ACEPS boards) by reducing water absorption and improving freeze-thaw resistance. This leads to better durability and extended service life for building insulation in cold climates.

Area of Science:

  • Building Materials Science
  • Materials Chemistry
  • Thermal Engineering

Background:

  • Expanded polystyrene (EPS) insulation boards are widely used but susceptible to degradation under freeze-thaw cycles (FTCs).
  • Incorporating hydrophobic additives can potentially enhance the durability and performance of EPS-based materials.
  • Aerogels, known for their unique properties, offer potential for advanced insulation materials.

Purpose of the Study:

  • To investigate the impact of hydrophobic aerogel on the performance of aerogel cement-based expanded polystyrene (EPS) insulation boards (ACEPS boards) subjected to FTCs.
  • To analyze the effects of varying aerogel content on key material properties.
  • To predict the service life of ACEPS boards in diverse climate zones.

Main Methods:

  • Systematic freeze-thaw cycle (FTC) testing was performed on ACEPS boards with varying aerogel content.
Keywords:
external wall insulation materialsfreeze–thaw cyclesfreeze–thaw resistancehydrophobic aerogel

Related Experiment Videos

A Testing Platform for Durability Studies of Polymers and Fiber-reinforced Polymer Composites under Concurrent Hygrothermo-mechanical Stimuli
07:15

A Testing Platform for Durability Studies of Polymers and Fiber-reinforced Polymer Composites under Concurrent Hygrothermo-mechanical Stimuli

Published on: December 11, 2014

13.8K
Fabrication of Superhydrophobic Metal Surfaces for Anti-Icing Applications
11:20

Fabrication of Superhydrophobic Metal Surfaces for Anti-Icing Applications

Published on: August 15, 2018

8.5K
A Freeze-Thawing Method to Prepare Chitosan-Polyvinyl alcohol Hydrogels Without Crosslinking Agents and Diflunisal Release Studies
08:59

A Freeze-Thawing Method to Prepare Chitosan-Polyvinyl alcohol Hydrogels Without Crosslinking Agents and Diflunisal Release Studies

Published on: January 14, 2020

17.4K
  • Measurements included compressive strength, volumetric water absorption, thermal conductivity, and pore structure analysis.
  • Service life prediction was conducted for four distinct climate zones.

    • Main Results:

    • Aerogel significantly reduced volumetric water absorption in ACEPS boards due to its hydrophobicity.
    • Compressive strength attenuation decreased from 40% to 24%, and thermal conductivity increase was suppressed from 0.0130 to 0.0055 W/(m·K).
    • Aerogel modification notably improved freeze-thaw resistance and mitigated pore structure degradation, especially in high aerogel content specimens.

    Conclusions:

    • Hydrophobic aerogel incorporation enhances the structural and functional durability of EPS insulation boards against freeze-thaw cycles.
    • ACEPS boards demonstrate improved performance in cold climates (Harbin, Urumqi) and areas with high FTC frequency (Beijing).
    • This research provides a basis for optimizing aerogel-based insulation materials for cold regions.
    service life prediction
