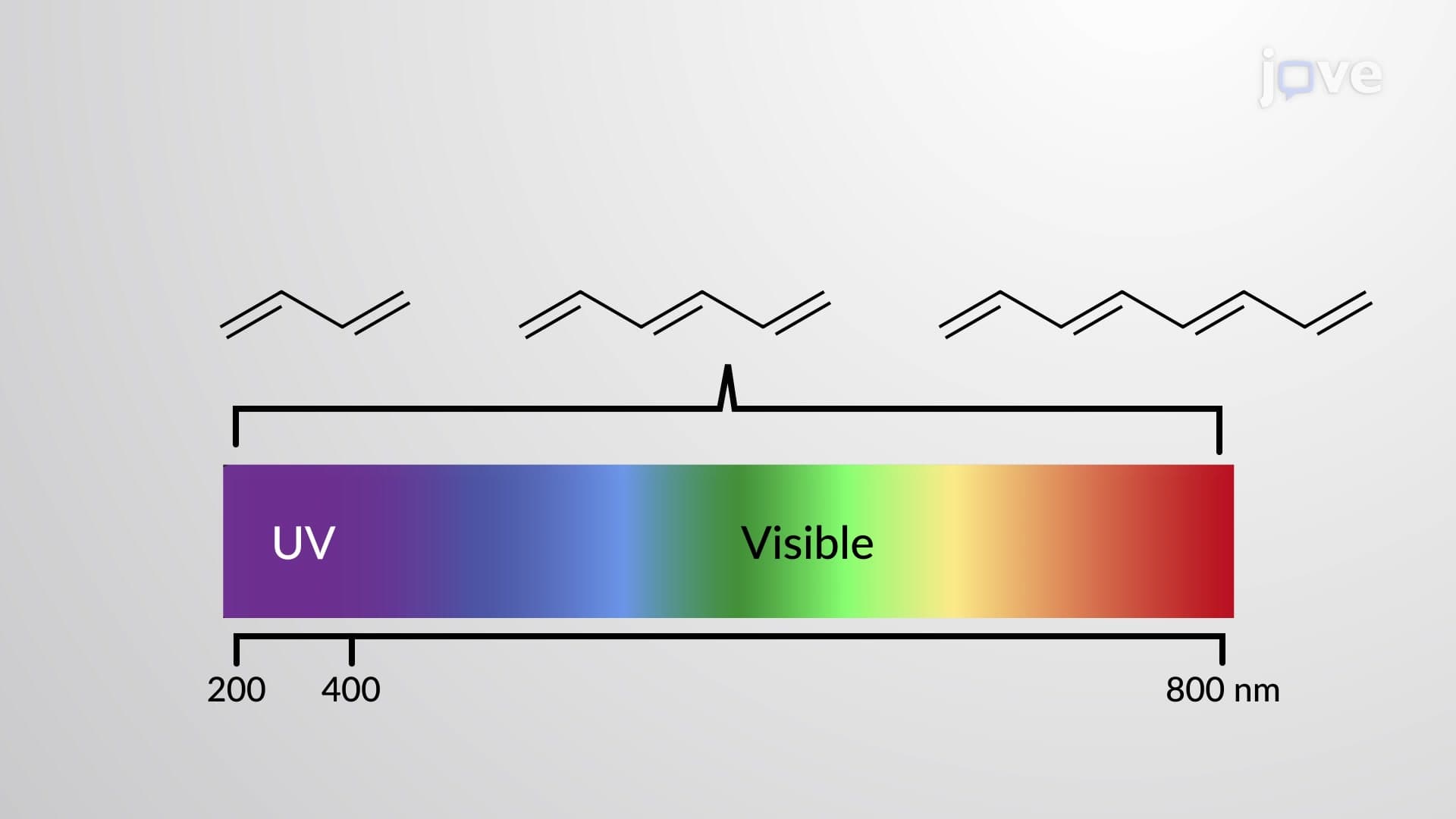

UV–Vis Spectroscopy of Conjugated Systems01:32

UV–Vis Spectroscopy of Conjugated Systems

6.9K
Organic compounds with conjugated double bonds show strong absorption features in the UV–visible region of the electromagnetic spectrum attributed to π → π* electronic excitations. Generally, a UV–vis absorption spectrum is recorded as a plot of absorbance vs wavelength. The wavelength of maximum absorbance, which manifests as a peak in the absorption spectrum, is denoted as λmax.
One of the factors influencing λmax is the extent...
6.9K
The Antenna Complex01:42

The Antenna Complex

6.0K
Plants and other photosynthetic organisms comprise pigments capable of absorption of direct sunlight. These pigments are present in the reaction center - the main site of photochemical reactions as well as in the antenna complex. Under average light conditions, the rate at which reaction center pigments absorb light is far below the electron transport chain's capacity. As a result, the reaction center alone cannot provide enough energy to drive photosynthesis. The photosynthetic efficiency...
6.0K
Light as Energy01:35

Light as Energy

78.2K
The energy required to carry out photosynthesis is light— typically electromagnetic radiation from the sun. The range of all possible wavelengths is known as the electromagnetic spectrum.
Photons
A photon is a discrete electromagnetic particle or bundle of energy. Photons are characterized by their frequency, wavelength, and amplitude, similar to the properties of a wave. Waves with higher frequencies transmit more energy and have shorter wavelengths than longer wavelengths that transmit...
78.2K
The Z-Scheme of Electron Transport in Photosynthesis01:34

The Z-Scheme of Electron Transport in Photosynthesis

10.0K
The light reactions of photosynthesis assume a linear flow of electrons from water to NADP+. During this process, light energy drives the splitting of water molecules to produce oxygen. However, oxidation of water molecules is a thermodynamically unfavorable reaction and requires a strong oxidizing agent. This is accomplished by the first product of light reactions: oxidized P680 (or P680+), the most powerful oxidizing agent known in biology. The oxidized P680 that acquires an electron from the...
10.0K
  1. Home
  3. Research Domains
  5. Engineering
  7. Chemical Engineering
  9. Electrochemical Energy Storage And Conversion
  11. A Tetra-ortho-chlorinated Azobenzene Molecule For Visible-light Photon Energy Conversion And Storage.
  1. Home
  3. Research Domains
  5. Engineering
  7. Chemical Engineering
  9. Electrochemical Energy Storage And Conversion
  11. A Tetra-ortho-chlorinated Azobenzene Molecule For Visible-light Photon Energy Conversion And Storage.

Related Experiment Video

Integrating a Triplet-triplet Annihilation Up-conversion System to Enhance Dye-sensitized Solar Cell Response to Sub-bandgap Light
11:26

Integrating a Triplet-triplet Annihilation Up-conversion System to Enhance Dye-sensitized Solar Cell Response to Sub-bandgap Light

Published on: September 12, 2014

12.5K

A tetra-ortho-Chlorinated Azobenzene Molecule for Visible-Light Photon Energy Conversion and Storage.

Shuxin Tang1, Yating Zhang1,2, Jun Xia1

  • 1Key Laboratory of Pollution Exposure and Health Intervention of Zhejiang Province, Interdisciplinary Research Academy, Zhejiang Shuren University, Hangzhou 310021, China.

Molecules (Basel, Switzerland)
|June 13, 2025

View abstract on PubMed

Summary
This summary is machine-generated.

Researchers developed a novel tetra-ortho-chlorinated azobenzene molecule for efficient visible-light photothermal energy storage. This photoswitchable molecule offers long-term storage and stability, overcoming limitations of UV-dependent systems.

Keywords:
azobenzenephotoinduced phase transitionphotothermalvisible-light energy storage

More Related Videos

Time-resolved Photophysical Characterization of Triplet-harvesting Organic Compounds at an Oxygen-free Environment Using an iCCD Camera
06:08

Time-resolved Photophysical Characterization of Triplet-harvesting Organic Compounds at an Oxygen-free Environment Using an iCCD Camera

Published on: December 27, 2018

8.8K
Production and Characterization of Vacuum Deposited Organic Light Emitting Diodes
07:44

Production and Characterization of Vacuum Deposited Organic Light Emitting Diodes

Published on: November 16, 2018

8.8K

Related Experiment Videos

Integrating a Triplet-triplet Annihilation Up-conversion System to Enhance Dye-sensitized Solar Cell Response to Sub-bandgap Light
11:26

Integrating a Triplet-triplet Annihilation Up-conversion System to Enhance Dye-sensitized Solar Cell Response to Sub-bandgap Light

Published on: September 12, 2014

12.5K
Time-resolved Photophysical Characterization of Triplet-harvesting Organic Compounds at an Oxygen-free Environment Using an iCCD Camera
06:08

Time-resolved Photophysical Characterization of Triplet-harvesting Organic Compounds at an Oxygen-free Environment Using an iCCD Camera

Published on: December 27, 2018

8.8K
Production and Characterization of Vacuum Deposited Organic Light Emitting Diodes
07:44

Production and Characterization of Vacuum Deposited Organic Light Emitting Diodes

Published on: November 16, 2018

8.8K

Area of Science:

  • Materials Science
  • Renewable Energy
  • Photochemistry

Background:

  • Photoactive molecules are crucial for solar energy utilization and photothermal energy storage.
  • Azobenzene photoswitches show promise for solar energy conversion but often require UV light for energy storage, limiting practical applications.
  • Existing azobenzene systems face challenges with visible-light absorption and efficient energy storage.

Purpose of the Study:

  • To design and synthesize a novel azobenzene photothermal molecule capable of storing visible-light photon energy.
  • To investigate the photoisomerization, energy storage capacity, and stability of the synthesized molecule under visible light irradiation.
  • To explore the potential applications of this molecule in solar energy storage technologies.

Main Methods:

  • Synthesis of a tetra-ortho-chlorinated azobenzene derivative with an alkyl chain.
  • Characterization using ultraviolet-visible spectroscopy and proton nuclear magnetic resonance (¹H NMR).
  • Determination of energy storage density via differential scanning calorimetry (DSC) and density functional theory (DFT) calculations.
  • Assessment of long-term energy storage stability and cyclic performance.

Main Results:

  • The synthesized tetra-ortho-chlorinated azobenzene effectively absorbs and stores energy under 550 nm visible light irradiation.
  • Stored energy can be released upon irradiation with 430 nm light.
  • Experimental (13.50 kJ/mol) and theoretical (28.21 kJ/mol) energy storage densities were determined, with a discrepancy attributed to Z-isomer yield.
  • The molecule demonstrated long-term energy storage (11-day half-life) and excellent cyclic stability (100 cycles).
  • The E-isomer exhibited significant supercooling properties.

Conclusions:

  • A novel azobenzene photothermal molecule capable of efficient visible-light energy storage has been successfully developed.
  • The synthesized molecule exhibits promising long-term stability, cyclic durability, and potential for low-temperature applications due to supercooling.
  • This advancement addresses key limitations in current azobenzene-based solar energy storage systems.
