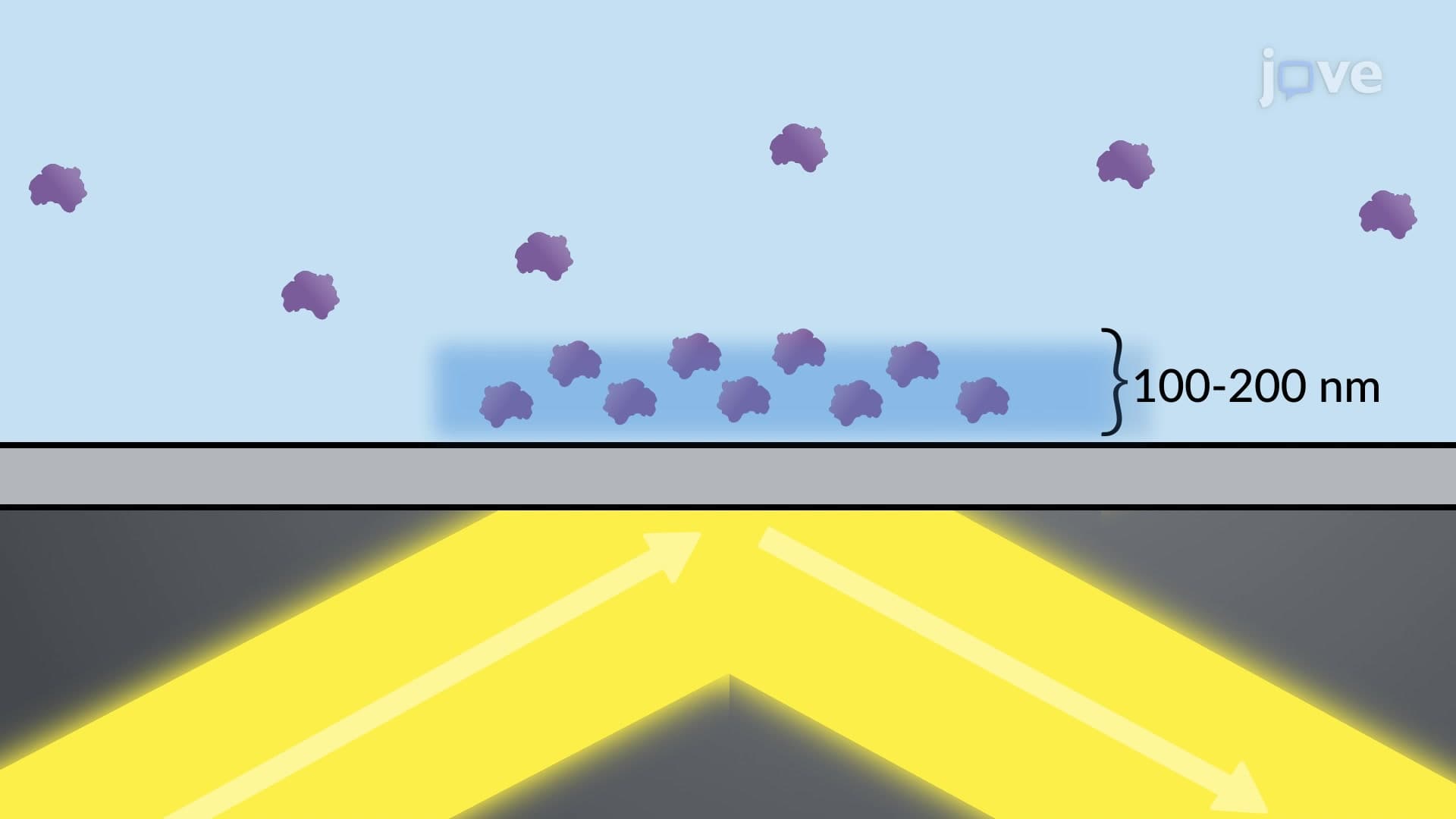

Total internal reflection fluorescence microscopy or TIRF is an advanced microscopic technique used to visualize fluorophores in samples close to a solid surface with a higher refractive index, such as a glass coverslip. TIRF only allows fluorophores in proximity to the solid surface to be excited. When light from a medium with a lower refractive index (such as air) hits the glass coverslip at a critical angle, the light undergoes total internal reflection stead of passing through the glass.
5.7K
Protein Dynamics in Living Cells01:19

Protein Dynamics in Living Cells

2.1K
Different fluorescence-based techniques are used to study the protein dynamics in living cells. These techniques include FRAP, FRET, and PET.
Fluorescent recovery after photobleaching (FRAP) is a fluorescent-protein-based detection technique used to quantify protein movement rates within the cell. This method exposes a small portion of the cell to an intense laser beam. The laser beam causes permanent photobleaching of the fluorophore-tagged proteins in the exposed region. As the bleached...
2.1K
  1. Home
  3. Research Domains
  5. Information And Computing Sciences
  7. Machine Learning
  9. Deep Learning
  11. Multierror Learning Enhanced Fluorescence Diffusion Tomography In Reflection Geometry

Multierror learning enhanced fluorescence diffusion tomography in reflection geometry

Haitao Chen, Kaixian Liu, Yuxuan Jiang

    Optics Express
    |June 14, 2025

    Related Experiment Videos

    Computed Tomography-guided Time-domain Diffuse Fluorescence Tomography in Small Animals for Localization of Cancer Biomarkers
    12:24

    Computed Tomography-guided Time-domain Diffuse Fluorescence Tomography in Small Animals for Localization of Cancer Biomarkers

    Published on: July 17, 2012

    12.4K
    From Fast Fluorescence Imaging to Molecular Diffusion Law on Live Cell Membranes in a Commercial Microscope
    15:10

    From Fast Fluorescence Imaging to Molecular Diffusion Law on Live Cell Membranes in a Commercial Microscope

    Published on: October 9, 2014

    11.4K
    Simultaneous Interference Reflection and Total Internal Reflection Fluorescence Microscopy for Imaging Dynamic Microtubules and Associated Proteins
    06:43

    Simultaneous Interference Reflection and Total Internal Reflection Fluorescence Microscopy for Imaging Dynamic Microtubules and Associated Proteins

    Published on: May 3, 2022

    3.4K

    View abstract on PubMed

    Summary
    This summary is machine-generated.

    We developed multierror-learning-enhanced fluorescence diffusion tomography in reflection geometry (MEL-rFDT) for precise 3D localization of deep intravital fluorescent probes. This method improves accuracy for neural circuit and tumor imaging applications.

    Area of Science:

    • Biomedical Optics
    • Medical Imaging
    • Neuroscience

    Background:

    • Accurate 3D localization of intravital fluorescent probes is crucial for understanding neural circuits and tumor dynamics.
    • Fluorescence diffusion tomography in reflection geometry (rFDT) enables deep tissue imaging but faces challenges with detection sensitivity and model accuracy.
    • Tissue heterogeneity and photon transport variations perturb diffusion paths, limiting current rFDT performance.

    Purpose of the Study:

    • To develop a novel method for precise 3D localization and sensing of intravital fluorescent probes at subcentimeter depths.
    • To enhance the accuracy and fidelity of fluorescence diffusion tomography in reflection geometry.
    • To overcome limitations of current rFDT methods related to detection sensitivity and photon transport perturbations.

    Main Methods:

    Related Experiment Videos

    Computed Tomography-guided Time-domain Diffuse Fluorescence Tomography in Small Animals for Localization of Cancer Biomarkers
    12:24

    Computed Tomography-guided Time-domain Diffuse Fluorescence Tomography in Small Animals for Localization of Cancer Biomarkers

    Published on: July 17, 2012

    12.4K
    From Fast Fluorescence Imaging to Molecular Diffusion Law on Live Cell Membranes in a Commercial Microscope
    15:10

    From Fast Fluorescence Imaging to Molecular Diffusion Law on Live Cell Membranes in a Commercial Microscope

    Published on: October 9, 2014

    11.4K
    Simultaneous Interference Reflection and Total Internal Reflection Fluorescence Microscopy for Imaging Dynamic Microtubules and Associated Proteins
    06:43

    Simultaneous Interference Reflection and Total Internal Reflection Fluorescence Microscopy for Imaging Dynamic Microtubules and Associated Proteins

    Published on: May 3, 2022

    3.4K
    • Introduced multierror-learning-enhanced rFDT (MEL-rFDT), a deep learning approach.
    • Embedded physical priors from photon transport models and spatial attention into the deep network.
    • Trained the network using limited in silico samples to adaptively compensate for errors and depth-dependent sensitivity.

    Main Results:

    • MEL-rFDT achieved high-fidelity reconstruction of intravital fluorescent probes.
    • Demonstrated unprecedented 3D localization and sensing accuracy in ex vivo brain tumor and in vivo subcutaneous tumor imaging in mice.
    • Showcased volumetric and functional generalization across samples.

    Conclusions:

    • MEL-rFDT significantly enhances the precision of 3D localization and sensing for intravital fluorescent probes.
    • The method's adaptive error compensation and sensitivity correction enable reliable deep tissue imaging.
    • Facilitates advancements in intraoperative pathology, dynamic imaging, and clinical decision-making.
