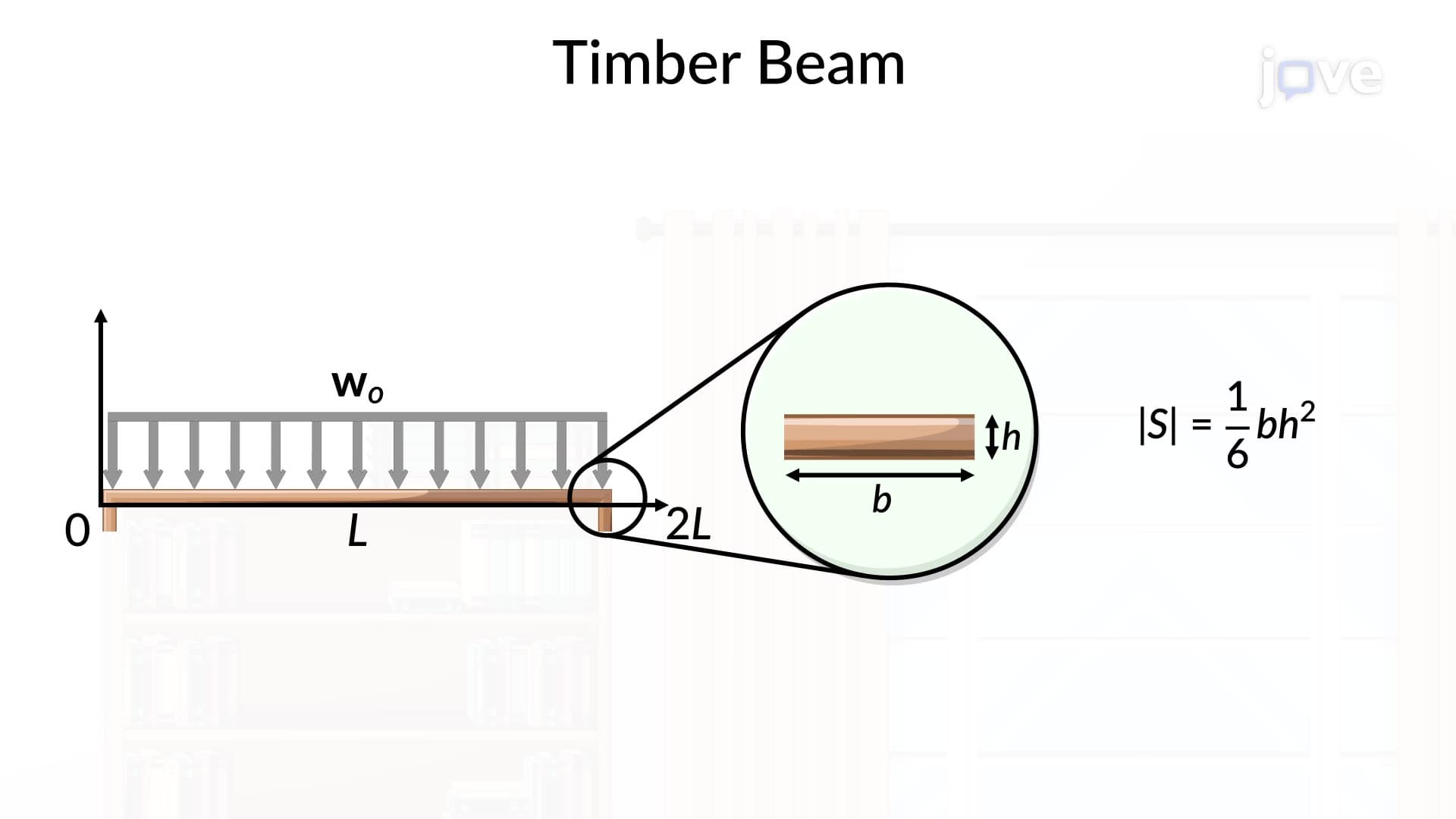

The design of prismatic beams, structural elements with a uniform cross-section, focuses on ensuring safety and structural integrity under load. The design process begins by determining the allowable stress, either from material properties tables, or by dividing the material's ultimate strength by a safety factor. This safety factor is essential for accommodating uncertainties, and varies depending on the material—timber, steel, or concrete—with each having unique strength and...
220
Energy Stored In A Coaxial Cable01:31

Energy Stored In A Coaxial Cable

1.4K

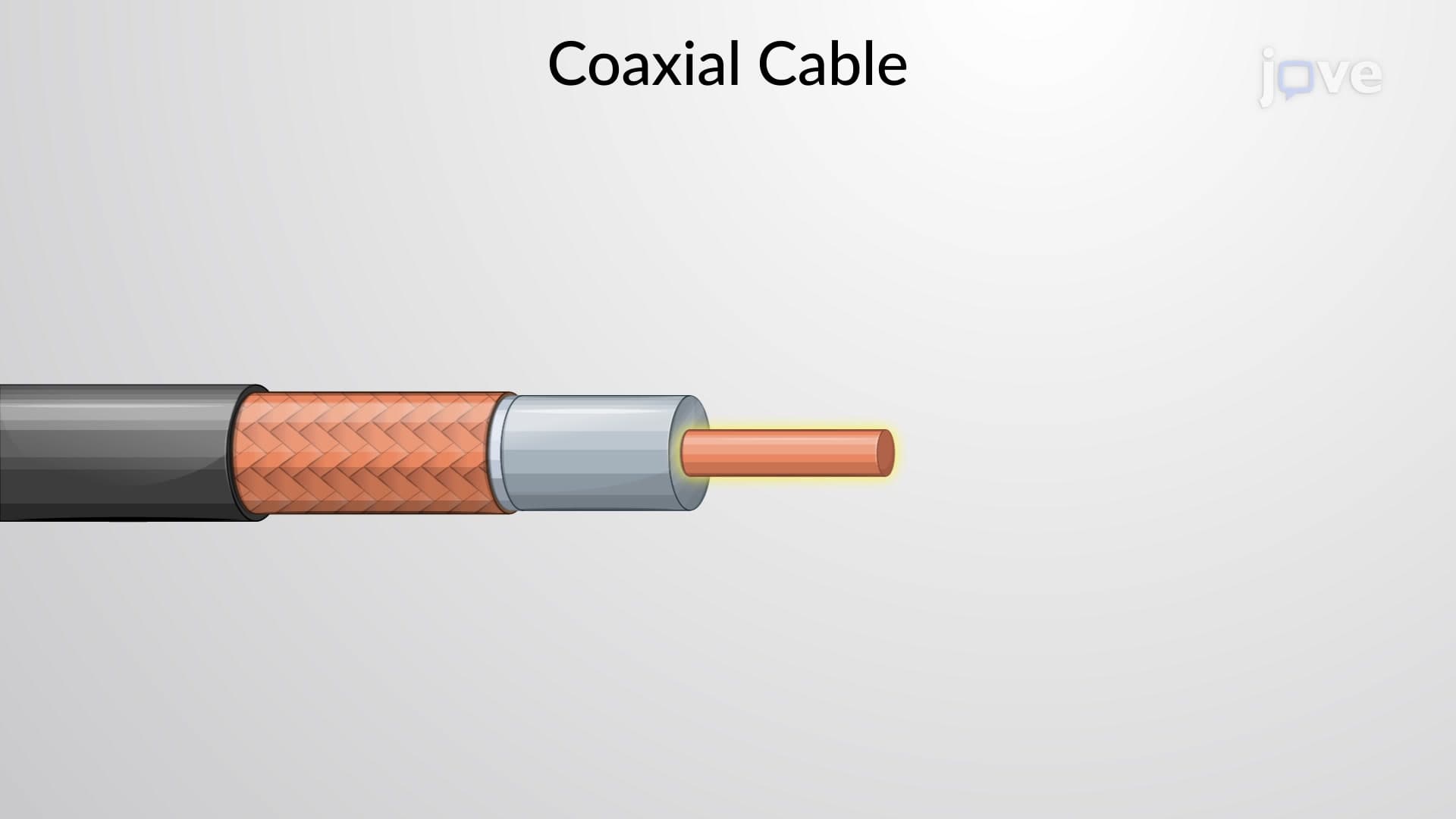

A coaxial cable consists of a central copper conductor used for transmitting signals, followed by an insulator shield, a metallic braided mesh that prevents signal interference, and a plastic layer that encases the entire assembly.
In the simplest form, a coaxial cable can be represented by two long hollow concentric cylinders in which the current flows in opposite directions. The magnetic field inside and outside the coaxial cable is determined by using Ampère's law. The magnetic...
1.4K
  1. Home
  3. Research Domains
  5. Engineering
  7. Communications Engineering
  9. Optical Fibre Communication Systems And Technologies
  11. Circular Polarization Beam Splitter Based On Helically Twisted Dual Hollow-core Anti-resonant Fiber.
  1. Home
  3. Research Domains
  5. Engineering
  7. Communications Engineering
  9. Optical Fibre Communication Systems And Technologies
  11. Circular Polarization Beam Splitter Based On Helically Twisted Dual Hollow-core Anti-resonant Fiber.

Related Experiment Video

Demonstration of Equal-Intensity Beam Generation by Dielectric Metasurfaces
09:33

Demonstration of Equal-Intensity Beam Generation by Dielectric Metasurfaces

Published on: June 7, 2019

6.3K

Circular polarization beam splitter based on helically twisted dual hollow-core anti-resonant fiber.

Xiaolin Chen, Zhaoan Li, Shurui Tian

    Optics Express
    |June 14, 2025

    View abstract on PubMed

    Summary
    This summary is machine-generated.

    We developed a novel circular polarization beam splitter using helically twisted dual hollow-core anti-resonant fiber. This device effectively separates circularly polarized light, advancing optical information processing and communication technologies.

    More Related Videos

    High-speed Continuous-wave Stimulated Brillouin Scattering Spectrometer for Material Analysis
    07:55

    High-speed Continuous-wave Stimulated Brillouin Scattering Spectrometer for Material Analysis

    Published on: September 22, 2017

    10.1K
    Transmission of Multiple Signals through an Optical Fiber Using Wavefront Shaping
    09:43

    Transmission of Multiple Signals through an Optical Fiber Using Wavefront Shaping

    Published on: March 20, 2017

    9.8K

    Related Experiment Videos

    Demonstration of Equal-Intensity Beam Generation by Dielectric Metasurfaces
    09:33

    Demonstration of Equal-Intensity Beam Generation by Dielectric Metasurfaces

    Published on: June 7, 2019

    6.3K
    High-speed Continuous-wave Stimulated Brillouin Scattering Spectrometer for Material Analysis
    07:55

    High-speed Continuous-wave Stimulated Brillouin Scattering Spectrometer for Material Analysis

    Published on: September 22, 2017

    10.1K
    Transmission of Multiple Signals through an Optical Fiber Using Wavefront Shaping
    09:43

    Transmission of Multiple Signals through an Optical Fiber Using Wavefront Shaping

    Published on: March 20, 2017

    9.8K

    Area of Science:

    • Optics and Photonics
    • Fiber Optics
    • Light Manipulation

    Background:

    • Hollow-core anti-resonant fibers are increasingly important for manipulating light's spin and orbital angular momentum.
    • Space-division multiplexing technologies drive the need for advanced optical components.

    Purpose of the Study:

    • To propose and design a circular polarization beam splitter (CPBS) utilizing helically twisted dual hollow-core anti-resonant fiber (TDHC-ARF).
    • To investigate the performance and capabilities of the designed CPBS for optical information processing.

    Main Methods:

    • Utilized the finite-element method combined with transformation optics to analyze coupling characteristics of circularly polarized eigenmodes in TDHC-ARF.
    • Developed a 3D simulation code based on the full-vector finite-element beam propagation method for helicoidal waveguides to verify performance.

    Main Results:

    • The designed CPBS operates over a 68 nm bandwidth (1.412–1.48 μm) with a length of 17.47 cm.
    • Achieved a polarization extinction ratio > 20 dB and a higher-order mode extinction ratio > 100.
    • Demonstrated spatial separation of orthogonally circularly polarized components from a linearly polarized Gaussian beam incident into one core.

    Conclusions:

    • The developed CPBS effectively separates circularly polarized light in different cores of the TDHC-ARF.
    • This work enables the design of all-fiber optical devices based on hollow-core anti-resonant fibers.
    • Opens new avenues for applications in optical information processing and communication.
