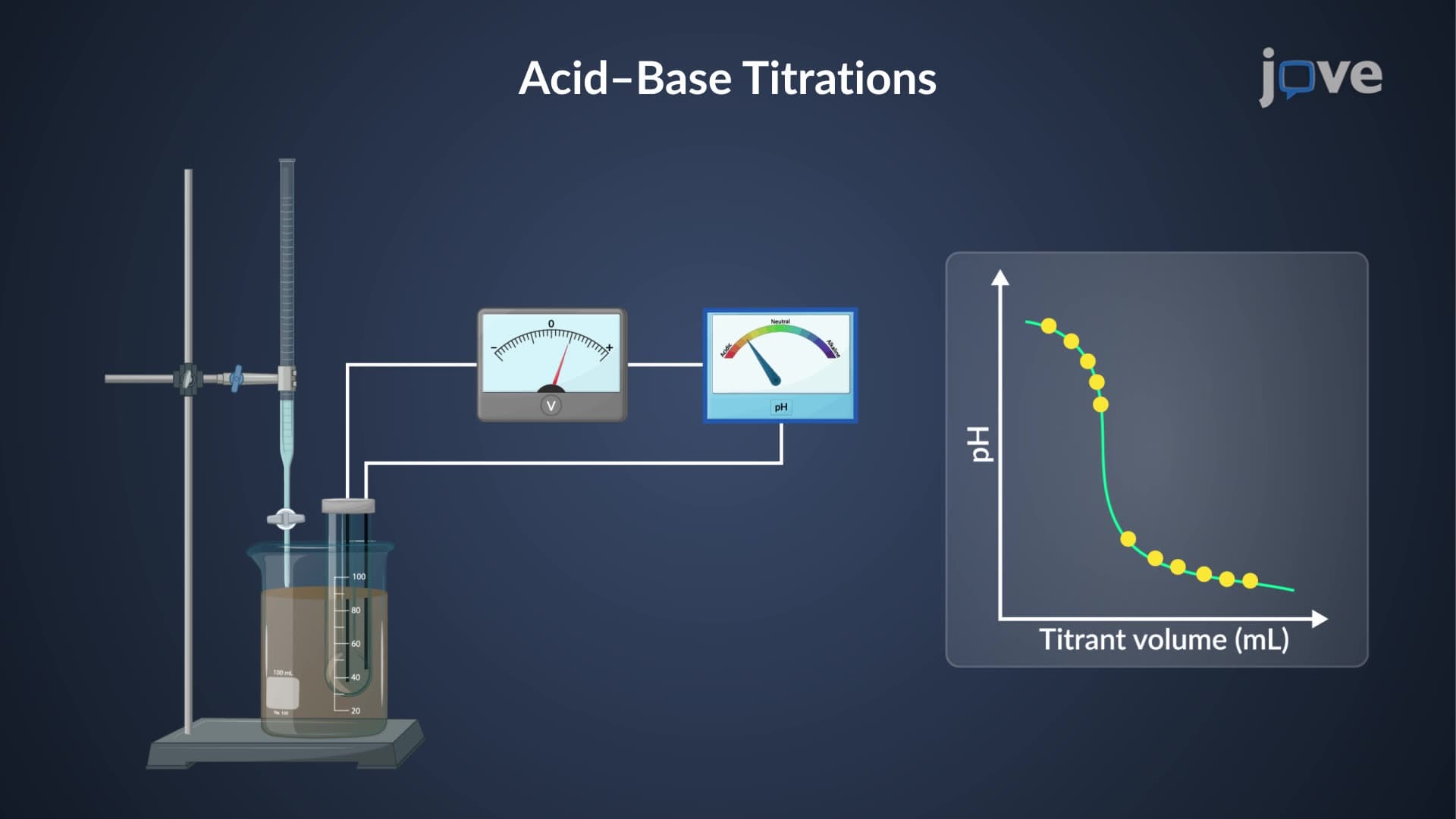

Potentiometric Titration: Overview01:31

Potentiometric Titration: Overview

2.2K
Potentiometric titration is a quantitative analytical technique that determines the concentration of an analyte by measuring the potential difference between the two electrodes in the solution. The endpoint of a potentiometric titration is the point at which there is a significant change in the potential difference. It occurs when the stoichiometric reaction between the analyte and the titrant is complete. The endpoint is usually determined graphically by plotting the measured potential...
2.2K
Determining the pH of Salt Solutions04:08

Determining the pH of Salt Solutions

44.1K
The pH of a salt solution is determined by its component anions and cations. Salts that contain pH-neutral anions and the hydronium ion-producing cations form a solution with a pH less than 7. For example, in ammonium nitrate (NH4NO3) solution, NO3− ions do not react with water whereas NH4+ ions produce the hydronium ions resulting in the acidic solution.  In contrast, salts that contain pH-neutral cations and the hydroxide ion-producing anions form a solution with a pH greater than...
44.1K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

3D-printed solid-contact chloride sensor for sweat-based cystic fibrosis screening.

Biosensors & bioelectronics·2026
Same author

Improving Capacity Retention of Anode-Free Zinc Batteries with Simple Geometry and Lorentz Forces.

ACS applied materials & interfaces·2025
Same author

High-Rate Quinone Cathodes and Nafion Conditioning for Improved Stability in Aqueous Zinc-Ion Batteries.

ACS applied materials & interfaces·2025
Same author

New trends in potentiometric sensors: From design to clinical and biomedical applications.

Talanta·2025
Same author

Integration of 3D printed Mg<sup>2+</sup> potentiometric sensors into microfluidic devices for bioanalysis.

Lab on a chip·2024
Same author

Mimicking lightning-induced electrochemistry on the early Earth.

Proceedings of the National Academy of Sciences of the United States of America·2024
Same journal

Synergistic mode-field pre-expansion and geometric compression in hetero-structured microfibers for ultrasensitive glucose sensing.

Biosensors & bioelectronics·2026
Same journal

An amplification-free dual-readout biosensor integrating colorimetry and single-particle counting for ultrasensitive miRNA detection in esophageal cancer.

Biosensors & bioelectronics·2026
Same journal

An all-in-one microfluidic system via data-driven design for on-site genotyping of genetically modified foods.

Biosensors & bioelectronics·2026
Same journal

A portable multiplexed electrochemical biosensor for lactate and pH monitoring in calf saliva.

Biosensors & bioelectronics·2026
Same journal

Rhodanese-enabled signal conversion and nanoporous gold electrotransduction for dual sensing of cyanide and sulfite in environmental waters.

Biosensors & bioelectronics·2026
Same journal

7-(Diethylamino)coumarin-3-carboxylic acid functionalized aptamers induced photoelectrochemical/fluorescence dual-mode microfluidic sensor for integrated detection of three liver cancer biomarkers.

Biosensors & bioelectronics·2026
See all related articles

Related Experiment Video

Updated: Sep 11, 2025

Fluorescent Nanoparticles for the Measurement of Ion Concentration in Biological Systems
08:17

Fluorescent Nanoparticles for the Measurement of Ion Concentration in Biological Systems

Published on: July 4, 2011

15.4K

Fully 3D-printed solid-contact potentiometric sensor for sodium determination.

Sarah Farahani1, Kaylie A McCracken1, Hannah N Medley1

  • 1Department of Chemistry, Washington State University, Pullman, WA, 99164, United States.

Biosensors & Bioelectronics
|August 14, 2025
PubMed
Summary
This summary is machine-generated.

This study introduces the first fully 3D-printed solid-contact ion-selective electrode for sodium (Na+) sensing. This novel 3D-printed Na+-ISE offers high stability and selectivity for biological fluid analysis.

Keywords:
3D printingElectrochemistryIon-selective electrodePotentiometrySensorsSodium ion

More Related Videos

Hollow Microneedle-based Sensor for Multiplexed Transdermal Electrochemical Sensing
08:19

Hollow Microneedle-based Sensor for Multiplexed Transdermal Electrochemical Sensing

Published on: June 1, 2012

14.5K
Multi-analyte Biochip MAB Based on All-solid-state Ion-selective Electrodes ASSISE for Physiological Research
08:03

Multi-analyte Biochip MAB Based on All-solid-state Ion-selective Electrodes ASSISE for Physiological Research

Published on: April 18, 2013

17.4K

Related Experiment Videos

Last Updated: Sep 11, 2025

Fluorescent Nanoparticles for the Measurement of Ion Concentration in Biological Systems
08:17

Fluorescent Nanoparticles for the Measurement of Ion Concentration in Biological Systems

Published on: July 4, 2011

15.4K
Hollow Microneedle-based Sensor for Multiplexed Transdermal Electrochemical Sensing
08:19

Hollow Microneedle-based Sensor for Multiplexed Transdermal Electrochemical Sensing

Published on: June 1, 2012

14.5K
Multi-analyte Biochip MAB Based on All-solid-state Ion-selective Electrodes ASSISE for Physiological Research
08:03

Multi-analyte Biochip MAB Based on All-solid-state Ion-selective Electrodes ASSISE for Physiological Research

Published on: April 18, 2013

17.4K

Area of Science:

  • Electroanalysis
  • Materials Science
  • Sensor Technology

Background:

  • Potentiometric sensors, particularly ion-selective electrodes (ISEs), are crucial for analyzing ions in various matrices.
  • Traditional fabrication methods for ISEs can be complex and costly, limiting widespread application.
  • Solid-contact (SC) ISEs offer advantages over traditional liquid-junction designs, but their fabrication often requires specialized techniques.

Purpose of the Study:

  • To design and fabricate the first fully 3D-printed solid-contact ion-selective electrode (3Dp-SC-ISE) for sodium ion (Na+) detection.
  • To explore the utility of 3D-printing technologies in creating advanced electroanalytical devices.
  • To demonstrate the tunability of sensor properties through 3D-printing parameters.

Main Methods:

  • Fabrication of Na+-selective membranes using stereolithography.
  • Construction of carbon-infused polylactic acid transducers via fused-deposition modeling.
  • Characterization of sensor performance, including stability, response linearity, Nernstian behavior, selectivity, and limit of detection.
  • Validation of the sensor's performance in human saliva samples.

Main Results:

  • The developed 3D-printed Na+-ISE exhibited high stability with minimal drift (∼20 μV/hour).
  • The sensor demonstrated a linear and Nernstian response (57.1 mV/decade) for Na+ across physiologically relevant concentrations (240 μM–250 mM).
  • Excellent selectivity for Na+ was observed in the presence of common interfering ions, with a limit of detection of 0.0024 mM.

Conclusions:

  • Fully 3D-printed solid-contact potentiometric sensors are feasible and offer significant advantages in electroanalysis.
  • 3D-printing enables precise control over sensor design and material properties, leading to enhanced performance.
  • This technology facilitates the mass production of low-cost, highly functional ISEs with broad applicability in clinical and environmental monitoring.
