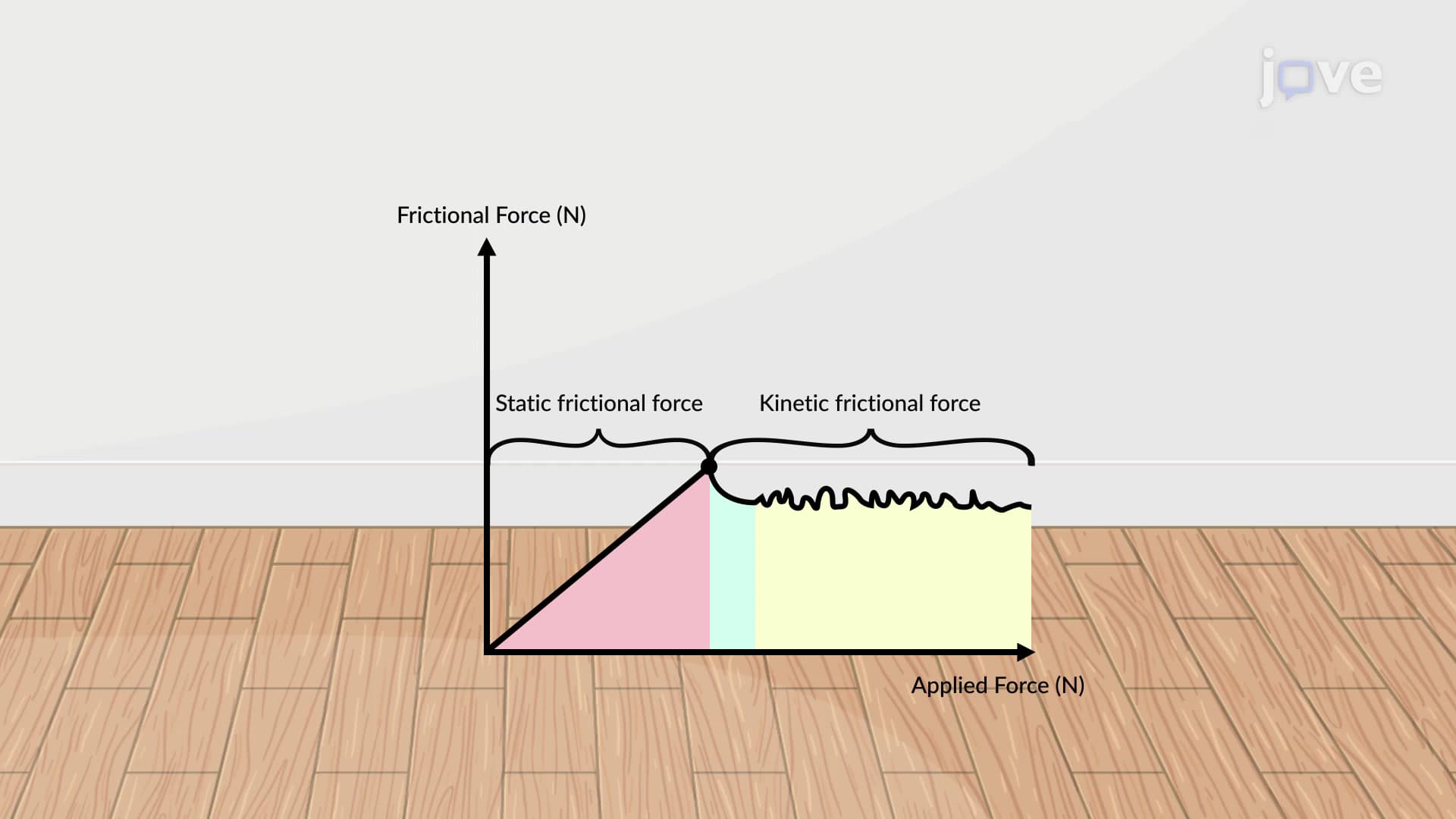

Static and Kinetic Frictional Force

25.0K
One of the simpler characteristics of sliding friction is that it is parallel to the contact surfaces between systems, and is always in a direction that opposes the motion or attempted motion of the systems relative to each other. If two systems are in contact and moving relative to one another, then the friction between them is called kinetic friction. For example, kinetic friction slows a hockey puck sliding on ice.
However, if two systems are in contact and are stationary relative to one...
25.0K
  1. Home
  3. Research Domains
  5. Engineering
  7. Materials Engineering
  9. Wearable Materials
  11. Layer-dependent Friction On The Surface Of Alternately Stacked Graphene And H-bn

Layer-dependent friction on the surface of alternately stacked graphene and h-BN

Hao Wang1, Lu Chen1, Yunxiao Wang1

  • 1State Key Laboratory of Solidification Processing, Center for Advanced Lubrication and Seal Materials, School of Material Science and Engineering, Northwestern Polytechnical University, Xi'an, Shaanxi 710072, China. xlfan@nwpu.edu.cn.

Physical Chemistry Chemical Physics : PCCP
|December 5, 2025

Related Experiment Videos

Residue-Free Fabrication of van der Waals Heterostructures of Two-Dimensional Materials
04:57

Residue-Free Fabrication of van der Waals Heterostructures of Two-Dimensional Materials

Published on: July 18, 2025

929
Optimized Fabrication Procedure for High-Quality Graphene-based Moiré Superlattice Devices
11:24

Optimized Fabrication Procedure for High-Quality Graphene-based Moiré Superlattice Devices

Published on: July 11, 2025

15.3K
Fabrication of Gate-tunable Graphene Devices for Scanning Tunneling Microscopy Studies with Coulomb Impurities
11:42

Fabrication of Gate-tunable Graphene Devices for Scanning Tunneling Microscopy Studies with Coulomb Impurities

Published on: July 24, 2015

16.0K

View abstract on PubMed

Summary
This summary is machine-generated.

Alternately stacked graphene and hexagonal boron nitride (h-BN) coatings show superior lubrication and anti-wear properties compared to pure graphene. The optimal 6-layer structure (6GBN_G) achieves ultra-low friction on copper substrates.

Area of Science:

  • Materials Science
  • Tribology
  • Nanotechnology

Background:

  • Two-dimensional materials offer potential for advanced lubricating coatings on metal surfaces.
  • Graphene and hexagonal boron nitride (h-BN) are promising candidates due to their unique properties.

Purpose of the Study:

  • Investigate the lubricating performance of alternately stacked graphene and h-BN coatings.
  • Determine the optimal structure for enhanced lubrication and anti-wear properties.
  • Understand the underlying mechanisms of friction reduction.

Main Methods:

  • Molecular dynamics (MD) simulations were employed to study the tribological behavior.
  • Analysis included friction coefficient, layer number effects, and substrate deformation.
  • Differential charge density calculations were used to probe interface interactions.

Related Experiment Videos

Residue-Free Fabrication of van der Waals Heterostructures of Two-Dimensional Materials
04:57

Residue-Free Fabrication of van der Waals Heterostructures of Two-Dimensional Materials

Published on: July 18, 2025

929
Optimized Fabrication Procedure for High-Quality Graphene-based Moiré Superlattice Devices
11:24

Optimized Fabrication Procedure for High-Quality Graphene-based Moiré Superlattice Devices

Published on: July 11, 2025

15.3K
Fabrication of Gate-tunable Graphene Devices for Scanning Tunneling Microscopy Studies with Coulomb Impurities
11:42

Fabrication of Gate-tunable Graphene Devices for Scanning Tunneling Microscopy Studies with Coulomb Impurities

Published on: July 24, 2015

16.0K

Main Results:

  • Alternately stacked graphene/h-BN coatings, particularly with graphene on the surface (mGBN_G), outperform pure graphene in lubrication and wear resistance.
  • The 6GBN_G structure demonstrated optimal performance, achieving a friction coefficient as low as 0.002 under specific load conditions.
  • Friction coefficient variation with layer number is linked to wrinkling, indentation, and substrate deformation.
  • Interface charge transfer due to electronegativity differences enhances van der Waals interactions and mechanical properties.

Conclusions:

  • Alternately stacked graphene and h-BN are highly effective lubricating coatings for metal surfaces.
  • The 6GBN_G configuration provides superior lubrication and anti-wear characteristics.
  • These findings offer critical insights for designing high-performance nanocoatings.
