Two-Dimensional/Three-Dimensional Interface-Driven Photocarrier Dynamics in MoSe2/GaTe/ZnGa2O4 Heterostructures for
Santanu Kandar1, Taslim Khan1, Kamlesh Bhatt1
1Department of Physics, Indian Institute of Technology Delhi, New Delhi 110016, India.
We developed a high-speed deep ultraviolet (DUV) photodetector using a novel 2D/3D heterostructure. This new device offers significantly enhanced responsivity and response speed for advanced optoelectronic applications.
Area of Science:
- Materials Science
- Optoelectronics
- Nanotechnology
Background:
- Deep ultraviolet (DUV) photodetectors are crucial for applications like space exploration and environmental monitoring.
- Conventional oxide photodetectors offer high responsivity but lack sufficient response speed.
Purpose of the Study:
- To develop a high-performance DUV photodetector with improved responsivity and response speed.
- To investigate the integration of 2D materials with wide-band gap oxides for optoelectronic devices.
Main Methods:
- Fabrication of a 2D/3D heterostructure using few-layer MoSe2 and GaTe on ZnGa2O4.
- Growth via molecular beam epitaxy and metal-organic chemical vapor deposition.
- Characterization using in situ RHEED, TEM, XPS, and XRD.
Main Results:
- The DUV photodetector achieved a peak responsivity of 216.6 A/W.
- Demonstrated fast response times with a rise time of 2 ms and decay time of 3 ms.
- Observed significant enhancements in both speed and responsivity compared to oxide-only devices.
Conclusions:
- The 2D/3D heterostructure effectively enhances photodetector performance.
- Efficient interfacial charge transfer and carrier dynamics contribute to improved device characteristics.
- This approach presents a promising route for next-generation high-speed DUV optoelectronics.
More Related Videos

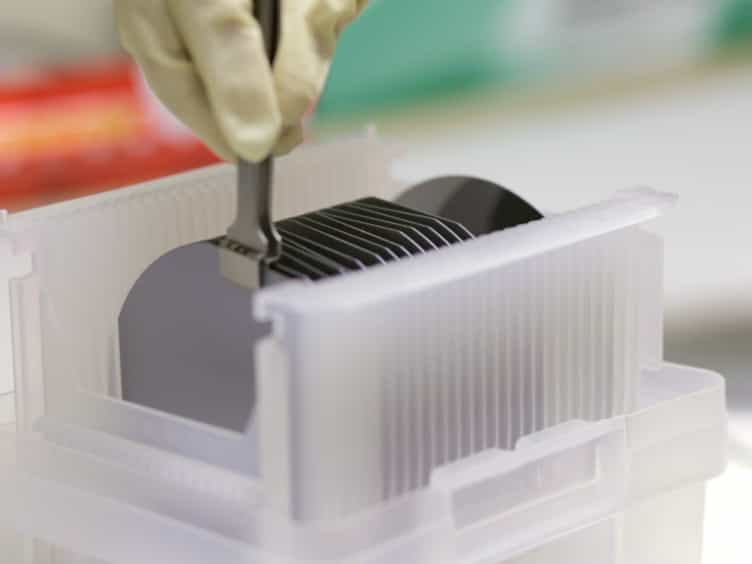

08:18Synthesis and Characterization of High c-axis ZnO Thin Film by Plasma Enhanced Chemical Vapor Deposition System and its UV Photodetector Application
