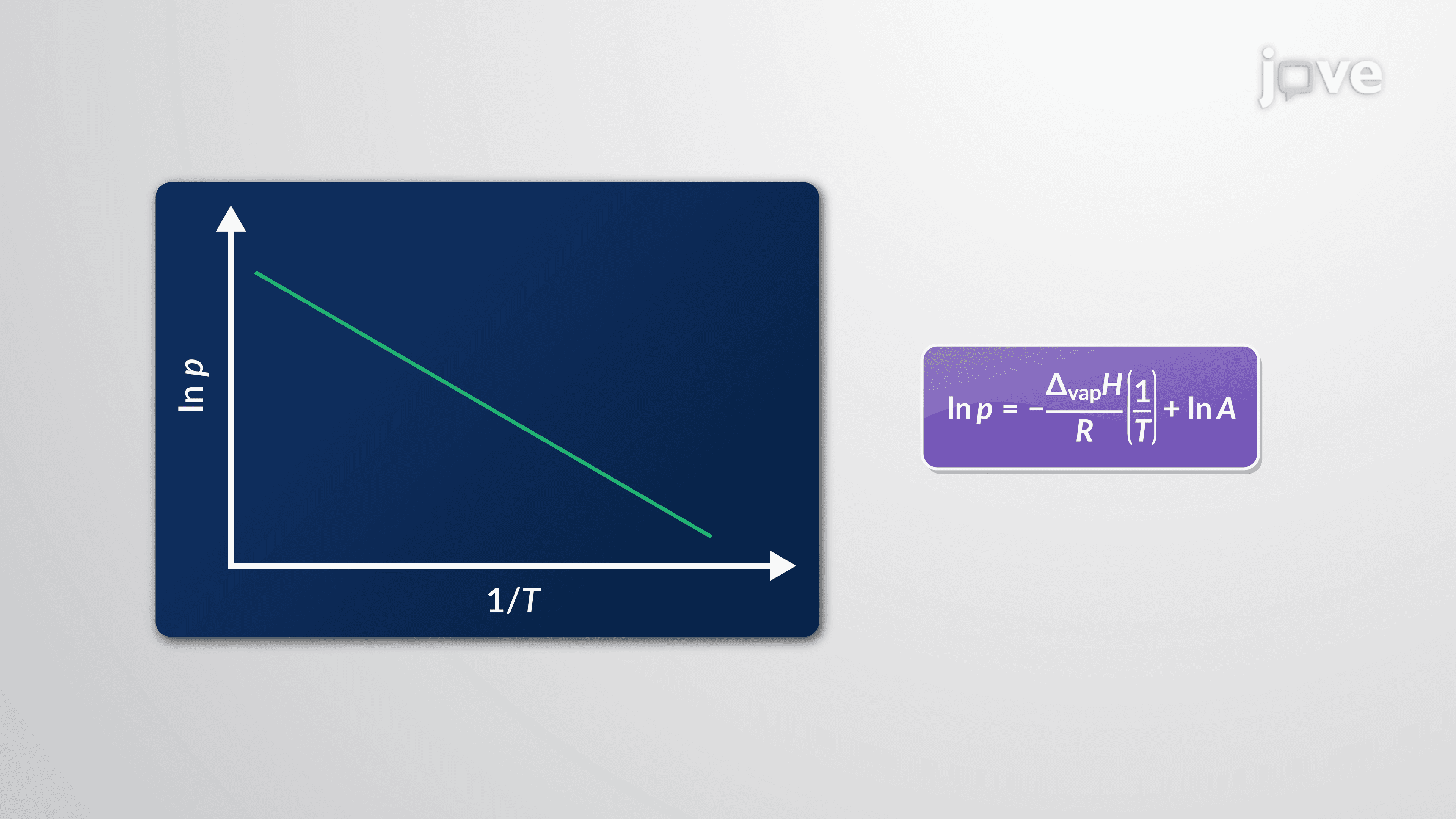

The Clausius–Clapeyron Equation01:29

The Clausius–Clapeyron Equation

220
The Clausius-Clapeyron equation is a fundamental principle in physical chemistry and thermodynamics that describes the relationship between a substance's vapor pressure and temperature. Named after Rudolf Clausius and Benoît Paul Émile Clapeyron, the equation is integral in predicting a substance's behavior under different temperature conditions.The Clausius-Clapeyron equation allows us to calculate how the pressure at which a liquid boils (its vapor pressure) changes as the...
220
Clausius-Clapeyron Equation02:35

Clausius-Clapeyron Equation

58.4K
The equilibrium between a liquid and its vapor depends on the temperature of the system; a rise in temperature causes a corresponding rise in the vapor pressure of its liquid. The Clausius-Clapeyron equation gives the quantitative relation between a substance’s vapor pressure (P) and its temperature (T); it predicts the rate at which vapor pressure increases per unit increase in temperature.
58.4K
Mechanisms of Heat Transfer II01:20

Mechanisms of Heat Transfer II

4.4K
In convection, thermal energy is carried by the large-scale flow of matter. Ocean currents and large-scale atmospheric circulation, which result from the buoyancy of warm air and water, transfer hot air from the tropics toward the poles and cold air from the poles toward the tropics. The Earth’s rotation interacts with those flows, causing the observed eastward flow of air in the temperate zones. Convection dominates heat transfer by air, and the amount of available space for the airflow...
4.4K
Joule-Thomson Effect01:21

Joule-Thomson Effect

11.6K
The Joule-Thomson effect, also known as the Joule-Kelvin effect, describes the temperature change of a fluid when it is forced through a valve or porous plug while keeping it in a thermally insulated environment. This experiment is called a throttling process. This is an important effect widely used in refrigeration and the liquefaction of gases.
This experiment forces high-pressure gas through a throttle valve or a porous plug to a lower-pressure region. The gas expands as it passes through to...
11.6K
Mechanisms of Heat Transfer01:14

Mechanisms of Heat Transfer

1.9K
Heat transfer between the human body and its environment occurs through four main mechanisms: conduction, convection, radiation, and evaporation.
Conduction, accounting for approximately 3% of body heat loss at rest, is the process of exchanging heat between molecules of two materials in direct contact. This can result in both heat loss and gain. For instance, when the body is submerged in water, which conducts heat 20 times more effectively than air, it can either lose or gain significant...
1.9K
Mechanisms of Heat Transfer I01:14

Mechanisms of Heat Transfer I

5.8K
Just as interesting as the effects of heat transfer on a system are the methods by which the heat transfer occur. Whenever there is a temperature difference, heat transfer occurs. It may occur rapidly, such as through a cooking pan, or slowly, such as through the walls of a picnic ice box. So many processes involve heat transfer that it is hard to imagine a situation where no heat transfer occurs. Yet, every heat transfer takes place by only three methods: conduction, convection, and radiation.
5.8K

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Bacteria break through one-micrometer-square passages by flagellar wrapping.

Nature communications·2026
Same author

Author Correction: A metallic p-wave magnet with commensurate spin helix.

Nature·2025
Same author

A metallic p-wave magnet with commensurate spin helix.

Nature·2025
Same author

Physics of microbial taxis and behaviours in response to various physical stimuli.

Philosophical transactions. Series A, Mathematical, physical, and engineering sciences·2025
Same author

Cryogenic tensile testing system for simultaneous in situ neutron diffraction and digital image correlation strain analysis.

The Review of scientific instruments·2025
Same author

Shape memory alloys for cryogenic actuators.

Communications engineering·2025
Same journal

Plasmonic nanocomposite helices for weather-adaptive LiDAR function.

Nature communications·2026
Same journal

Multidirectional strain-insensitive stretchable RF electronics.

Nature communications·2026
Same journal

In-scanner thoughts contribute to resting-state functional connectivity.

Nature communications·2026
Same journal

Metal-center electron affinity modulates multicolor electrochromism in 2D conjugated metal-organic frameworks.

Nature communications·2026
Same journal

Hyperbranched dielectric polymer networks exhibiting giant energy storage density at 250 °C.

Nature communications·2026
Same journal

3D nanoprinting of metals by spatiotemporally confined hot electrons via multiple-electron excitations in nanocrystals.

Nature communications·2026
See all related articles
  1. Home
  3. Enhanced Elastocaloric Cooling Beyond Clausius-clapeyron Limits.
  1. Home
  3. Enhanced Elastocaloric Cooling Beyond Clausius-clapeyron Limits.

Related Experiment Video

Experimental Methods for Investigation of Shape Memory Based Elastocaloric Cooling Processes and Model Validation
11:11

Experimental Methods for Investigation of Shape Memory Based Elastocaloric Cooling Processes and Model Validation

Published on: May 2, 2016

10.5K

Enhanced elastocaloric cooling beyond Clausius-Clapeyron limits.

Yuxin Song1,2, Sheng Xu3,4, Toshihiro Omori2

  • 1Frontier Research Institute for Interdisciplinary Sciences, Tohoku University, Sendai, Japan.

Nature Communications
|April 27, 2026

View abstract on PubMed

Summary
This summary is machine-generated.

This study introduces a Ti-Al-Cr alloy for efficient solid-state cooling via the elastocaloric effect. It achieves a wide operating temperature range, overcoming limitations in conventional caloric materials.

More Related Videos

Experimental System of Solar Adsorption Refrigeration with Concentrated Collector
07:18

Experimental System of Solar Adsorption Refrigeration with Concentrated Collector

Published on: October 18, 2017

13.9K
Pool-Boiling Heat-Transfer Enhancement on Cylindrical Surfaces with Hybrid Wettable Patterns
07:32

Pool-Boiling Heat-Transfer Enhancement on Cylindrical Surfaces with Hybrid Wettable Patterns

Published on: April 10, 2017

8.4K

Related Experiment Videos

Experimental Methods for Investigation of Shape Memory Based Elastocaloric Cooling Processes and Model Validation
11:11

Experimental Methods for Investigation of Shape Memory Based Elastocaloric Cooling Processes and Model Validation

Published on: May 2, 2016

10.5K
Experimental System of Solar Adsorption Refrigeration with Concentrated Collector
07:18

Experimental System of Solar Adsorption Refrigeration with Concentrated Collector

Published on: October 18, 2017

13.9K
Pool-Boiling Heat-Transfer Enhancement on Cylindrical Surfaces with Hybrid Wettable Patterns
07:32

Pool-Boiling Heat-Transfer Enhancement on Cylindrical Surfaces with Hybrid Wettable Patterns

Published on: April 10, 2017

8.4K

Area of Science:

  • Materials Science
  • Thermodynamics
  • Solid-State Physics

Background:

  • The elastocaloric effect, driven by stress-induced martensitic transformations, is a promising avenue for efficient, eco-friendly solid-state cooling.
  • A key challenge is the trade-off between large entropy changes and narrow operating temperature windows in existing materials.

Purpose of the Study:

  • To demonstrate an elastocaloric material overcoming the temperature span limitation for practical solid-state cooling.
  • To investigate the underlying mechanisms enabling a wide operational temperature range in a novel Ti-Al-Cr alloy.

Main Methods:

  • Direct measurement of elastocaloric cooling effect in a Ti-Al-Cr superelastic alloy.
  • Characterization of adiabatic temperature change, cooling output, and coefficient of performance.
  • Analysis of the temperature dependence of critical stress for martensitic transformation.

    • Main Results:

    • A pronounced elastocaloric cooling effect was observed over an ultra-wide temperature range (97 K to 402 K, 305 K span).
    • The material exhibited a large adiabatic temperature change (~10 K) at room temperature, with significant cooling output (5.76 J·g⁻¹) and COP (4.6).
    • The elastocaloric response remained effective across the entire temperature range, mitigating the conventional trade-off between temperature span and cooling strength.

    Conclusions:

    • The Ti-Al-Cr alloy overcomes the inherent limitations of conventional caloric materials, offering a new regime of elastocaloric behavior.
    • Anomalous temperature dependence of critical stress and high mechanical strength enable reversible transformations over a broad thermal domain.
    • Findings provide a guiding principle for designing next-generation caloric materials that surpass Clausius-Clapeyron-based limitations.
