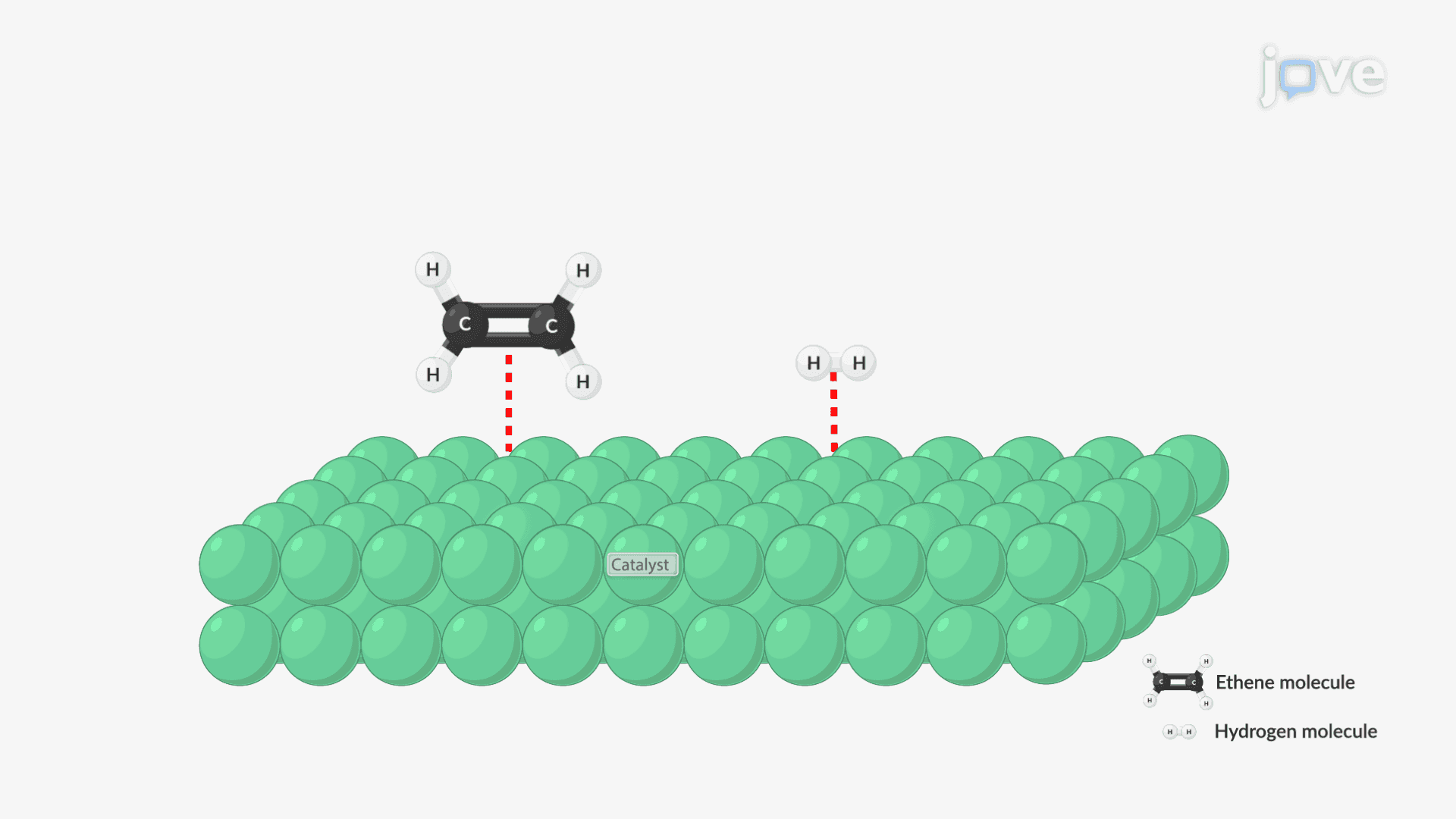

Catalysis

Catalysis influences the rate of chemical reactions by providing an alternative reaction pathway with lower activation energy. A catalyst speeds up a reaction, but it is not consumed during the process. The fundamental principle of catalysis is the ability of a catalyst to alter the reaction mechanism, often introducing a more efficient pathway than the uncatalyzed process.In a catalyzed reaction, the catalyst participates directly in the reaction mechanism. It interacts with reactants to form...
Complexation Equilibria: The Chelate Effect01:19

Complexation Equilibria: The Chelate Effect

In complexation reactions, metal atoms or cations interact with ligands to form donor-acceptor adducts called metal complexes. Ligands that bind through one donor site are monodentate, ligands with two donor sites are bidentate, and those with more than two donor sites are polydentate ligands. For example, ethylene diamine is a bidentate ligand that binds through two nitrogen donor atoms, forming a five-membered ring. EDTA is a polydentate ligand that binds through four oxygen and two nitrogen...
Radical Substitution: Allylic Chlorination01:31

Radical Substitution: Allylic Chlorination

Typically, when alkenes react with halogens at low temperatures, an addition reaction occurs. However, upon increasing the temperature or under reaction conditions that form radicals, providing a low but steady concentration of halogen radicals, allylic substitution reaction is favored. This is because allylic hydrogens are very reactive as the formed intermediate is resonance stabilized. For example, when propene is treated with chlorine in the gas phase at 400 °C, it undergoes allylic...
Metal-Ligand Bonds02:51

Metal-Ligand Bonds

The hemoglobin in the blood, the chlorophyll in green plants, vitamin B-12, and the catalyst used in the manufacture of polyethylene all contain coordination compounds. Ions of the metals, especially the transition metals, are likely to form complexes.
In these complexes, transition metals form coordinate covalent bonds, a kind of Lewis acid-base interaction in which both of the electrons in the bond are contributed by a donor (Lewis base) to an electron acceptor (Lewis acid). The Lewis acid in...

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

Bidirectional electron donation in Cu<sub>1</sub>-Ti pairs on TiO<sub>x</sub> for efficient nitric oxide electroreduction.

Nature communications·2026
Same author

Furfuryl Alcohol-Driven Proton Supply Enables Efficient Photocatalytic H<sub>2</sub>O<sub>2</sub> Production Beyond Water-Based Systems.

Advanced science (Weinheim, Baden-Wurttemberg, Germany)·2026
Same author

Data-driven structural angle mining elucidates hidden design rules for hydrogen evolution single-atom electrocatalysts.

Chemical science·2026
Same author

Twisted Stacking 2D Covalent Organic Frameworks with Directional Electron Transport for Boosting CO<b><sub>2</sub></b> Photoreduction.

ACS nano·2026
Same author

Molten-salt flash synthesis of P-doped iron oxide with engineered oxygen vacancies for lattice-oxygen water oxidation.

Chemical science·2026
Same author

Embedded 3D Superionic Network Enables Pressure-Free Solid-State Sodium Batteries with Ultrafast Na<sup>+</sup> Diffusivity over a Wide Temperature Range.

ACS nano·2026
Same journal

Bioinspired Artificial Bioenergetic Organelles: Design Principles, Nanofabrication and Therapeutic Translation.

Advanced materials (Deerfield Beach, Fla.)·2026
Same journal

Advanced Electrolyte Materials Design for High-Energy Lithium Metal Batteries Beyond 500 Wh Kg<sup>-1</sup>.

Advanced materials (Deerfield Beach, Fla.)·2026
Same journal

Hydrophilic-Stable Nucleoside-Based Hydrogen-Bonded Organic Frameworks (N-HOF) for Therapeutic Bacterial Hybrid Systems.

Advanced materials (Deerfield Beach, Fla.)·2026
Same journal

Composite Liquid Marble Templated Millimetric Capsule With Tunable Rigidity, Porosity, and Thermal Reconfigurability Toward 3D Cell Culture.

Advanced materials (Deerfield Beach, Fla.)·2026
Same journal

Bias-Triggered Conductivity Relaxation (BCR): A Unique Tool to Simultaneously Investigate Thermodynamics, Kinetics, and Electrostatic Effects of Oxygen Reactions in MIEC Thin Films.

Advanced materials (Deerfield Beach, Fla.)·2026
Same journal

Illuminating the Interface: In Situ Optical Insights Into Two-Electron ORR Pathways for H<sub>2</sub>O<sub>2</sub> Electrosynthesis.

Advanced materials (Deerfield Beach, Fla.)·2026
See all related articles

Related Experiment Video

Updated: Jul 1, 2026

Application of Elemental Lanthanides in the Selective C-F Activation of Trifluoromethylated Benzofulvenes Providing Access to Various Difluoroalkenes
10:10

Application of Elemental Lanthanides in the Selective C-F Activation of Trifluoromethylated Benzofulvenes Providing Access to Various Difluoroalkenes

Published on: July 28, 2018

Lanthanide-Bridged Dual-Atom Catalysts for Efficient Chlorine Electrosynthesis.

Wen-Da Zhang1,2, Lulu Chen3, Yongbiao Mu4

  • 1Key Laboratory of Synthetic and Biological Colloids, School of Chemical and Material Engineering, Ministry of Education, Jiangnan University, Wuxi, P. R. China.

Advanced Materials (Deerfield Beach, Fla.)
|June 30, 2026
PubMed
Summary
This summary is machine-generated.

Researchers developed a novel "mortise-and-tenon" strategy using a tulip-shaped covalent organic framework (Tu-COF) to create heteronuclear dual-atom catalysts (DACs). The Ru-Ce catalyst shows exceptional performance in the chlorine evolution reaction (CER), offering high efficiency and stability.

Keywords:
chlorine evolution reactioncovalent organic frameworkdual‐atom catalystsmortise‐and‐tenon

More Related Videos

Combining Solid-state and Solution-based Techniques: Synthesis and Reactivity of Chalcogenidoplumbates(II or IV)
10:42

Combining Solid-state and Solution-based Techniques: Synthesis and Reactivity of Chalcogenidoplumbates(II or IV)

Published on: December 29, 2016

Preparation, Purification, and Characterization of Lanthanide Complexes for Use as Contrast Agents for Magnetic Resonance Imaging
13:21

Preparation, Purification, and Characterization of Lanthanide Complexes for Use as Contrast Agents for Magnetic Resonance Imaging

Published on: July 21, 2011

Related Experiment Videos

Last Updated: Jul 1, 2026

Application of Elemental Lanthanides in the Selective C-F Activation of Trifluoromethylated Benzofulvenes Providing Access to Various Difluoroalkenes
10:10

Application of Elemental Lanthanides in the Selective C-F Activation of Trifluoromethylated Benzofulvenes Providing Access to Various Difluoroalkenes

Published on: July 28, 2018

Combining Solid-state and Solution-based Techniques: Synthesis and Reactivity of Chalcogenidoplumbates(II or IV)
10:42

Combining Solid-state and Solution-based Techniques: Synthesis and Reactivity of Chalcogenidoplumbates(II or IV)

Published on: December 29, 2016

Preparation, Purification, and Characterization of Lanthanide Complexes for Use as Contrast Agents for Magnetic Resonance Imaging
13:21

Preparation, Purification, and Characterization of Lanthanide Complexes for Use as Contrast Agents for Magnetic Resonance Imaging

Published on: July 21, 2011

Area of Science:

  • Materials Science and Engineering
  • Electrochemistry
  • Catalysis

Background:

  • The chlorine evolution reaction (CER) is crucial for industrial chlor-alkali processes and water treatment.
  • Current CER methods face challenges with high energy consumption and limited selectivity.
  • Developing efficient and selective electrocatalysts is essential for advancing CER technologies.

Purpose of the Study:

  • To design and synthesize novel heteronuclear dual-atom catalysts (DACs) for improved CER performance.
  • To investigate the structure-activity relationship of these DACs using experimental and computational methods.
  • To demonstrate a generalizable strategy for constructing advanced electrocatalysts.

Main Methods:

  • Synthesis of a tulip-shaped covalent organic framework (Tu-COF) precursor.
  • Construction of heteronuclear Ru-Ln dual-atom catalysts (DACs) via a "mortise-and-tenon" strategy.
  • Electrocatalytic performance evaluation in a flow cell, including chronoamperometry and Faradaic efficiency measurements.
  • Mechanistic studies using in situ characterization and Density Functional Theory (DFT) calculations.

Main Results:

  • The Ru-Ce catalyst, synthesized using the Tu-COF precursor, exhibited superior CER performance.
  • Achieved high current density (150 mA cm⁻²) at a low overpotential (1.45 V vs. RHE) with near 100% Faradaic efficiency for Cl₂ evolution.
  • Demonstrated excellent long-term stability (>500 h) in a flow cell.
  • DFT calculations revealed that the Ce atom modulates the electronic structure of the Ru center, optimizing Cl adsorption and facilitating Cl-Cl coupling while suppressing competing reactions.

Conclusions:

  • The "mortise-and-tenon" strategy using Tu-COF is effective for precise construction of heteronuclear DACs.
  • The Ru-Ce catalyst shows significant potential for efficient and selective chlorine evolution.
  • Lanthanide-mediated electronic engineering is a promising approach for designing high-performance electrocatalysts.
