エレクトロカタリティックco2-to-c2+とアンペアレベルの電流をヘテロアトム工学銅経由で調節する *co 中間カバー

エレクトロカタリティックCO₂-to-C₂₊とアンペアレベルの電流をヘテロアトム工学銅経由で調節する CO 中間カバー*

Min Zheng¹, Pengtang Wang¹, Xing Zhi¹

¹School of Chemical Engineering and Advanced Materials, The University of Adelaide, Adelaide, SA 5005, Australia.

Journal of the American Chemical Society
|August 4, 2022

関連する実験動画

10:57
Synthesis and Performance Characterizations of Transition Metal Single Atom Catalyst for Electrochemical CO2 Reduction
Published on: April 10, 2018
18.4K
08:40
Synthesis of Metal Nanoparticles Supported on Carbon Nanotube with Doped Co and N Atoms and its Catalytic Applications in Hydrogen Production
Published on: December 6, 2021
3.7K
09:21
Tuning the Acidity of Pt/ CNTs Catalysts for Hydrodeoxygenation of Diphenyl Ether
Published on: August 17, 2019
9.0K

PubMed で要約を見る

まとめ

銅触媒のヘテロアトム工学は,マルチカーボン燃料の生産のためにアンペアレベルの二酸化炭素の電解を可能にします. 窒素製銅 (N-Cu) 触媒は,CO2からC2+への変換効率を大幅に高め,競合する水素の進化を減少させます.

科学分野:

電気化学
カタリシス
材料科学

背景:

多炭素 (C2+) 燃料の工業生産には,CO2の電解のためのアンペアレベルの電流密度が必要です.
高い電流密度により,CO中間層の覆い面が薄れ,CO2還元反応 (CO2RR) よりも水素進化反応 (HER) が促進される.

研究の目的:

信頼性の高いアンペアレベルでのCO2からC2+の電解を実現する.
銅触媒の設計によってCO2RRの選択性と効率性を向上させる.

主な方法:

銅化合物のヘテロ原子工学 (N,P,S,O)
ヘテロ原子による銅化合物の電気化学的還元.
インサイトスペクトロスコーピーと密度関数理論 (DFT) の研究.

主要な成果:

窒素製銅 (N-Cu) 触媒は,より優れたCO2からC2+の生産性を示した.
N-Cuは -1100 mA cm-2で73.7%のファラダイク効率と -900 mA cm-2で37.2%のエネルギー効率を達成した.
N-Cuは -1.15 Vで -909 mA cm-2のC2+部分電流密度を示し,他のCuベースの触媒を上回った.

結論:

ヘテロアトム工学は,特に窒素を用いて,HERを効果的に抑制し,Cu触媒の*CO吸収を強化する.
N-Cu触媒はC-C結合を促進し,CO2からC2+への変換のためのエネルギー障壁を軽減します.
このアプローチにより,工業的に重要な電流密度で効率的かつ選択的なCO2電解が可能になります.

関連する実験動画

10:57
Synthesis and Performance Characterizations of Transition Metal Single Atom Catalyst for Electrochemical CO2 Reduction
Published on: April 10, 2018
18.4K
08:40
Synthesis of Metal Nanoparticles Supported on Carbon Nanotube with Doped Co and N Atoms and its Catalytic Applications in Hydrogen Production
Published on: December 6, 2021
3.7K
09:21
Tuning the Acidity of Pt/ CNTs Catalysts for Hydrodeoxygenation of Diphenyl Ether
Published on: August 17, 2019
9.0K

関連する概念動画

01:27

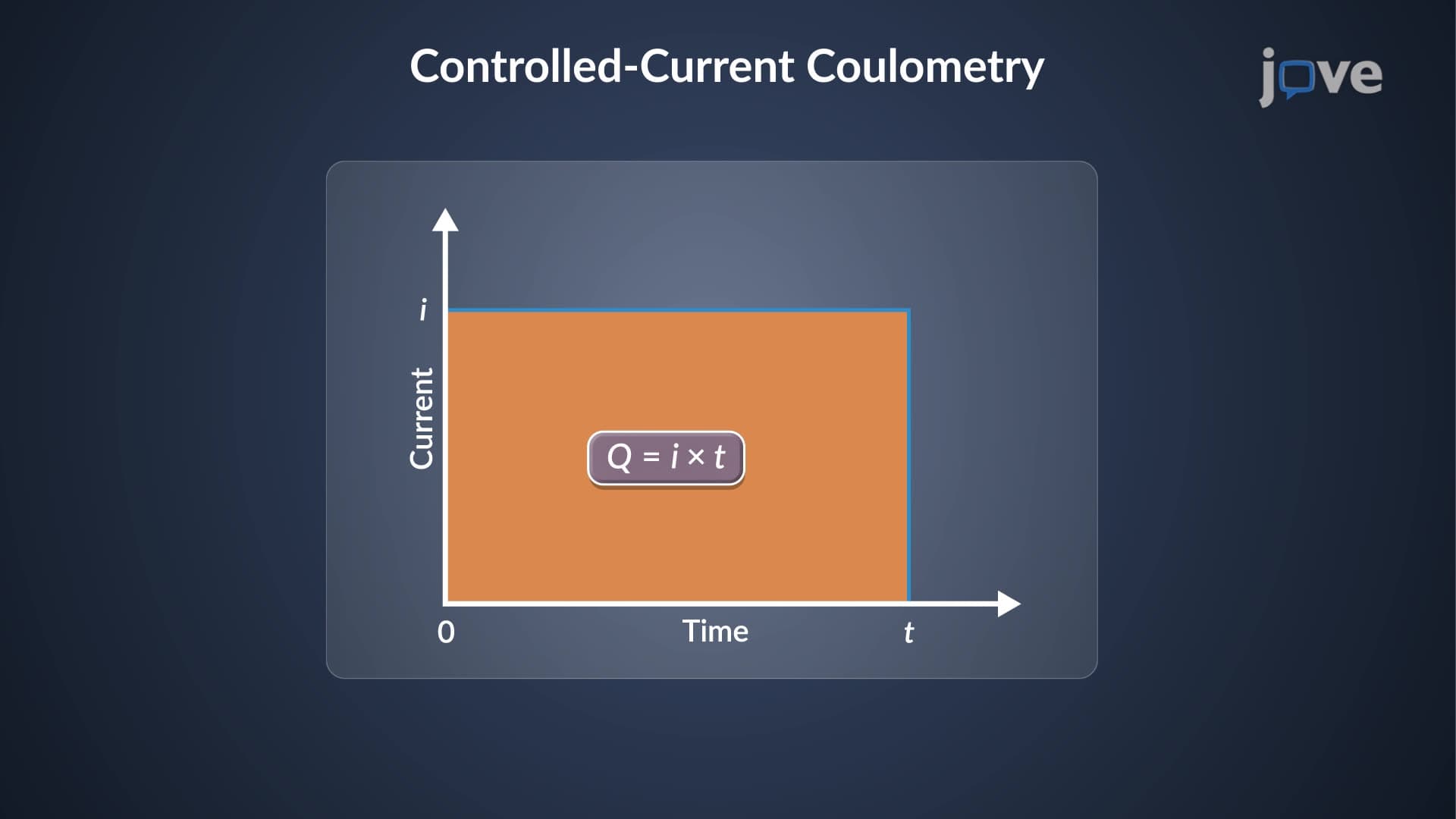

Controlled-Current Coulometry: Overview
292
Controlled current coulometry, also known as amperostatic coulometry, is a technique used in electrochemical analysis to measure the quantity of a substance through the controlled passage of current. It involves the application of a constant current to an electrochemical cell containing the analyte of interest. As the current flows through the cell, the analyte undergoes a redox reaction at the electrode surface, resulting in a charge transfer. By monitoring the time required for a certain...
292
01:08
Electrodeposition
704
Electrodeposition is a technique used to separate an analyte from interferents by electrochemical processes. Here, the analyte is a metal ion that can be deposited on an electrode immersed in the sample solution. The electrochemical setup consists of an anode and a cathode. When an electric current is applied to the setup, oxidation occurs at the anode. At the cathode, which consists of a large metal surface, metal ions undergo reduction and deposit onto the surface.
Electrodeposition can...
704
01:18

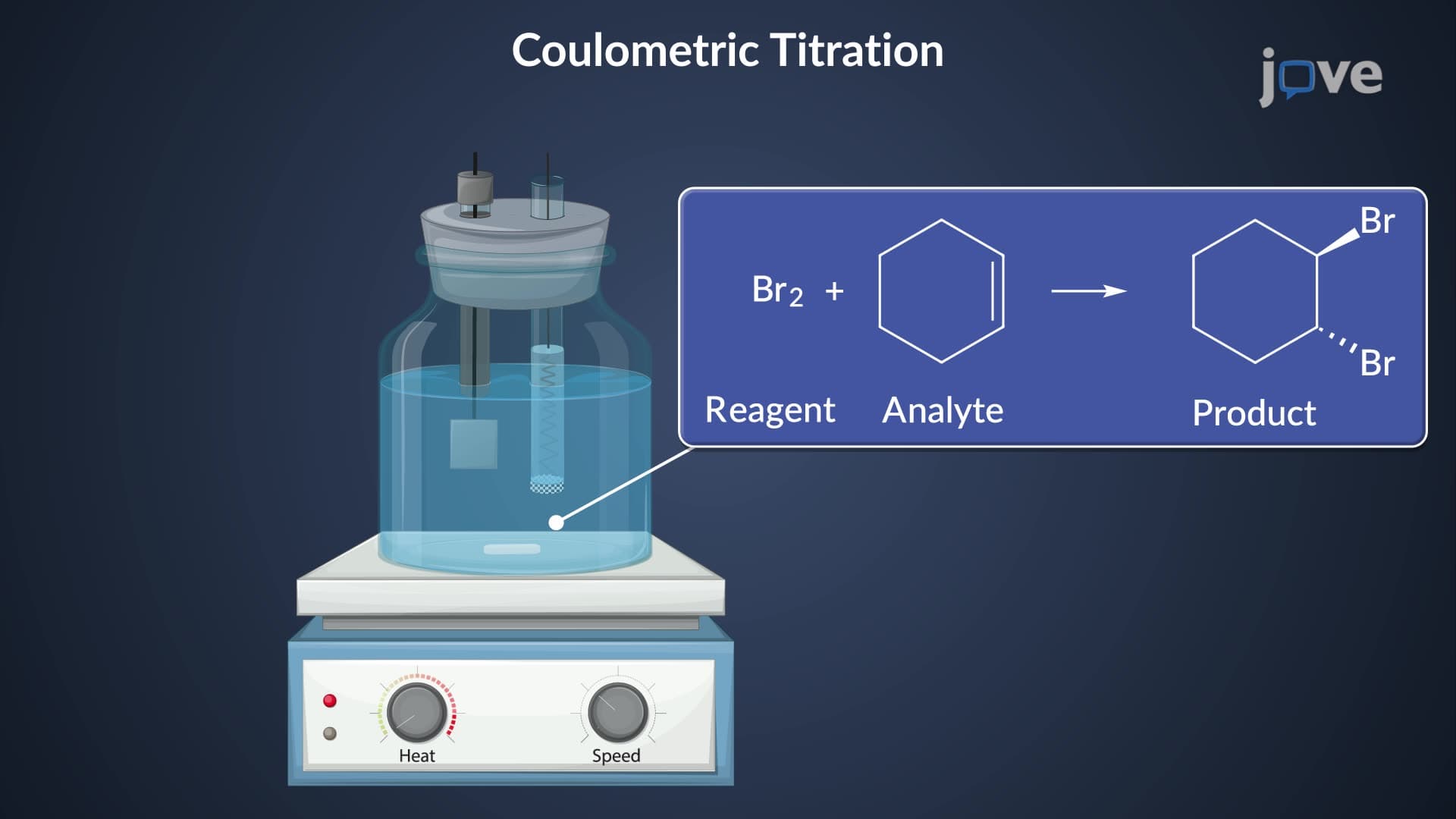

Controlled-Current Coulometry: Coulometric Titration
