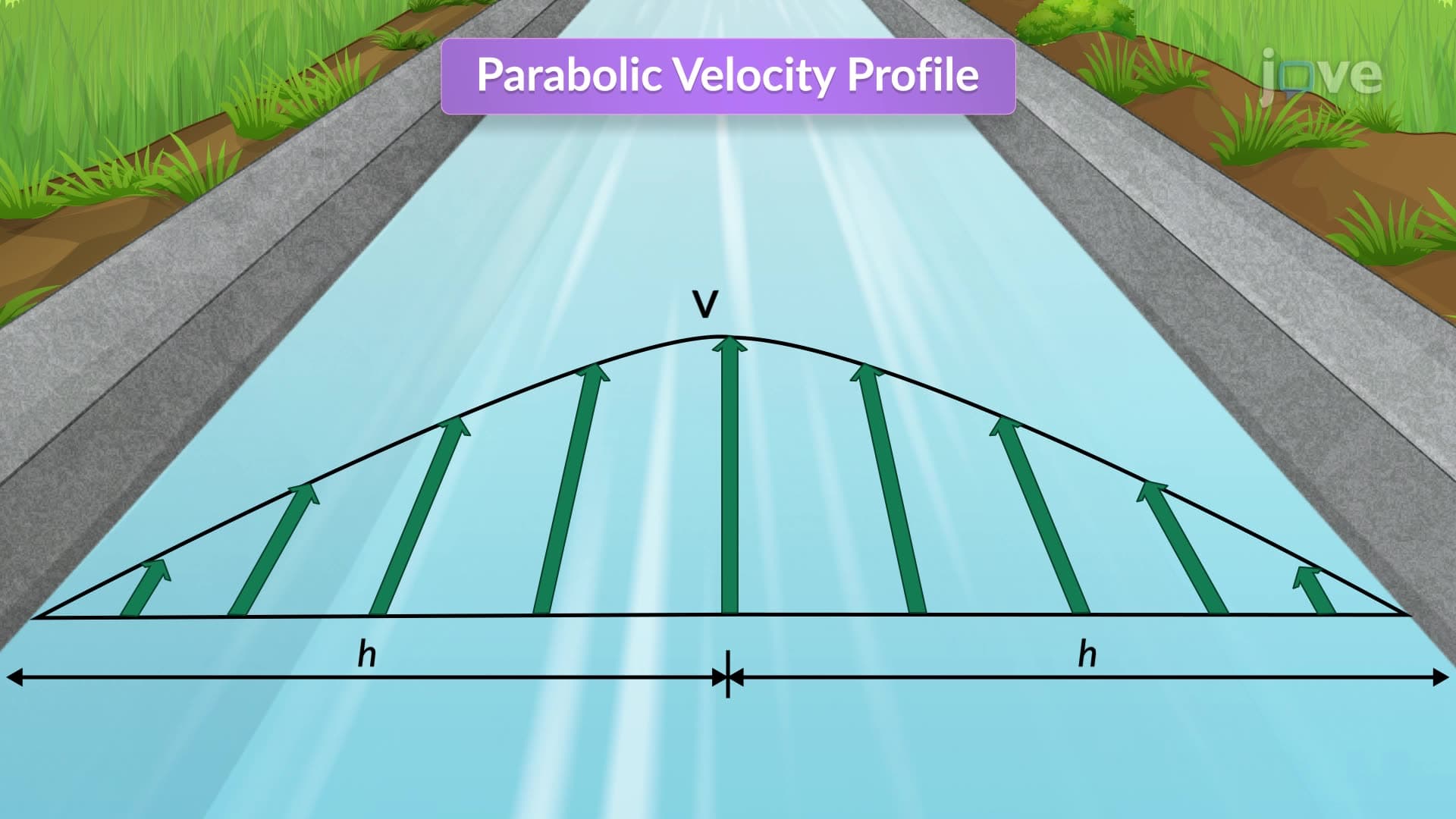

01:17Steady, Laminar Flow Between Parallel Plates
328
Understanding steady, laminar flow between parallel plates is essential for analyzing and designing flow in narrow rectangular channels, commonly found in various water conveyance and drainage systems. The Navier-Stokes equations govern fluid motion and are generally challenging to solve due to their nonlinearity. However, simplifications are possible in certain cases, like the steady laminar flow between parallel plates. For this scenario, we assume steady, incompressible, laminar flow.
328

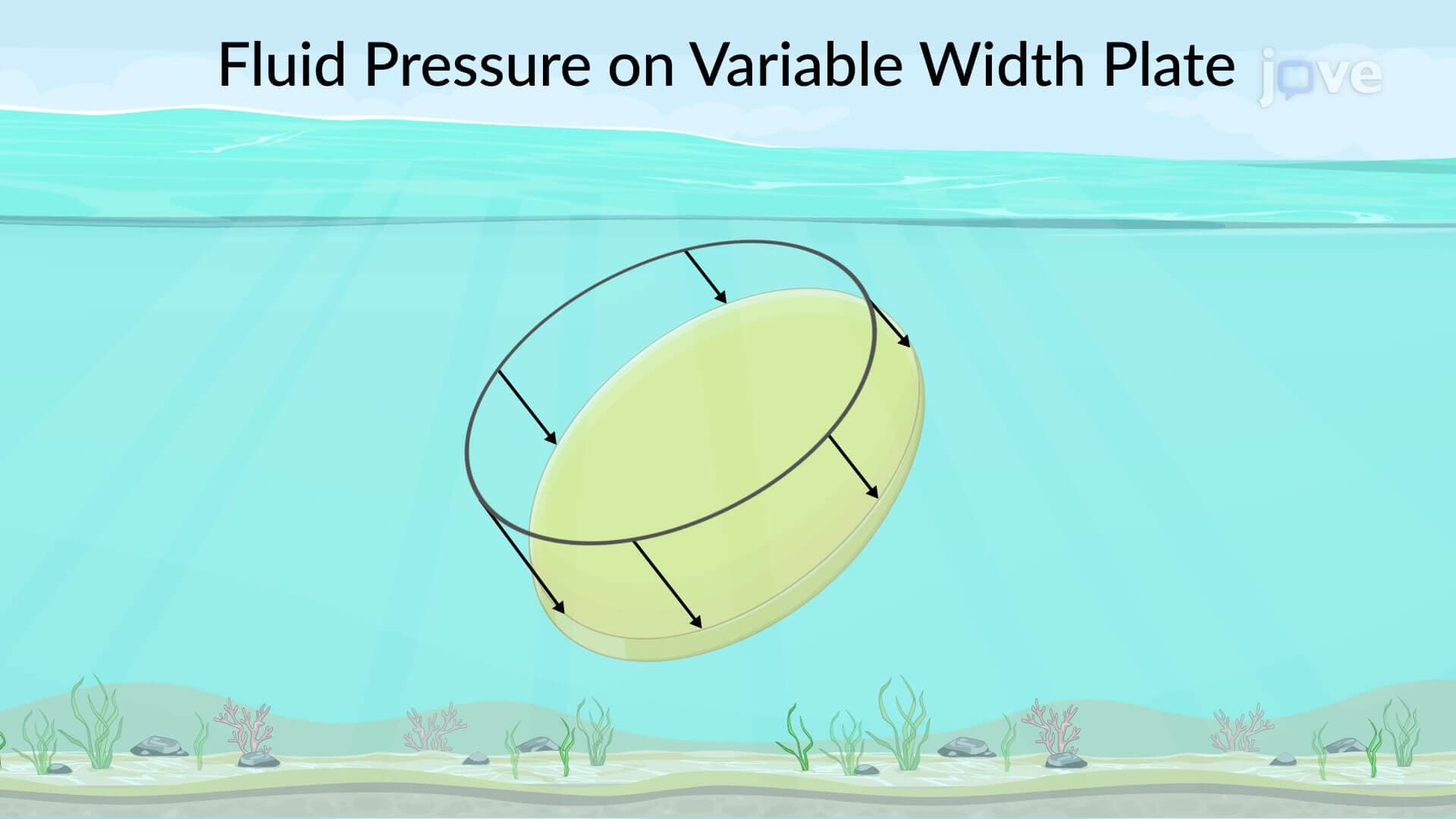

01:02Fluid Pressure over Flat Plate of Variable Width
1.8K
When a flat plate is submerged in a fluid, the fluid exerts pressure on the plate. This pressure can lead to many different phenomena, including drag and buoyancy. To understand the behavior of the fluid over a flat plate of variable width, it is essential to analyze the distribution of the pressure exerted.
The pressure distribution on the plate can be calculated by determining the force that acts on a differential area strip of the plate. Thus, the magnitude of the force is equal to the...
The pressure distribution on the plate can be calculated by determining the force that acts on a differential area strip of the plate. Thus, the magnitude of the force is equal to the...
1.8K
01:24Static, Stagnation, Dynamic and Total Pressure
578
The concept of static, stagnation, dynamic, and total pressure is fundamental in fluid dynamics, often explained using Bernoulli's equation:
578
01:05Fluid Pressure over Flat Plate of Constant Width
2.2K
When a body is submerged in water, it experiences fluid pressure acting normal on its surface and distributed over its area. For better design structures, it is crucial to determine the magnitude and location of the resultant force acting on the surface. In the case of a rectangular plate of constant width submerged in water, the pressure increases with depth, resulting in a linearly varying trapezoidal pressure distribution from the upper to the lower edge of the plate.
The resultant force...
The resultant force...
2.2K
01:22Mitral Stenosis I: Introduction
34
Mitral Valve Stenosis (MVS) is a heart condition where the mitral valve narrows, impeding blood circulation from the left atrium to the left ventricle. The etiology and pathophysiology of this condition are multifaceted, leading to a cascade of cardiovascular complications.Causes of Mitral Valve StenosisRheumatic Heart Disease: It is the main cause of mitral valve stenosis, particularly in developing nations. This condition arises from rheumatic fever, an inflammatory illness resulting from...
34

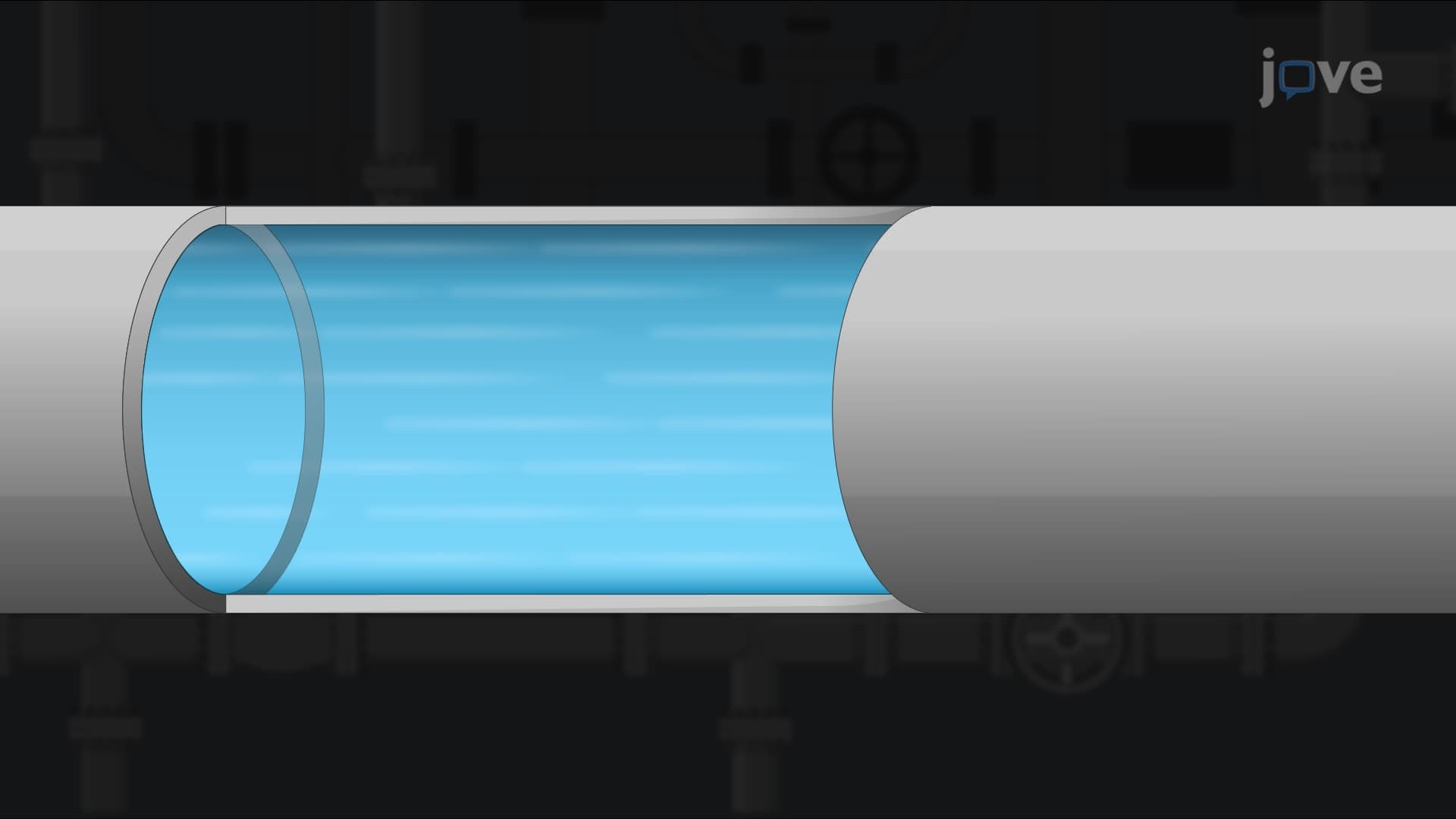

01:23Steady, Laminar Flow in Circular Tubes
373
Hagen-Poiseuille flow describes a viscous fluid's steady, incompressible flow through a cylindrical tube with a constant radius R. This flow profile is often applied to understand fluid transport in narrow channels, such as capillaries. It serves as a foundational example of laminar flow. In this model, cylindrical coordinates (r,θ,z) are used to describe the radial (r), angular (θ), and axial (z) dimensions within the tube. For Hagen-Poiseuille flow, the velocity profile is...
373
このページは機械翻訳されています。他のページは英語で表示される場合があります。View in English
静脈流の圧力落下波形に対するフラッティング・プレックの影響
1Department of Mechanical Engineering, Korea National University of Transportation (KNUT), Daehak-ro 50, Chungju-si, Chungcheongbuk-do, South Korea.
Journal of biomechanics
|September 2, 2025
関連する実験動画
11:00
Experimental Investigation of Secondary Flow Structures Downstream of a Model Type IV Stent Failure in a 180° Curved Artery Test Section
Published on: July 19, 2016
11.7K
09:36A Magnetic Resonance Imaging-based Computational Protocol for Analysis of Plaque Morphology and Hemodynamics in Patients with Carotid Artery Stenosis
Published on: August 12, 2025
67
13:07Optical Coherence Tomography Based Biomechanical Fluid-Structure Interaction Analysis of Coronary Atherosclerosis Progression
Published on: January 15, 2022
4.0K
PubMed で要約を見る
まとめ
動脈硬化プラークは 診断に困難を伴う この研究では,RMSの圧力低下の変動は,FFRだけでなく,血液動力学的分析を使用して脆弱なプラークを検出することができます.
科学分野:
- 心血管流体動力学
- バイオメディカルエンジニアリング
- 医学画像分析
背景:
- 動揺する動きのような動脈硬化性プラークの形態学的脆弱性は,従来の分量フローリザーブ (FFR) の評価を複雑にする.
- 狭窄動脈の脈動性流動は,プラークの脆弱性の正確な評価のために高度な特徴づけを必要とします.
研究 の 目的:
- 軽度の狭窄症の物理的なモデルでフラッティングプラークの血液動力学的影響を調査する.
- FFRのような時間平均インデックスで逃した脆弱なプラークを検出するための新しい波形導出メトリクスを探す.
主な方法:
- 高速粒子画像速度測定 (PIV) と差圧測定を使用した.
- 静脈流下での弾性フラッティングプラークと無した軽度の (40%) 狭窄をシミュレートする物理モデルを使用した.
- 分析された流れパターン,圧力低下波形,および乱動運動エネルギー (TKE) の分布.
主要な成果:
- フラッティング・プラーク・モデルは,フラッティング・モデルと比較して拡張された再循環ゾーンと高圧下降波形 (RMS) の変動を示した.
- 標準的なFFRの限界を強調し,時間平均の圧力低下はモデル間で比較可能であった.
- 渦巻運動エネルギー (TKE) の分布は,振動するプラークの血液動力学的効果の洞察をもたらした.
結論:
- 波形から派生したメトリクス,特に圧力低下変動のRMS振幅は,新しい血液動力学的指標として有望である.
- これらの指標は,脆弱な動脈硬化プラークの検出を高める可能性があります.
- この研究は,プラークの脆弱性評価のFFRのような従来の時間平均指数よりも改善の可能性を示唆しています.
圧力下落の波形
