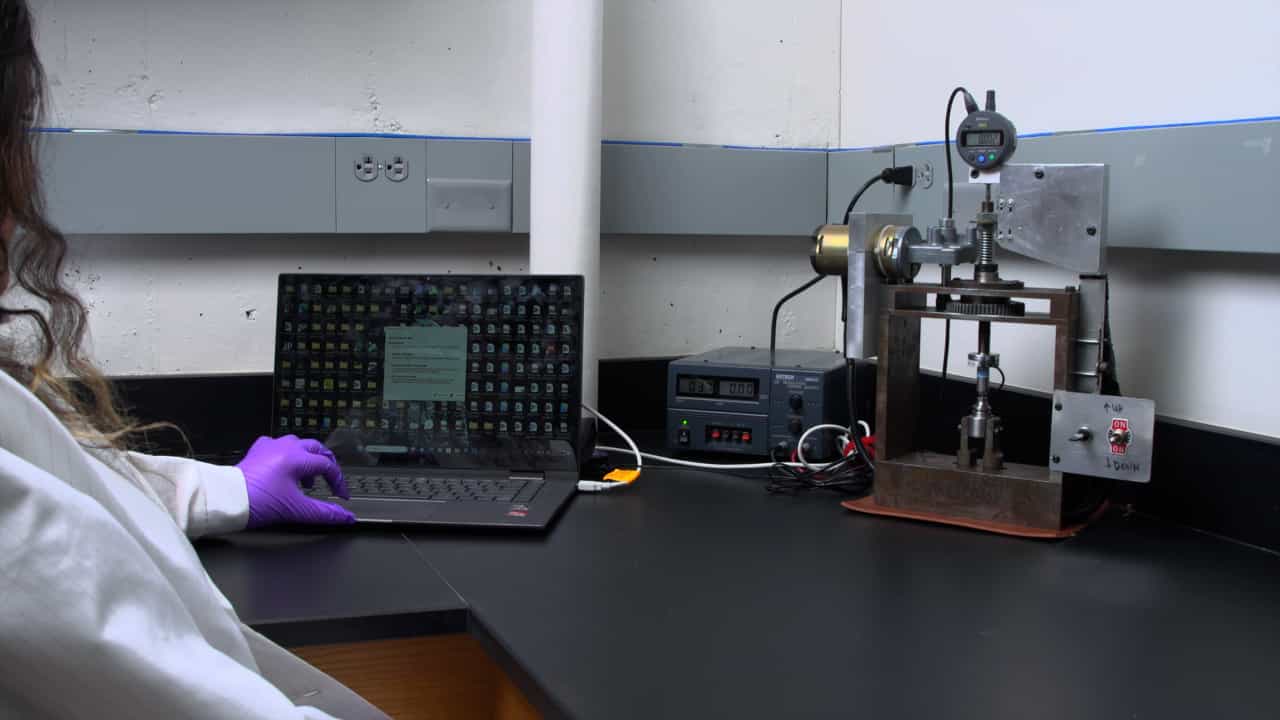

Mouse Lumbar Vertebra Uniaxial Compression Testing with Embedding of the Loading Surface
Published on: December 1, 2023
Morphology analysis of vertebral trabecular bone under dynamic loading based on multi-scale theory.
Khairul Salleh Basaruddin1, Naoki Takano, Yuto Yoshiwara
1Graduate School of Science and Technology, Keio University, Kohoku-ku, Yokohama, Kanagawa, Japan. khsalleh@z5.keio.jp
Medical & Biological Engineering & Computing
|September 6, 2012
Summary
This study reveals that about one-third of trabecular bone acts as primary load-bearing structures. Plate-like trabeculae function as critical hubs, distributing stress waves throughout the bone
Area of Science:
- Biomedical Engineering
- Orthopedic Research
- Materials Science
Background:
- Trabecular bone's complex microstructure, composed of interconnected plates and rods (trabeculae), is crucial for bone strength and load distribution.
- While trabecular morphology is known to influence bone mechanics, its specific role in load-bearing remains under-investigated.
- Existing methods lack detailed analysis of trabecular structure concerning load-bearing capacity.
Purpose of the Study:
- To develop and apply a novel segmentation method for analyzing trabecular bone morphology, focusing on load-bearing structures.
- To investigate the mechanical role of different trabecular segments under compressive loading.
- To visualize stress wave propagation within the trabecular network.
Main Methods:
- Creation of a micro-finite element model from micro-computed tomography (CT) images of the fourth lumbar vertebra.
- Application of an asymptotic homogenization method to simulate microscopic stress under unidirectional compressive loads.
- Segmentation of the microstructure into primary, secondary, and non-contributory trabeculae, followed by dynamic analysis with force impulse loading.
Main Results:
- Approximately one-third of the trabecular bone volume was identified as primary trabeculae, crucial for load-bearing.
- The study successfully visualized stress wave percolation, primarily within the primary trabecular segment.
- Plate-like trabecular structures were identified as key 'hubs' within the trabecular network, facilitating stress distribution.
Conclusions:
- A significant portion of trabecular bone is dedicated to primary load-bearing functions, with morphology playing a key mechanical role.
- The segmentation method effectively differentiates functional trabecular components and visualizes stress dynamics.
- Understanding the role of plate-like structures as network hubs provides new insights into bone's mechanical resilience.
