Preparation of Binary and Ternary Deep Eutectic Systems
Published on: October 31, 2019
Production of Nanocellulose Using Hydrated Deep Eutectic Solvent Combined with Ultrasonic Treatment
Yue Ma1, Qinqin Xia1, Yongzhuang Liu1
1Key Laboratory of Bio-based Material Science and Technology of Ministry of Education, Northeast Forestry University, Harbin 150040, P. R. China.
A novel deep eutectic solvent (DES) combined with ultrasonication efficiently produces nanocellulose from kraft pulp. This method enhances solvent properties with water, enabling cost-effective, large-scale nanocellulose manufacturing.
Area of Science:
- Materials Science
- Chemical Engineering
- Biotechnology
Background:
- Nanocellulose production requires efficient pretreatment methods for commercial viability.
- Current methods often face challenges in scalability and cost-effectiveness.
- Deep eutectic solvents (DES) offer potential as environmentally friendly alternatives.
Purpose of the Study:
- To develop a novel, scalable method for nanocellulose production.
- To investigate the use of a hydrated choline chloride/oxalic acid dihydrate DES combined with ultrasonication.
- To assess the impact of water on DES properties for pulp dissociation.
Main Methods:
- Utilized a hydrated choline chloride/oxalic acid dihydrate deep eutectic solvent (DES).
- Employed an 800 W ultrasonic treatment for pulp dissociation.
- Characterized solvent properties using Kamlet-Taft solvatochromic parameters.
- Processed kraft pulp at 80 °C for 1 hour.
Main Results:
- The hydrated DES maintained favorable solvation properties despite significant water content.
- Water addition facilitated ion ionization and delocalization, enhancing solvent characteristics.
- One-step treatment of kraft pulp in the hydrated DES with ultrasonication yielded nanocellulose.
- Successfully produced cellulose nanofibers and cellulose nanocrystals.
Conclusions:
- The hydrated DES-ultrasonication approach is effective for kraft pulp pretreatment.
- This method offers a viable alternative for large-scale nanocellulose production.
- The enhanced solvent properties due to water are crucial for efficient nanocellulose yield.
Related Concept Videos
06:15Preparation of Binary and Ternary Deep Eutectic Systems
Solvents
A...
04:40Ultrasonic-Assisted Preparation of Biodiesel Products from Vegetable Oils

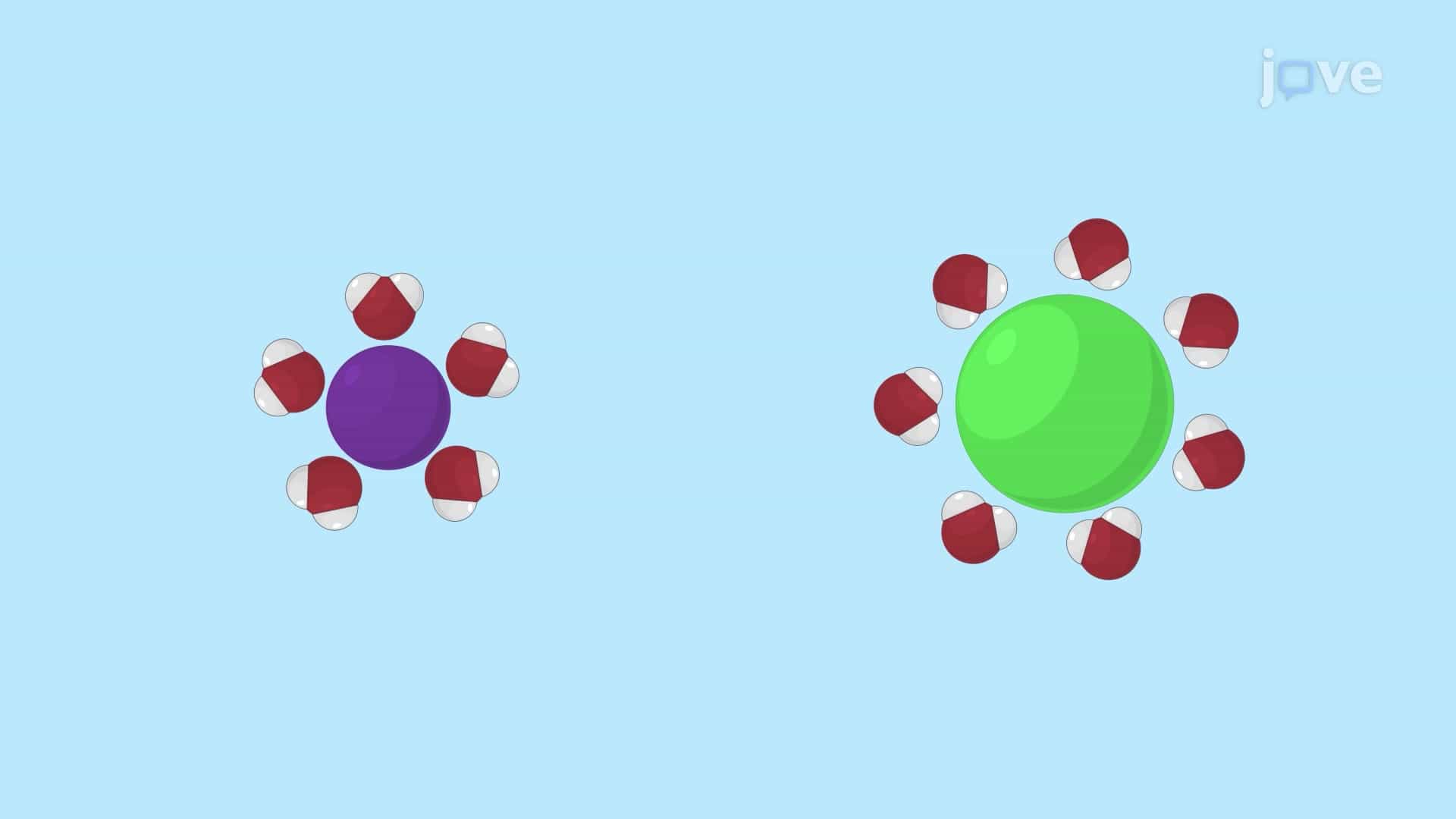

Aqueous Solutions and Heats of Hydration
