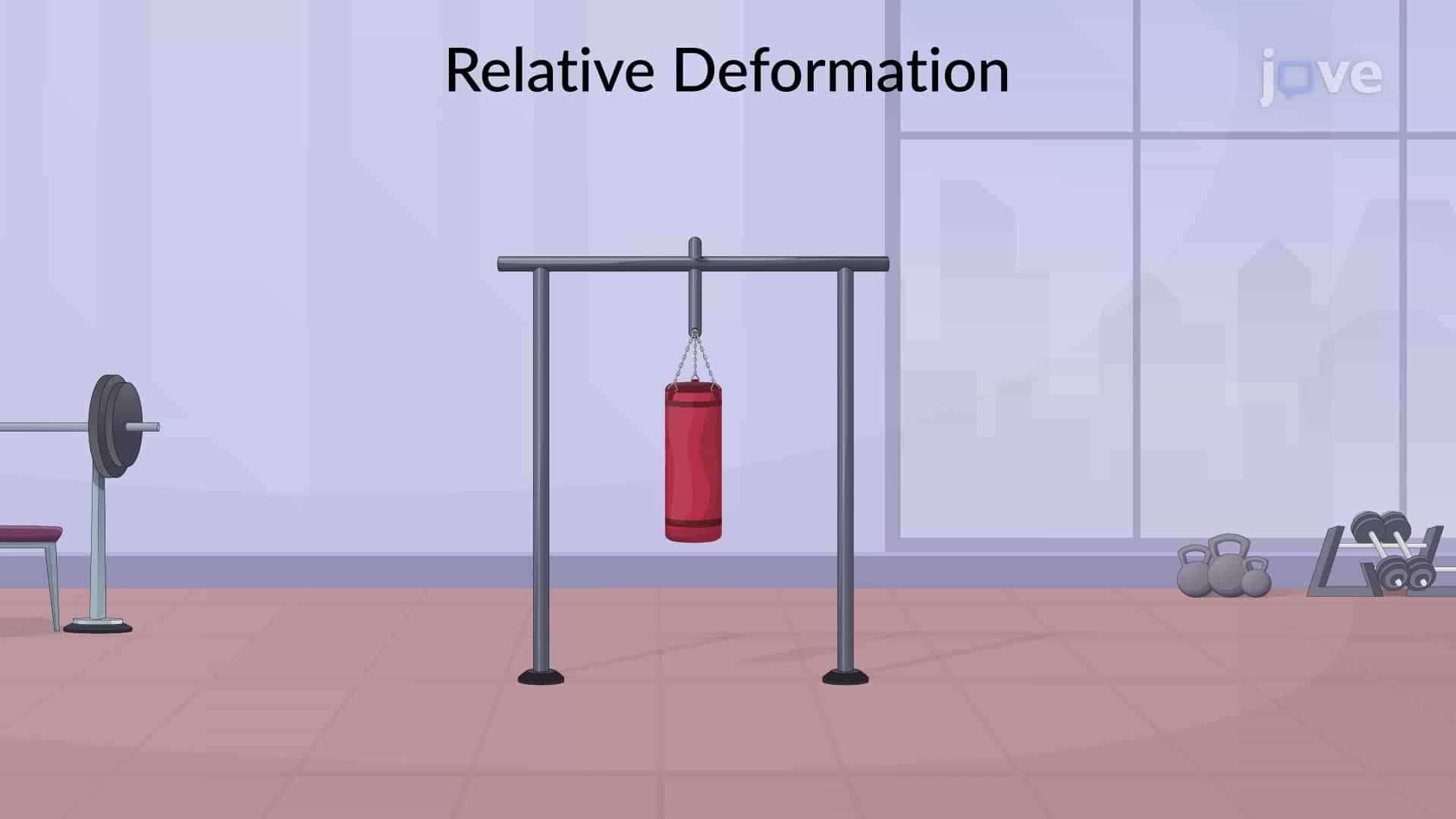

Deformation of Member under Multiple Loadings01:11

Deformation of Member under Multiple Loadings

450
When a rod is made of different materials or has various cross-sections, it must be divided into parts that meet the necessary conditions for determining the deformation. These parts are each characterized by their internal force, cross-sectional area, length, and modulus of elasticity. These parameters are then used to compute the deformation of the entire rod.
In the case of a member with a variable cross-section, the strain is not constant but depends on the position. The deformation of an...
450

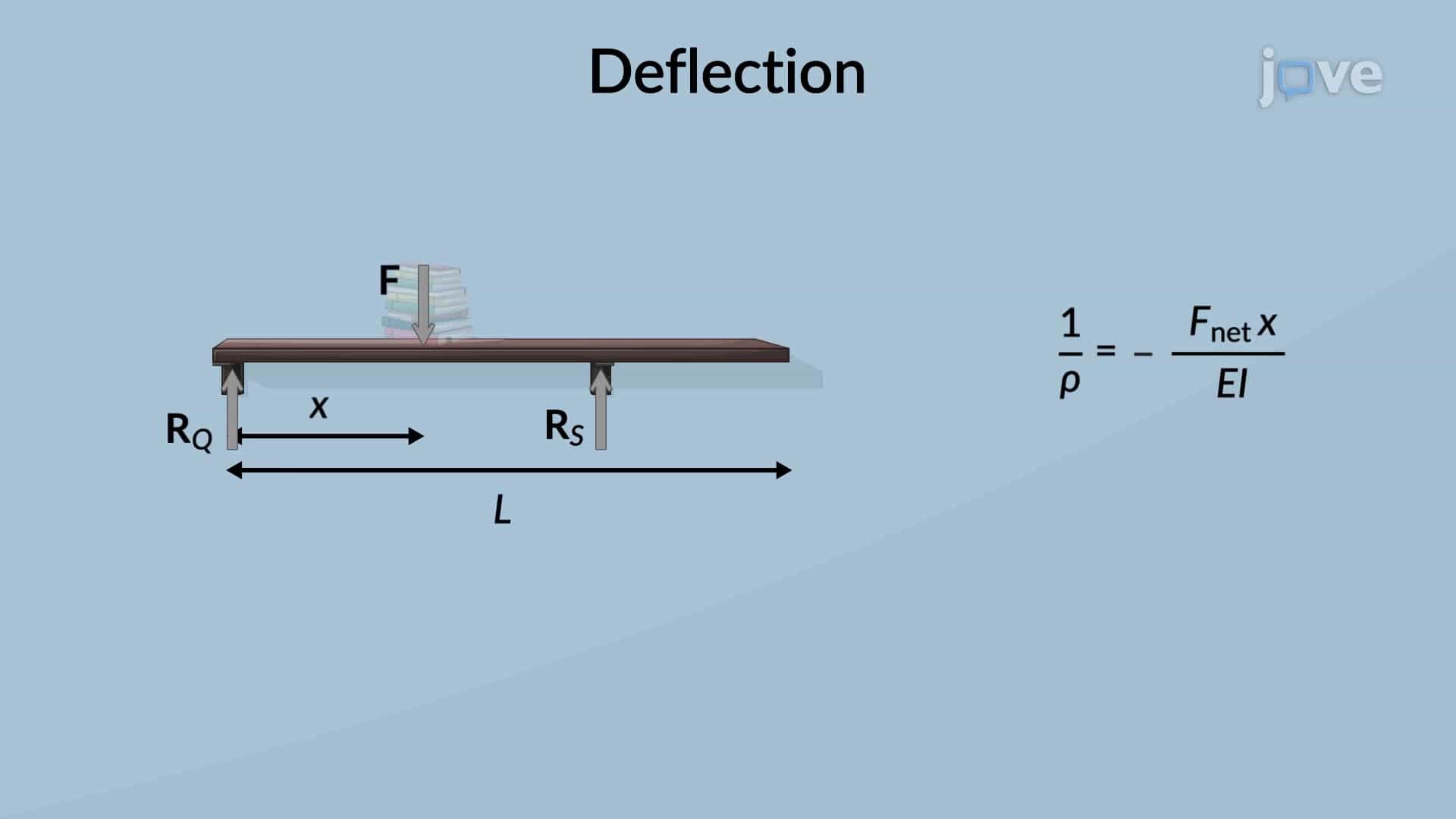

Deformation of a Beam under Transverse Loading01:15

Deformation of a Beam under Transverse Loading

737
Understanding beam deflection, particularly for indeterminate beams with overhanging segments and multiple concentrated loads, is crucial for ensuring structural integrity and functionality. The process begins with constructing an accurate free-body diagram, which helps identify the forces and moments acting on the beam. This diagram is vital for visualizing how bending moments vary along the beam's length, influencing its curvature.
The insights from the bending moment diagram extend to...
737
Tensile Strength of Resorbable Biomaterials10:09

Tensile Strength of Resorbable Biomaterials

8.3K
Source: Peiman Shahbeigi-Roodposhti and Sina Shahbazmohamadi, Biomedical Engineering Department, University of Connecticut, Storrs, Connecticut
For over 4000 years, sutures have been used as a medical intervention. The earliest records indicate linen was the biomaterial of choice. Catgut, which is still in use today, was reportedly used to treat gladiators around 150 AD. Today, there are numerous materials being used for sutures. Sutures are classified by their composition (natural or...
8.3K
Phase Transitions02:31

Phase Transitions

22.7K
Whether solid, liquid, or gas, a substance's state depends on the order and arrangement of its particles (atoms, molecules, or ions). Particles in the solid pack closely together, generally in a pattern. The particles vibrate about their fixed positions but do not move or squeeze past their neighbors. In liquids, although the particles are closely spaced, they are randomly arranged. The position of the particles are not fixed—that is, they are free to move past their neighbors to...
22.7K
A Microfluidic Technique to Probe Cell Deformability09:47

A Microfluidic Technique to Probe Cell Deformability

11.8K
We demonstrate a microfluidics-based assay to measure the timescale for cells to transit through a sequence of micron-scale...
11.8K
Plastic Deformations01:19

Plastic Deformations

436
Plastic deformation represents a fundamental concept in materials science, which explains the irreversible change in the shape of a material when it experiences stress beyond its elastic capability. This phenomenon is important in structural engineering, especially in designing and analyzing cantilever beams—structures that are securely fixed at one end and bear loads at the opposite end. When these beams are subjected to loads within their elastic range, they will return to their...
436

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

The Stiffness for Viscous Deformation in the Interlamellar Amorphous Region of Polyethylene.

Polymers·2026
Same author

Evaluating Parameter Value Identification Methods for Modeling of Nonlinear Stress Relaxation in Polyethylene.

Materials (Basel, Switzerland)·2025
Same author

Characterization of Polycarbonate and Glass-Filled Polycarbonate Using Multi-Relaxation Test-Role of Glass Fiber on Viscous Behavior of Matrix in Fiber Composites.

Polymers·2025
Same author

Simulation and Analysis of the Loading, Relaxation, and Recovery Behavior of Polyethylene and Its Pipes.

Polymers·2024
Same author

Influence of Acetone and Primer on Strength and Ductility of Chlorinated Poly(vinyl chloride).

Polymers·2023
Same author

Characterization of Polyethylene Using a New Test Method Based on Stress Response to Relaxation and Recovery.

Polymers·2022

Related Experiment Video

Updated: Jan 20, 2026

Deformation of Member under Multiple Loadings
01:11

Deformation of Member under Multiple Loadings

450

Determining Deformation Transition in Polyethylene under Tensile Loading.

Na Tan1, P-Y Ben Jar2

  • 1Department of Mechanical Engineering, University of Alberta, 10-203 Donadeo Innovation Centre for Engineering, 9211-116 Street NW, Edmonton, AB T6G 1H9, Canada. ntan2@ualberta.ca.

Polymers
|August 31, 2019
PubMed
Summary

The multi-relaxation test reveals a consistent critical stroke for polyethylene (PE) plastic deformation onset across densities. This critical stress component is reliably predictable using standard tensile tests for PE applications.

Keywords:
WAXSdeformation transitiondensitymulti-relaxation testpolyethylene

More Related Videos

Deformation of a Beam under Transverse Loading
01:15

Deformation of a Beam under Transverse Loading

737
Tensile Strength and Loss Profile of Resorbable Biomaterials
10:09

Tensile Strength and Loss Profile of Resorbable Biomaterials

Published on: April 30, 2023

8.3K

Related Experiment Videos

Last Updated: Jan 20, 2026

Deformation of Member under Multiple Loadings
01:11

Deformation of Member under Multiple Loadings

450
Deformation of a Beam under Transverse Loading
01:15

Deformation of a Beam under Transverse Loading

737
Tensile Strength and Loss Profile of Resorbable Biomaterials
10:09

Tensile Strength and Loss Profile of Resorbable Biomaterials

Published on: April 30, 2023

8.3K

Area of Science:

  • Materials Science
  • Polymer Physics
  • Solid Mechanics

Background:

  • Stress relaxation behavior in polyethylene (PE) can indicate its material state under tension.
  • The multi-relaxation (MR) test leverages this principle to assess material properties.
  • Understanding plastic deformation onset is crucial for PE's long-term performance.

Purpose of the Study:

  • To determine the first critical stroke for plastic deformation in the crystalline phase of PE using the MR test.
  • To investigate the relationship between PE mass density and its critical stroke and stress values.
  • To evaluate the utility of standard tensile tests in characterizing critical stress components for PE.

Main Methods:

  • Application of the multi-relaxation (MR) test to six polyethylene samples with varying mass densities.
  • Determination of the first critical stroke, total stress, and quasi-static (QS) stress values.
  • Comparison of MR test results with data from standard tensile tests.

Main Results:

  • The first critical stroke values were remarkably similar across all six PE samples, irrespective of density.
  • Wide-angle X-ray scattering indicated phase transformation in the PE crystalline phase beyond the first critical stroke.
  • The ratio of QS stress at the first critical stroke to yield stress showed minimal dependence on PE density.

Conclusions:

  • The MR test effectively identifies the critical stroke for initiating plastic deformation in PE's crystalline phase.
  • PE's first critical stroke is largely independent of its mass density.
  • Standard tensile tests can characterize the critical QS stress component, vital for predicting long-term PE performance in load-bearing applications.
