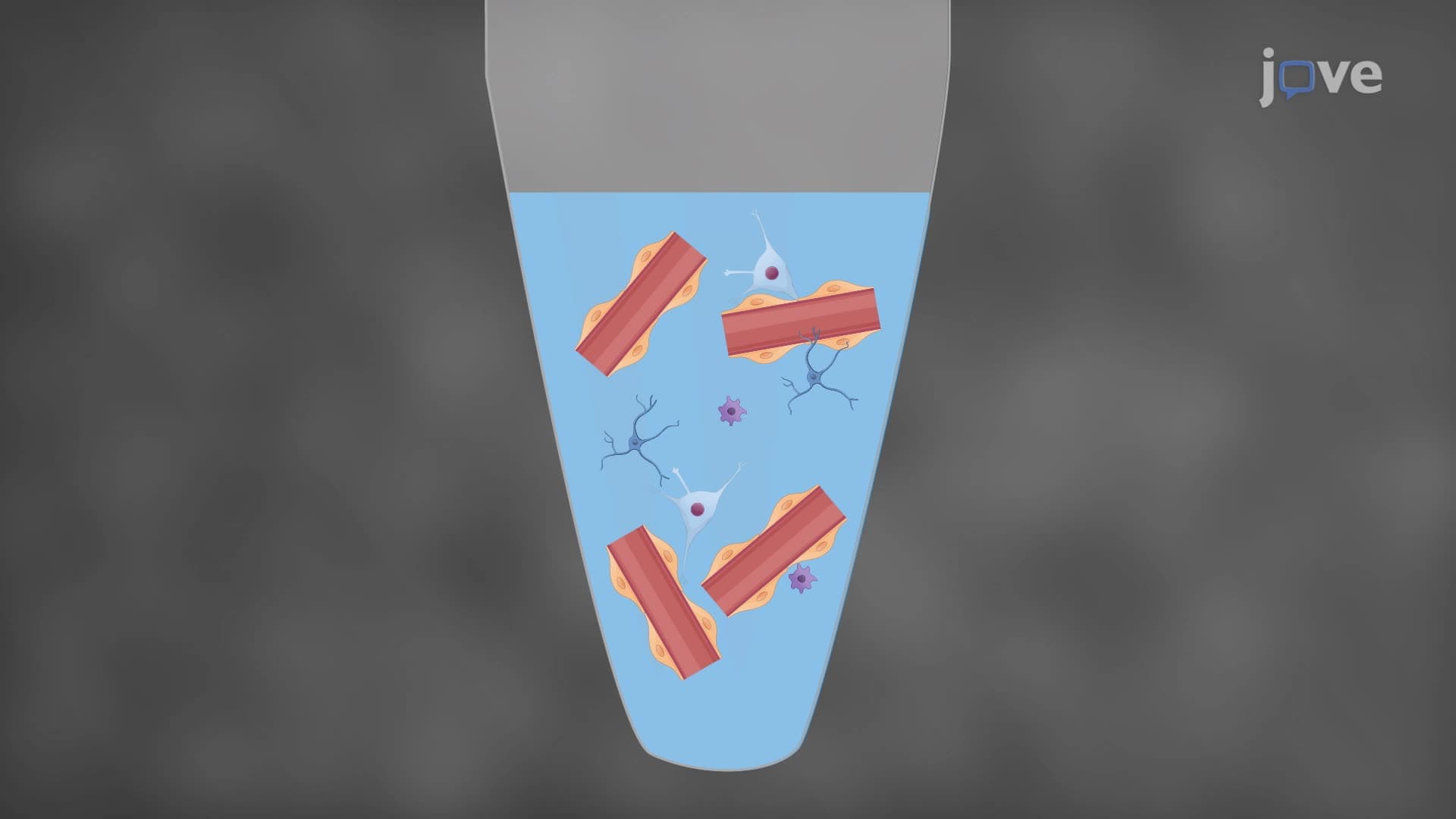

A Method for the Isolation of Neurovascular Units from Rat Brain

521
This video demonstrates the process of isolating brain microvessels from euthanized rats. It includes the dissection of the brain, cleaning of the tissue, and mechanical digestion, followed by repeated centrifugation to isolate the pure fraction of...
521

You might also read

Related Articles

Articles linked to this work by shared authors, journal, and citation graph.

Sort by
Same author

<sup>18</sup>F-Fluciclovine or <sup>68</sup>Ga-PSMA-11 PET/CT-guided Salvage Radiotherapy Changes in Postprostatectomy Biochemical Recurrence: Secondary Analysis of the EMPIRE-2 Trial.

Radiology·2026
Same author

A digital twin framework for adaptive treatment planning in radiotherapy.

Physics in medicine and biology·2026
Same author

Efficient vision mamba for MRI super-resolution via hybrid selective scanning.

Medical physics·2026
Same author

Bladder activity of different PSMA PET radioligands and impact of furosemide.

American journal of nuclear medicine and molecular imaging·2026
Same author

Utilization, Cost, and Subsequent Salvage Treatment of Ablative Therapies for Localized Prostate Cancer in the United States.

Clinical genitourinary cancer·2026
Same author

Coronary Plaque Progression After Androgen Deprivation Therapy in Men With Prostate Cancer: A Randomized Clinical Trial.

JAMA cardiology·2026

Related Experiment Video

Updated: Jan 20, 2026

Four-Dimensional CT Analysis Using Sequential 3D-3D Registration
05:05

Four-Dimensional CT Analysis Using Sequential 3D-3D Registration

Published on: November 23, 2019

8.4K

A 3D Neurovascular Bundles Segmentation Method based on MR-TRUS Deformable Registration.

Xiaofeng Yang1, Peter Rossi1, Ashesh B Jani1

  • 1Department of Radiation Oncology and Winship Cancer Institute, Emory University, Atlanta, GA 30322.

Proceedings of Spie--The International Society for Optical Engineering
|August 31, 2019
PubMed
Summary

This study introduces a novel 3D neurovascular bundle (NVB) segmentation method for ultrasound images by integrating MRI and transrectal ultrasound data. The technique accurately maps NVB from MRI to ultrasound, aiding in prostate cancer radiation therapy.

Keywords:
MRI-US registrationNeurovascular bundles (NVB)erectile dysfunctionsegmentation

More Related Videos

Brain Infarct Segmentation and Registration on MRI or CT for Lesion-symptom Mapping
10:25

Brain Infarct Segmentation and Registration on MRI or CT for Lesion-symptom Mapping

Published on: September 25, 2019

49.3K
Treatment of Facial Deformities using 3D Planning and Printing of Patient-Specific Implants
07:11

Treatment of Facial Deformities using 3D Planning and Printing of Patient-Specific Implants

Published on: May 23, 2020

7.9K

Related Experiment Videos

Last Updated: Jan 20, 2026

Four-Dimensional CT Analysis Using Sequential 3D-3D Registration
05:05

Four-Dimensional CT Analysis Using Sequential 3D-3D Registration

Published on: November 23, 2019

8.4K
Brain Infarct Segmentation and Registration on MRI or CT for Lesion-symptom Mapping
10:25

Brain Infarct Segmentation and Registration on MRI or CT for Lesion-symptom Mapping

Published on: September 25, 2019

49.3K
Treatment of Facial Deformities using 3D Planning and Printing of Patient-Specific Implants
07:11

Treatment of Facial Deformities using 3D Planning and Printing of Patient-Specific Implants

Published on: May 23, 2020

7.9K

Area of Science:

  • Medical Imaging
  • Radiotherapy Physics
  • Urology

Background:

  • Accurate segmentation of neurovascular bundles (NVB) is crucial for sparing them during prostate radiation therapy (RT).
  • Integrating magnetic resonance (MR) imaging and transrectal ultrasound (TRUS) offers complementary information for precise anatomical delineation.
  • Existing methods may lack the accuracy needed for robust NVB segmentation in the context of prostate cancer treatment.

Purpose of the Study:

  • To develop and validate a 3D neurovascular bundle (NVB) segmentation method for ultrasound (US) images by integrating MR and transrectal ultrasound (TRUS) images.
  • To improve the precision of NVB localization for radiation therapy planning and outcome prediction.
  • To assess the accuracy and feasibility of a novel MR-TRUS deformable registration technique for NVB segmentation.

Main Methods:

  • A 3D NVB segmentation method was proposed using MR-TRUS deformable registration to integrate MR and TRUS images.
  • Neurovascular bundles (NVB) were initially contoured in 3D MR images by a physician.
  • A novel MR-TRUS registration method, modeling prostate tissue as elastic, was employed to transform MR-defined NVB into US images, jointly estimating deformations.

Main Results:

  • MR-TRUS registration was successfully performed in all 6 patients undergoing prostate cancer RT.
  • The mean landmark displacement between post-registration MR and TRUS images was less than 2 mm.
  • The average NVB volume Dice Overlap Coefficient exceeded 89%, demonstrating high segmentation accuracy.

Conclusions:

  • The proposed 3D NVB segmentation technique, integrating MR and TRUS images via deformable registration, is accurate and feasible.
  • This method can serve as a valuable tool for sparing NVB during prostate RT, monitoring treatment response, and potentially enhancing post-RT potency outcomes.
  • The high overlap coefficient and low landmark displacement validate the clinical utility of this approach for improving prostate cancer radiotherapy.
