Roll-to-roll graphene oxide radon barrier membranes
Myoung-Seon Gong1, Jae-Ryung Cha1, Suk Min Hong1
1Department of Nanobiomedical Science and BK21 PLUS NBM Global Research Center, Dankook University, Cheonan 31116, Republic of Korea.
Journal of Hazardous Materials
|September 17, 2019
Summary
Graphene oxide polymer resin membranes effectively block radon gas in buildings. This novel material, created using a roll-to-roll method, offers a promising solution for improving indoor air quality and reducing health risks.
Area of Science:
- Materials Science
- Environmental Science
- Nanotechnology
Background:
- Radon (Rn) is a radioactive gas that poses significant health risks, particularly in residential buildings and construction sites.
- Effective barriers are needed to mitigate radon exposure and its carcinogenic potential.
- Graphene-based materials show promise due to their unique structural and chemical properties.
Purpose of the Study:
- To develop and evaluate graphene oxide as a radon barrier material for living environments.
- To investigate the barrier properties of graphene oxide polymer resin (GOPR) in a multilayer membrane.
- To provide a theoretical and experimental understanding for practical applications in construction.
Main Methods:
- Fabrication of a multilayer membrane using a roll-to-roll method, incorporating a graphene oxide polymer resin (GOPR) layer between styrene-butadiene-styrene (SBS)-modified bitumen asphalt layers.
- Characterization of graphene oxide materials using infrared, Raman, and X-ray photoelectron spectroscopy (XPS).
- Computational analysis using dispersion-corrected density functional theory (DFT) to calculate binding and penetration energy barriers for radon and ambient gases.
Main Results:
- Graphene oxide materials exhibited weaker binding energies on oxide surfaces and higher penetration energy barriers for radon (Rn) compared to common atmospheric gases.
- DFT calculations confirmed higher barrier energies for Rn in graphene nanopores than for Ar, H2O, CO2, H2, O2, and N2.
- The roll-to-roll prepared graphene materials demonstrated effective barrier properties against both radon and ambient gases.
Conclusions:
- Graphene oxide polymer resin integrated into multilayer membranes serves as an effective radon barrier.
- The material's superior barrier properties for radon are supported by both experimental and theoretical findings.
- This study provides a foundation for utilizing graphene-based materials to reduce radon risks in buildings.
Related Concept Videos

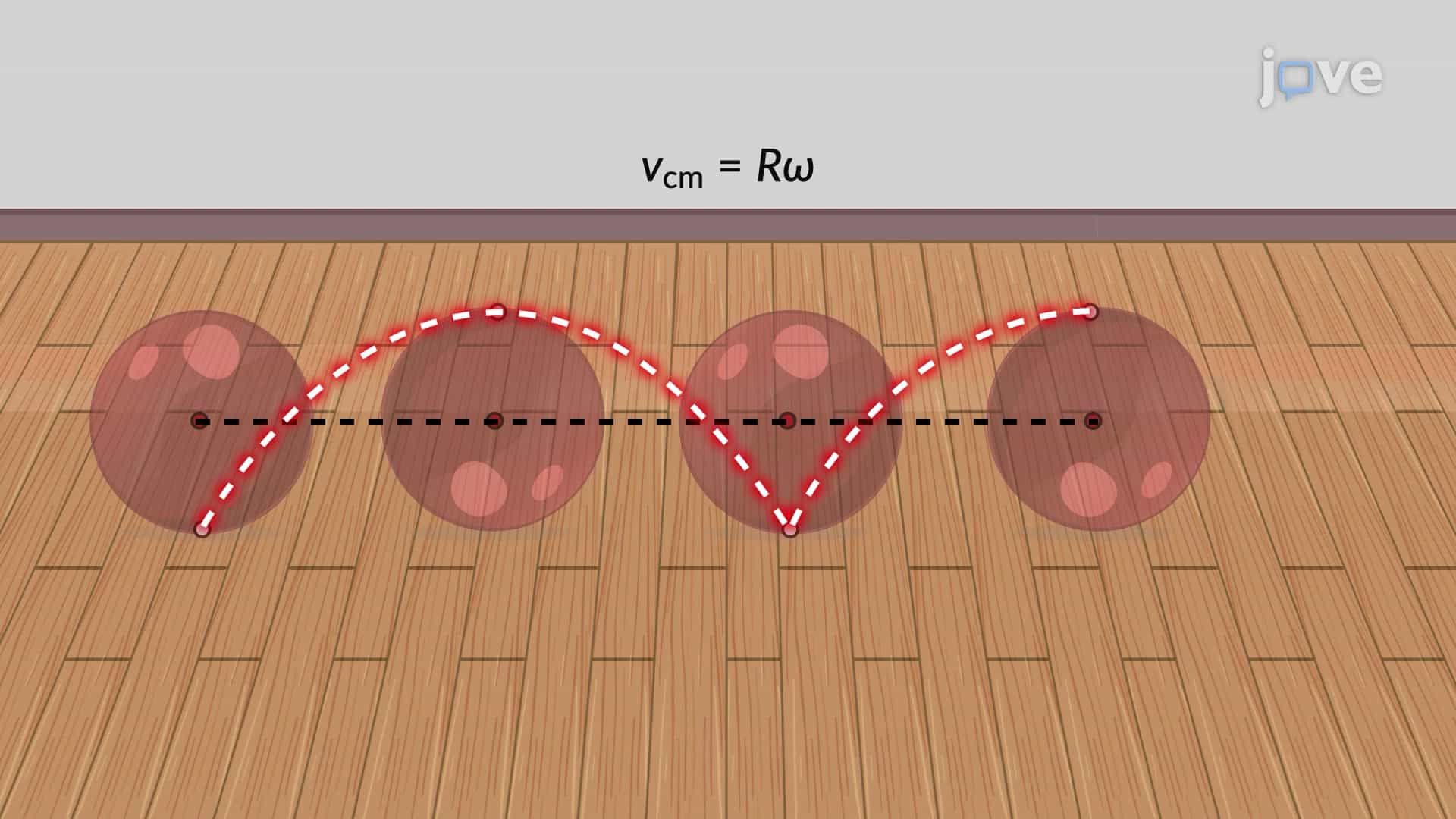

01:09Rolling Without Slipping
5.2K
People have observed the rolling motion without slipping ever since the invention of the wheel. For example, one can look at the interaction between a car's tires and the surface of the road. If the driver presses the accelerator to the floor so that the tires spin without the car moving forward, there must be kinetic friction between the wheels and the road's surface. If the driver slowly presses the accelerator, causing the car to move forward, the tires roll without slipping. It is...
5.2K

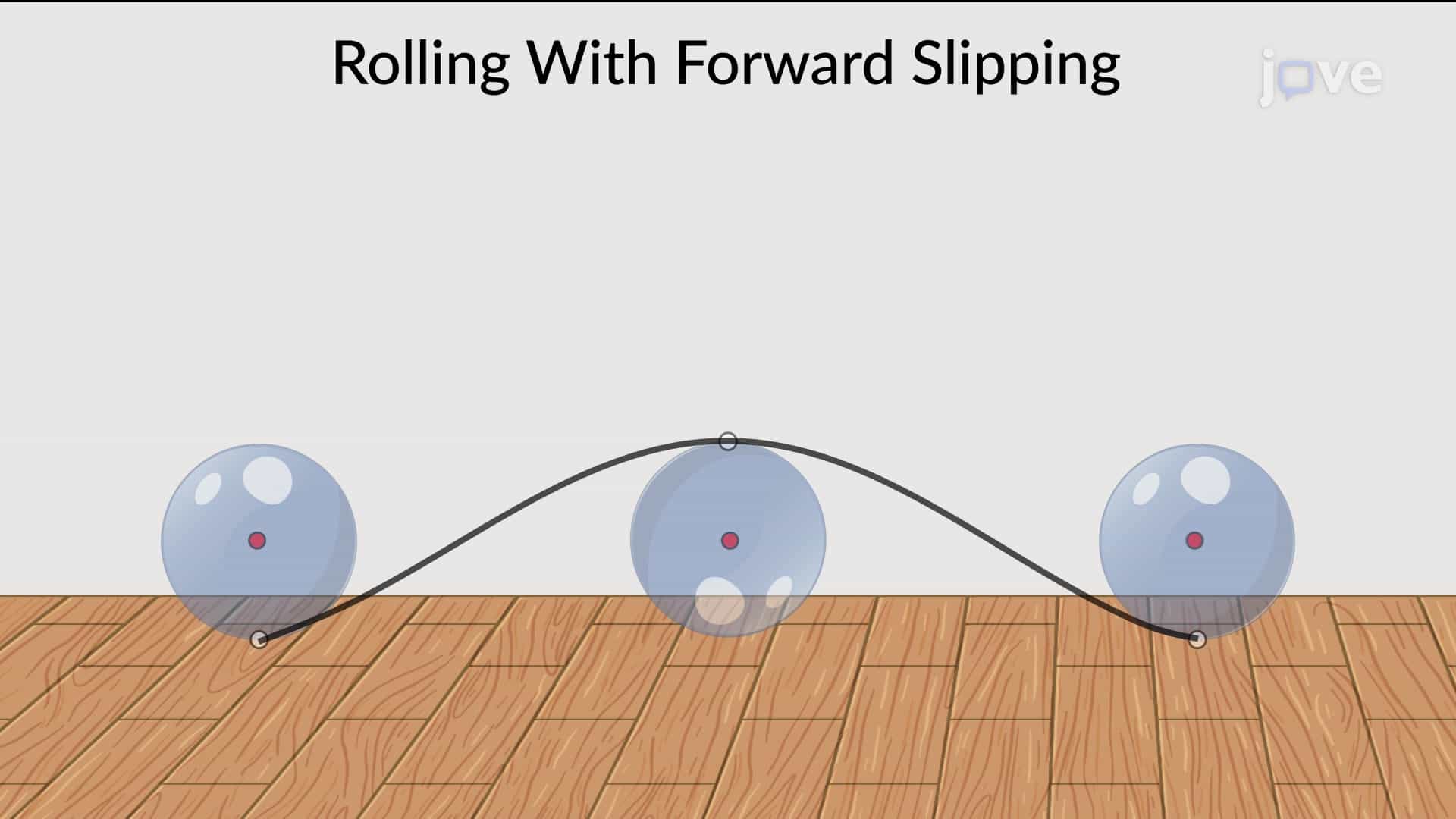

01:14Rolling With Slipping
