Pure Shift Nuclear Magnetic Resonance: a New Tool for Plant Metabolomics
Published on: July 31, 2021
2.2K
Chemical shift encoding using asymmetric readout waveforms
Henric Rydén1,2, Ola Norbeck1,2, Enrico Avventi1,2
1Department of Neuroradiology, Karolinska University Hospital, Stockholm, Sweden.
Magnetic Resonance in Medicine
|October 22, 2020
Summary
New asymmetric readout waveforms improve fat/water imaging by shortening scan times up to 30% or increasing signal-to-noise ratio (SNR). This method enhances chemical shift encoding for MRI applications.
Area of Science:
- Magnetic Resonance Imaging (MRI)
- Medical Physics
- Biomedical Engineering
Background:
- Conventional MRI techniques for fat/water separation face limitations in speed and signal-to-noise ratio (SNR).
- Optimizing chemical shift encoding is crucial for efficient and high-quality imaging.
Purpose of the Study:
- To introduce and evaluate a novel method for chemical shift encoding using asymmetric readout waveforms.
- To demonstrate enhanced SNR efficiency and reduced scan times in fat/water imaging.
Main Methods:
- Asymmetric readout waveforms (triangle and spline) were developed and compared to conventional shifted trapezoid readouts.
- The method was integrated into a fat/water separated Rapid Acquisition Relaxation Enhancement (RARE) sequence.
- Applications in cervical spine, musculoskeletal (MSK), and optic nerve imaging at 3 Tesla were demonstrated.
Main Results:
- Scan times were reduced by 30% with maintained SNR by eliminating dead times.
- Shorter echo spacing led to reduced motion blurring.
- Maintaining scan times with asymmetric waveforms resulted in improved SNR, consistent with extended sampling.
Conclusions:
- Asymmetric readout waveforms provide greater flexibility in pulse sequence design for chemical shift encoding.
- This technique enables significant reductions in scan time or substantial increases in SNR while maintaining scan duration.
Related Concept Videos
01:15NMR Spectroscopy: Chemical Shift Overview
2.7K

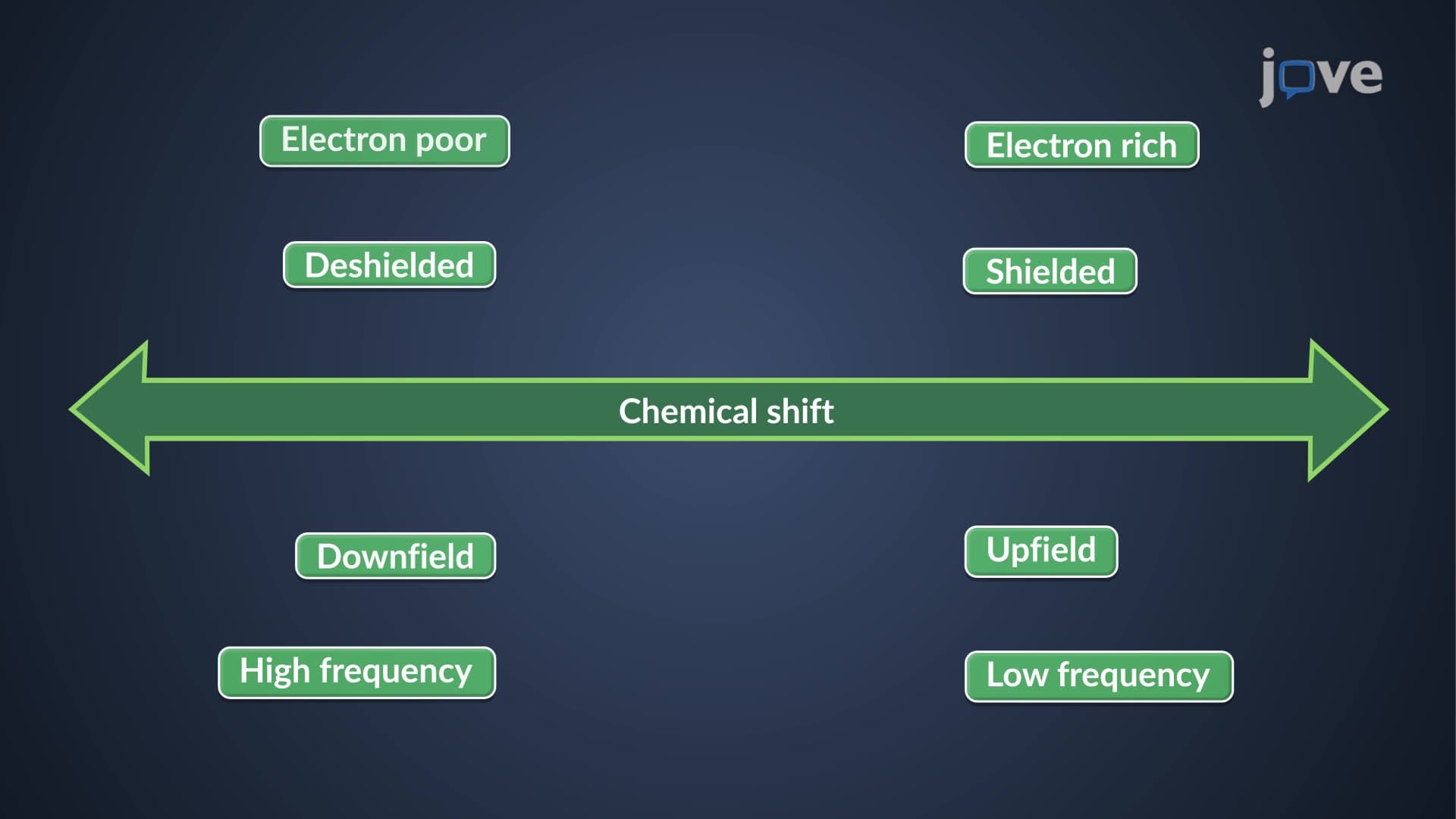

The position of the absorption signal of a sample is reported relative to the position of the signal of tetramethylsilane (TMS), which is added as an internal reference while recording spectra. The difference between the absorption frequencies of the sample and TMS (in Hz) is divided by the spectrometer operating frequency (in MHz) to obtain a dimensionless quantity called the chemical shift. It is reported on the δ (delta) scale and expressed in parts per million.
